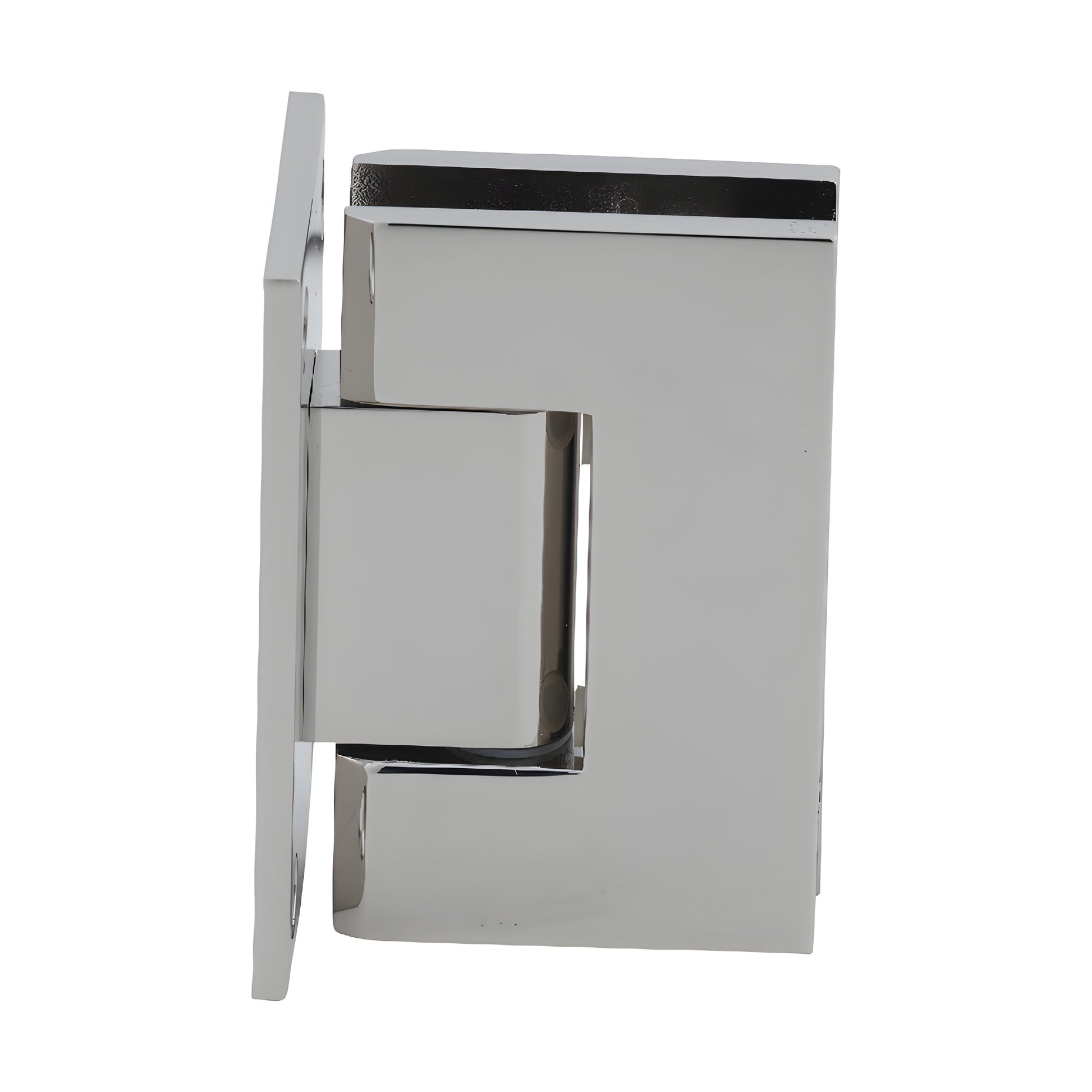

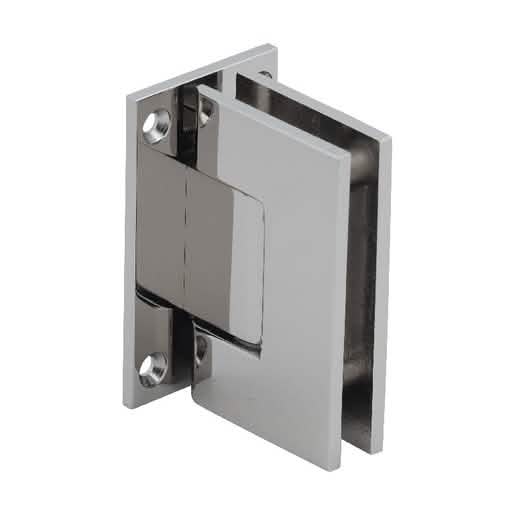

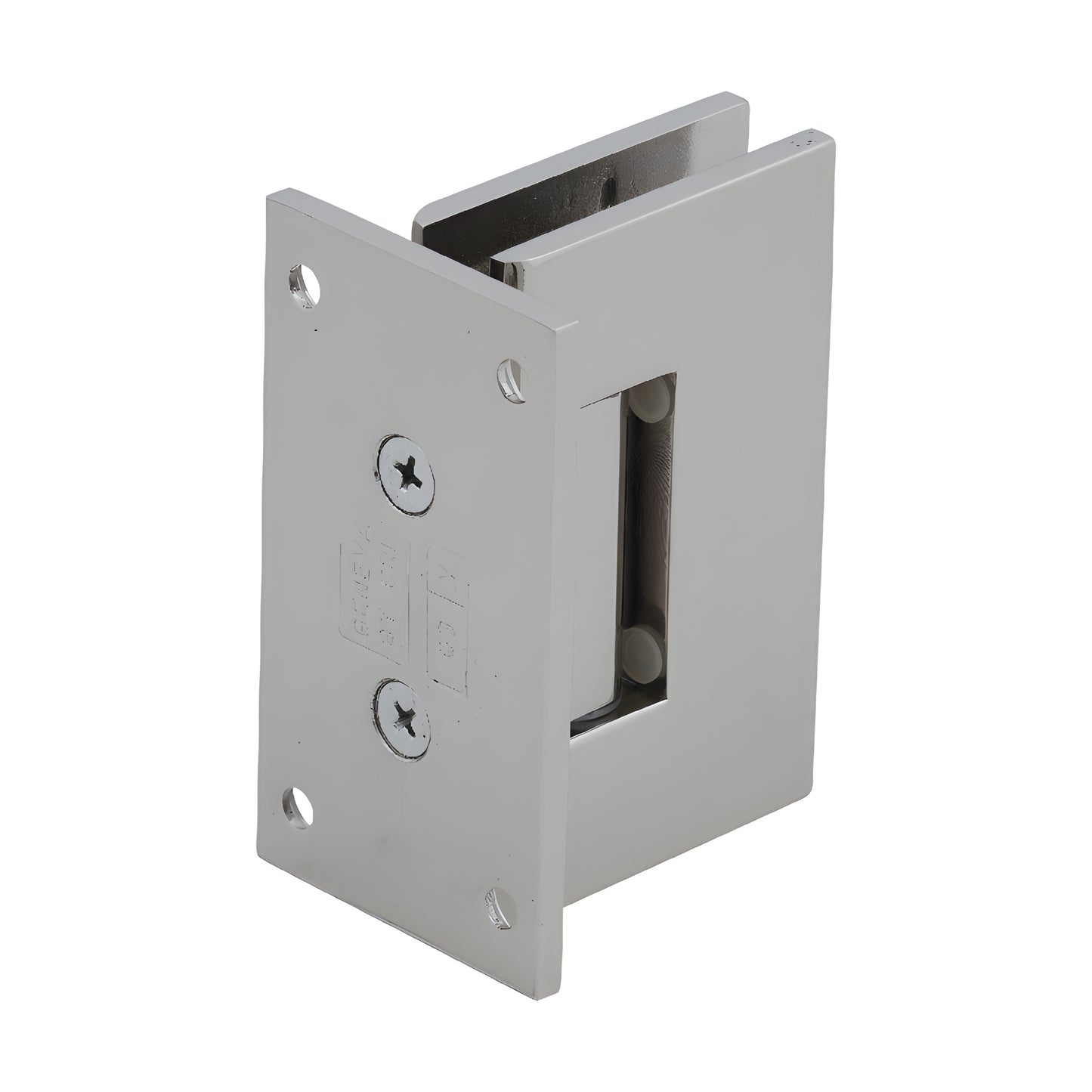

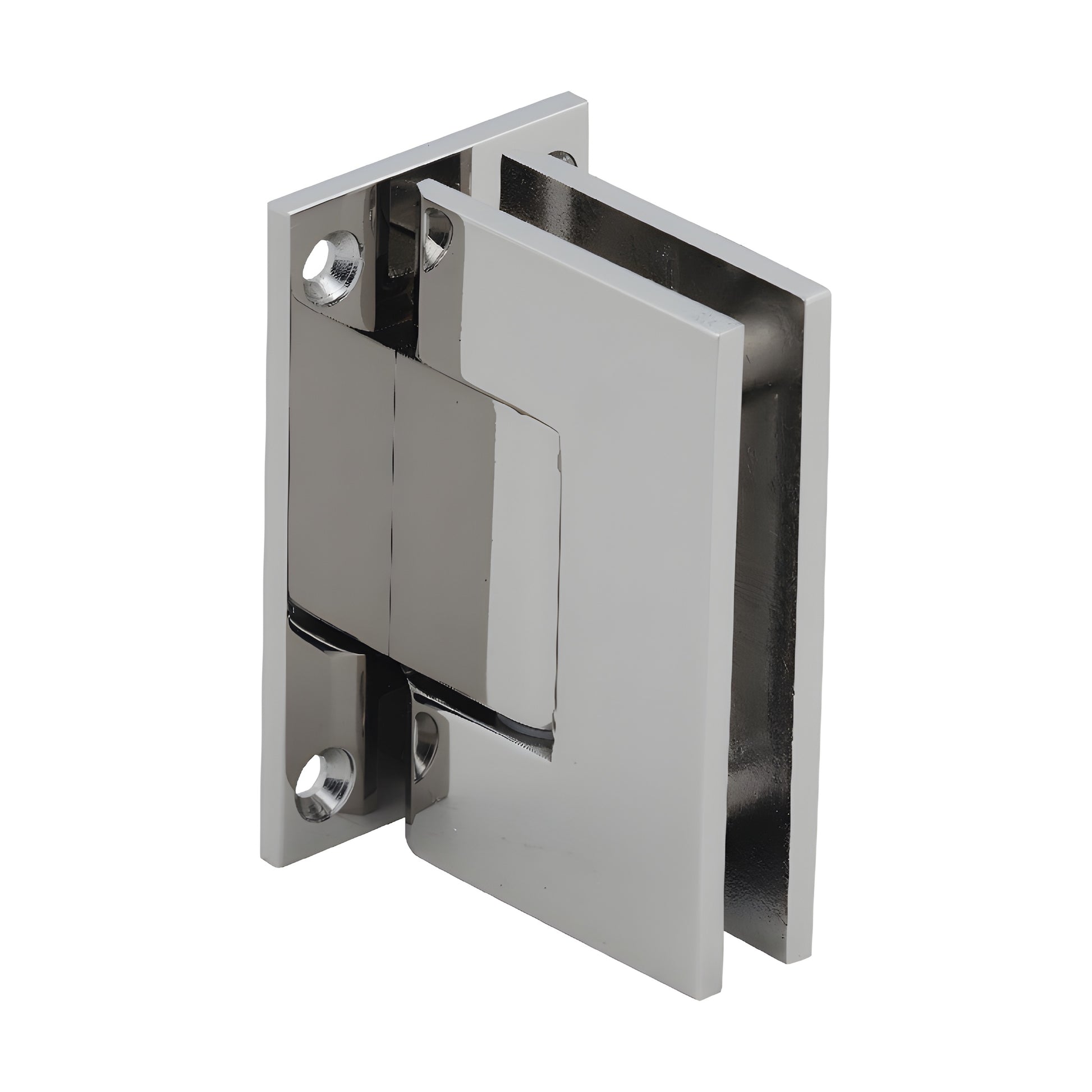

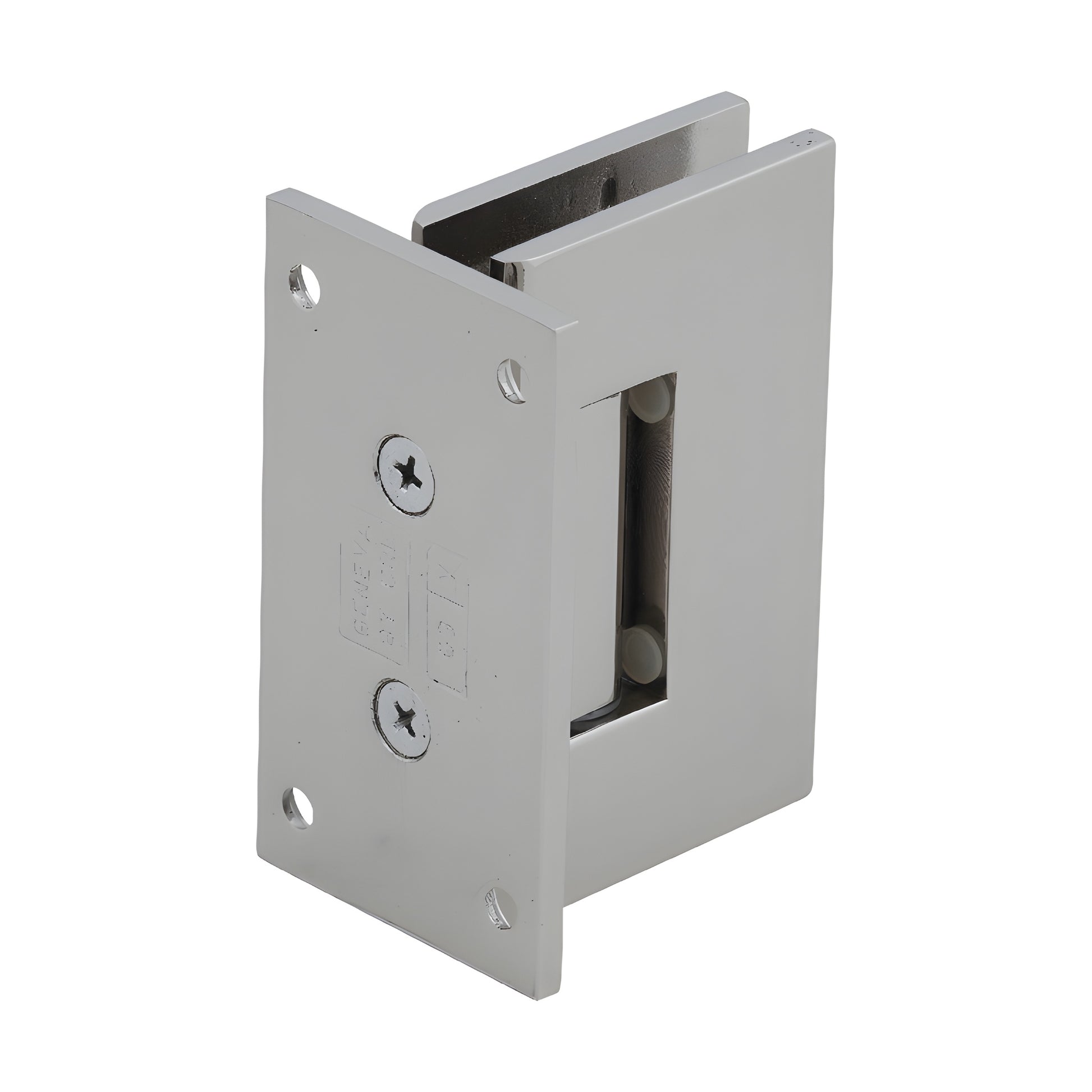

CRL Geneva 037 Polished Nickel Wall-Mount Glass Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Uses Monolithic Tempered Safety Glass (5/16"–1/2" / 8–12 mm)
• Available in several beautiful finishes; custom finishes on request
• Wall-mount full back plate standard model (factory set for standard closing)
• Three-year warranty

The CRL Geneva Series professional hinges (SKU: GEN037PN) are engineered for glass shower doors and frameless enclosures, accommodating 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles—three Wall Mount and three Glass-to-Glass—provide design flexibility. Key differentiators include a reversible 5 degree pivot pin for tighter closure, optional custom pivot pins for off-angle installations, and solid brass construction with stainless steel pins and springs for corrosion resistance in wet environments.

Standard Reversible Pivot Pin: Each Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship with the 90° side active; offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to change the active angle.

Custom Pivot Pin (Cat. No. GENP1N): Custom pivot pins are available up to 45° for off-angle or specialty enclosures. Specifying a custom pin may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

Using two hinges with 5/16"–1/2" (8–12 mm) glass, each hinge will support up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges, capacity increases to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model (0° factory set) or 5° pre-set model for tighter closure into shower interior
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes are available on request—contact the Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for
