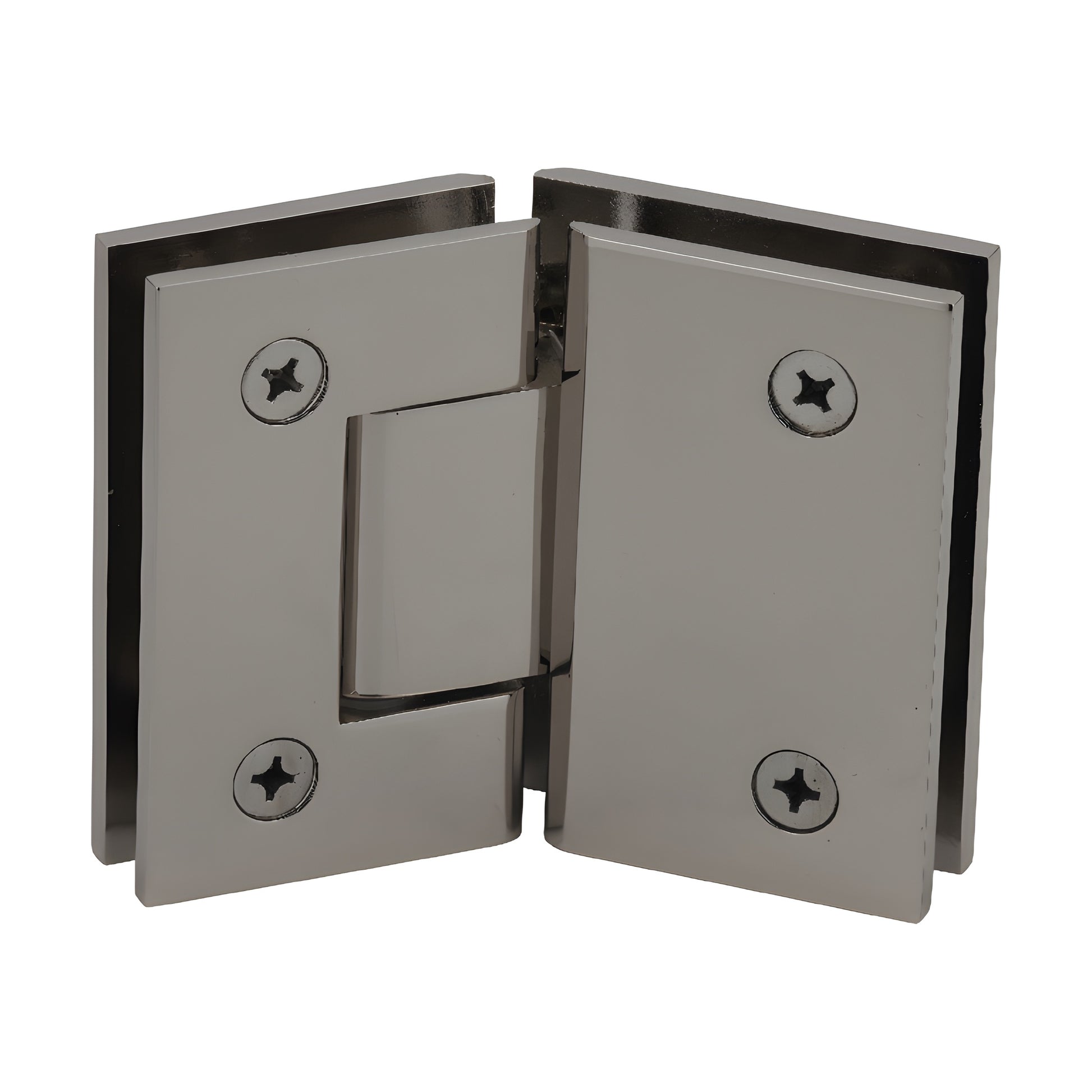

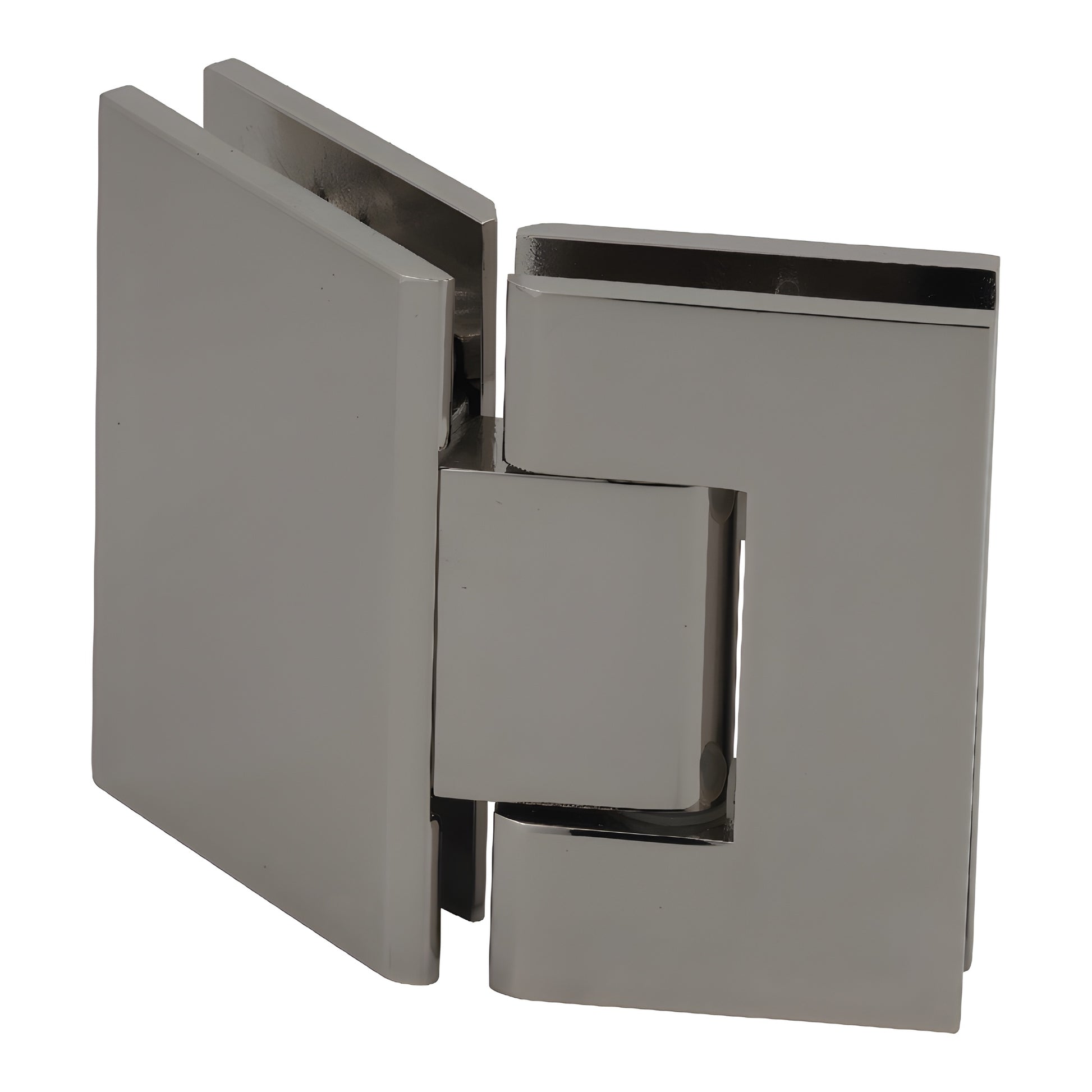

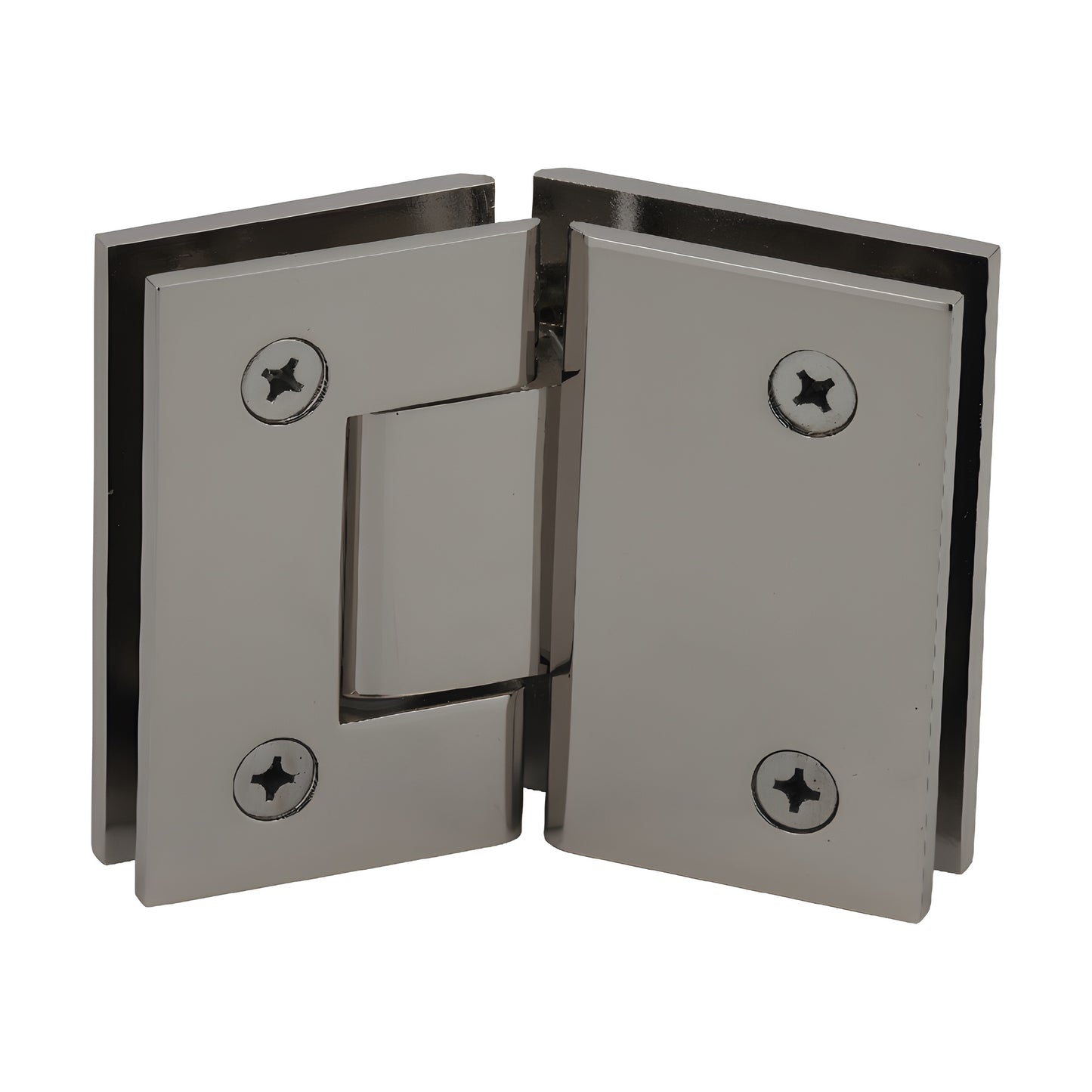

CRL Geneva 045 135° Polished Nickel Frameless Glass-to-Glass Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty
• 135° glass-to-glass standard model (factory set for standard closing position)
• Designed for monolithic tempered glass

The CRL Geneva Series professional hinges (SKU: GEN045PN) accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles provide design flexibility—three Wall Mount and three Glass-to-Glass types—making these brass shower door hinges ideal for frameless glass shower enclosures and custom glass partitions. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are also available for off-angle installations. All moving parts (pins and springs) are stainless steel; bodies are solid brass.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; offset models ship pre-set to 85° for a tighter closure into the shower interior. To change, rotate the pin (do not flip).

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be specified up to 45° for off-angle doors. Using a custom pin may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for guidance.

Using two hinges with 8–12 mm glass holds up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges holds up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° factory closing) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 8 mm glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain
