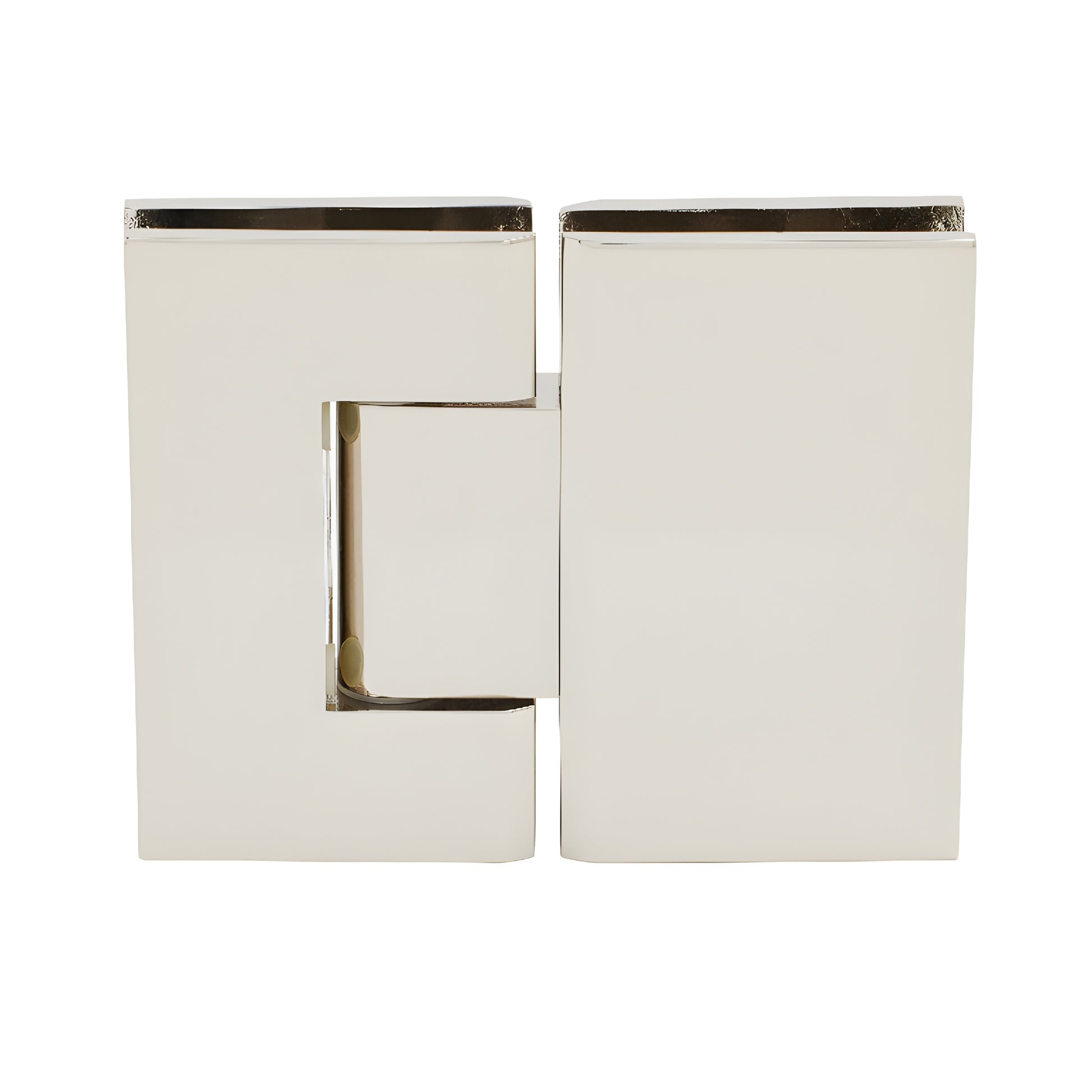

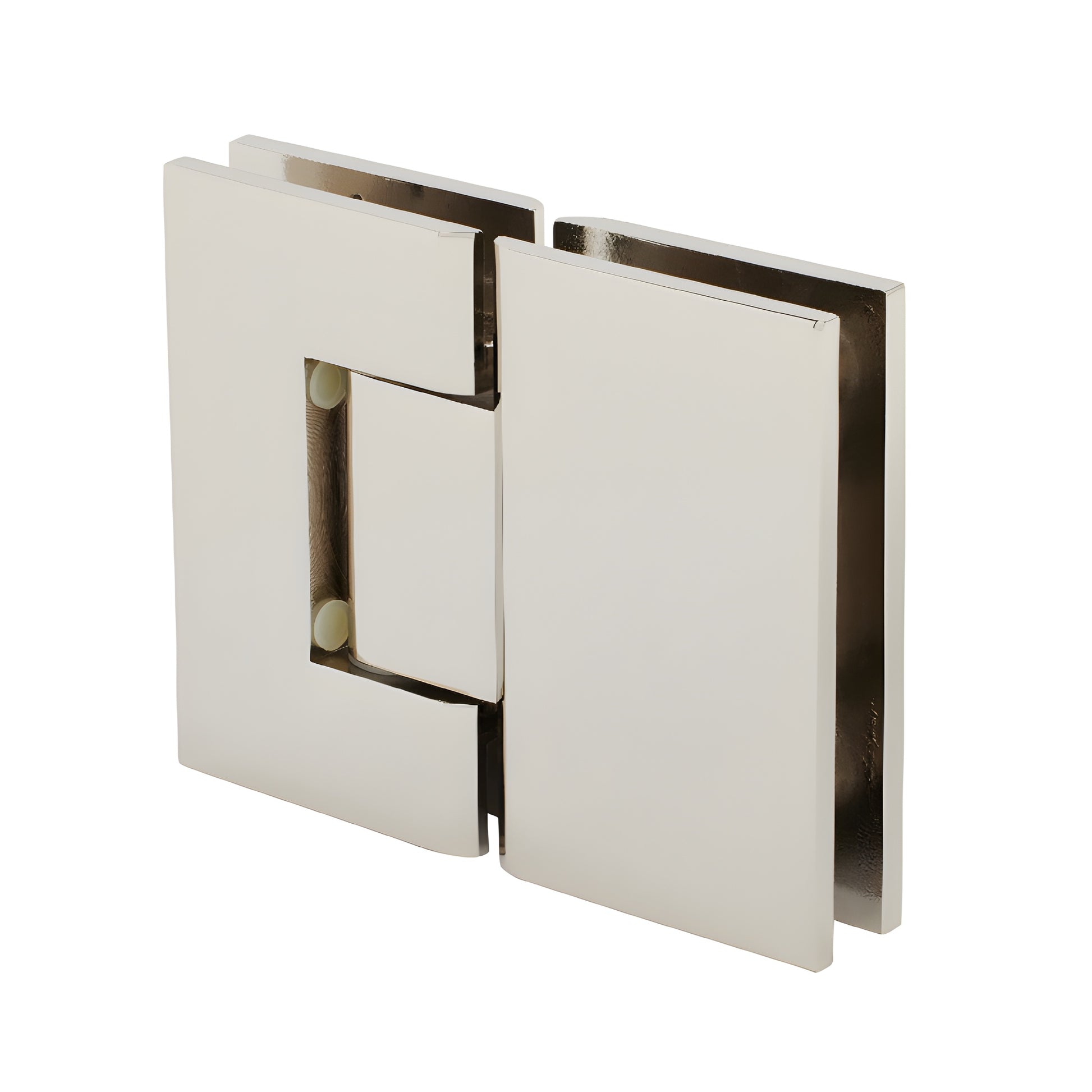

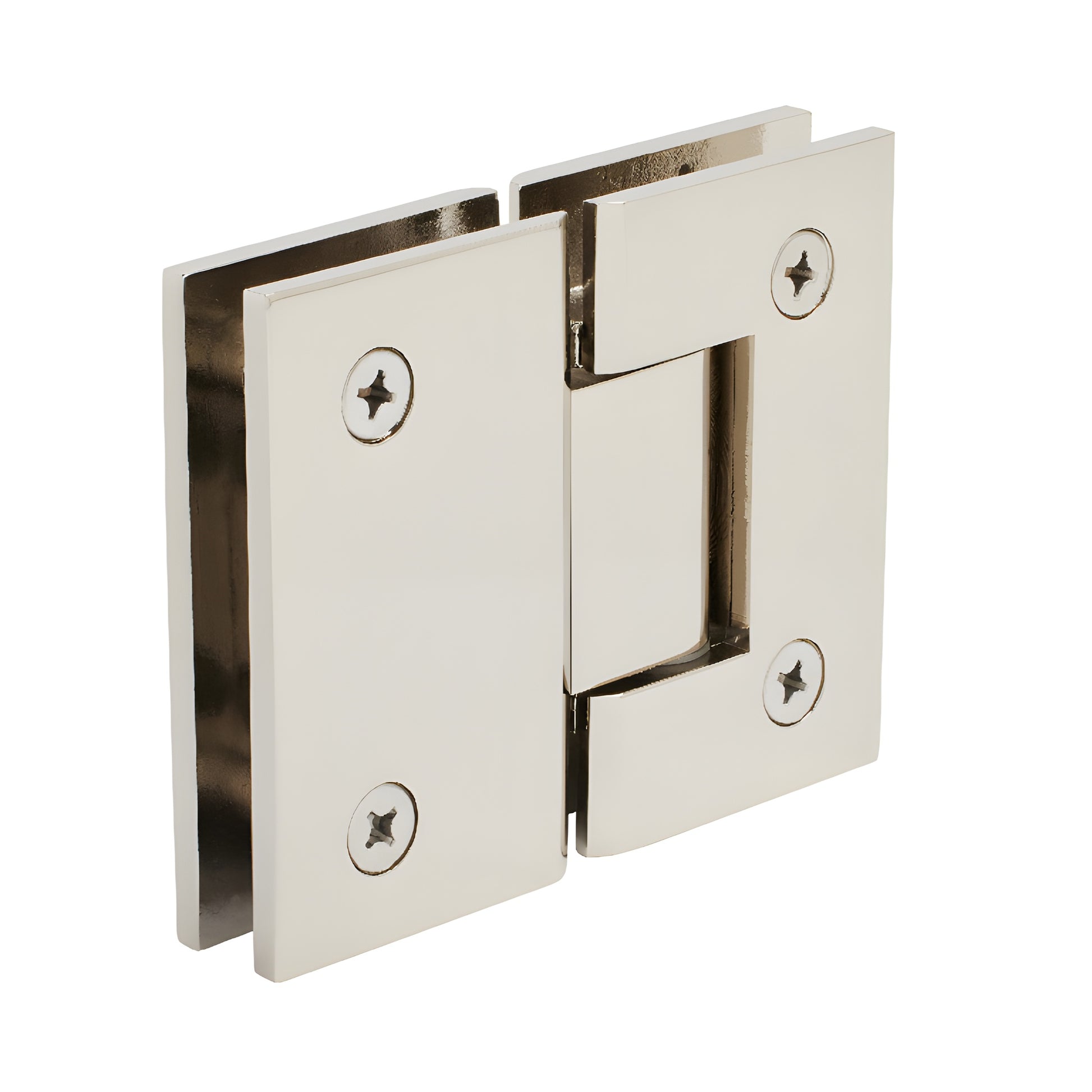

CRL Polished Nickel Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge

5 Degree Pre-Set

No

Adjustable

No

Edge Profile

Square

Finish/Color

Polished Nickel

Glass To Glass Angle

180

Glazing Thickness

5/16 in. To 1/2 in. (8 mm To 12 mm)

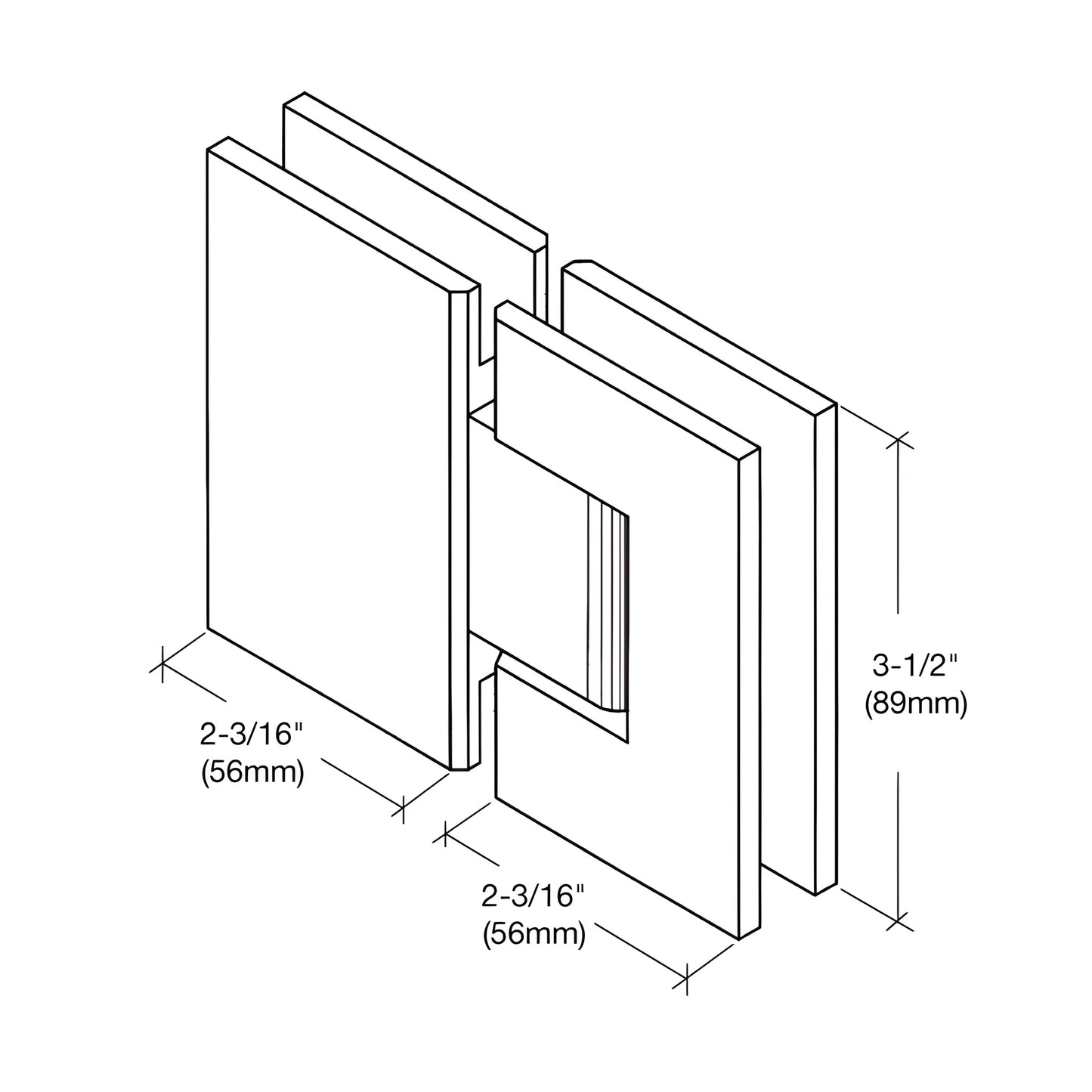

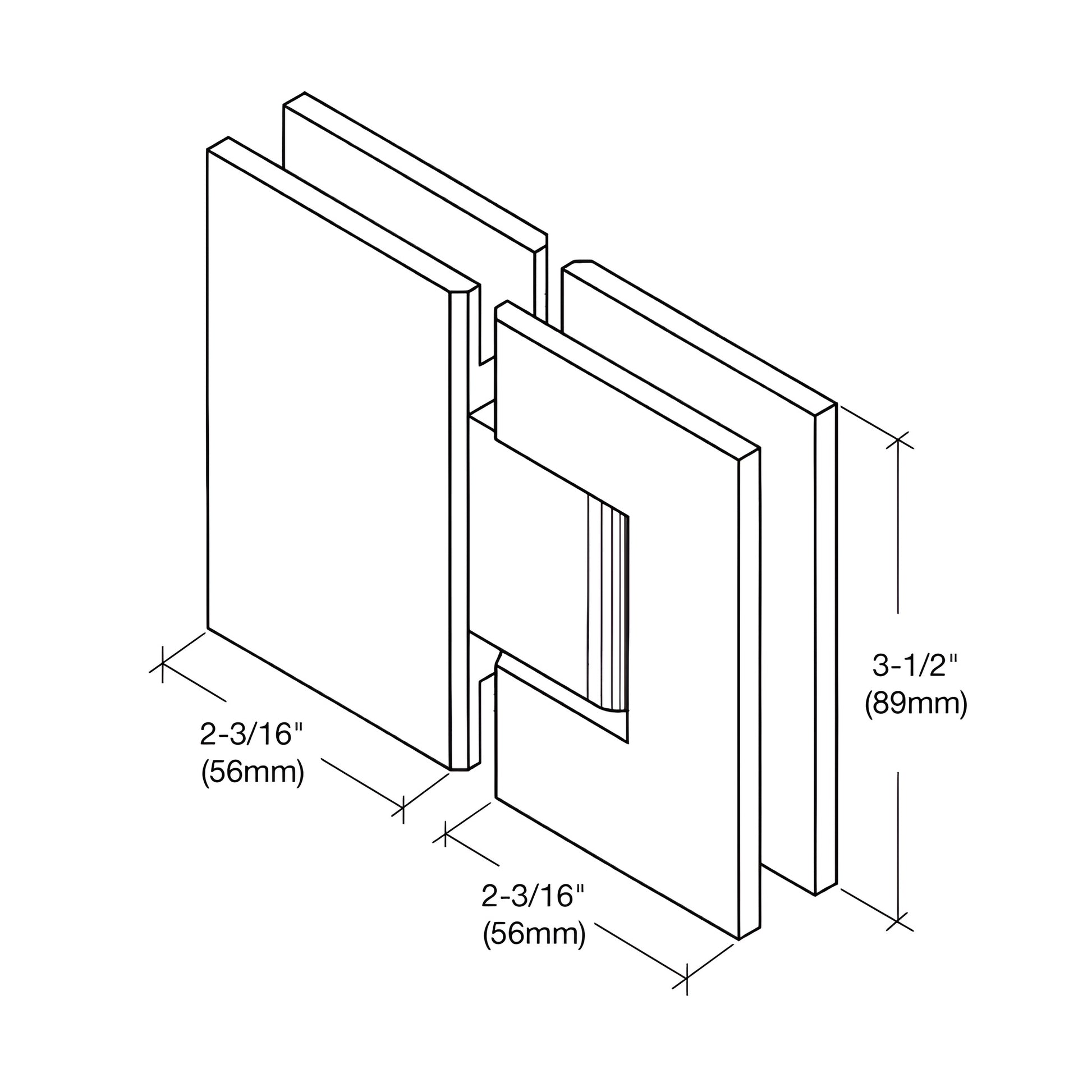

Height

3-1/2 in. (89 mm)

Material

Brass

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32

Mounting Type

Glass To Glass

Self-Centering

Yes

Series

Geneva

Width - Door Portion

2-3/16 in. (56 mm)

Width - Sidelite Portion

2-3/16

CRL Geneva 180° Glass-to-Glass Hinge in polished nickel offers sleek design, premium functionality, and exceptional durability for frameless shower doors. Featuring a self-centering mechanism with a reversible 5-degree pivot pin, these hinges ensure precise door alignment and reliable operation. Available in several elegant finishes, they complement any bathroom décor.

Designed specifically for use with 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, CRL Geneva Hinges provide robust support and design flexibility, accommodating both standard and custom shower installations. Each hinge is crafted from solid brass, with stainless steel pins and springs ensuring lasting performance.

The reversible pivot pin offers dual-angle functionality—factory-set at the standard 90-degree position, easily adjustable to an 85-degree setting for a tighter closure into the shower interior. Custom pivot pins (GENP1N) are also available for specialized "off-angle" installations, accommodating angles up to 45 degrees. Contact our Technical Sales Shower Door Department for custom solutions.

Performance Ratings:

• Two hinges support doors up to 80 lbs (36 kg) and 28" (711 mm) wide.
• Three hinges support doors up to 120 lbs (54 kg) and 32" (813 mm) wide.

Specifications:

• Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Monolithic Tempered Glass
• Swing: 90 degrees inward and outward
• Includes: Gaskets, screws, and glass fabrication dimensions (GEN13 Gasket Pack required separately for 5/16" (8 mm) glass)
• Warranty: Three-Year Manufacturer’s Warranty

Note:
CRL Geneva hinges are designed specifically for residential and hospitality shower applications. Approval must be obtained from CRL Technical Sales Department for alternative uses. Always use the included hinge template; dimensions may differ from other brands. Custom finishes available upon request.

Disclaimer:
Product images accurately represent the item, though colors may vary due to individual monitor settings. Shipping weights are approximate; contact CRL Customer Service if precise weights are required for shipping purposes.
