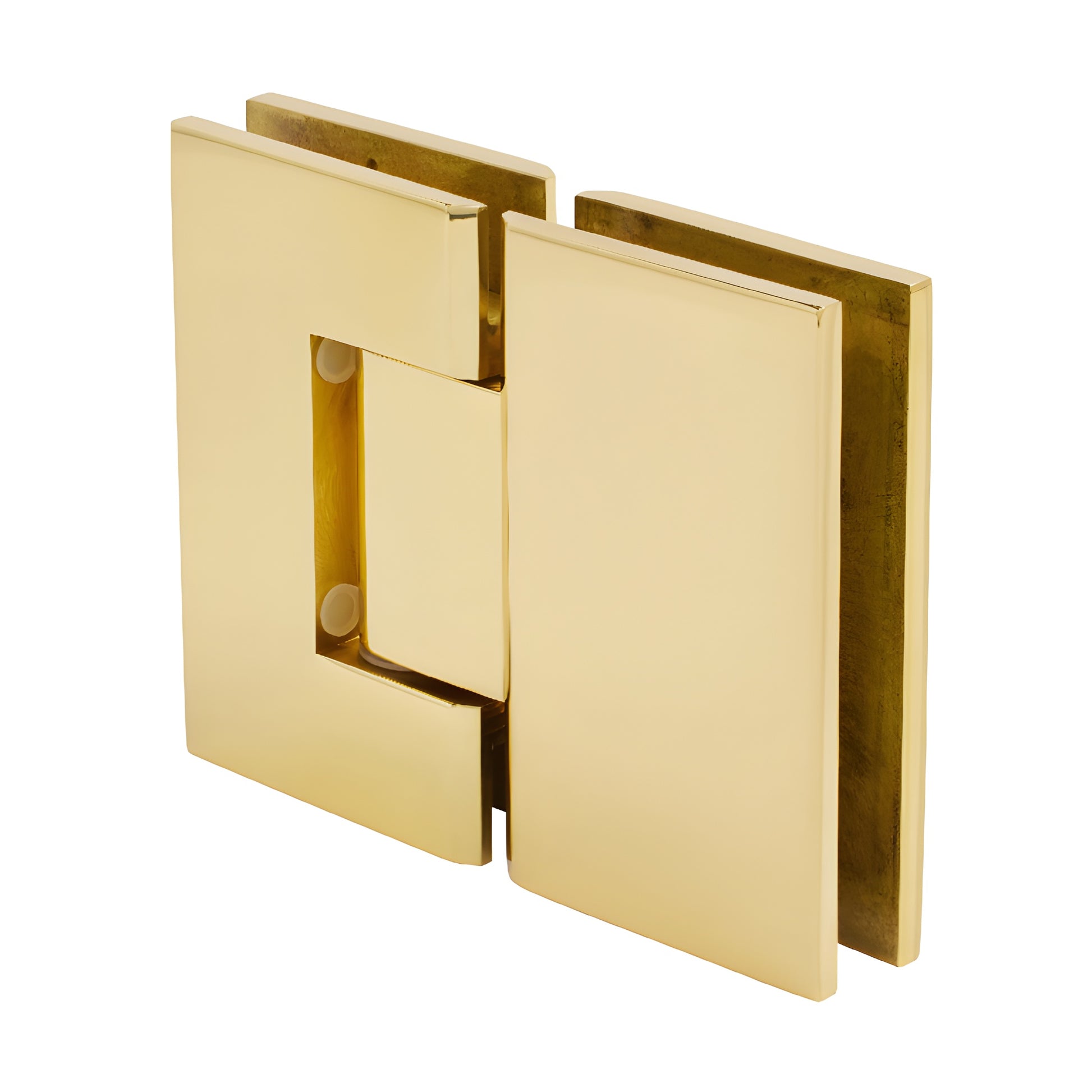

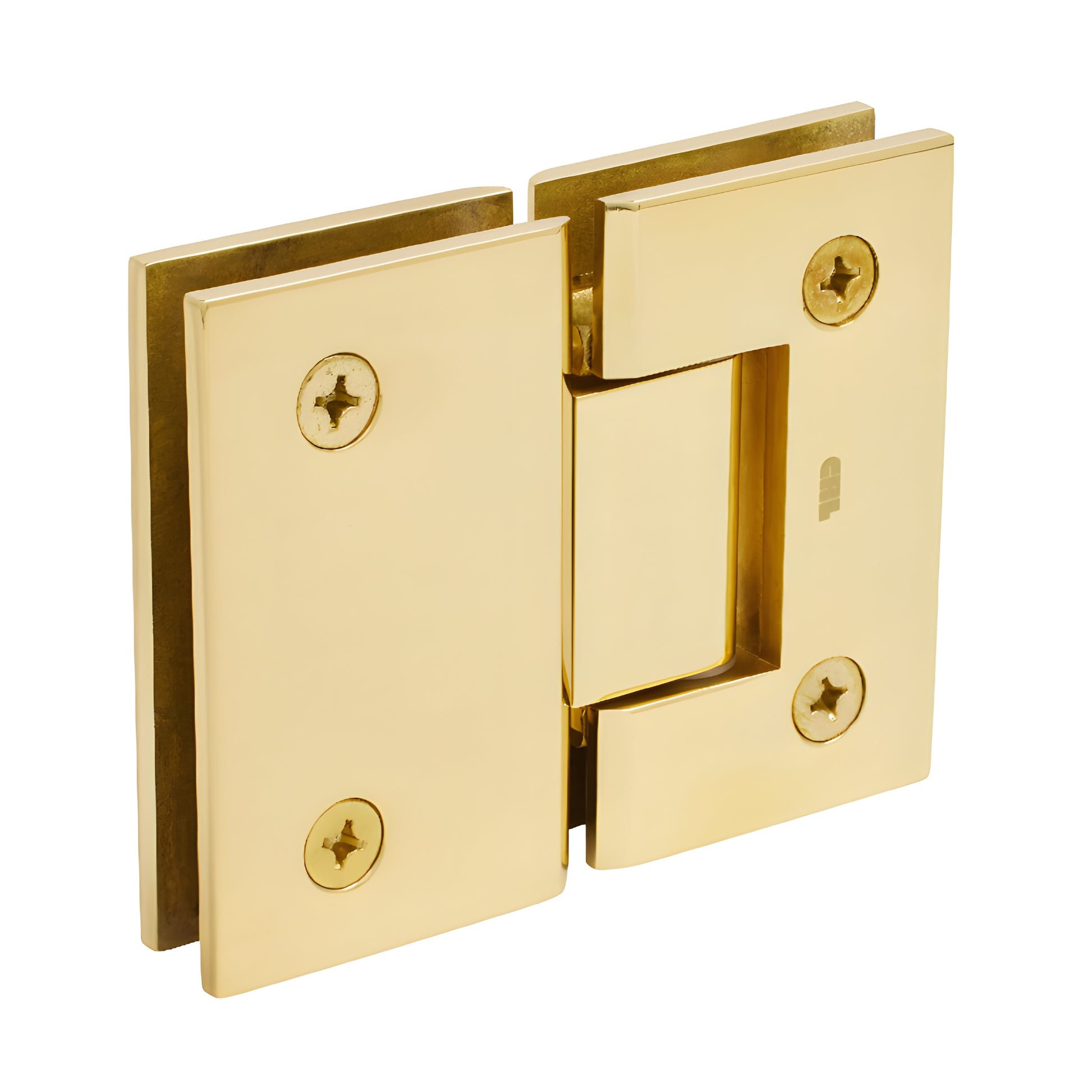

CRL Geneva 180° Polished Brass Glass-to-Glass Shower Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple decorative finishes
• Three-year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass (tempered safety glass)

SKU: GEN180BR

The CRL Geneva Series professional hinge fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is available in six styles (three Wall Mount, three Glass-to-Glass) for maximum design flexibility. Geneva Hinges are self-centering, use a reversible 5° pivot pin, and include stainless steel pins and springs. Constructed of solid brass, they offer durable performance and a premium look. Custom pivot pins (up to 45°) are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with one side marked 90° (factory-activated) and the opposite marked 85° for a 5° tighter closure into the shower interior. The pin can be rotated to switch between settings.

Weight & door width capacity:

Using two hinges with 8–12 mm glass: holds up to 80 lb (36 kg), max door width 28" (711 mm).

Using three hinges with 8–12 mm glass: holds up to 120 lb (54 kg), max door width 32" (813 mm).

Custom Pivot Pin (Cat. No. GENP1N): Specify custom angle (up to 45°) if the 5° reversible pin does not meet the desired closing position. Contact Technical Sales Shower Door Department for glass sizing and aesthetic impact when using a custom pin.

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Choice of Standard model (0° factory closing) or 5° pre-set model for tighter closure into shower interior

Construction: Solid brass with stainless steel moving parts

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Requirements: Includes gaskets, screws, and
