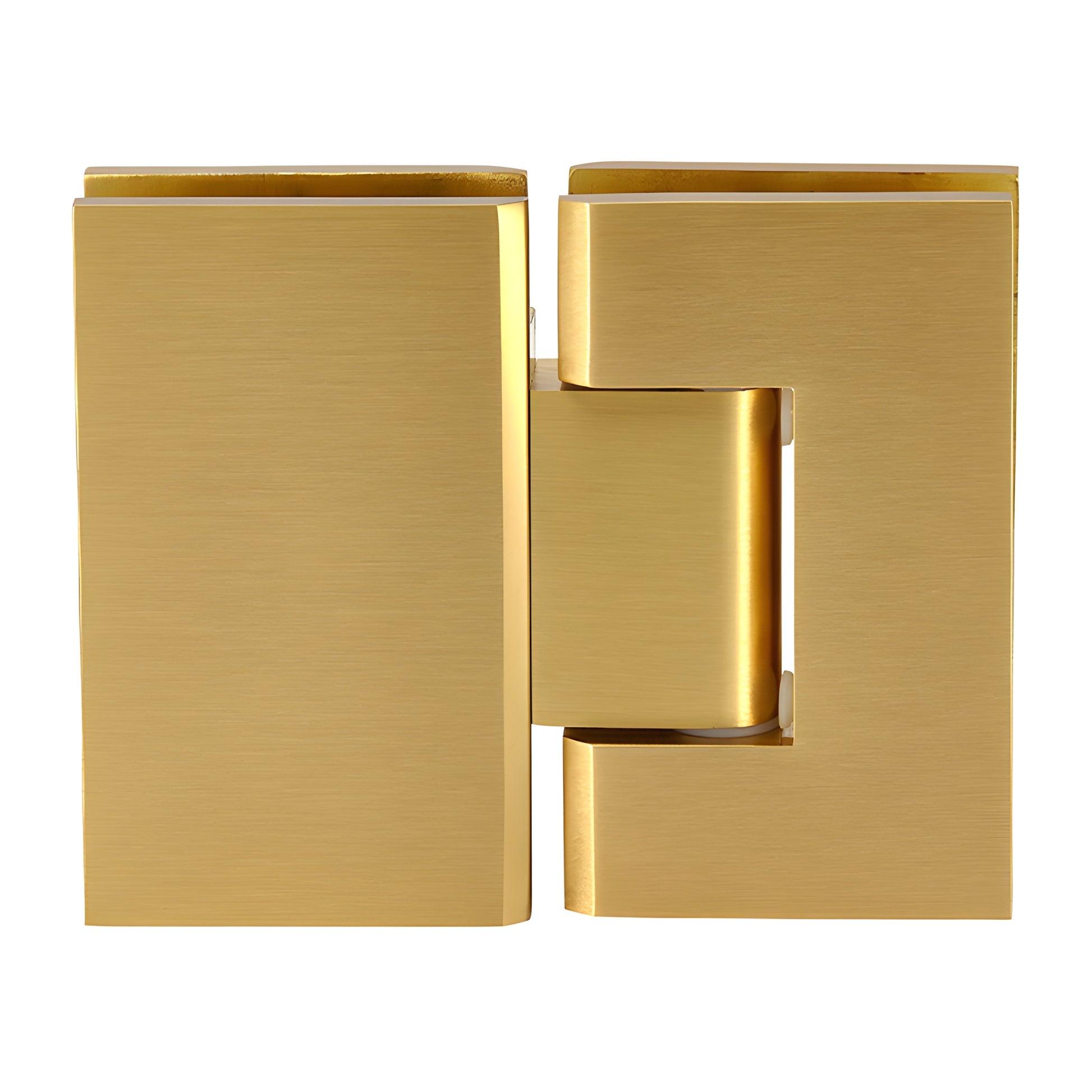

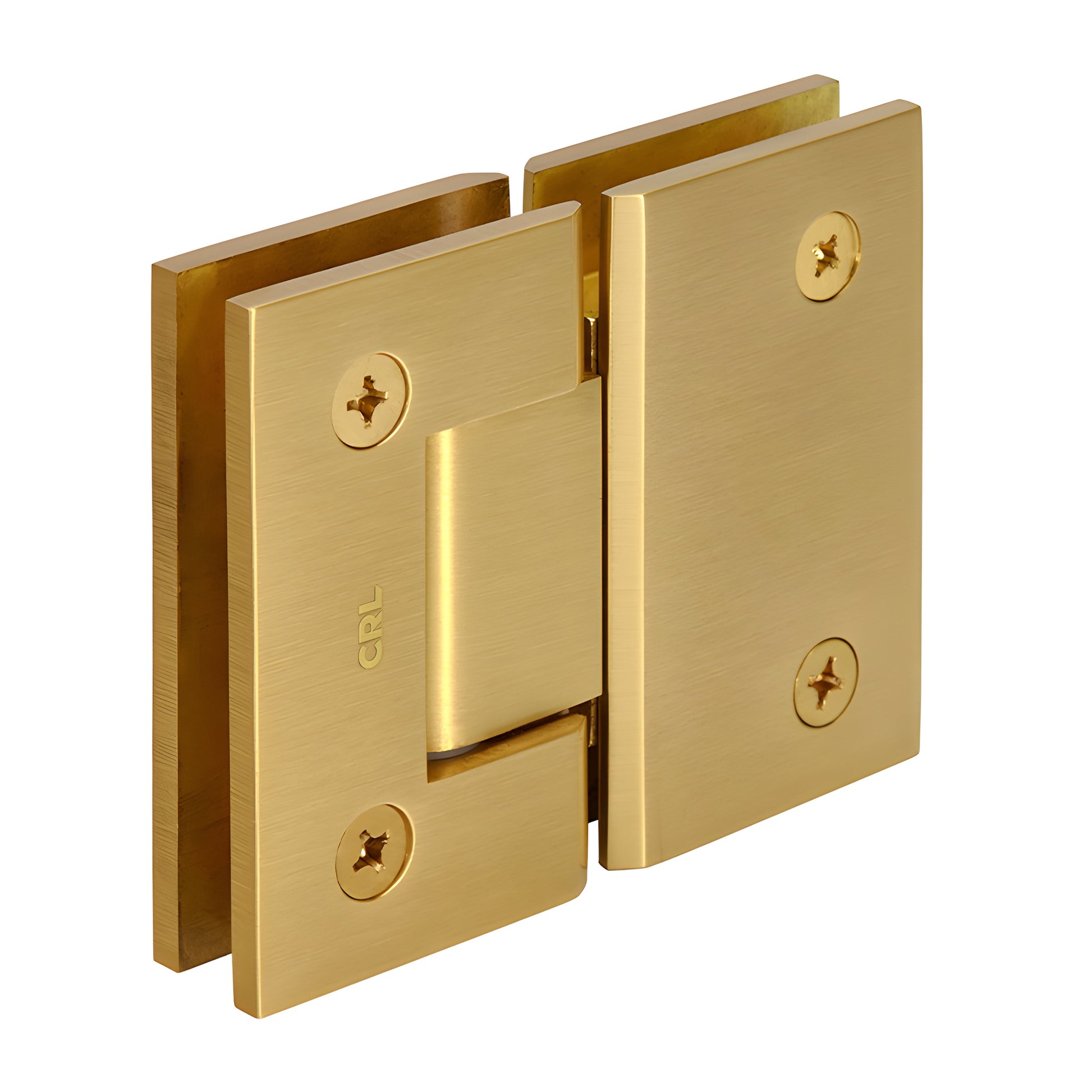

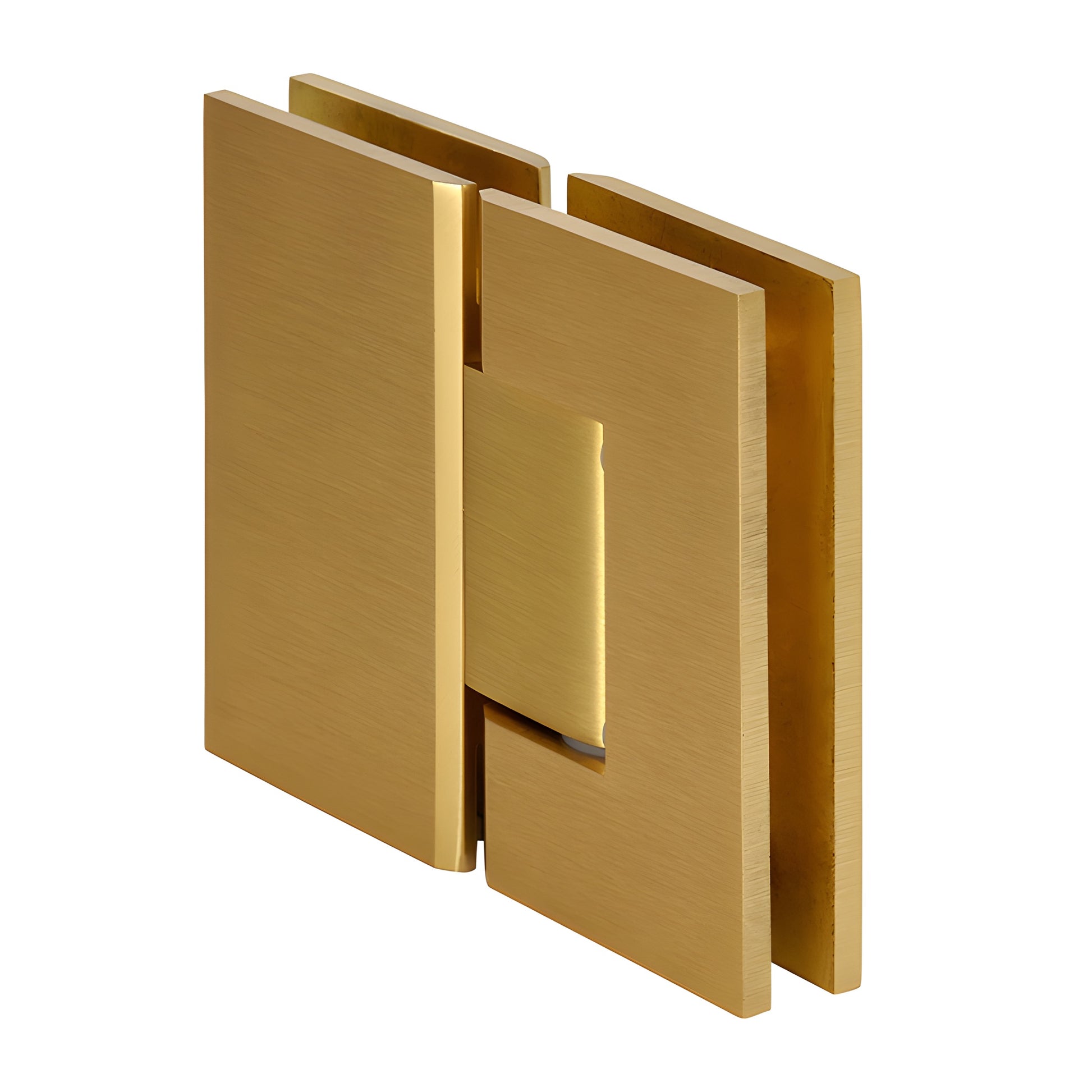

CRL Satin Brass Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge

5 Degree Pre-Set

No

Adjustable

No

Edge Profile

Square

Finish/Color

Satin Brass

Glass To Glass Angle

180

Glazing Thickness

5/16 in. To 1/2 in. (8 mm To 12 mm)

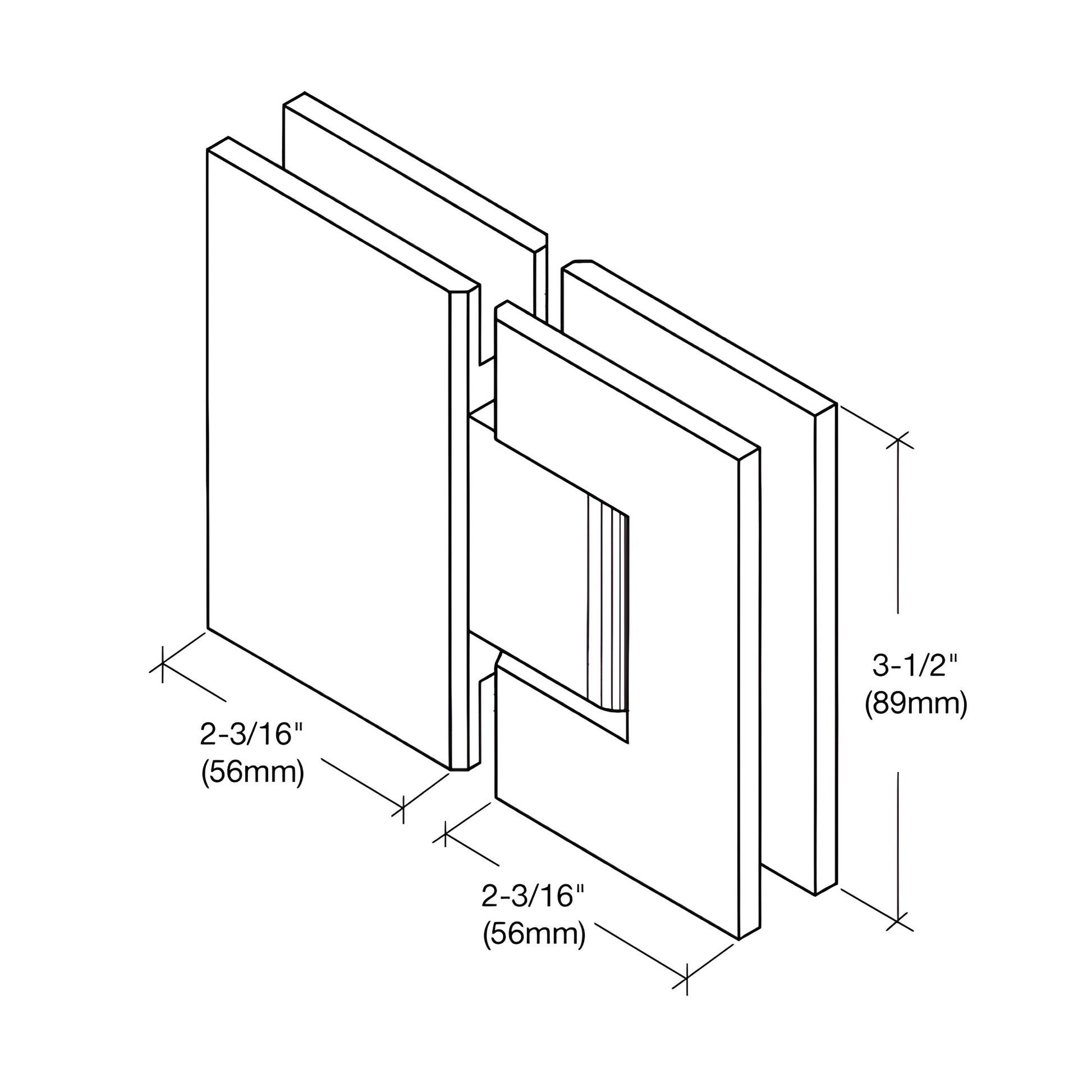

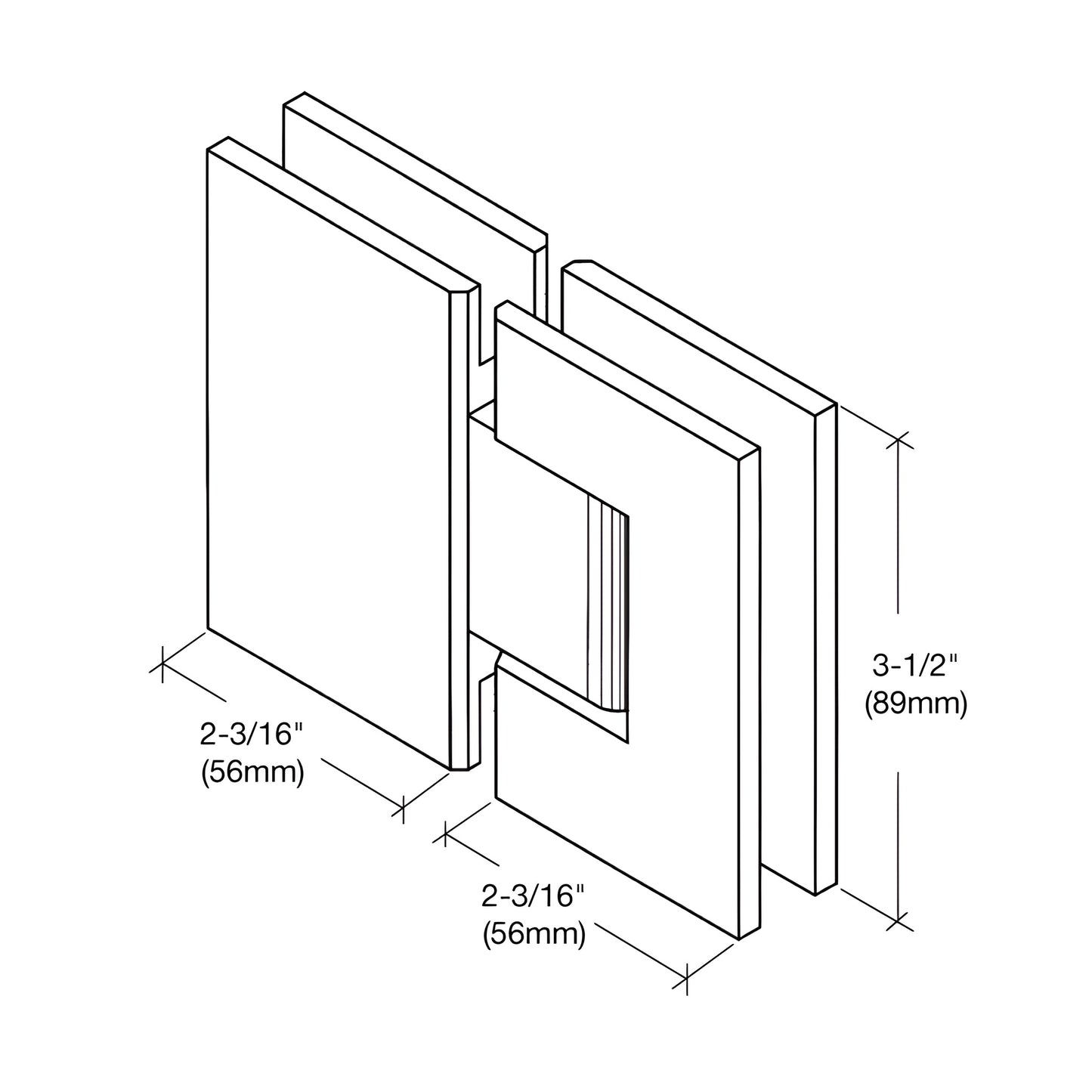

Height

3-1/2 in. (89 mm)

Material

Brass

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32

Mounting Type

Glass To Glass

Self-Centering

Yes

Series

Geneva

Width - Door Portion

2-3/16 in. (56 mm)

Width - Sidelite Portion

2-3/16

CRL Geneva 180° Satin Brass Glass-to-Glass Shower Door Hinge

Enhance your frameless shower enclosures with the premium CRL Geneva 180° Glass-to-Glass Shower Door Hinge in a sleek satin brass finish. Designed for modern bathrooms, this high-quality hinge offers a stylish and durable solution for glass shower doors.

Key Features:

• Self-Centering Action: Equipped with a reversible 5-degree pivot pin for versatile installation options, ensuring smooth and secure door closure.
• Elegant Finishes: Available in a variety of beautiful finishes to match any bathroom decor, including the trending satin brass.
• Durable Construction: Crafted from solid brass with stainless steel pins and springs for superior strength and longevity.
• Glass Compatibility: Supports 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, perfect for custom frameless shower installations.
• Factory Set Closing Options: Standard model preset at 0° closing position, with the option of a 5° tighter closure into the shower interior for enhanced sealing.
• Weight Capacity:

Custom Pivot Pin Options:
For unique installations, Custom Pivot Pins (Cat. No. GENP1N) are available, accommodating angles up to 45 degrees. Contact our Technical Sales Shower Door Department for custom requirements.

Specifications:

• Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass.
• Hinge Swings: 90° inward and 90° outward.
• Closing Mechanism: Self-centering when within 15° of the closed position.
• Includes: Gaskets, screws, and glass fabrication dimensions (GEN13 gasket pack required for 5/16" (8 mm) glass, sold separately).

Important Notices:

• CRL Geneva Hinges are designed for residential or hotel shower enclosures. For other applications, consult the CRL Shower Door Technical Sales Department.
• Always use the provided template for glass cut-outs. Dimensions may differ from other brands.
• Shipping weights are approximate; confirm exact weight if needed.
• Product images represent the actual product or a close likeness. Colors may vary based on monitor settings.

Brass Finish Care Advisory:
Brass finishes are subject to oxidation, which can cause a natural patina or tarnished appearance over time. Refer to the Brass Finish Disclaimer in our Technical References section for care instructions.

Optimize your frameless shower door with the CRL Geneva 180° Satin Brass Glass-to-Glass Shower Door Hinge — the perfect blend of elegance, functionality, and durability for today's modern bathrooms.
