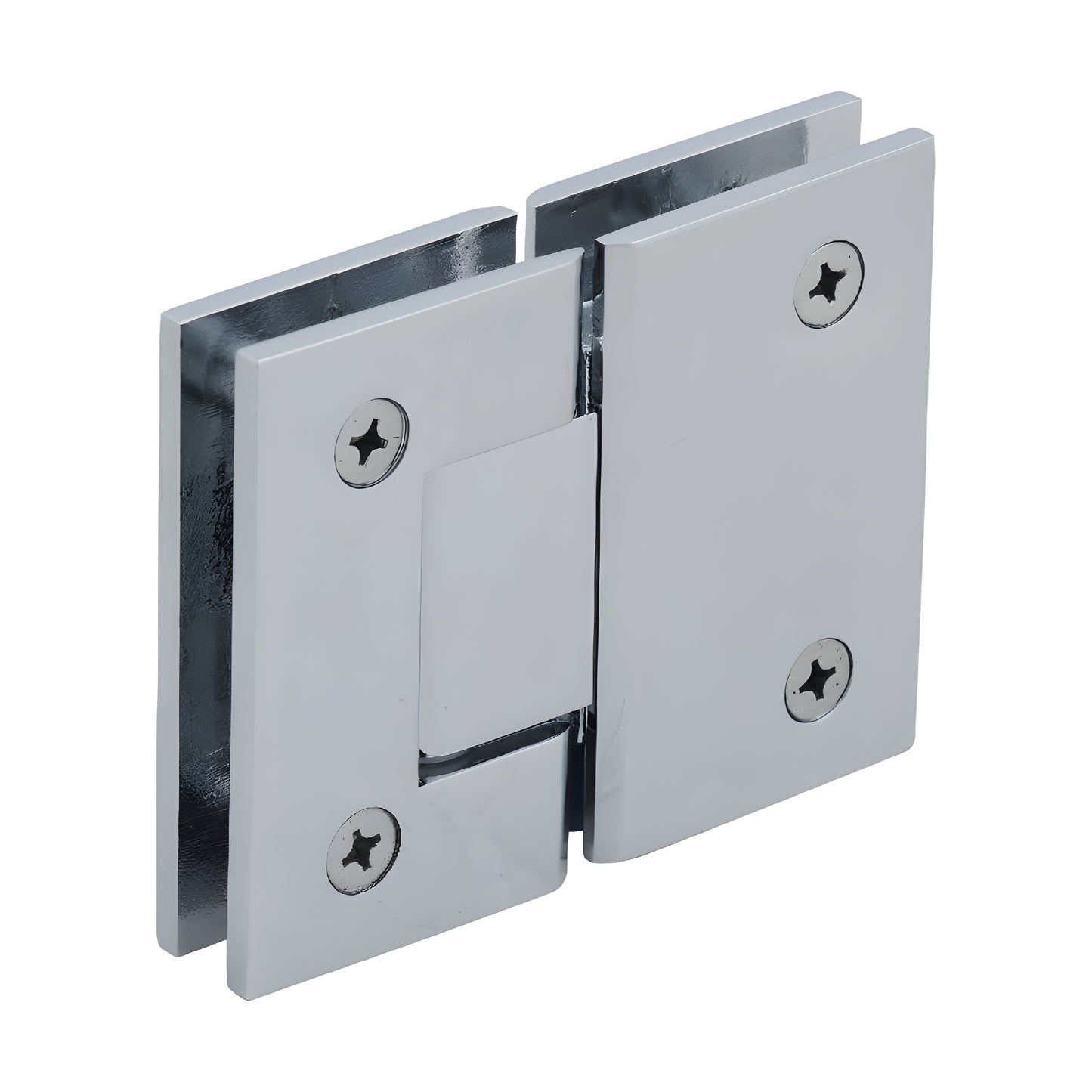

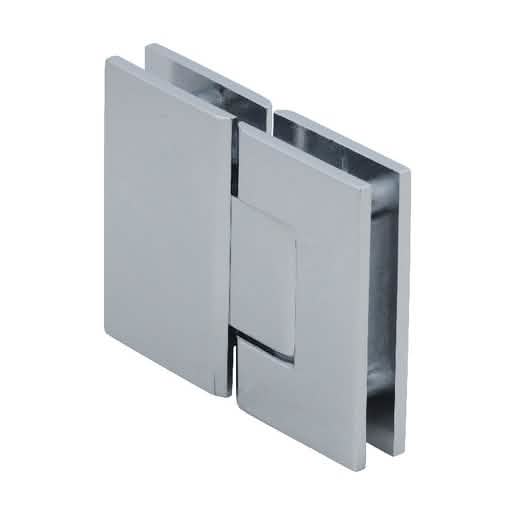

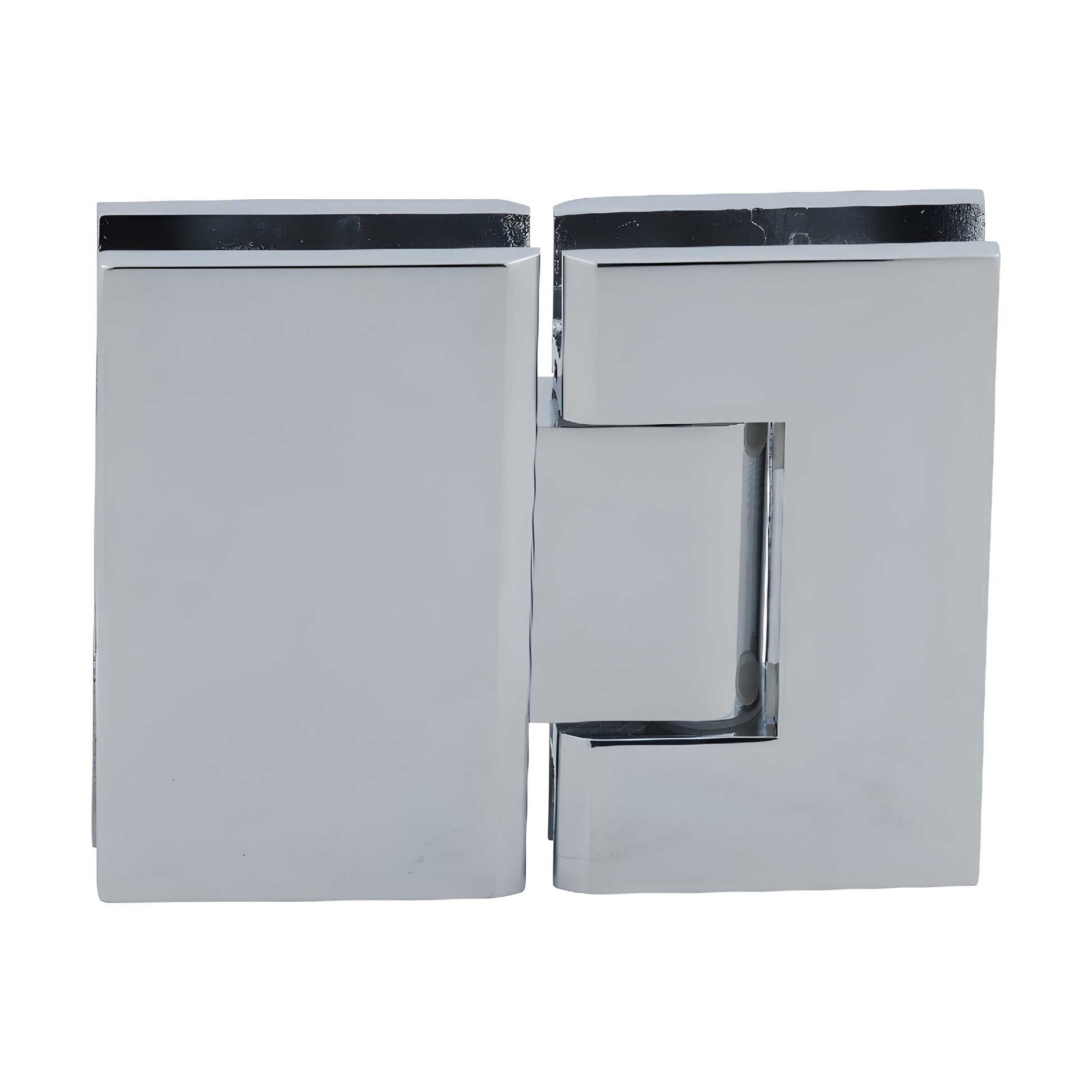

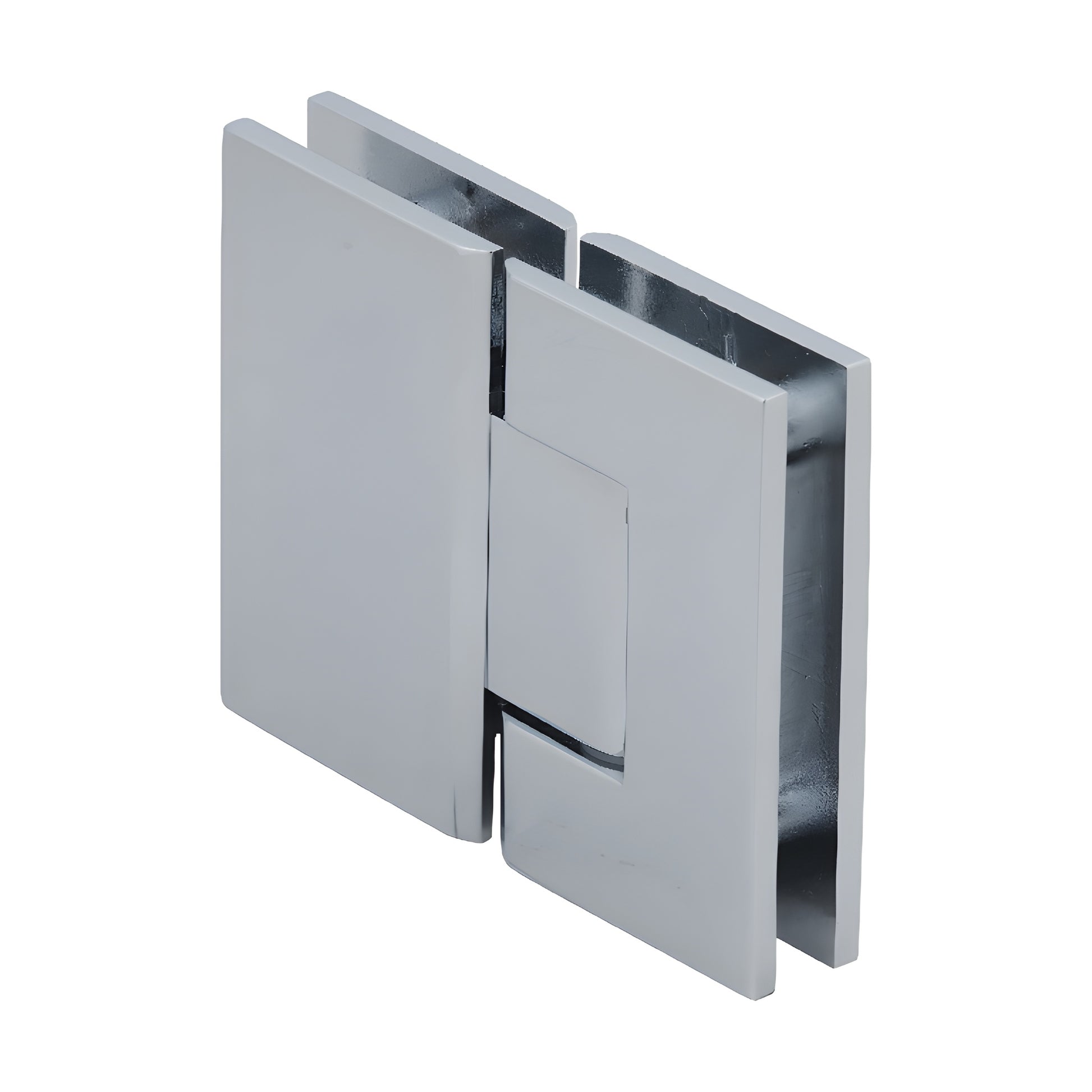

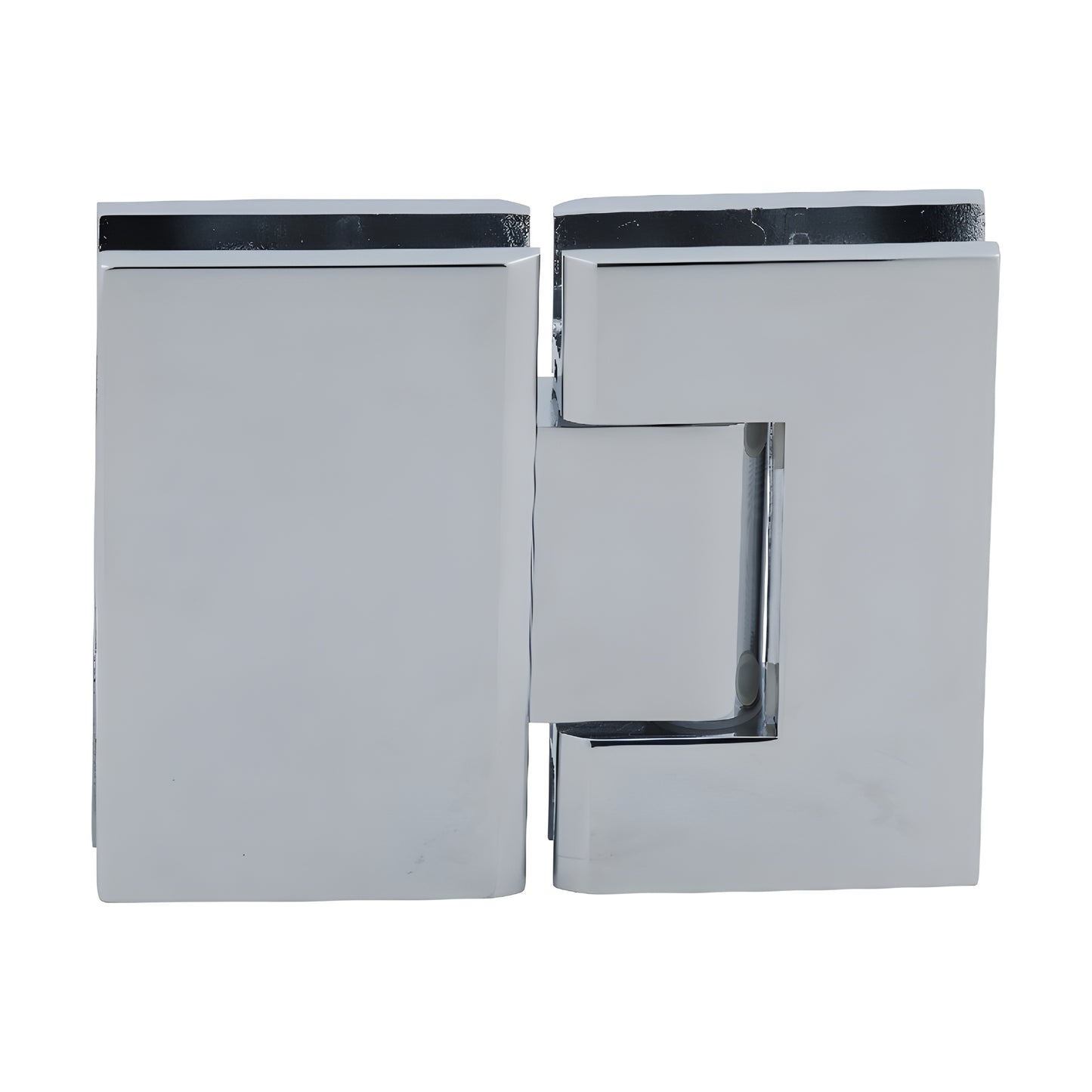

CRL Polished Chrome Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge
CRL Polished Chrome Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge
Regular price
$91.59 CAD
Regular price
Sale price
$91.59 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GEN180CH
Shipping Weight: 2.54 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.54 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | No |
| Edge | Profile Square |
| Finish/Color | Polished Chrome |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |

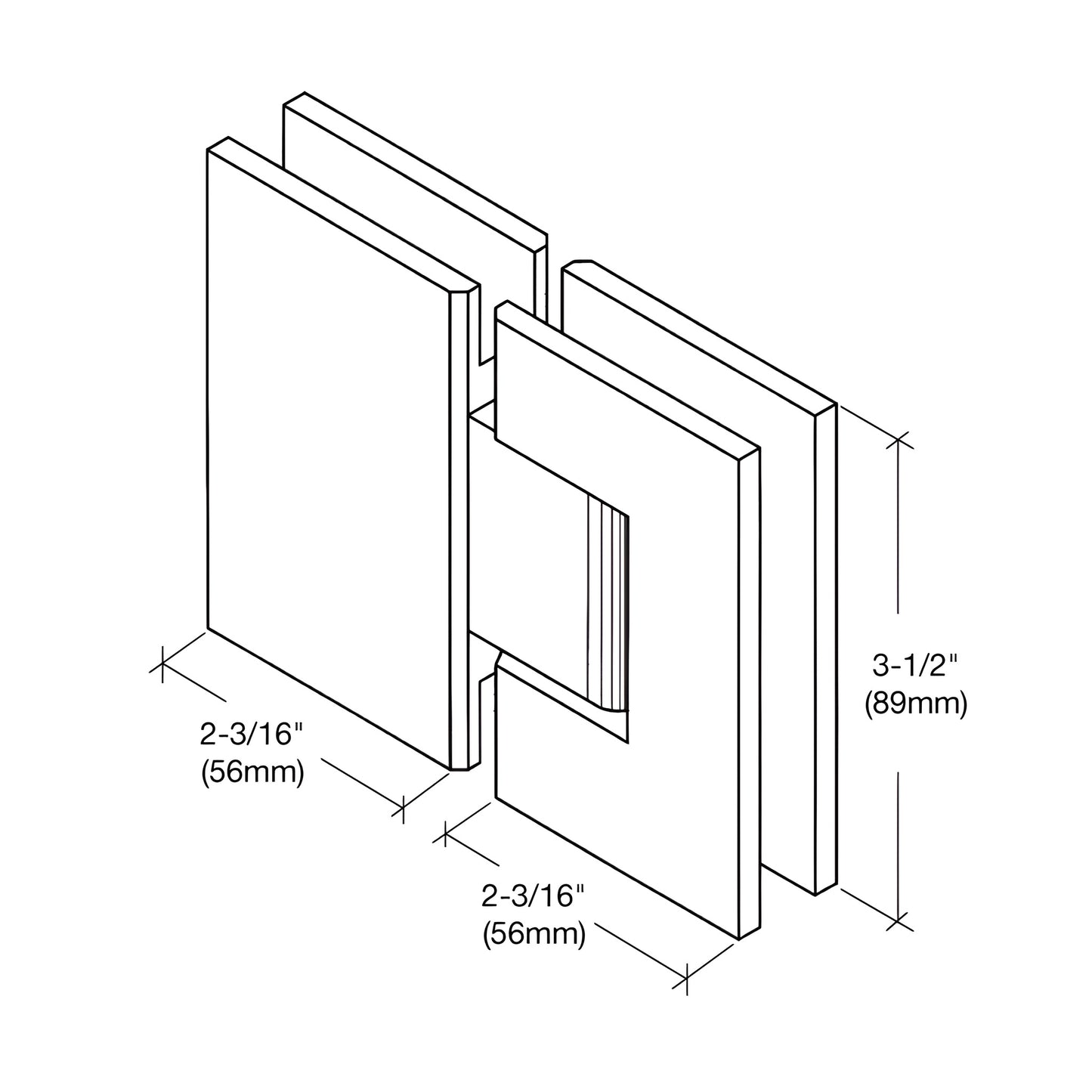

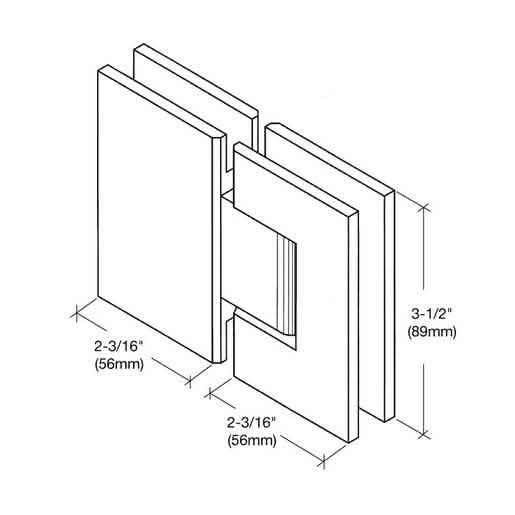

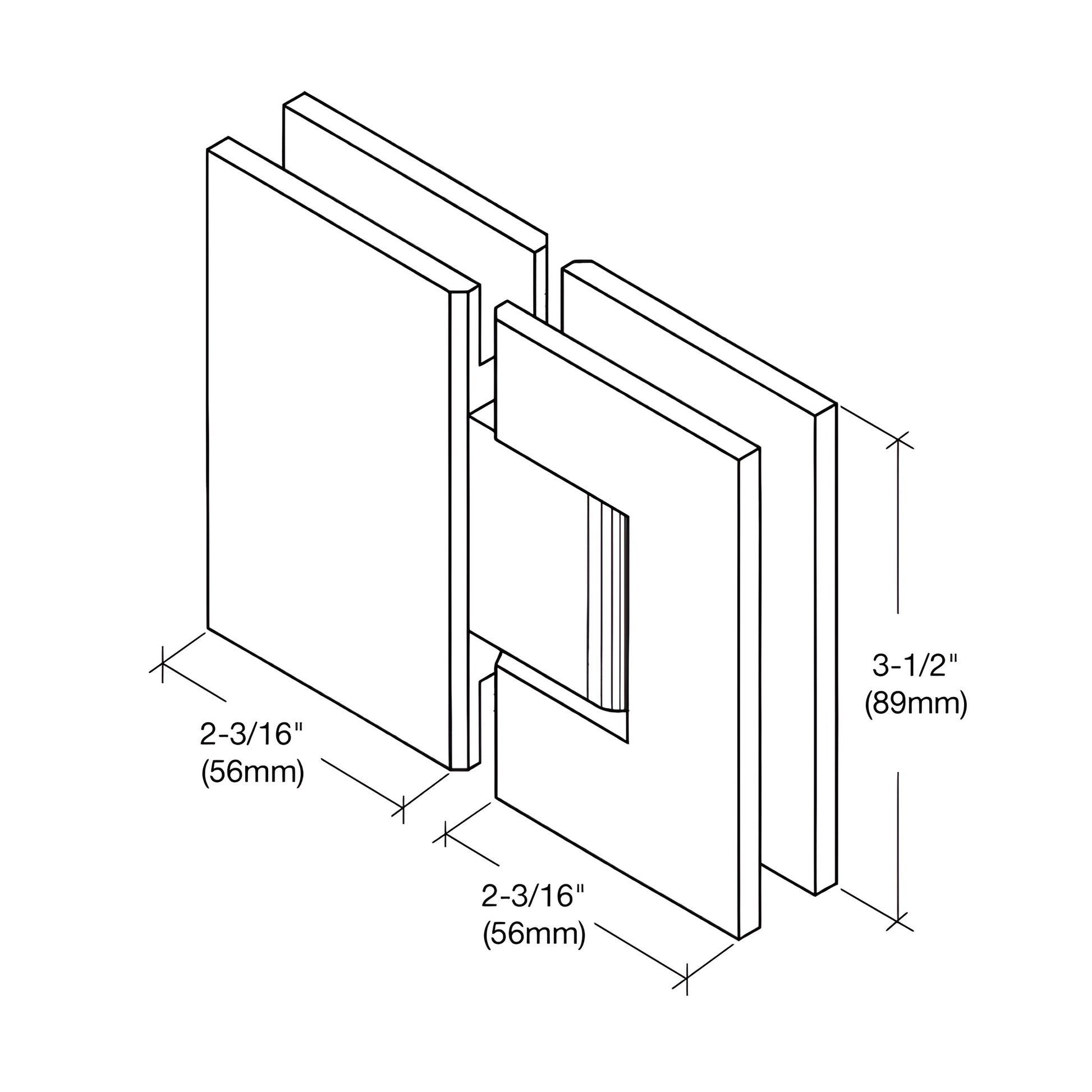

| Height 3-1/2 in. | (89 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges 80 lbs. | (36.3 kg) |
| Maximum Door Weight - 3 Hinges 120 lbs. | (54.4 kg) |
| Maximum Door Width - | 2 Hinges 28 |
| Maximum Door Width - | 3 Hinges 32 |
| Mounting | Type Glass To Glass |
| Self-Centering Yes | Geneva |
| Width - Door Portion 2-3/16 in. | (56 mm) |
| Width - Sidelite Portion | 2-3/16 |
Overview
The CRL Geneva Series offers premium glass-to-glass and wall mount hinges, perfect for residential and hotel shower enclosures.
These self-centering hinges feature a reversible 5-degree pivot pin and are available in several stunning finishes, backed by a three-year warranty.
Made of solid brass and stainless steel components, these hinges can accommodate glass thicknesses ranging from 5/16" (8 mm) to 1/2" (12 mm), supporting up to 120 lbs.
(54 kg) and a maximum door width of 32" (813 mm) with three hinges.
For custom installations, optional Custom Pivot Pins are available, and the hinges require a specific template for cut-out dimensions.
Contact CRL Technical Sales for more information on custom finishes and installation guidance.
These self-centering hinges feature a reversible 5-degree pivot pin and are available in several stunning finishes, backed by a three-year warranty.
Made of solid brass and stainless steel components, these hinges can accommodate glass thicknesses ranging from 5/16" (8 mm) to 1/2" (12 mm), supporting up to 120 lbs.
(54 kg) and a maximum door width of 32" (813 mm) with three hinges.
For custom installations, optional Custom Pivot Pins are available, and the hinges require a specific template for cut-out dimensions.
Contact CRL Technical Sales for more information on custom finishes and installation guidance.
