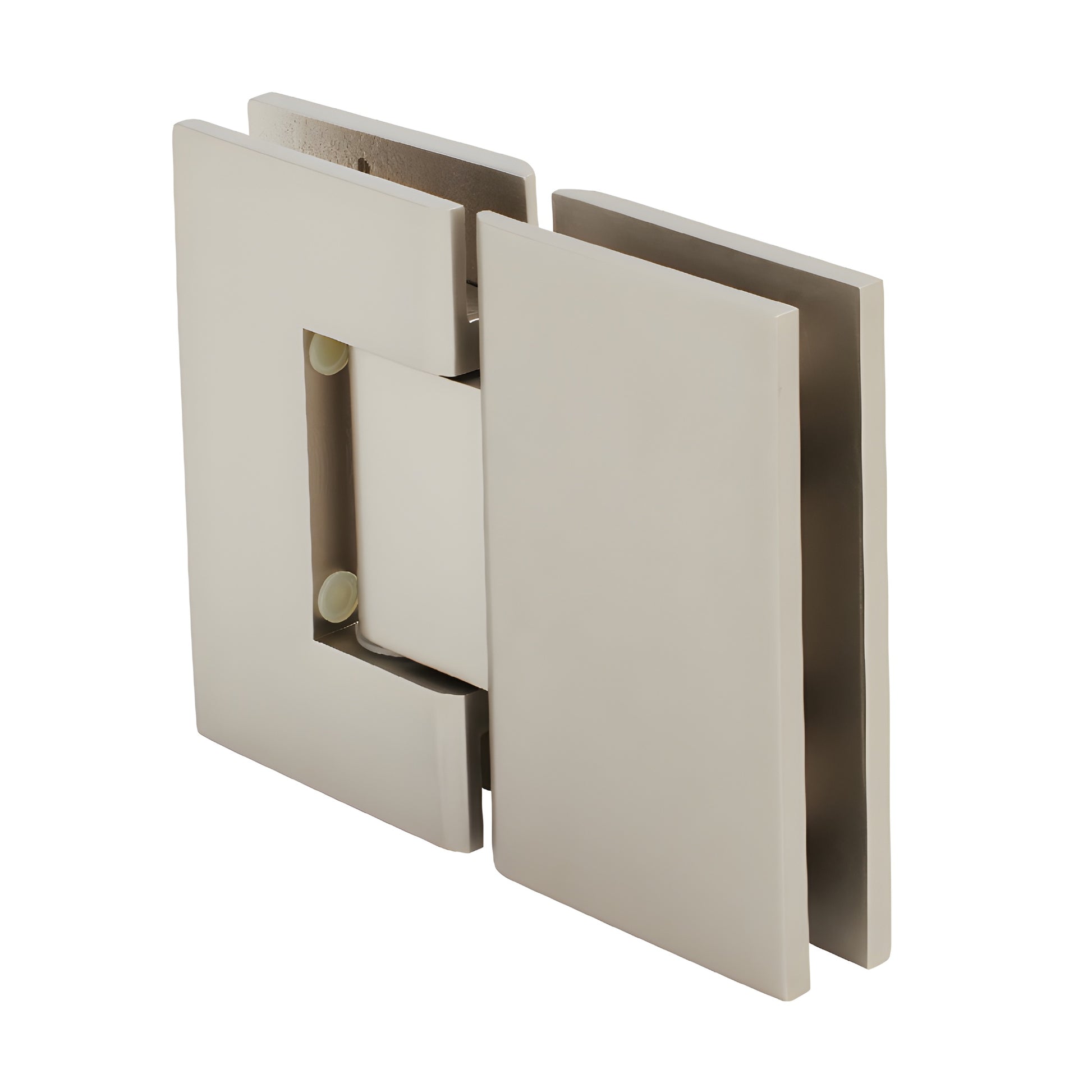

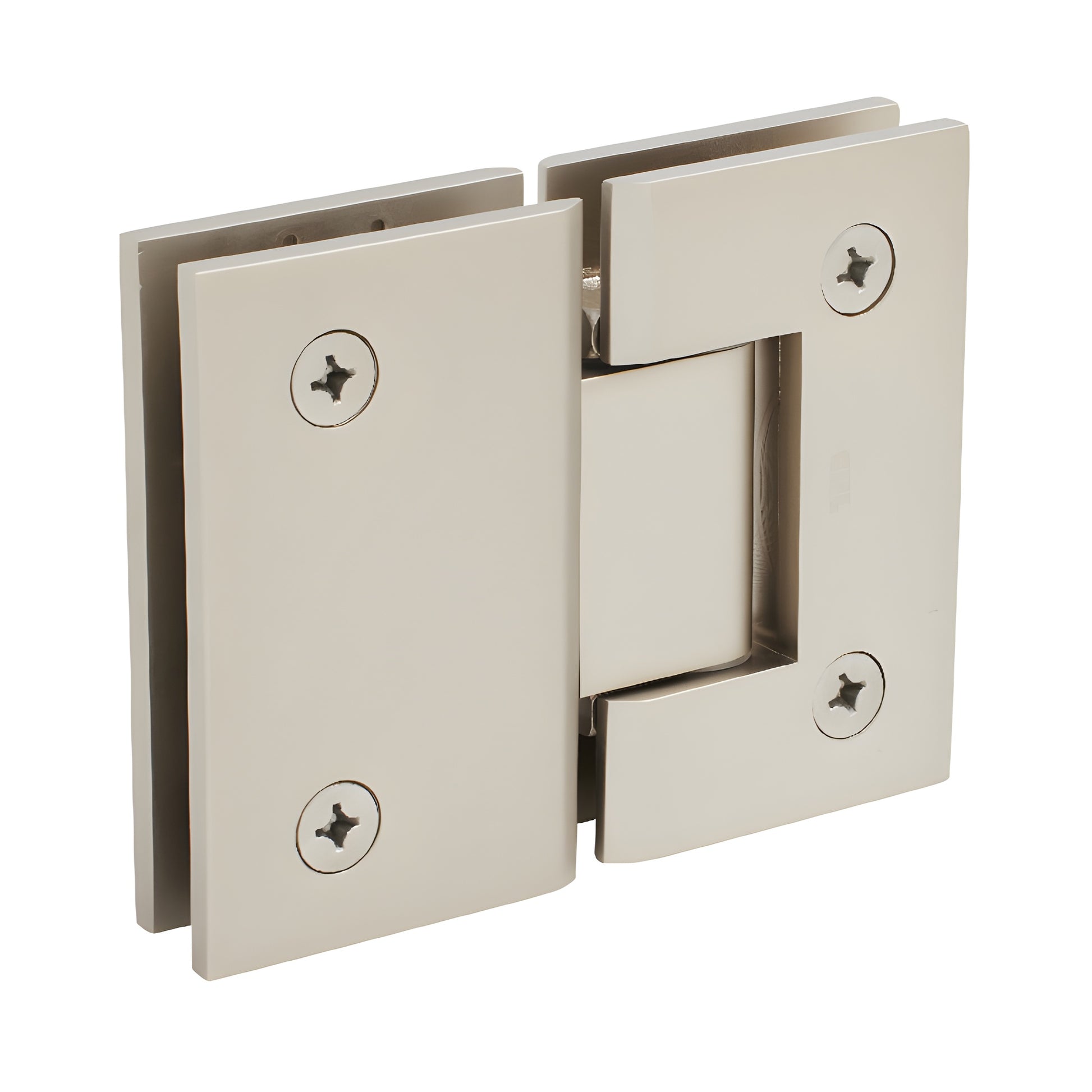

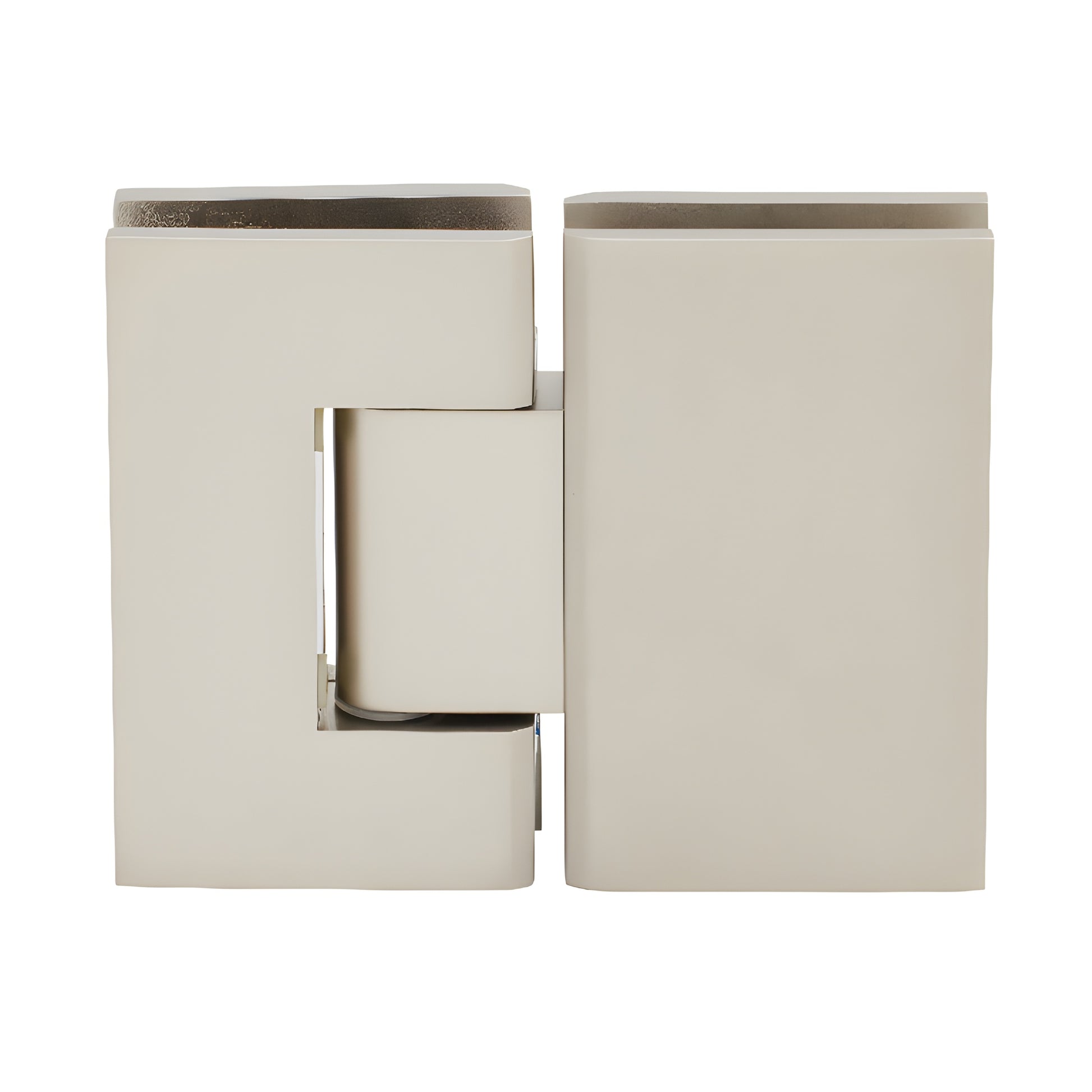

CRL Geneva 180 Series Satin Nickel Glass-to-Glass Shower Door Hinge

• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered safety glass (8 mm–12 mm)

The CRL Geneva Series professional hinge (SKU: GEN180SN) is a solid-brass, glass-to-glass shower hinge engineered for residential and hotel shower enclosures. Designed for 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, Geneva Hinges offer six style options—three wall-mount and three glass-to-glass—for design flexibility. Key differentiators include a reversible 5° pivot pin for adjustable closing, stainless-steel pins and springs for corrosion resistance, and the option for custom pivot pins for off-angle installations.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; offset models are pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to change the active angle—no flipping required.

Capacity:

• Two hinges (8–12 mm glass): holds up to 80 lb (36 kg); max door width 28" (711 mm)
• Three hinges (8–12 mm glass): holds up to 120 lb (54 kg); max door width 32" (813 mm)

Custom Pivot Pin (Cat. No. GENP1N): Available to accommodate off-angle installations up to 45°. Specifying a custom pivot pin may affect glass dimensions and enclosure aesthetics; contact Technical Sales Shower Door Department for assistance.

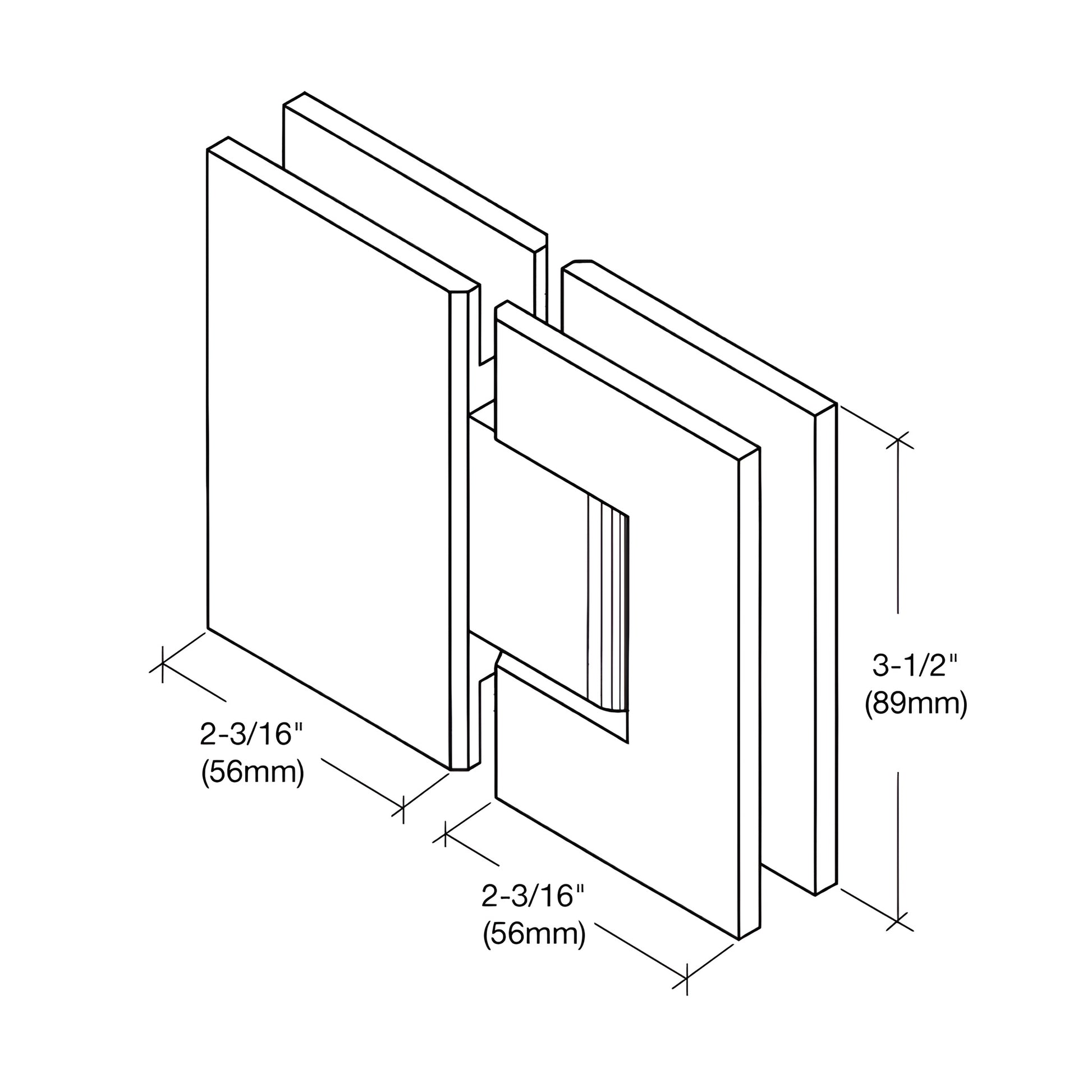

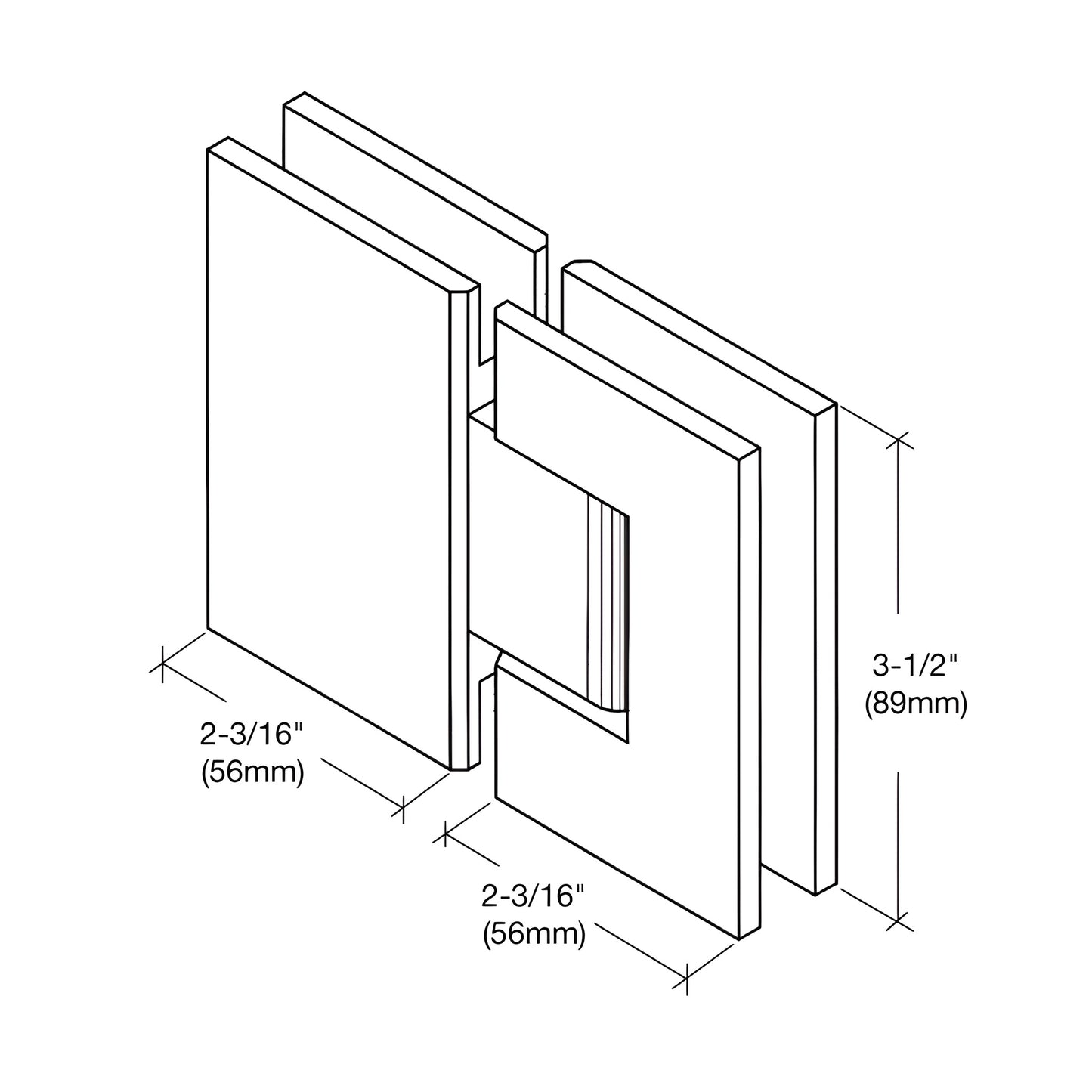

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard model (0° factory closing) or 5° pre-set model for tighter interior closure
Construction: Solid brass with stainless-steel moving parts
Hinge Swings: 90° in and 90° out (180° total)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 8 mm (5/16") glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use only. For alternate uses, obtain approval from the CRL Shower Door Technical Sales Department.
