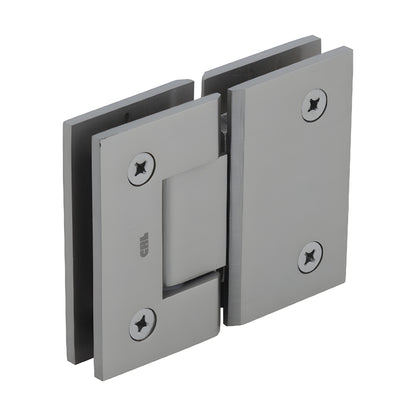

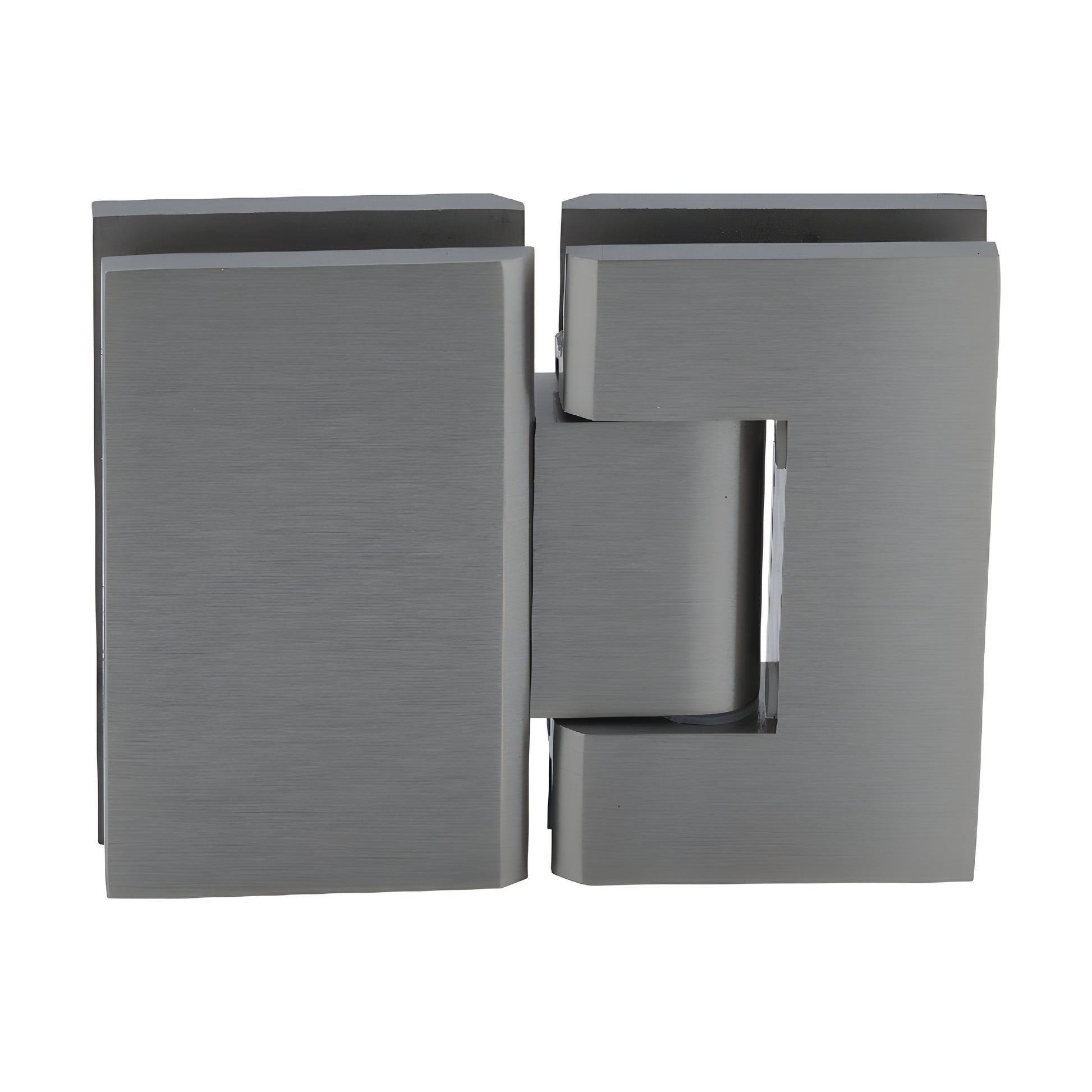

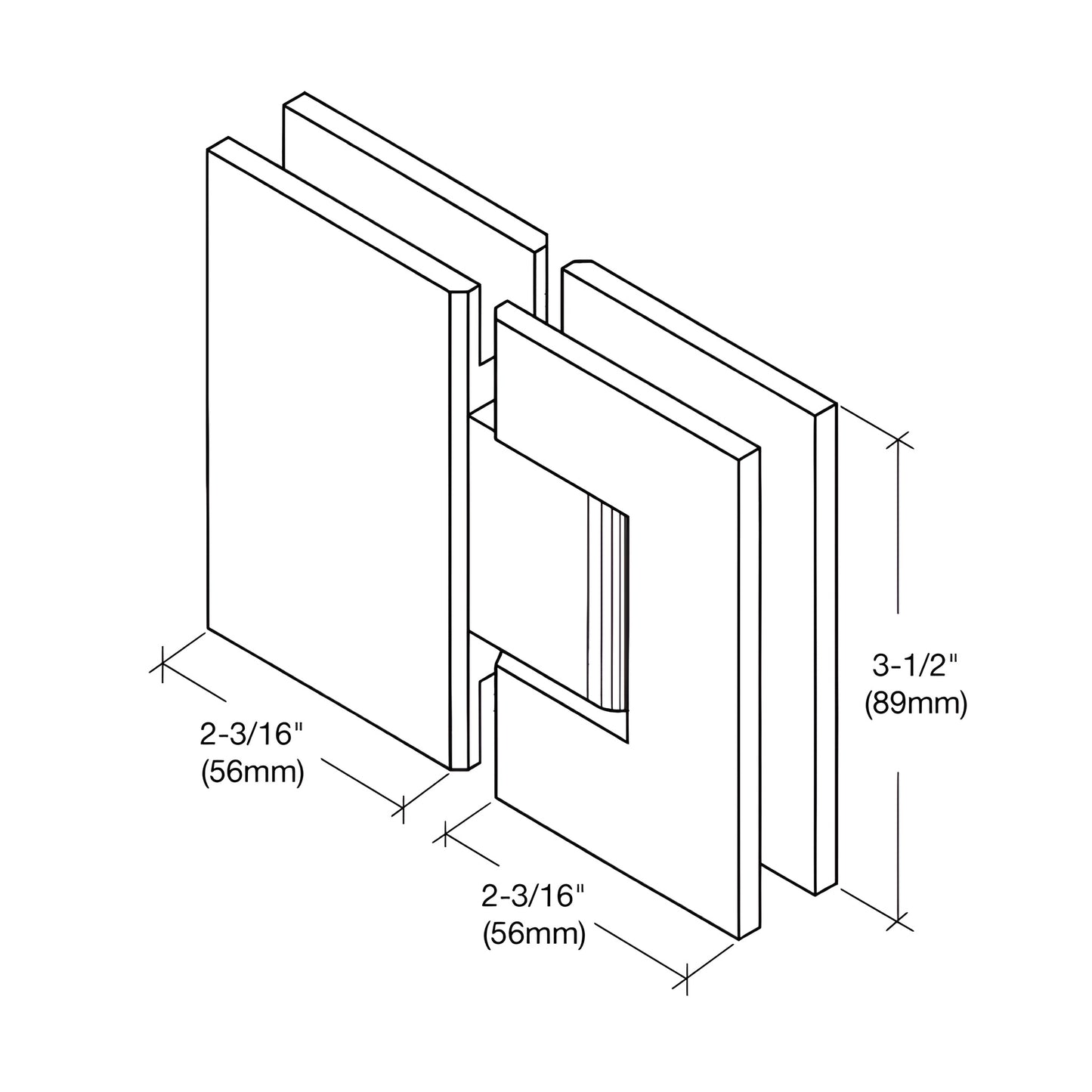

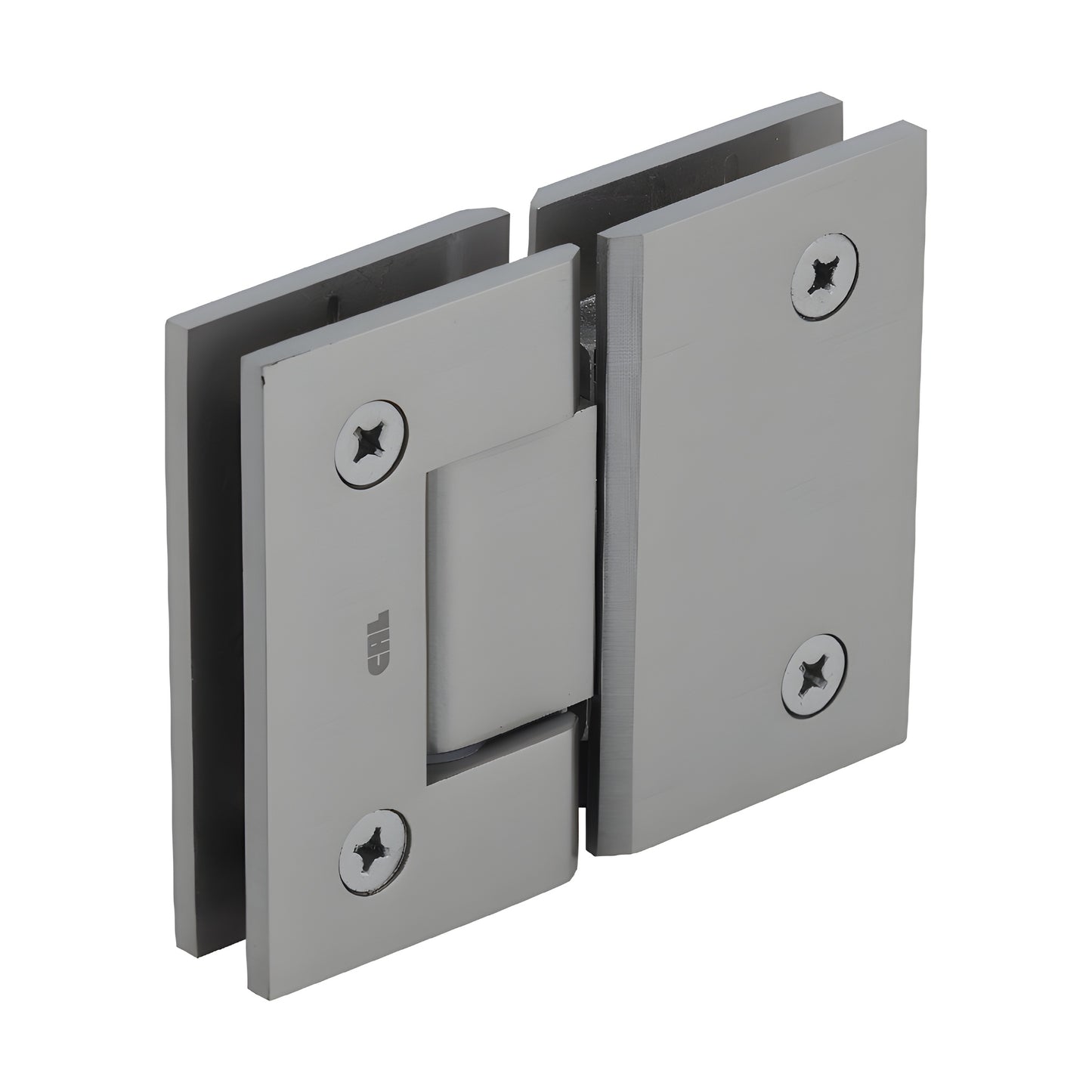

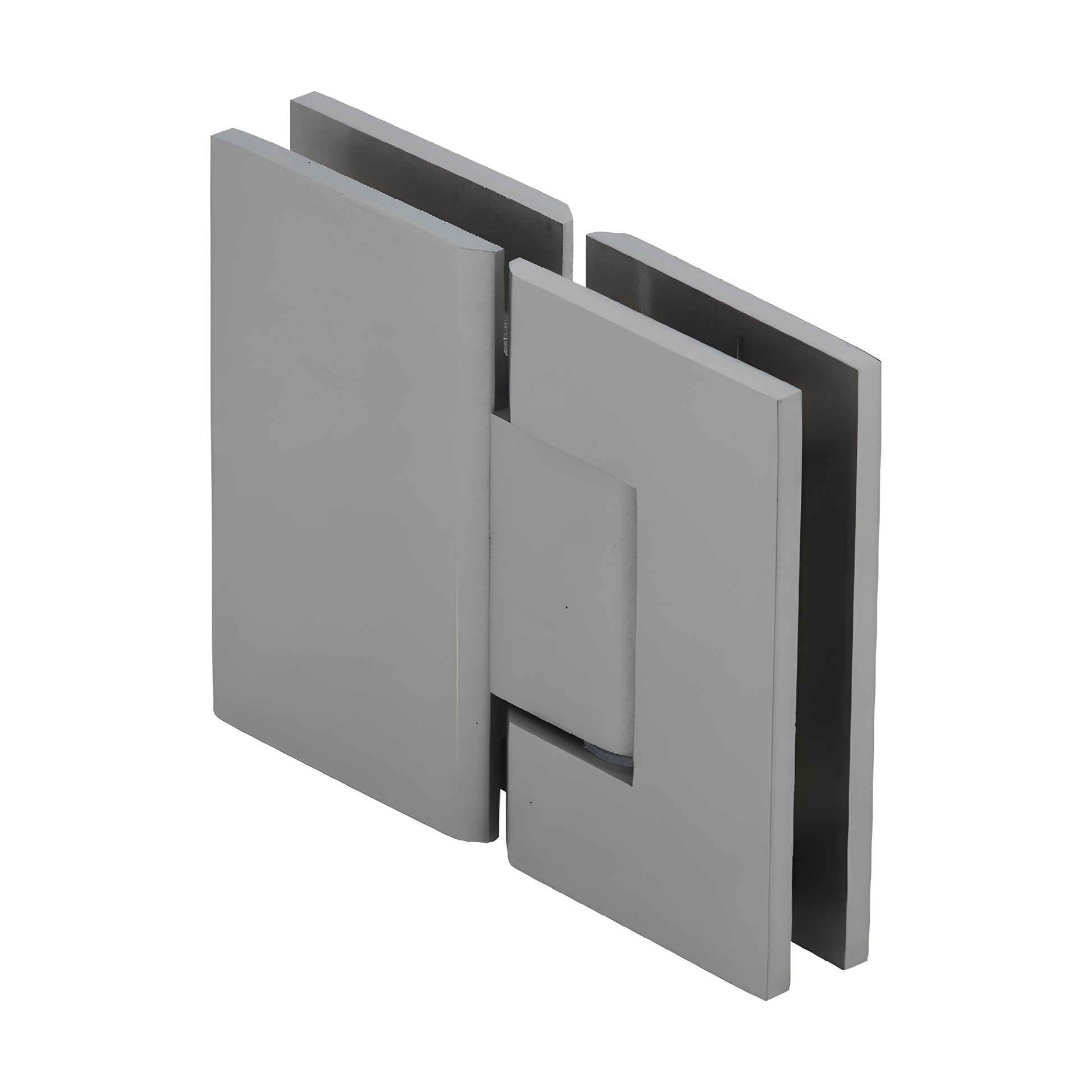

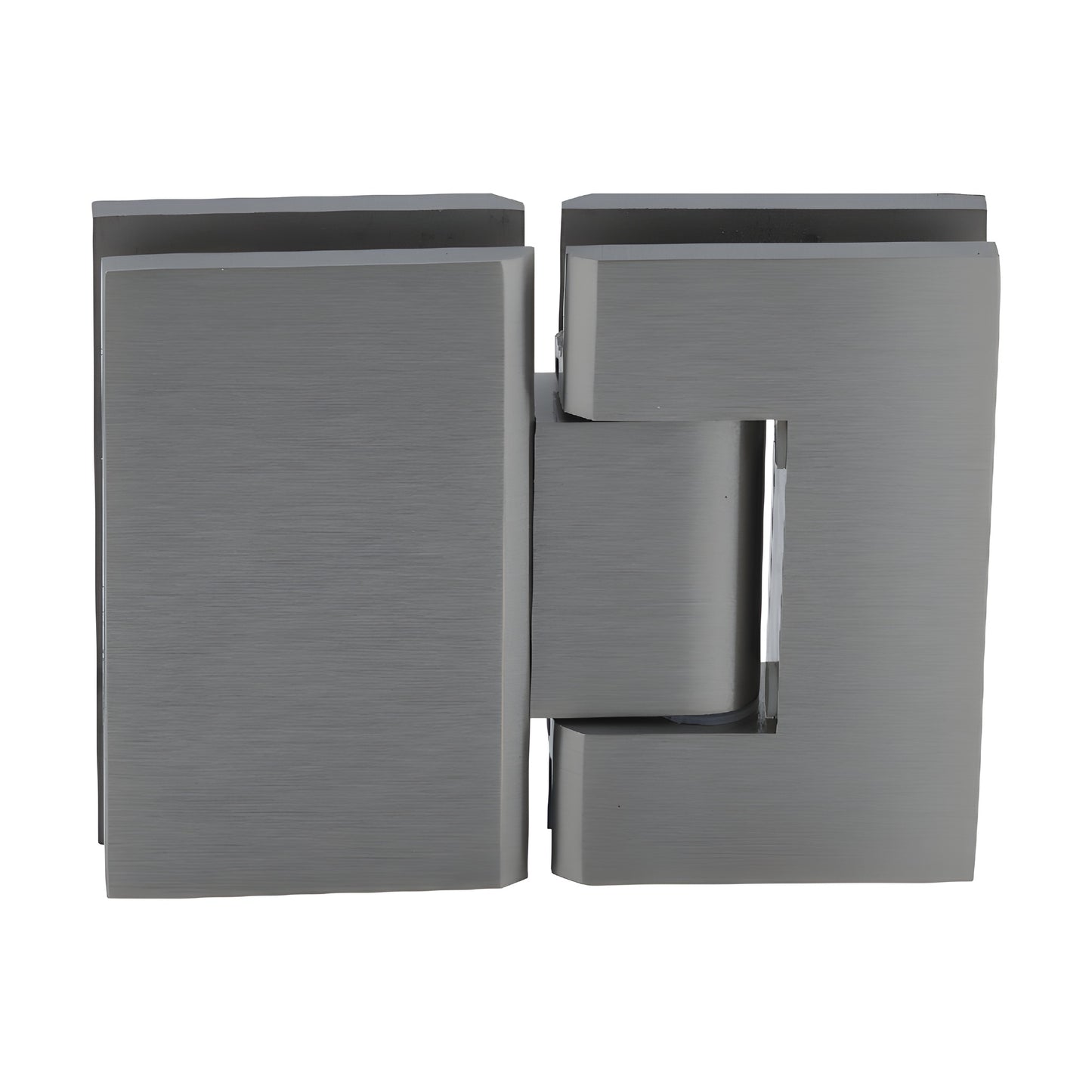

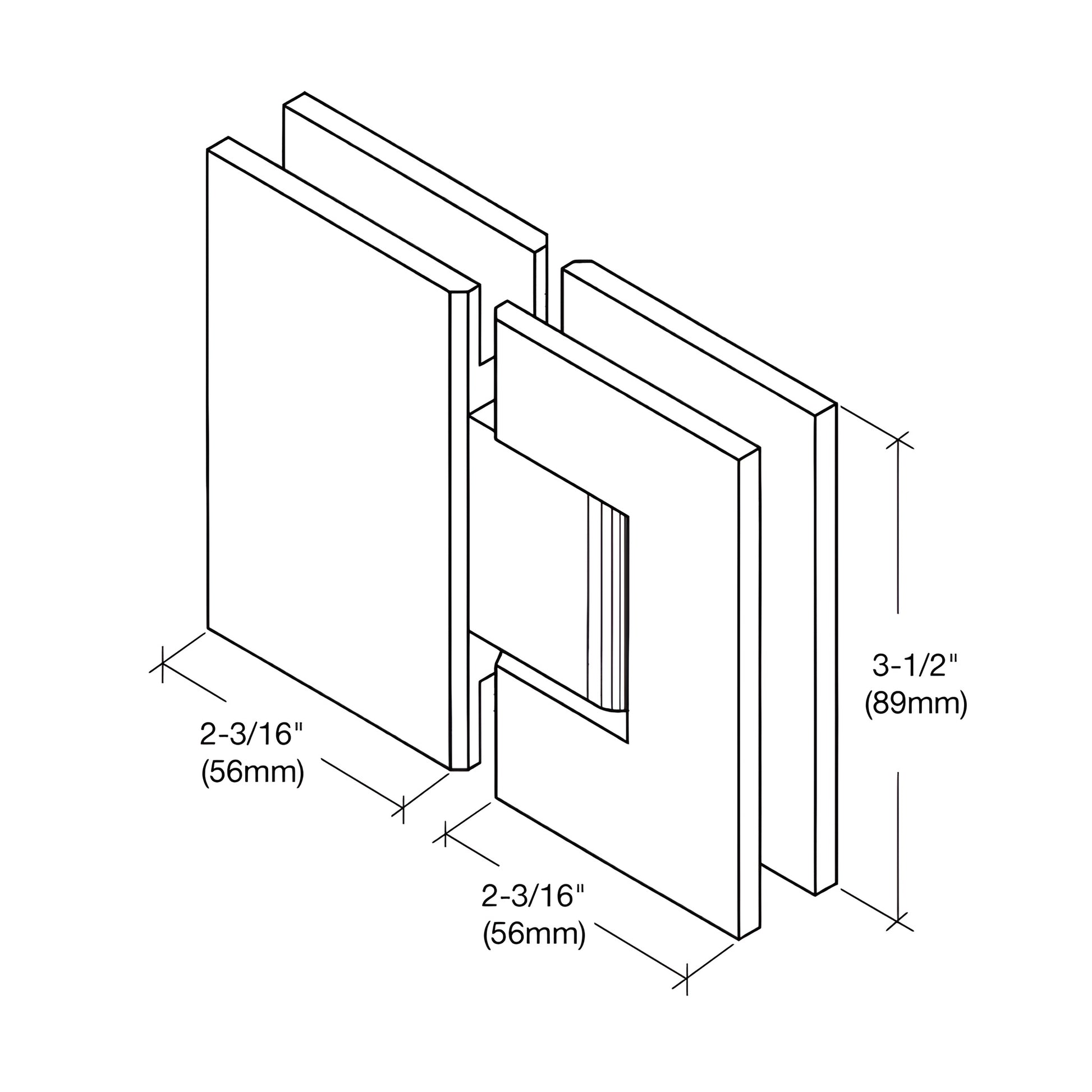

CRL Geneva 180 Series Brushed Nickel 180° Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• For use with monolithic tempered glass

The CRL Geneva Series professional hinges (SKU: GEN180BN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles provide design flexibility—three Wall Mount and three Glass-to-Glass types—making these brass shower hinges ideal for frameless glass shower doors and premium bathroom remodels. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. All moving parts (pins and springs) are stainless steel; bodies are solid brass.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard Geneva Hinges ship with the 90° side activated. Offset models are pre-set to 85° for a tighter closure into the shower interior. The pin can be rotated (not flipped) to activate the alternate angle.

Using two hinges with 8–12 mm glass: holds up to 80 lb (36 kg), maximum door width 28" (711 mm).
Using three hinges with 8–12 mm glass: holds up to 120 lb (54 kg), maximum door width 32" (813 mm).

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) accommodate off-angle installations—specify angles up to 45°. Contact Technical Sales Shower Door Department before using a custom pin, as glass sizing and enclosure aesthetics may be affected.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard model (factory set at 0° closing) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request. Contact Technical Sales Shower Door Division for custom colors or finishes.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For
