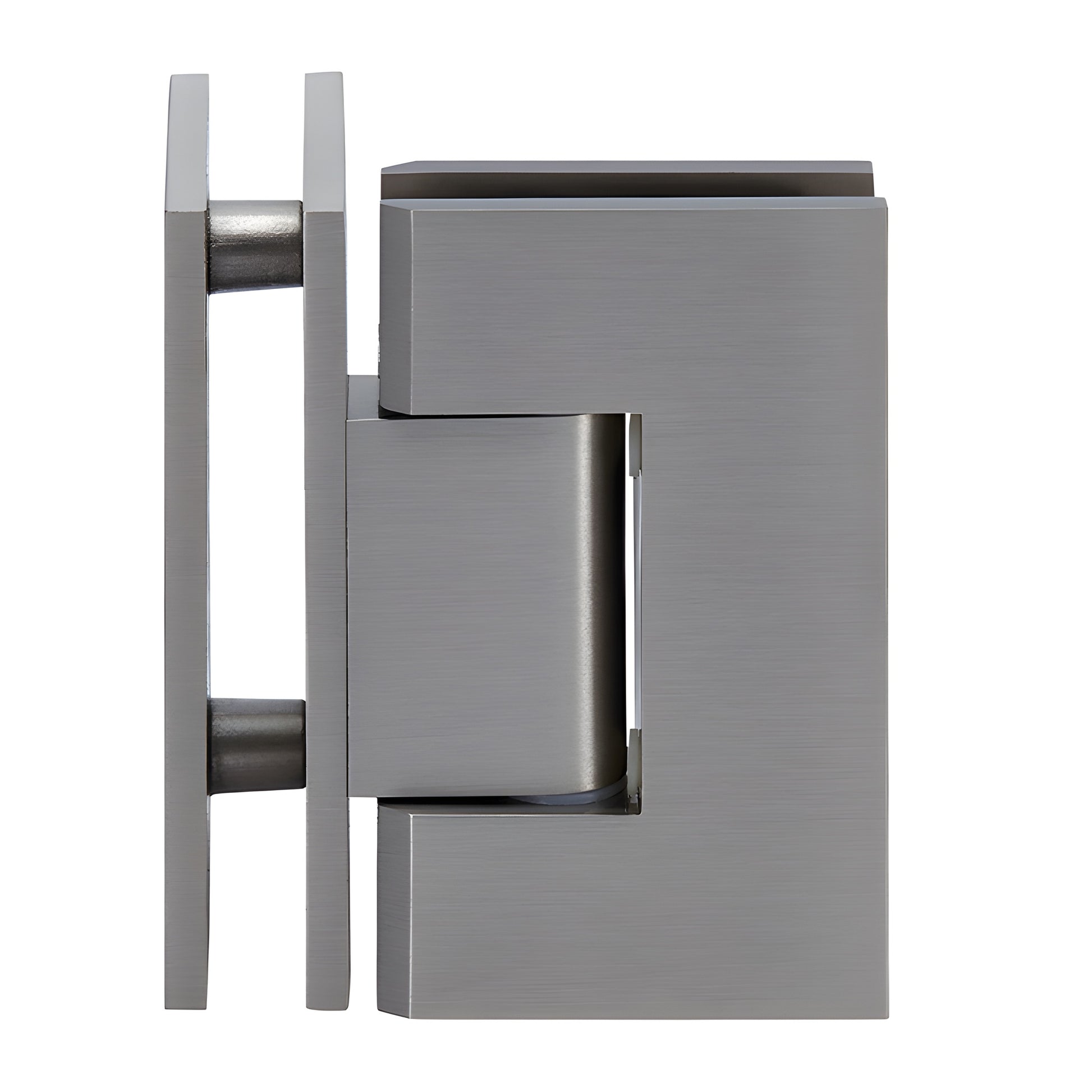

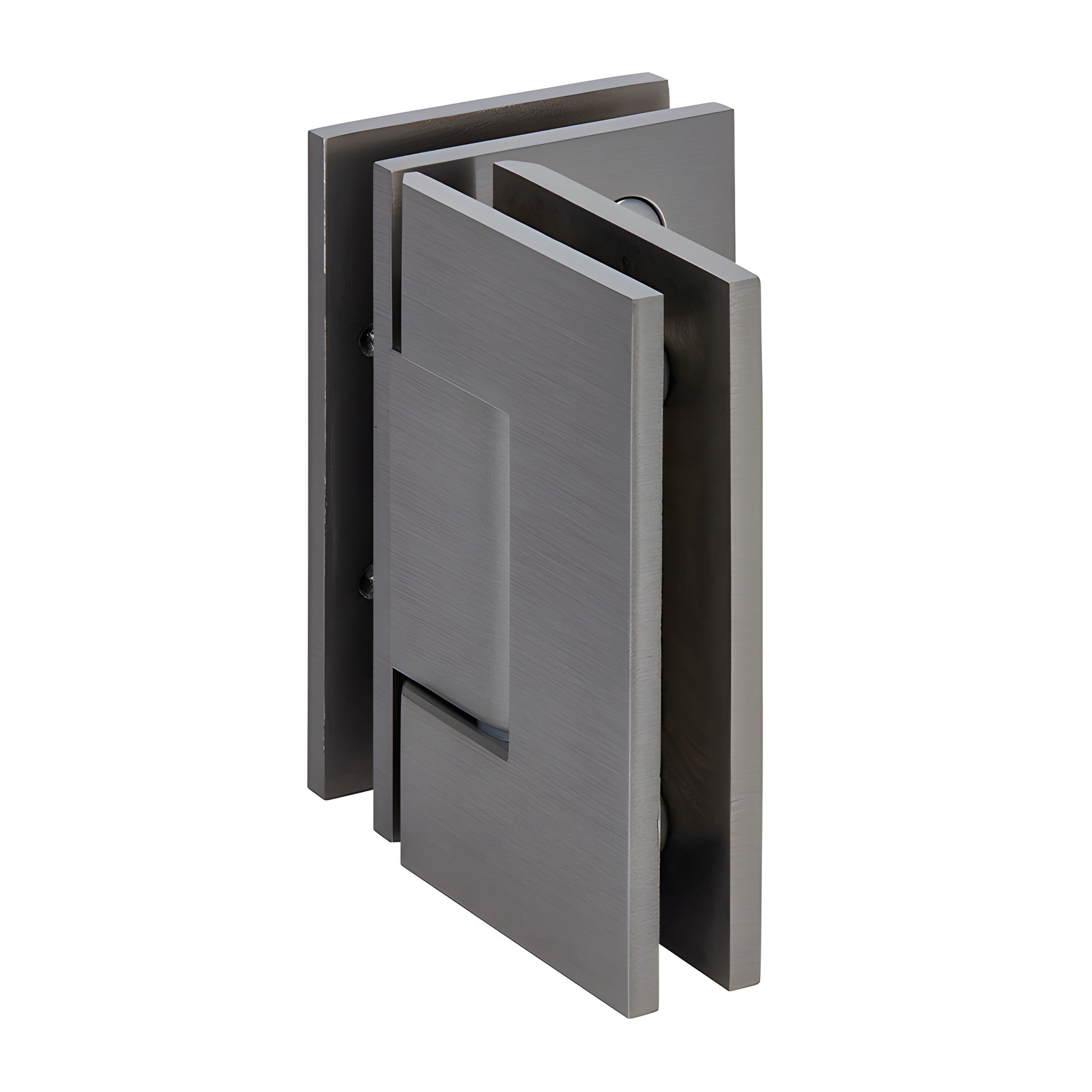

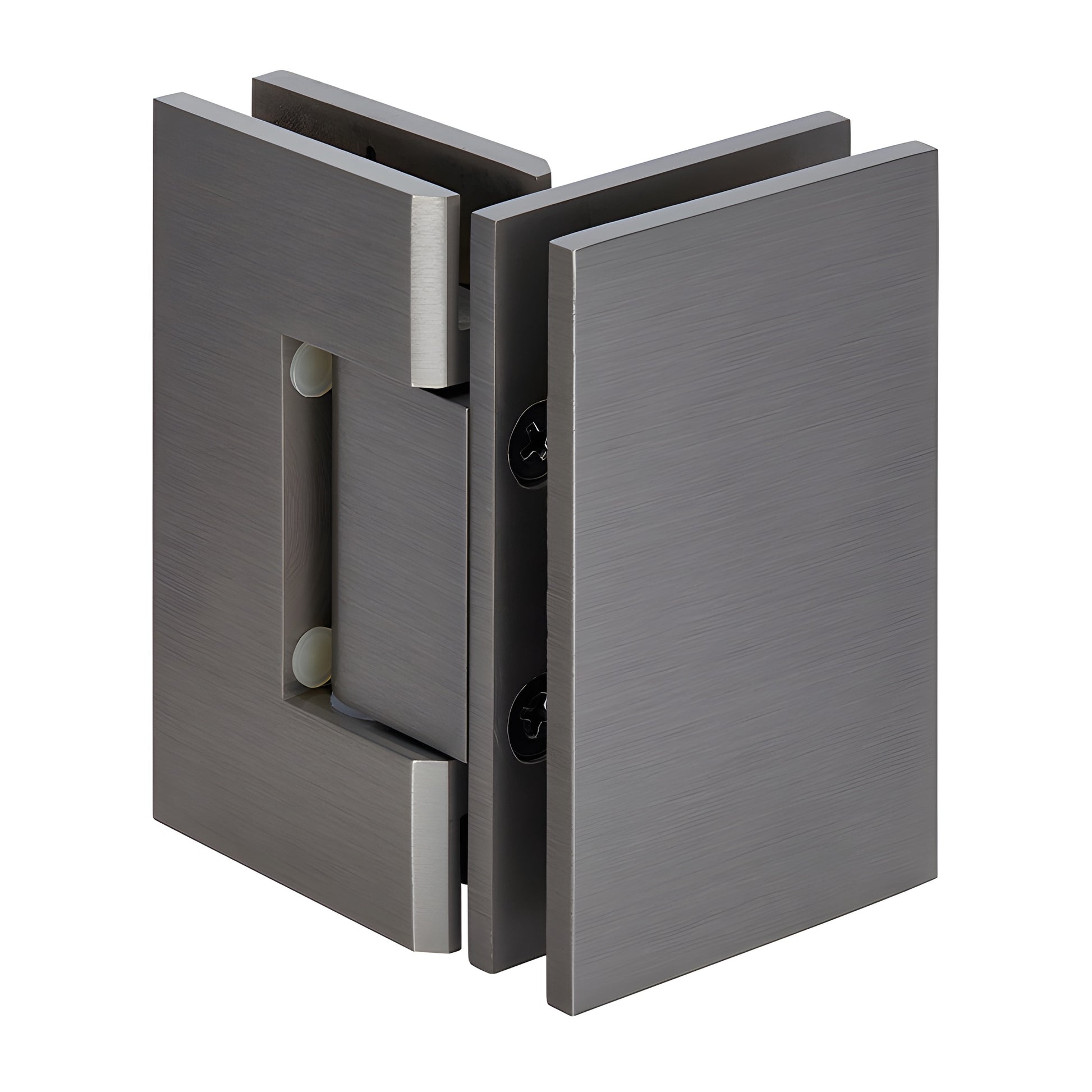

CRL Geneva 092 Brushed Nickel 90° Frameless Shower Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishes (custom finishes on request)
• Three year warranty
• 90° glass-to-glass swing (in and out)
• For monolithic tempered glass, 5/16" (8 mm) to 1/2" (12 mm)

The CRL Geneva Series professional hinge (SKU: GEN092BN) fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is offered in six styles—three Wall Mount and three Glass-to-Glass—for flexible glass shower door designs. Geneva Hinges are self-centering and include a reversible 5° pivot pin for tighter closure. Custom pivot pins are also available for off-angle installations. All hinges are solid brass with stainless steel pins and springs for corrosion resistance in shower environments.


Standard Reversible Pivot Pin: Each Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to activate the alternate side (do not flip upside down).

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) can be specified for off-angle installations up to 45°. If the 5° reversible pin does not achieve the desired door position, order a Custom Pivot Pin and contact Technical Sales Shower Door Department. Note: custom pins may affect glass sizes and enclosure aesthetics.

PERFORMANCE: Using two hinges on 5/16"–1/2" (8–12 mm) glass, each hinge assembly supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

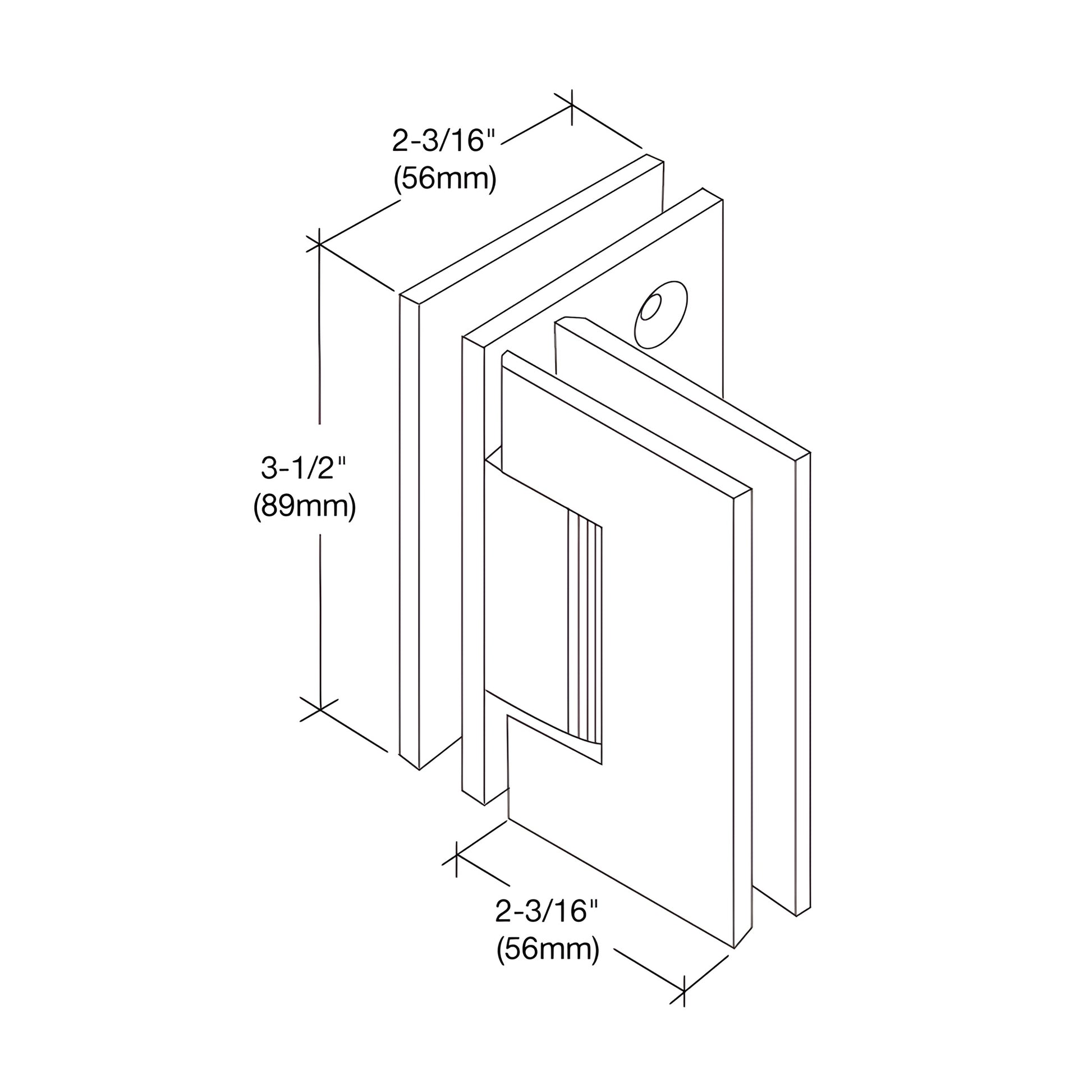

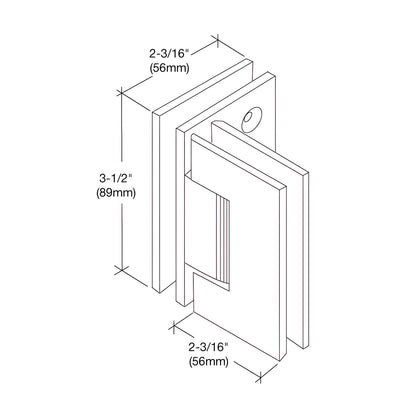

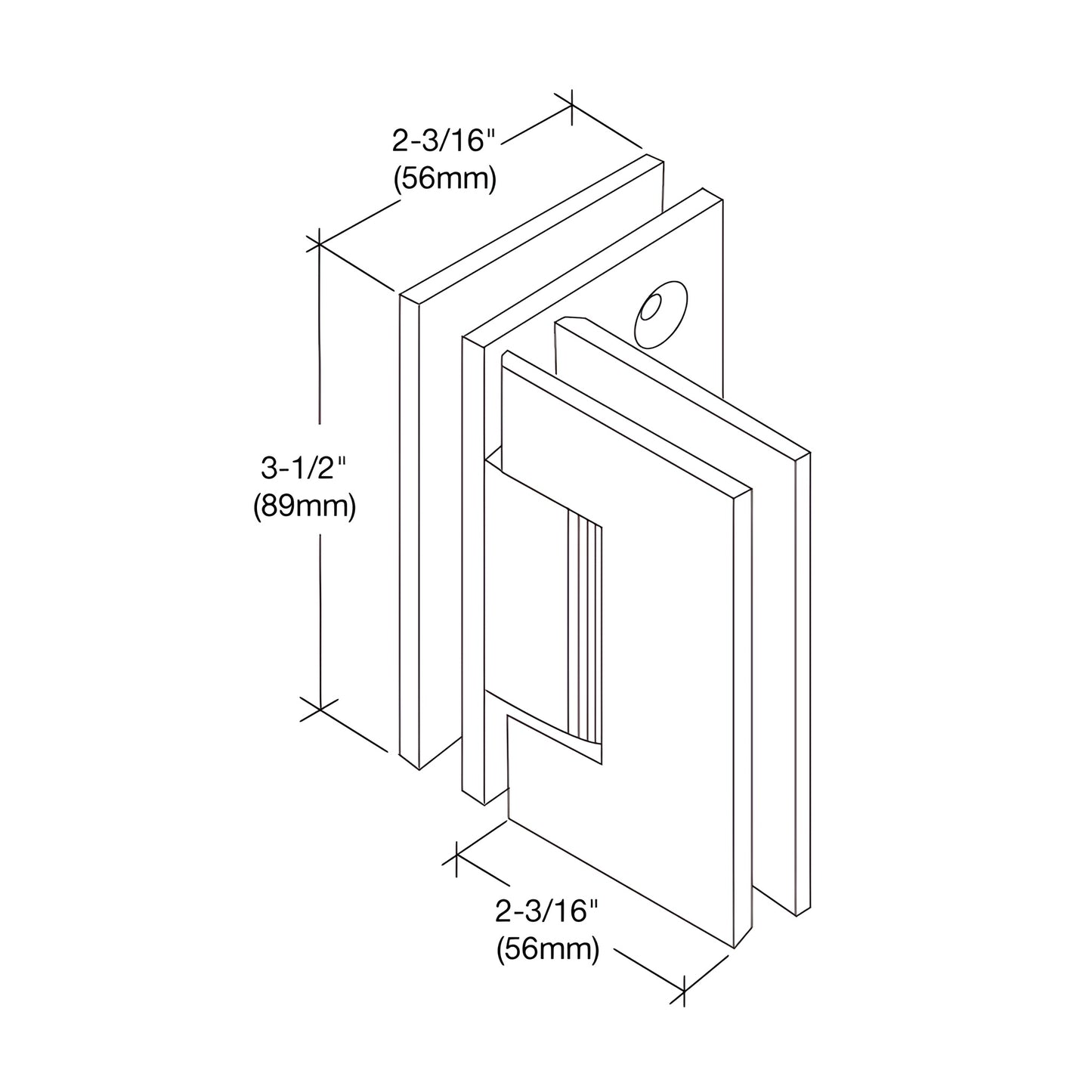

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (factory 0° closing) or 5° Pre-Set model for tighter interior closure
Construction: Solid brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions.
