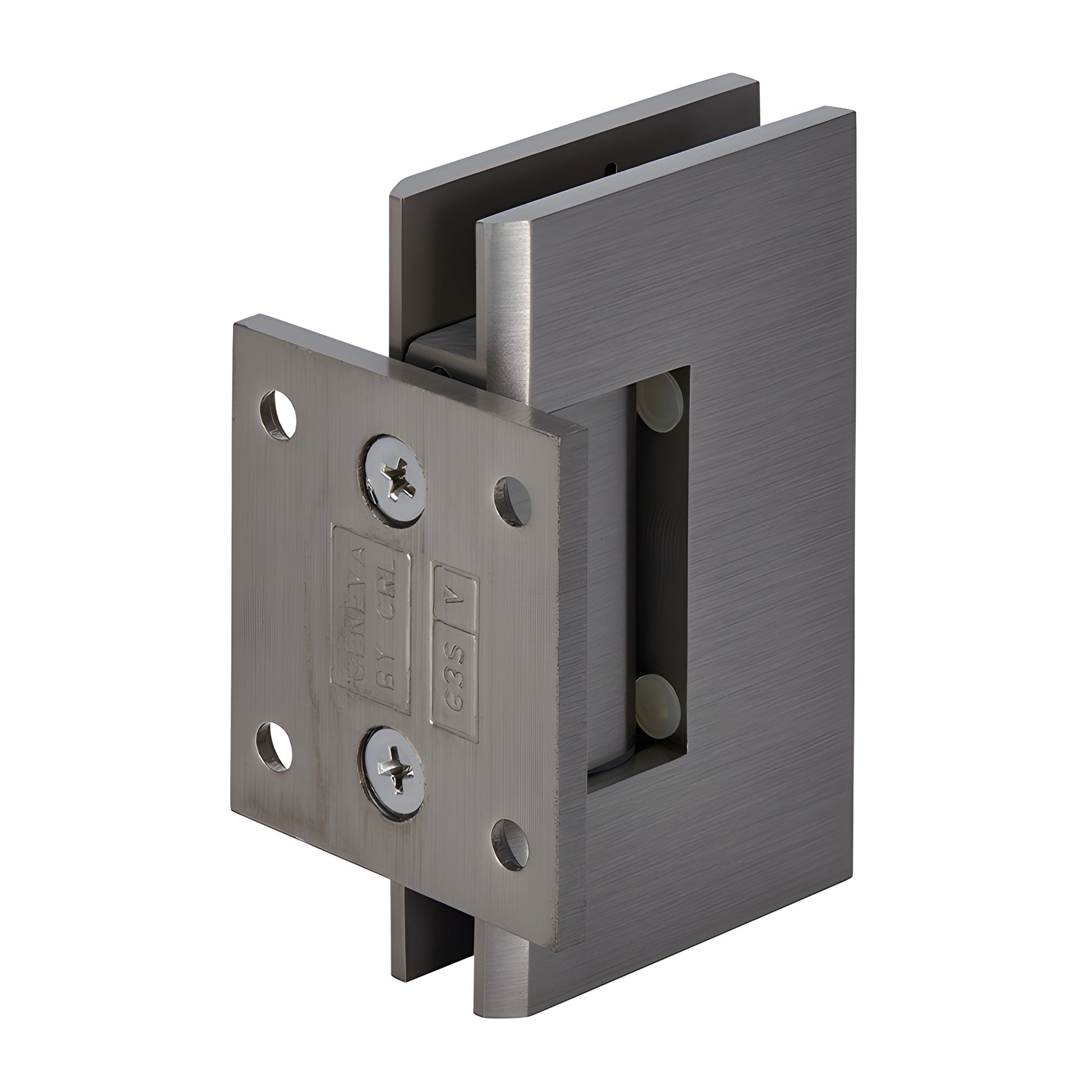

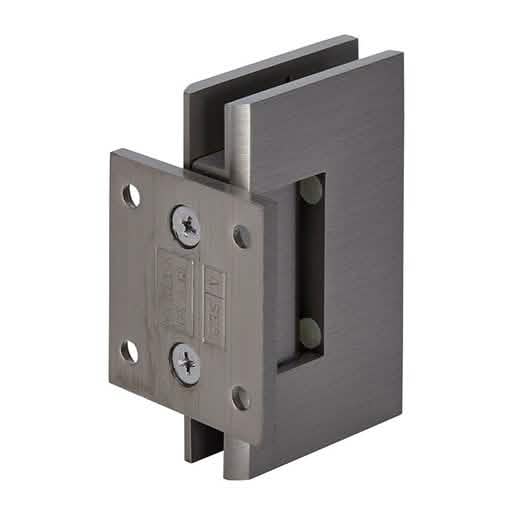

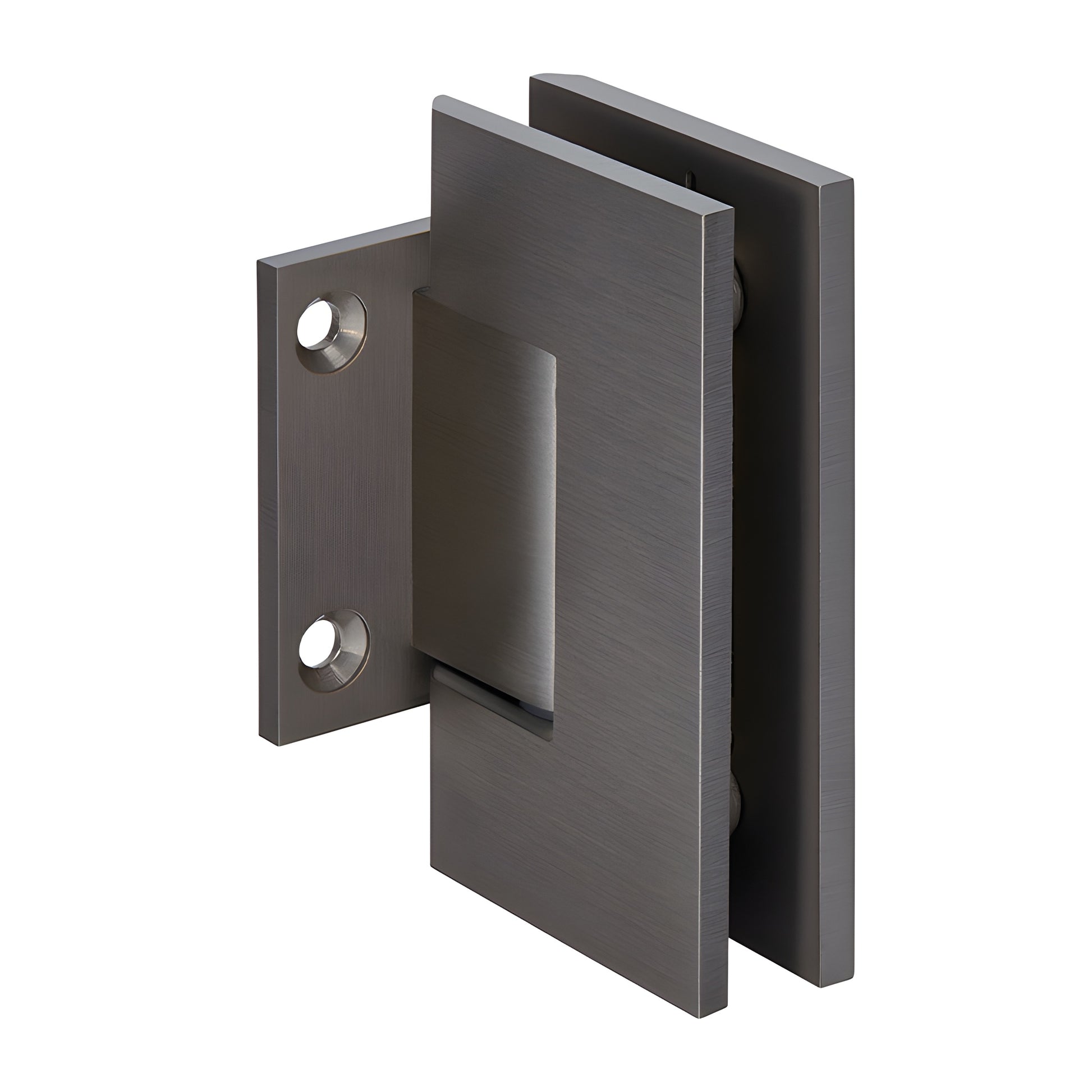

CRL Geneva 074 Brushed Nickel Wall Hinge Short Backplate - Glass Door

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishes (custom finishes on request)
• Three year warranty
• Wall-mount short back plate standard model
• Designed for monolithic tempered safety glass

The CRL Geneva Series professional hinge (SKU: GEN074BN) fits 5/16" (8 mm) to 1/2" (12 mm) tempered glass and offers six styles for design flexibility: three Wall Mount and three Glass‑to‑Glass types. Made of solid brass with stainless steel pins and springs, these brass shower door hinges are self-centering and include a reversible 5° pivot pin for tighter closure. Custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active; Offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to change the setting.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be specified for off-angle installations up to 45°. If the 5° reversible pin does not achieve the desired door position, contact Technical Sales Shower Door Department to order a custom angle. Note: glass sizes and enclosure aesthetics may be affected when using a custom pivot pin.

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs. (36 kg), maximum door width 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs. (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (factory set at 0° closing) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.
