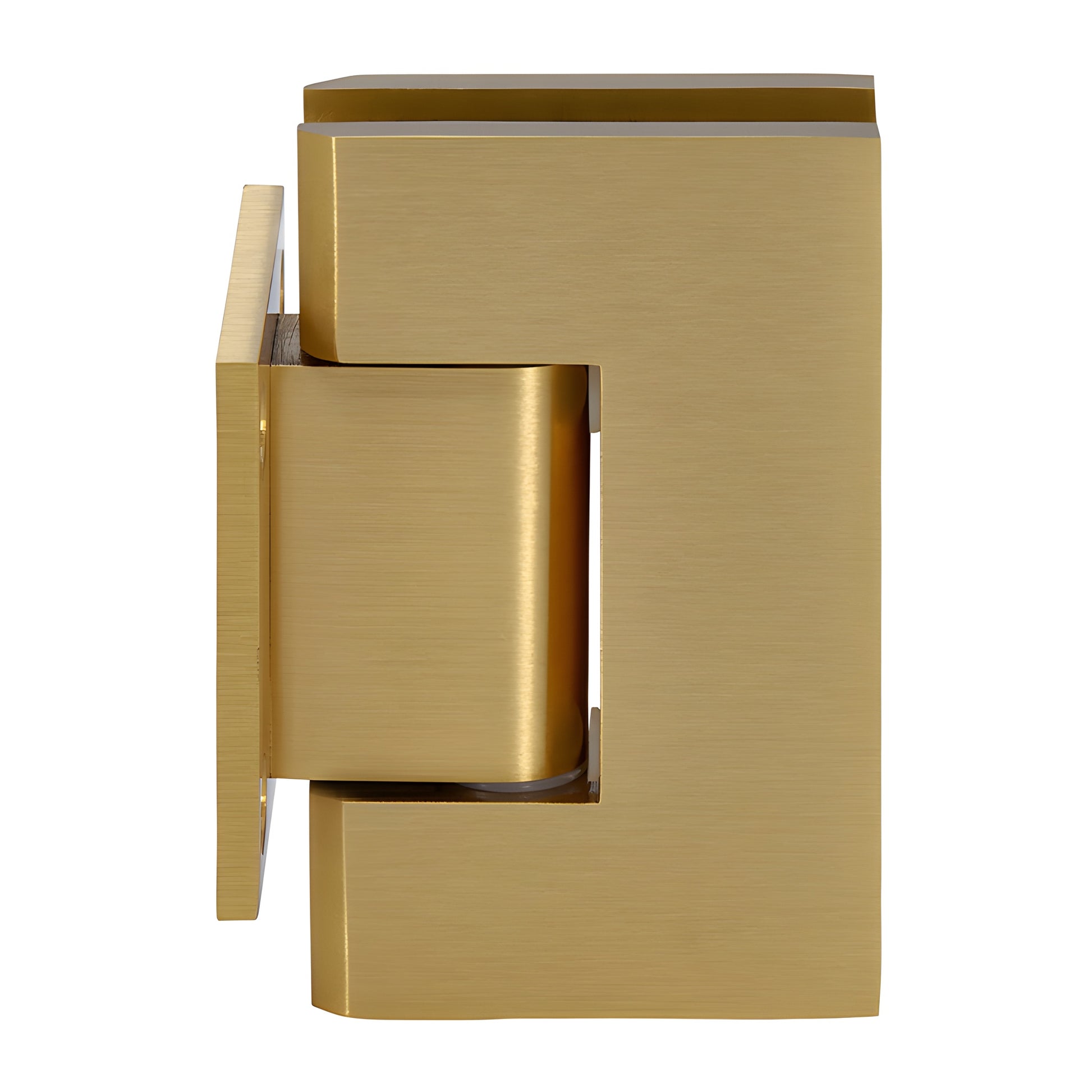

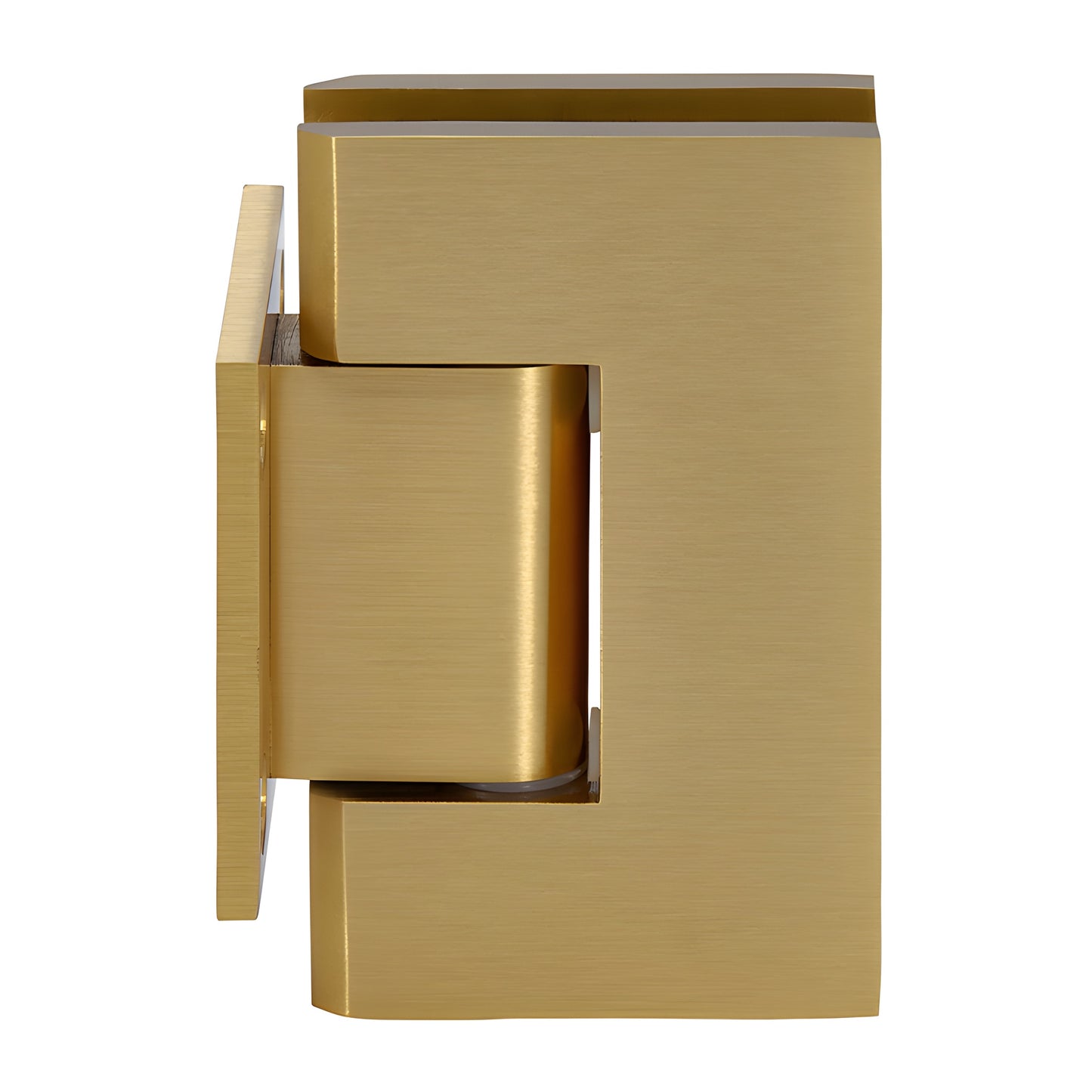

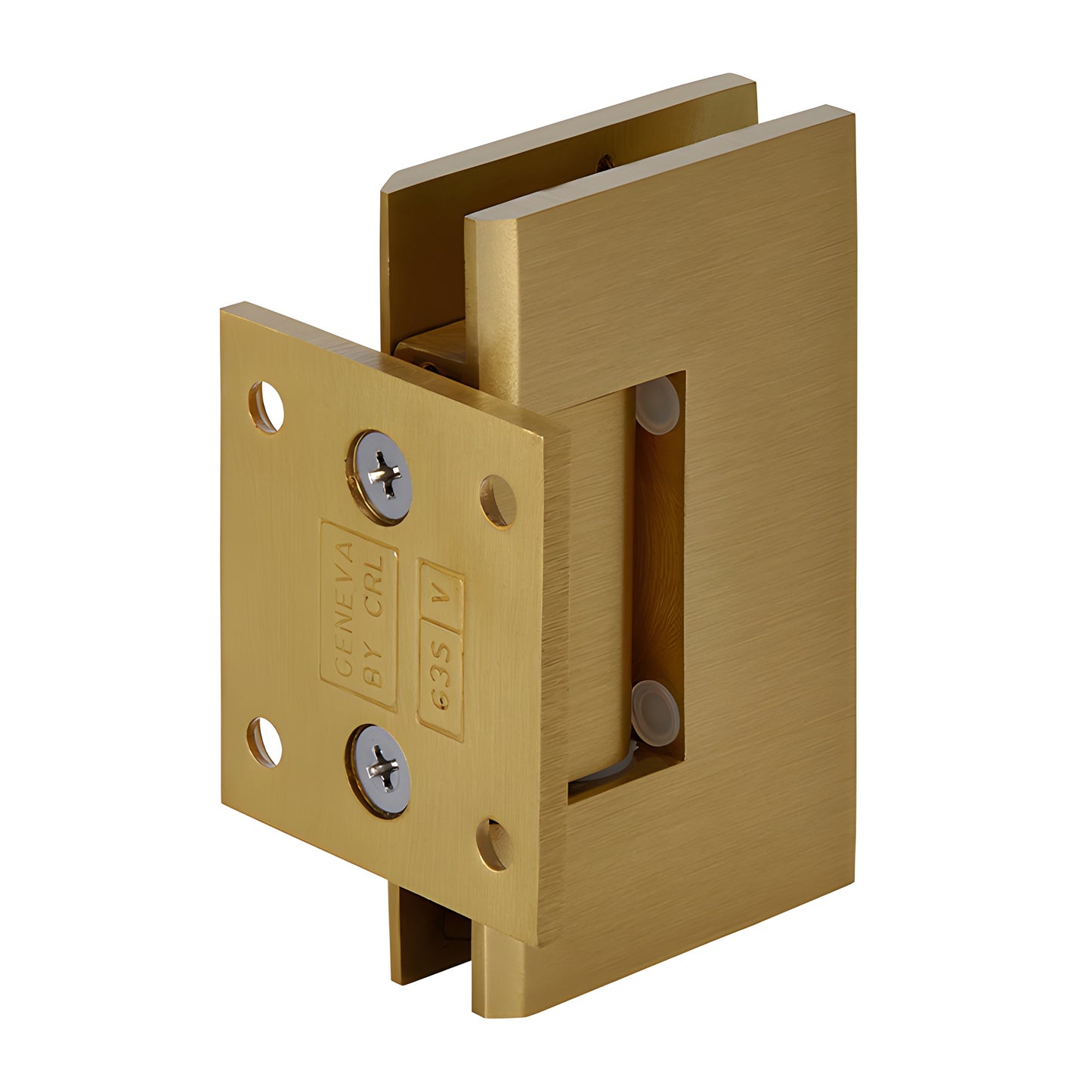

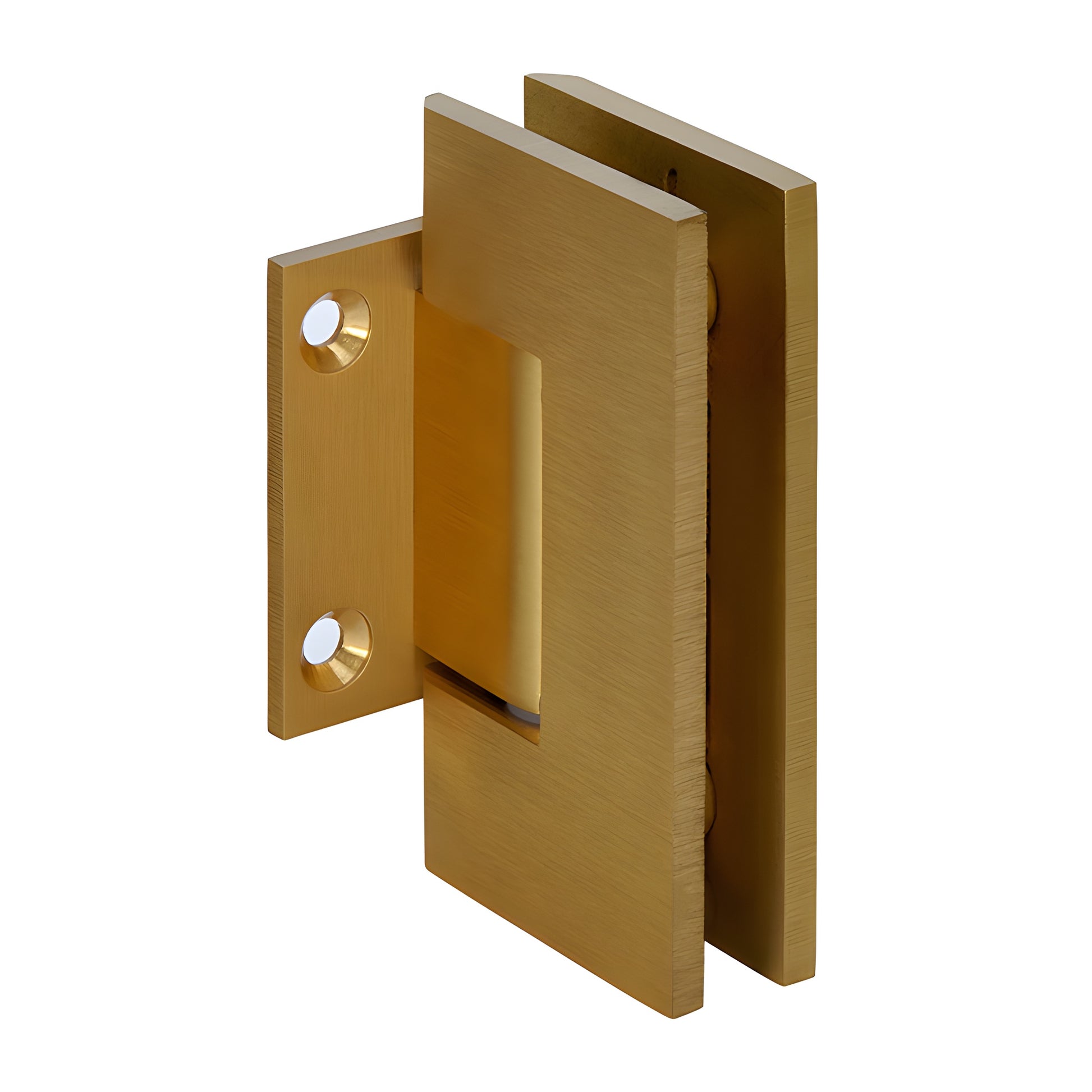

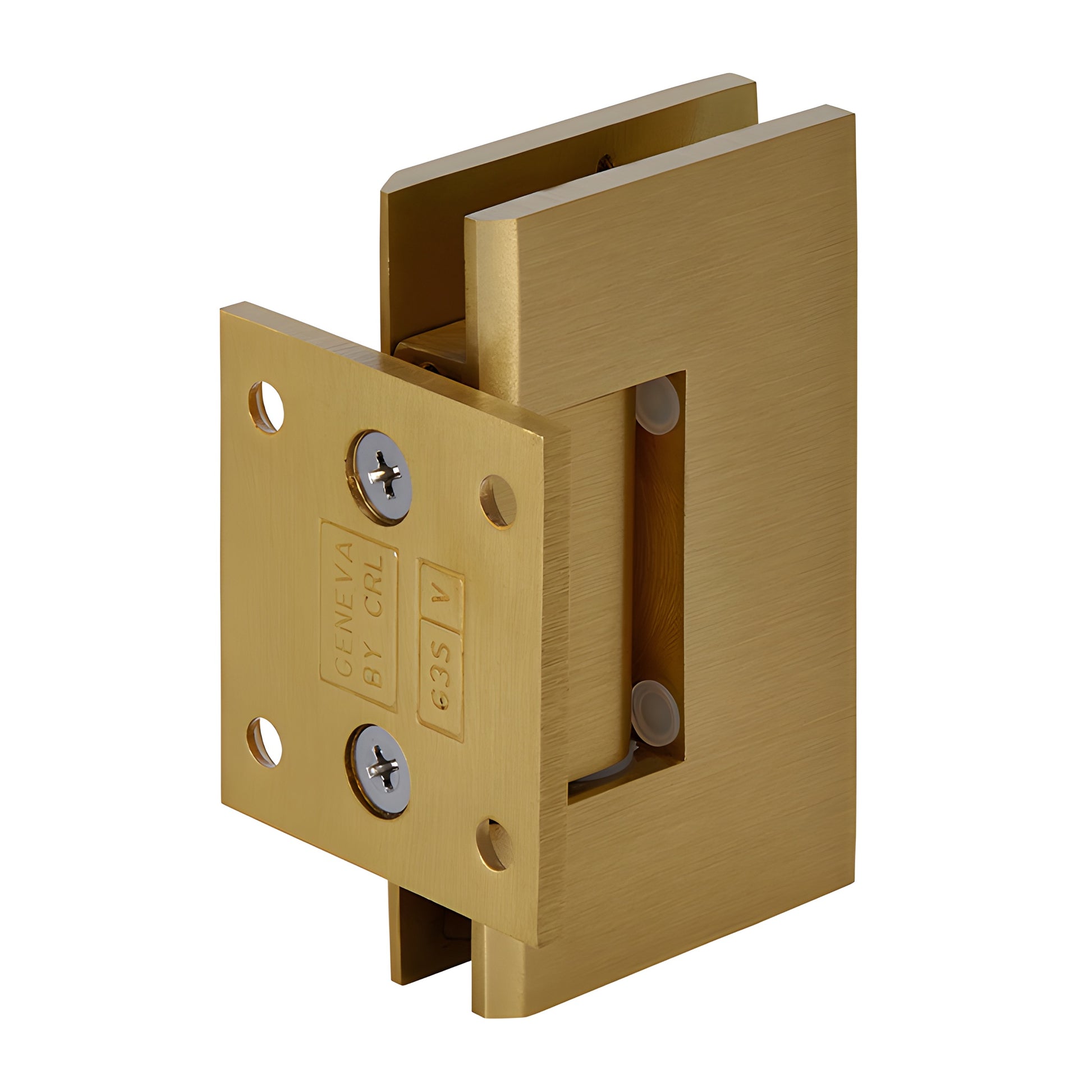

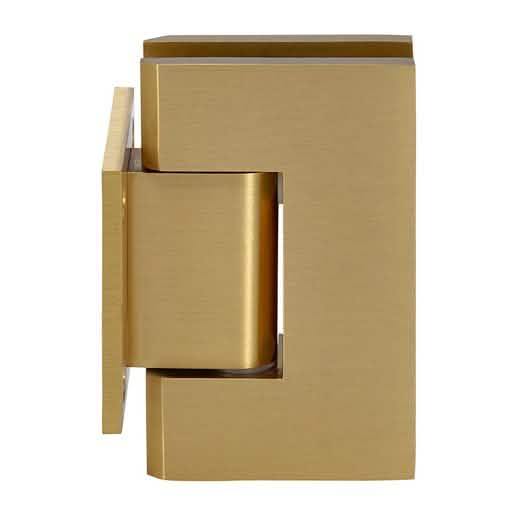

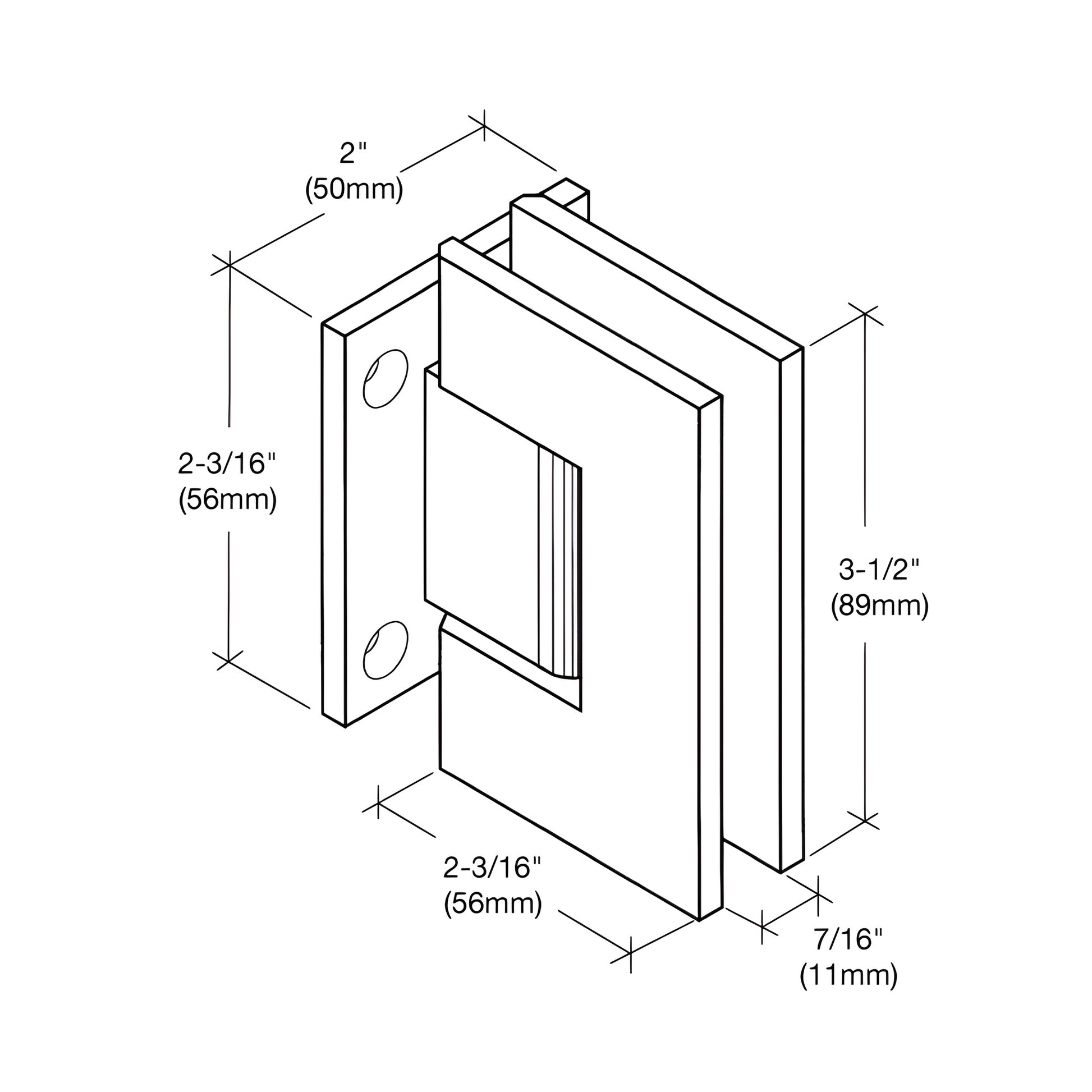

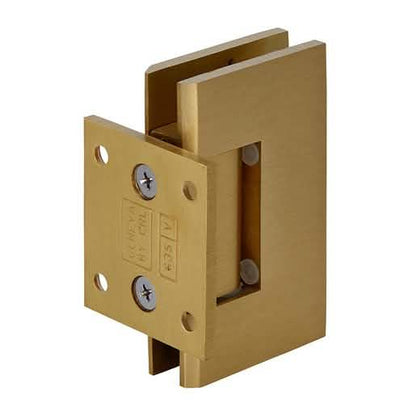

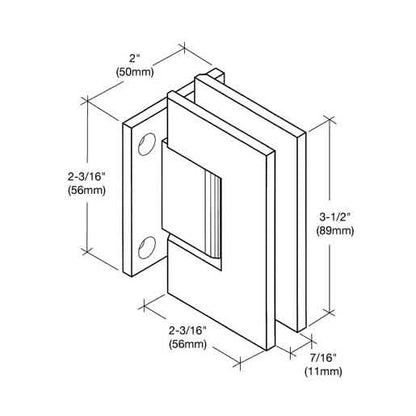

CRL Satin Brass Geneva 074 Wall-Mount Short Backplate Glass Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall mount short back plate standard model
• For use with monolithic tempered safety glass

The CRL Geneva Series professional shower door hinges (SKU: GEN074SB) accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles provide design flexibility — three Wall Mount and three Glass-to-Glass types — for frameless shower enclosures. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are also available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for long-lasting performance and corrosion resistance.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with 90° active; offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to switch sides.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be specified for off-angle installations up to 45°. Using a custom pin may affect glass sizes and enclosure aesthetics; contact our Technical Sales Shower Door Department for assistance.

Using two hinges with 5/16" to 1/2" glass (8–12 mm), each hinge set will support up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° factory set) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request — contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may differ from other brands.
