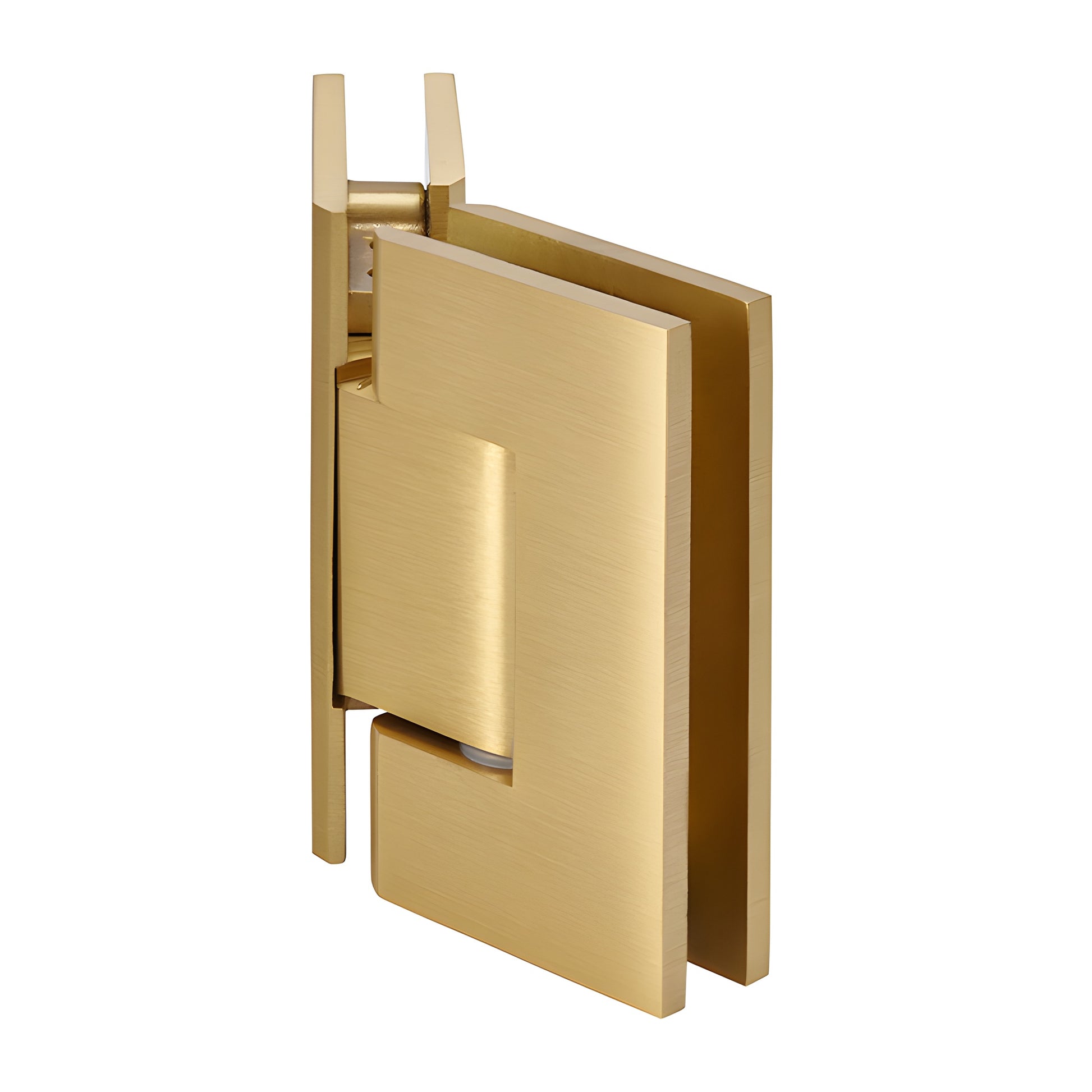

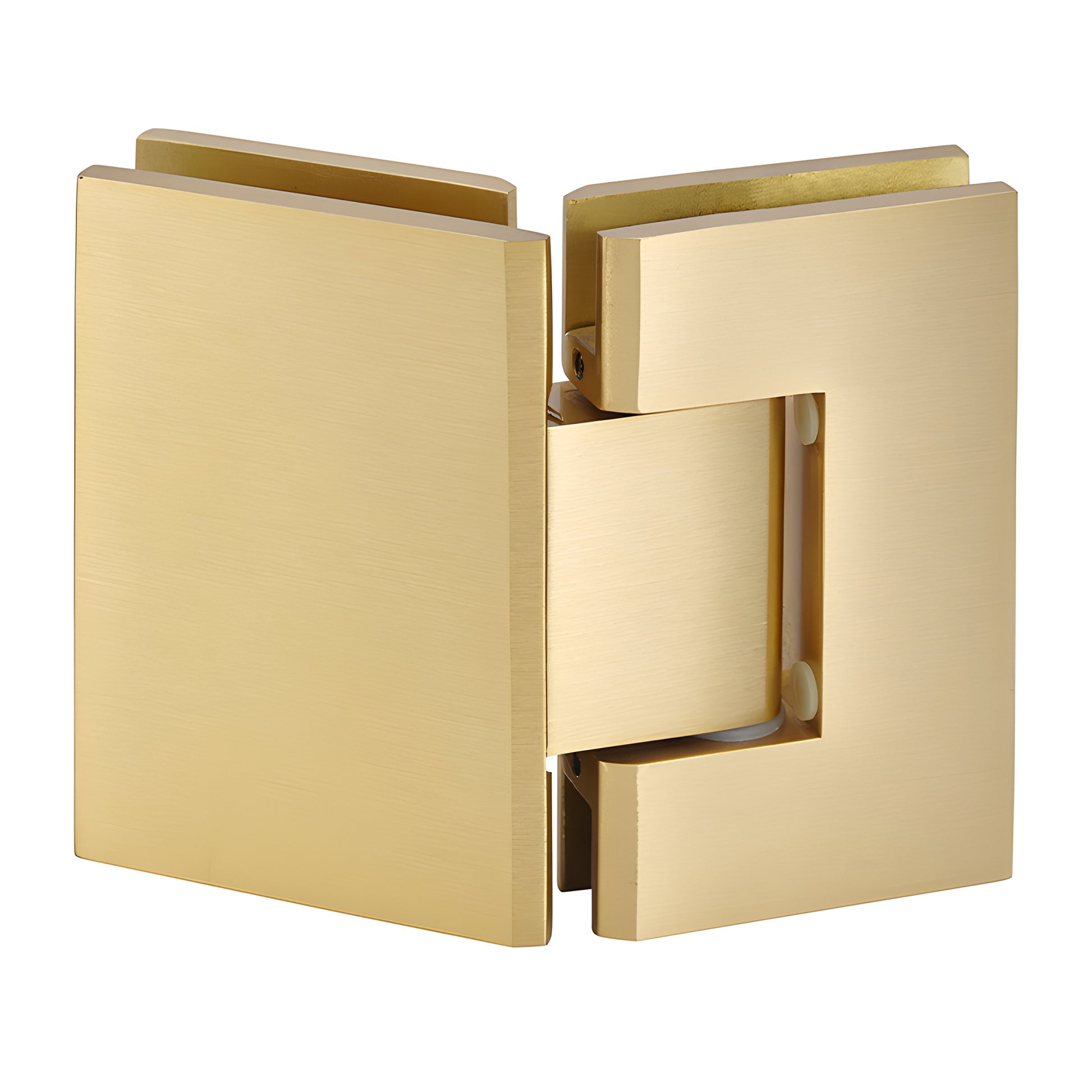

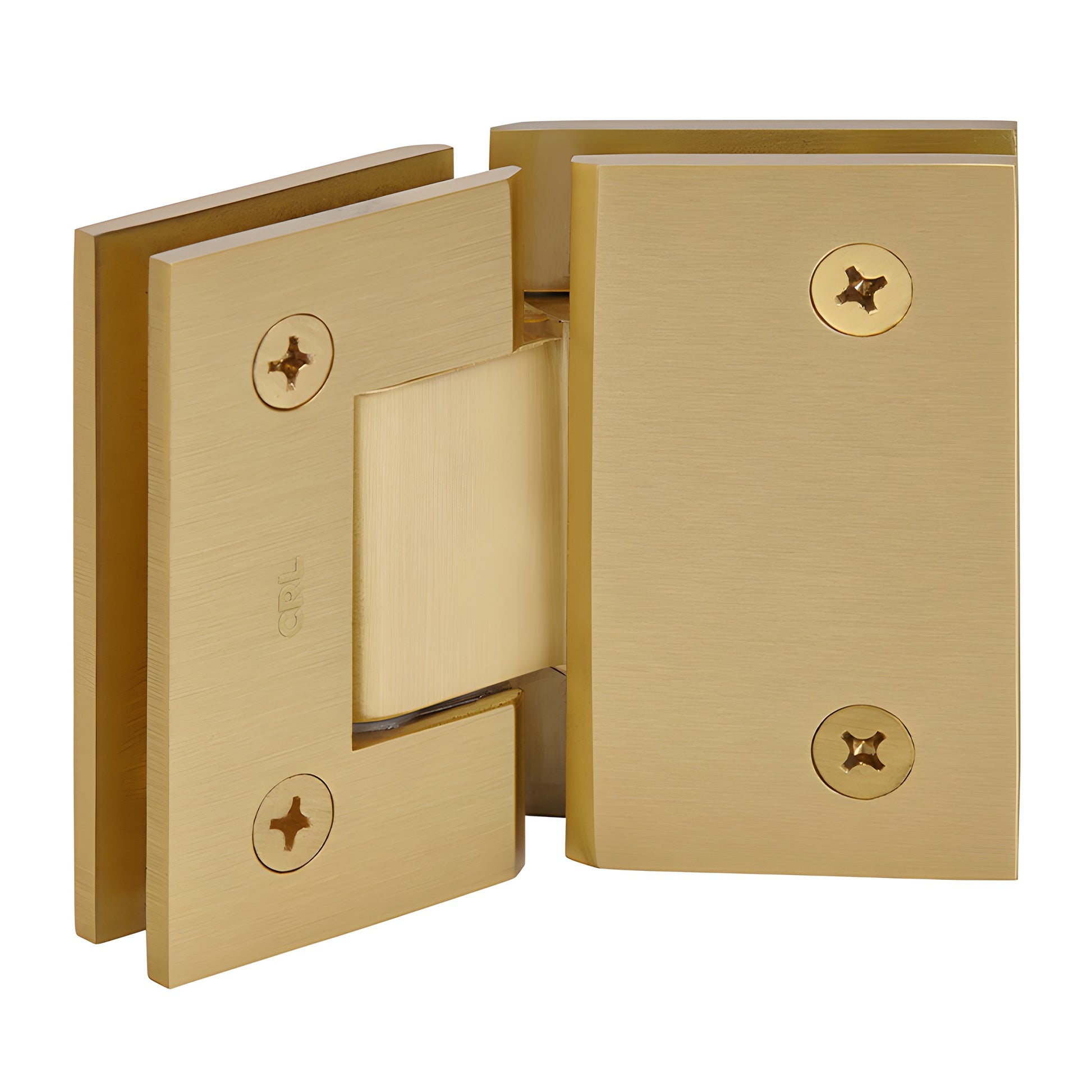

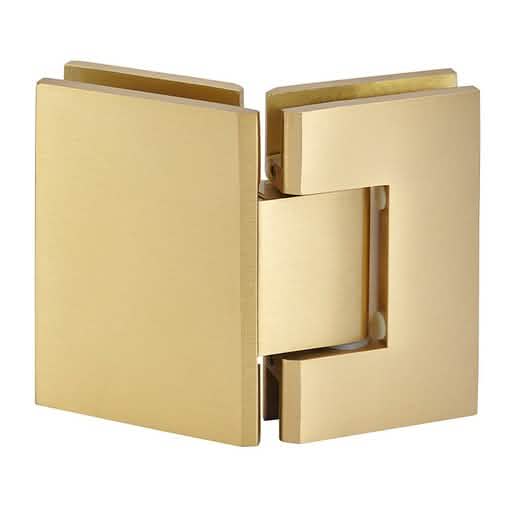

CRL Geneva 045 135° Satin Brass Frameless Glass-to-Glass Shower Hinge

• Self-centering with reversible 5° pivot pin for controlled closing
• Available in several beautiful finishes (custom finishes on request)
• Three year warranty
• 135° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered safety glass (5/16"–1/2")

The CRL Geneva Series professional hinges (SKU: GEN045SB) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and offer six styles—three Wall Mount and three Glass-to-Glass—for design flexibility in shower enclosures. Geneva Hinges are solid brass with stainless steel pins and springs, are self-centering, and include a reversible 5° pivot pin. Custom pivot pins are available for off-angle installations. These hinges are ideal as tempered shower door hinges and glass-to-glass shower door hardware.


Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; offset models are pre-set to 85° for a tighter closure into the shower interior. Rotate (do not flip) the pin to change settings.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) can be specified up to 45° to accommodate off-angle installations. Using a Custom Pivot Pin may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

Rated capacities:

• Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg); max door width 28" (711 mm)
• Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg); max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model (0° factory set) or 5° pre-set model for tighter shower closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 G
