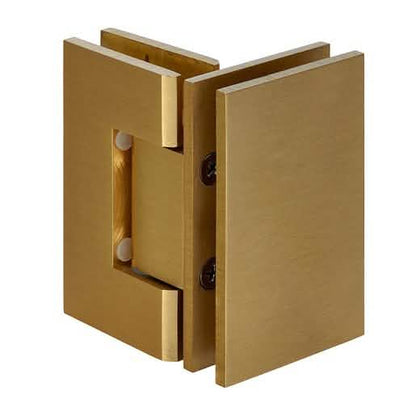

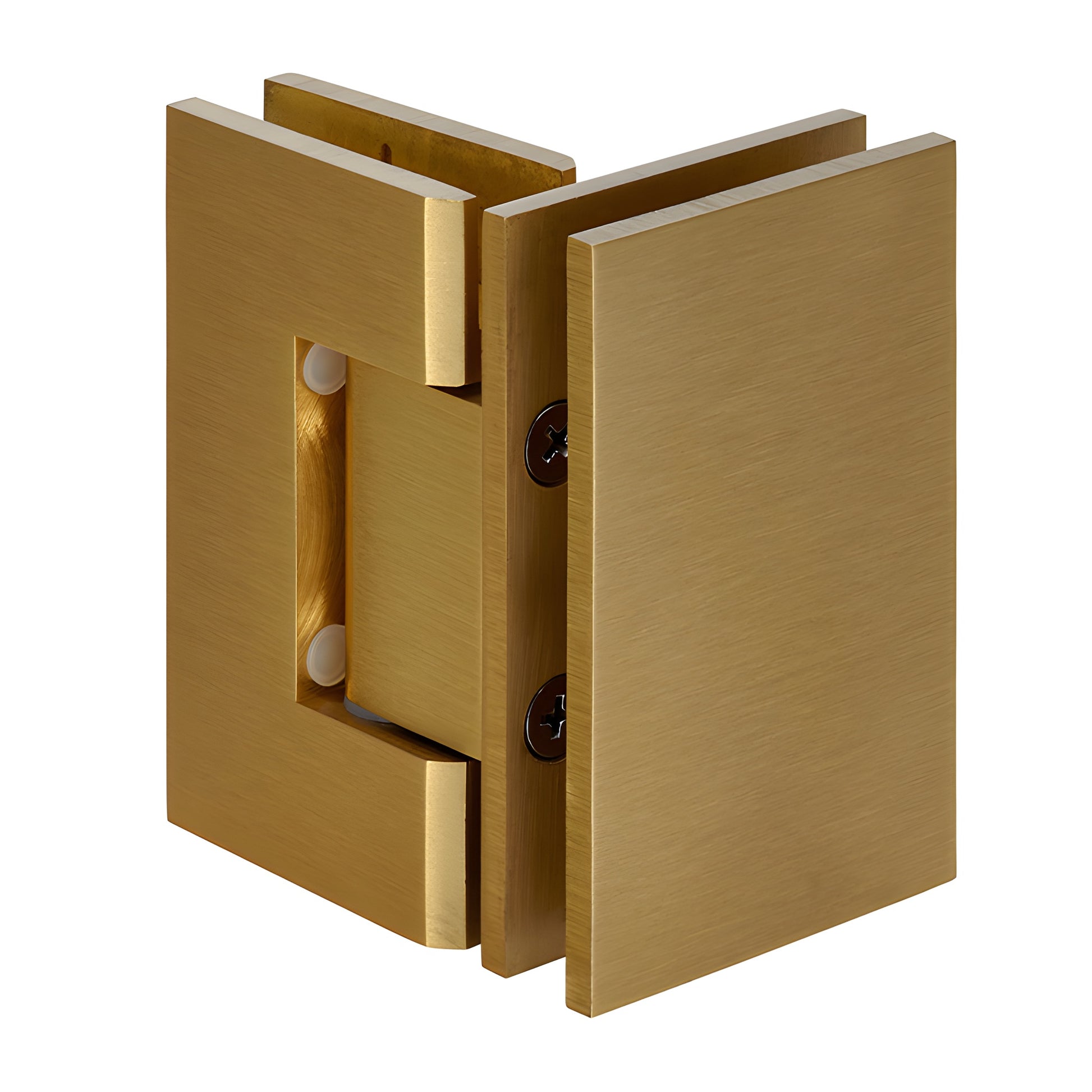

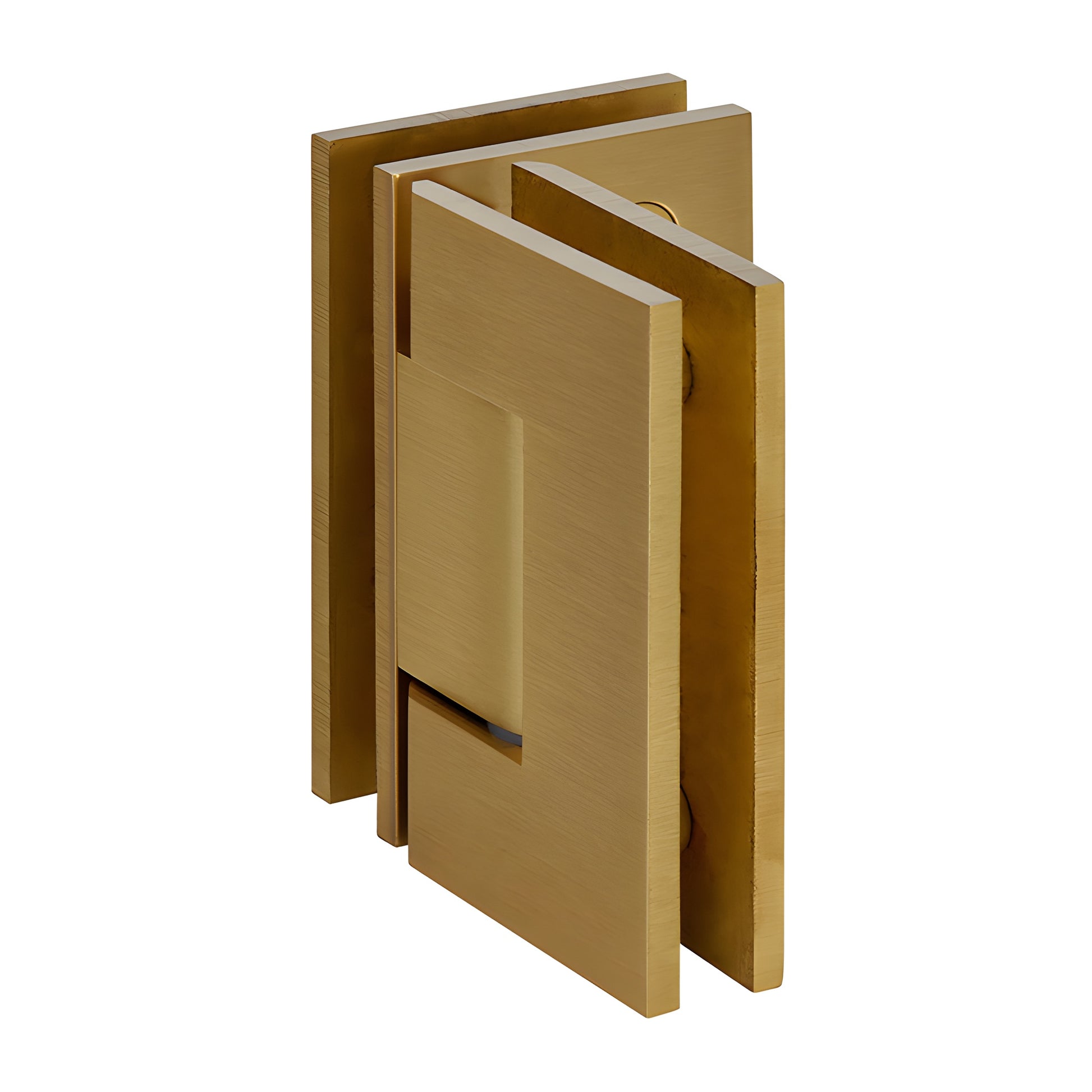

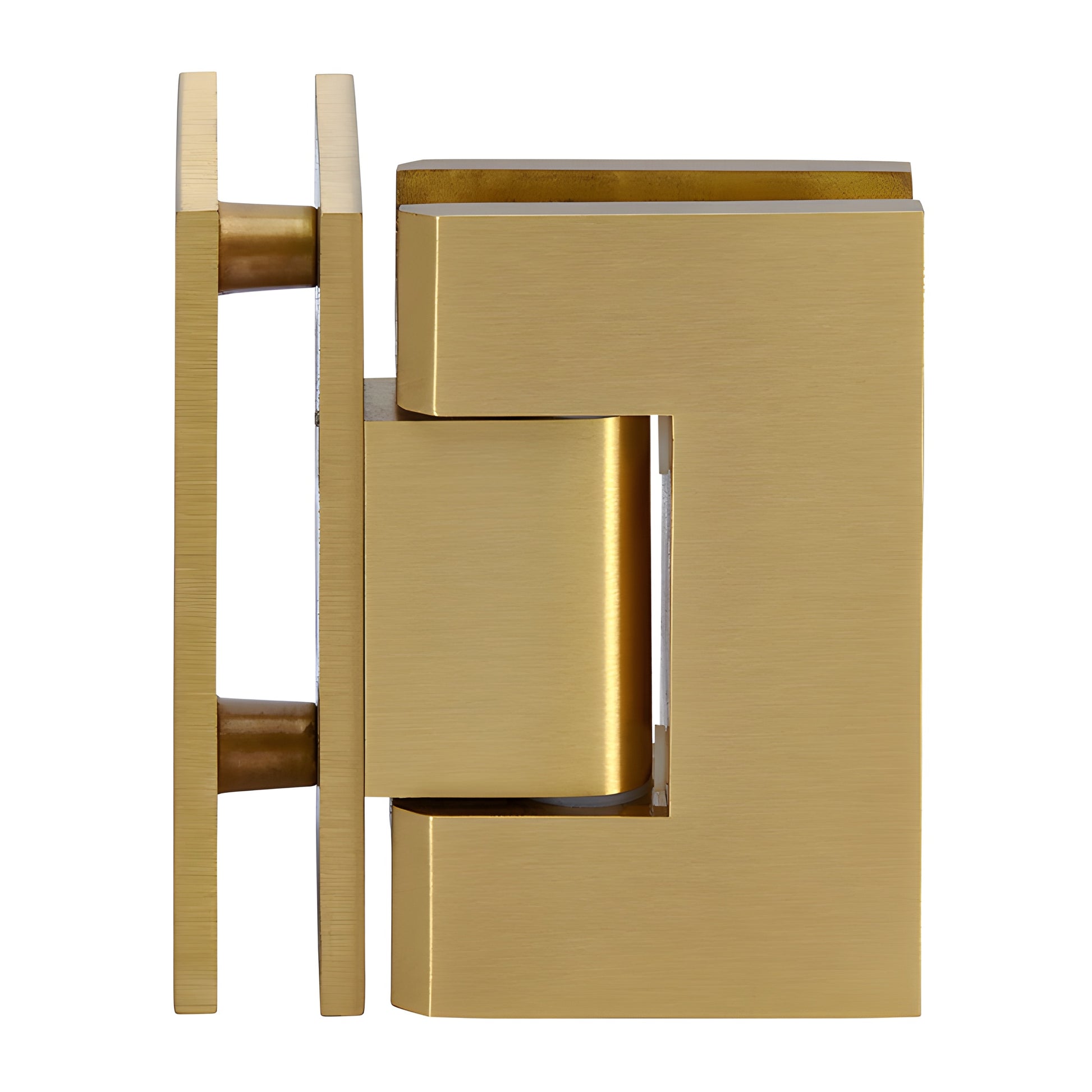

CRL Geneva 092 Satin Brass 90° Glass-to-Glass Shower Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 90 Degree Glass-to-Glass
• Use Monolithic Tempered Glass

The CRL Geneva Series professional shower door hinges (SKU: GEN092SB) fit 5/16" (8 mm) to 1/2" (12 mm) tempered glass and are engineered for durable, precise operation. Choose from six styles—three Wall Mount and three Glass-to-Glass—for flexible frameless shower door design. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for corrosion resistance and long-lasting performance.

Standard Reversible Pivot Pin: Each Geneva hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Offset models are pre-set to 85° (for a 5° tighter closure into the shower interior). The pin can be rotated (not flipped) to switch sides.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be manufactured to accommodate off-angle installations up to 45°. If the standard 5° adjustment does not achieve the desired door closing, contact our Technical Sales Shower Door Department to specify the angle. Note: using a custom pivot pin may affect glass sizing and enclosure aesthetics.

Using two hinges with 5/16"–1/2" (8–12 mm) glass, each hinge set supports up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

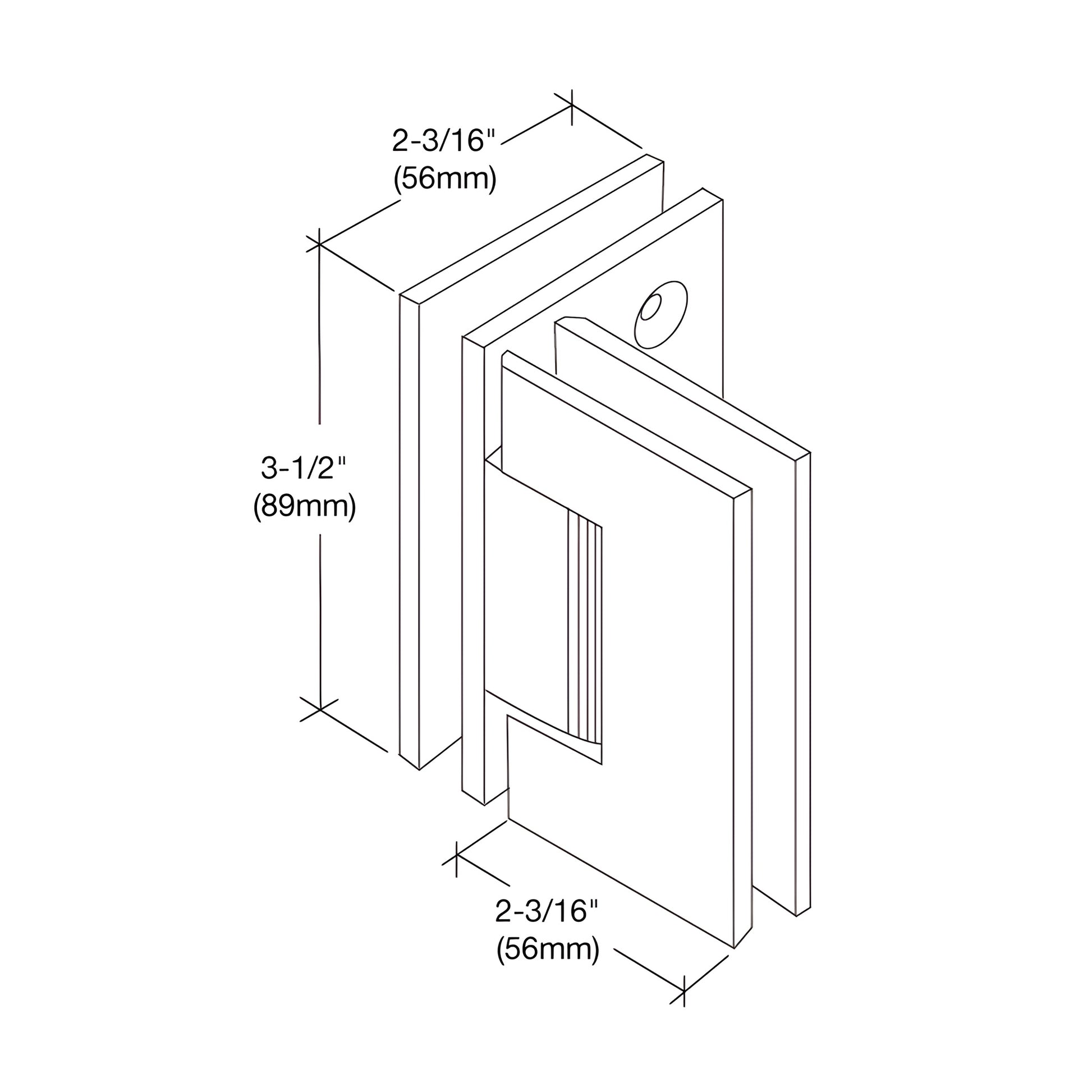

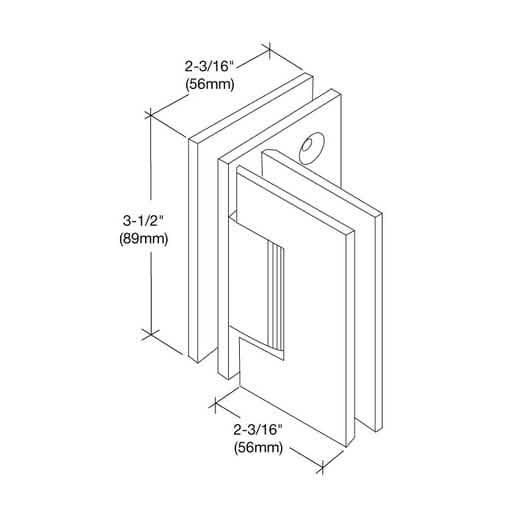

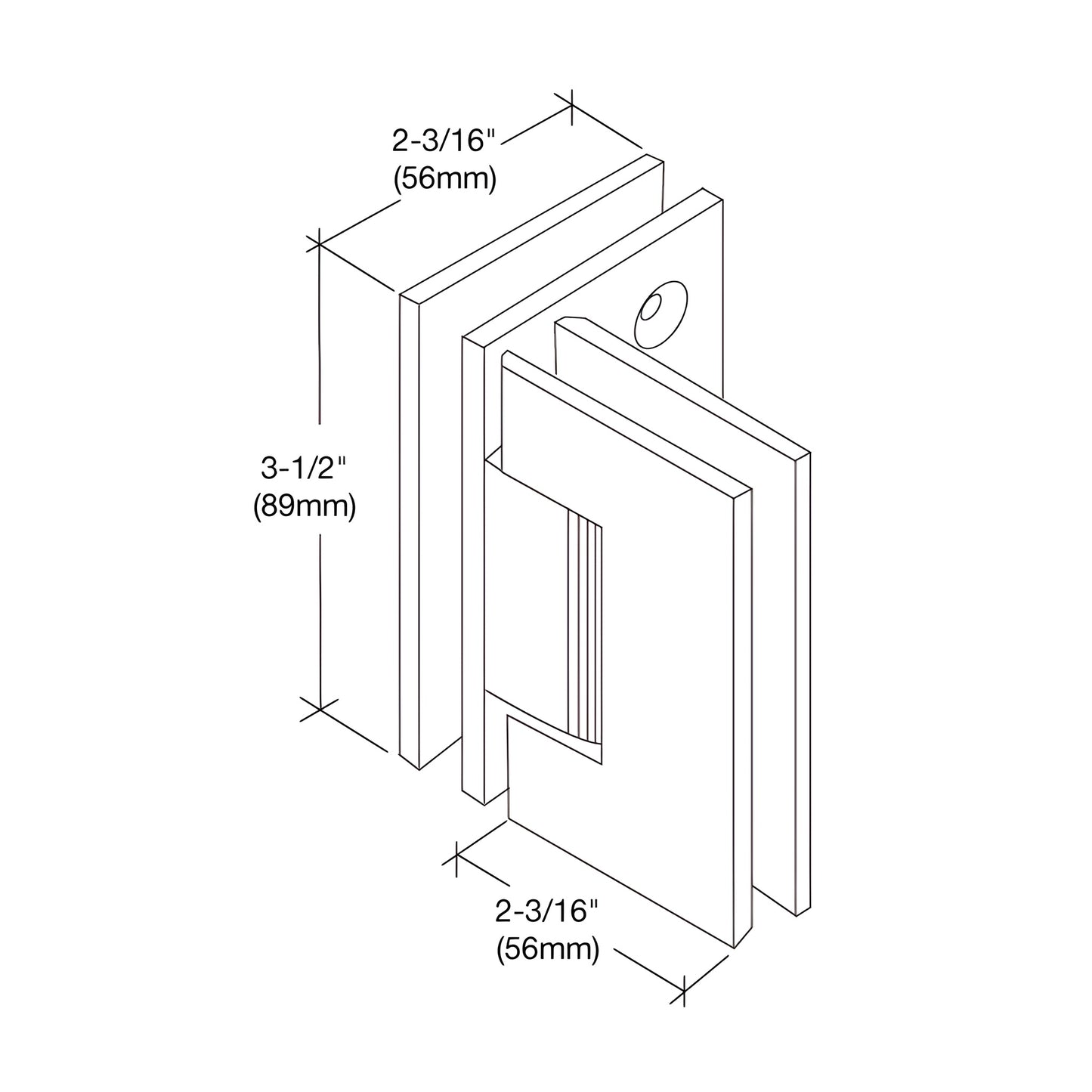

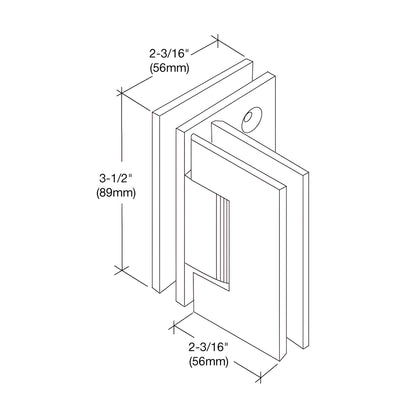

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model factory-set at 0° closing position or 5° Pre-Set model for tighter closure into shower interior
Construction: Solid Brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact the Technical Sales Shower Door
