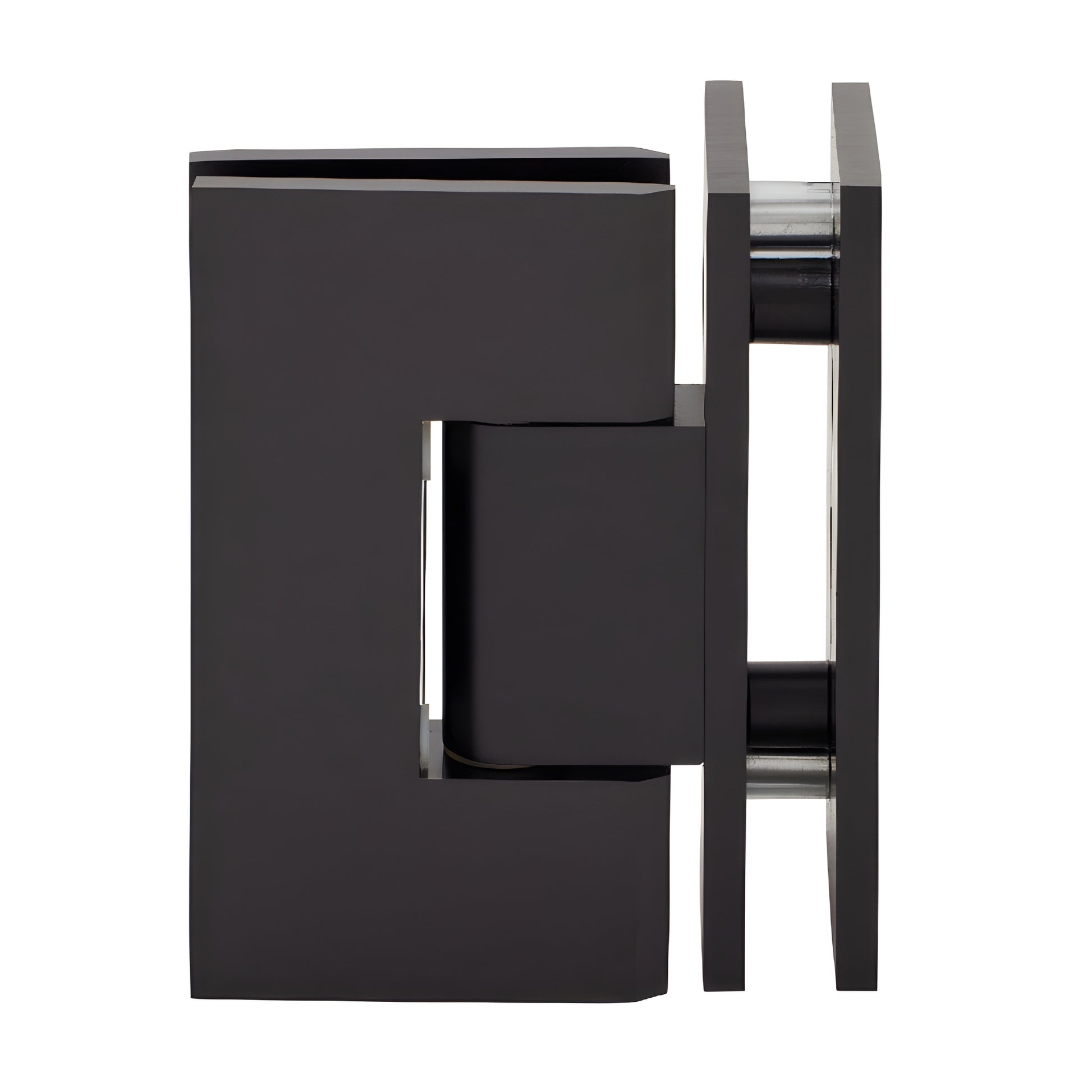

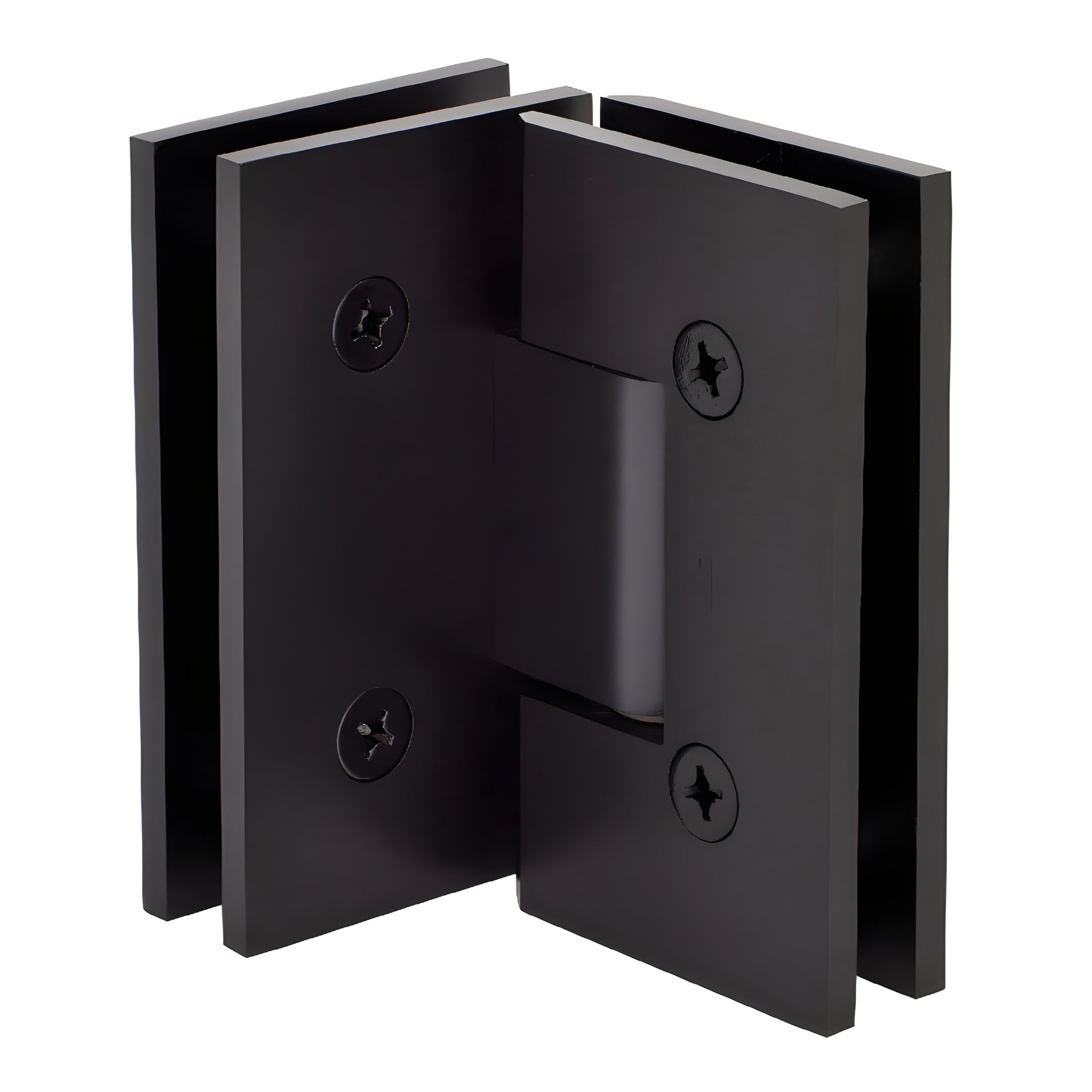

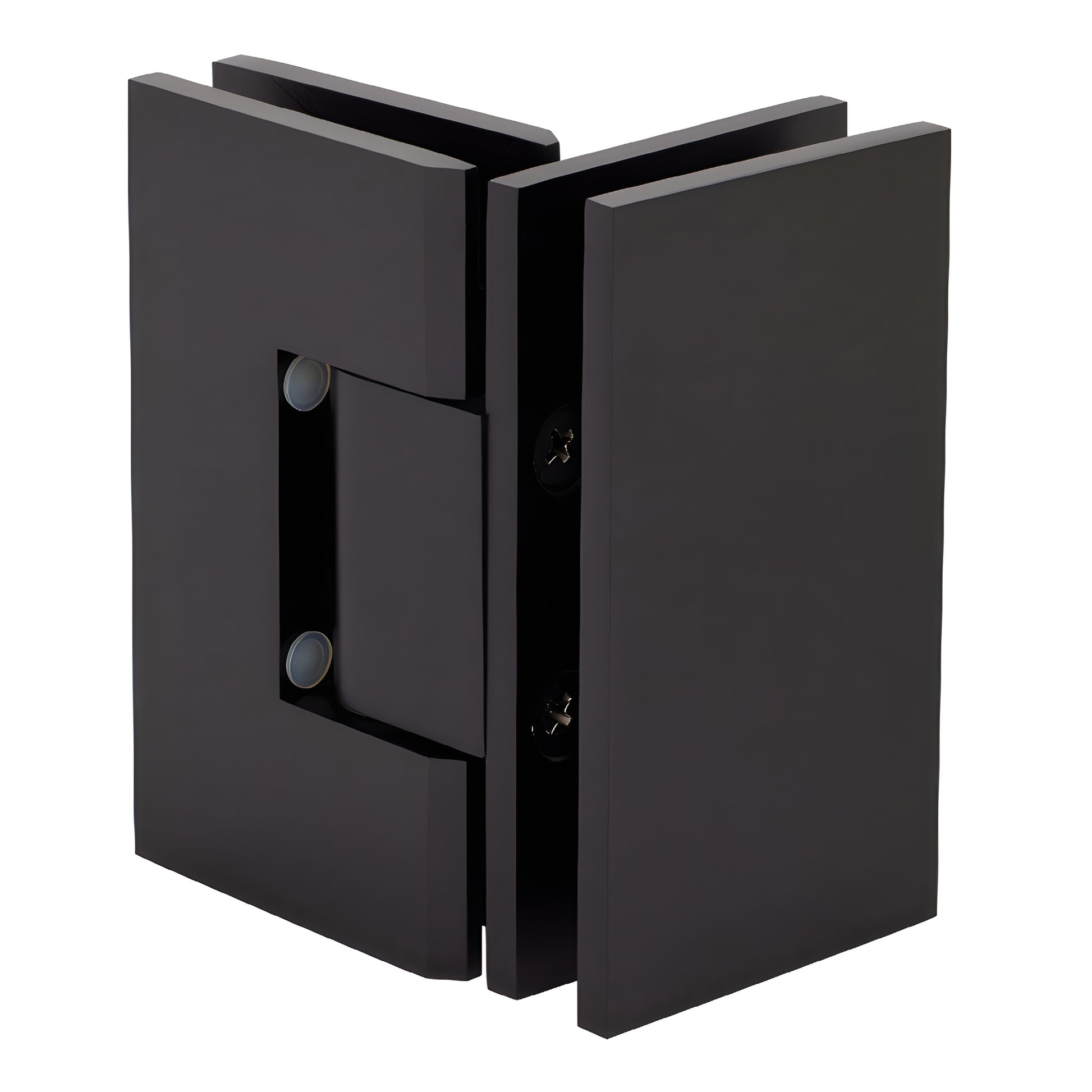

CRL Geneva 092 Oil-Rubbed Bronze 90° Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishes
• Three-year warranty
• 90° glass-to-glass and wall-mount configurations
• Designed for monolithic tempered safety glass

The CRL Geneva Series professional hinges (SKU: GEN0920RB) accept 5/16" (8 mm) to 1/2" (12 mm) tempered glass. Six styles provide design flexibility—three wall-mount and three glass-to-glass types—making these Geneva shower door hinges ideal for residential and hotel shower enclosures. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed from solid brass with stainless steel pins and springs for long-lasting corrosion resistance.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; offset models are preset to 85° for a tighter closure into the shower interior. The pin can be rotated (not flipped) to switch sides.

Custom Pivot Pin (Cat. No. GENP1N): Custom pins up to 45° are available for off-angle installations. If the 5° reversible pin does not achieve the desired door position, specify the required angle and contact the Technical Sales Shower Door Department. Note: glass sizes and enclosure aesthetics may be affected when using a custom pivot pin.

Performance: Using two hinges with 8–12 mm glass, each installation supports up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° factory set) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact the Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; CRL cut-out dimensions may differ from other brands.
