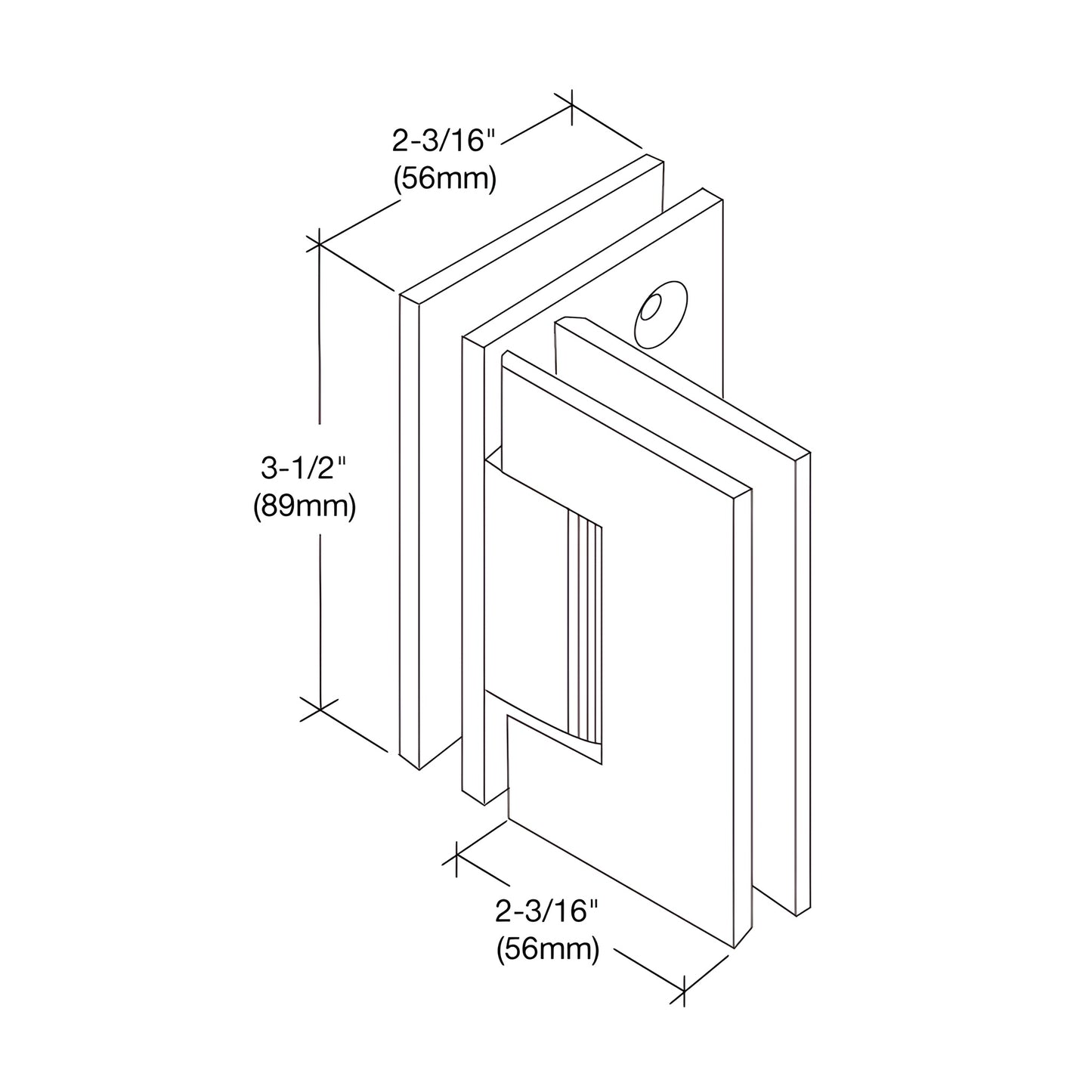

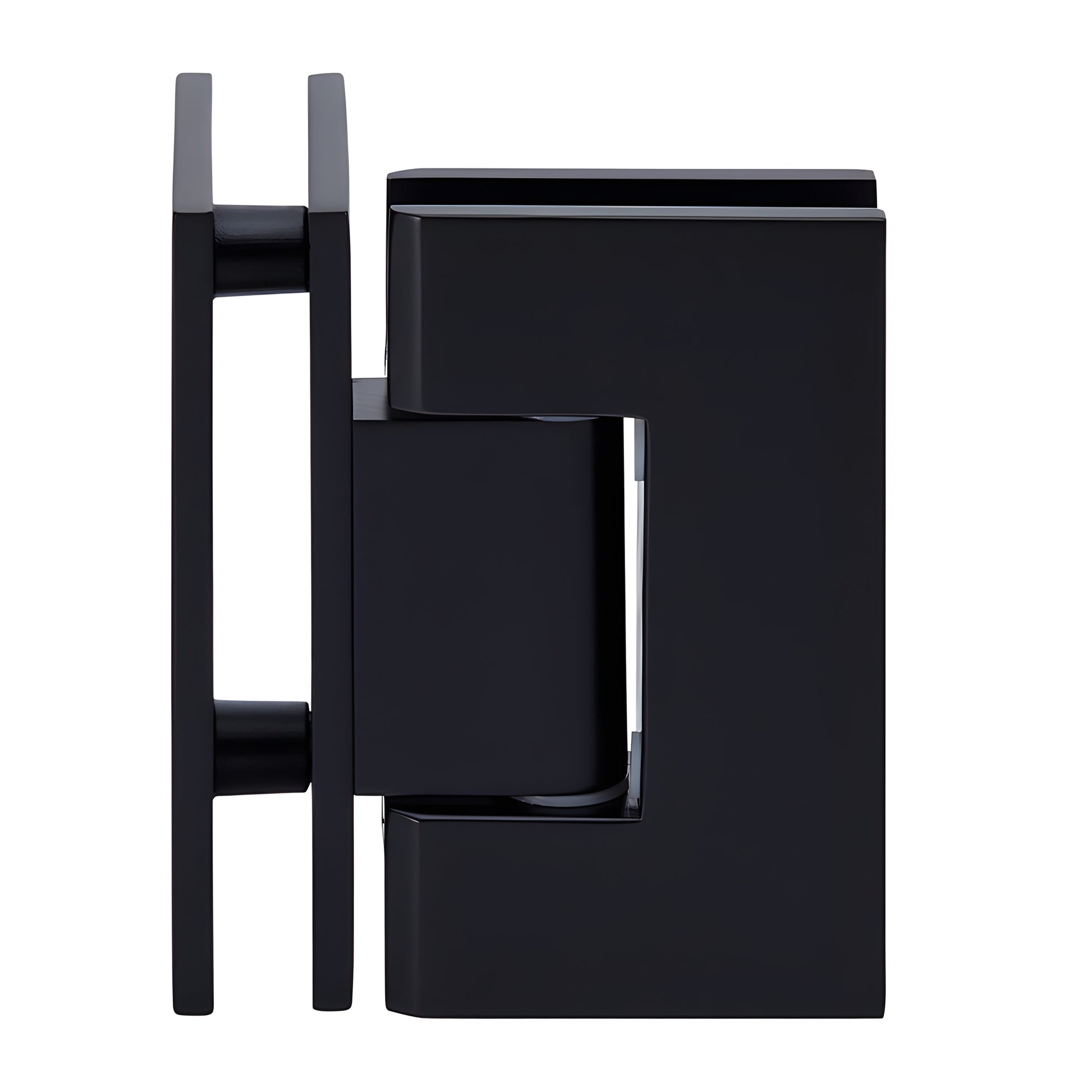

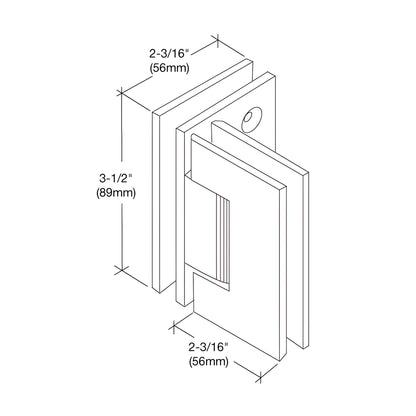

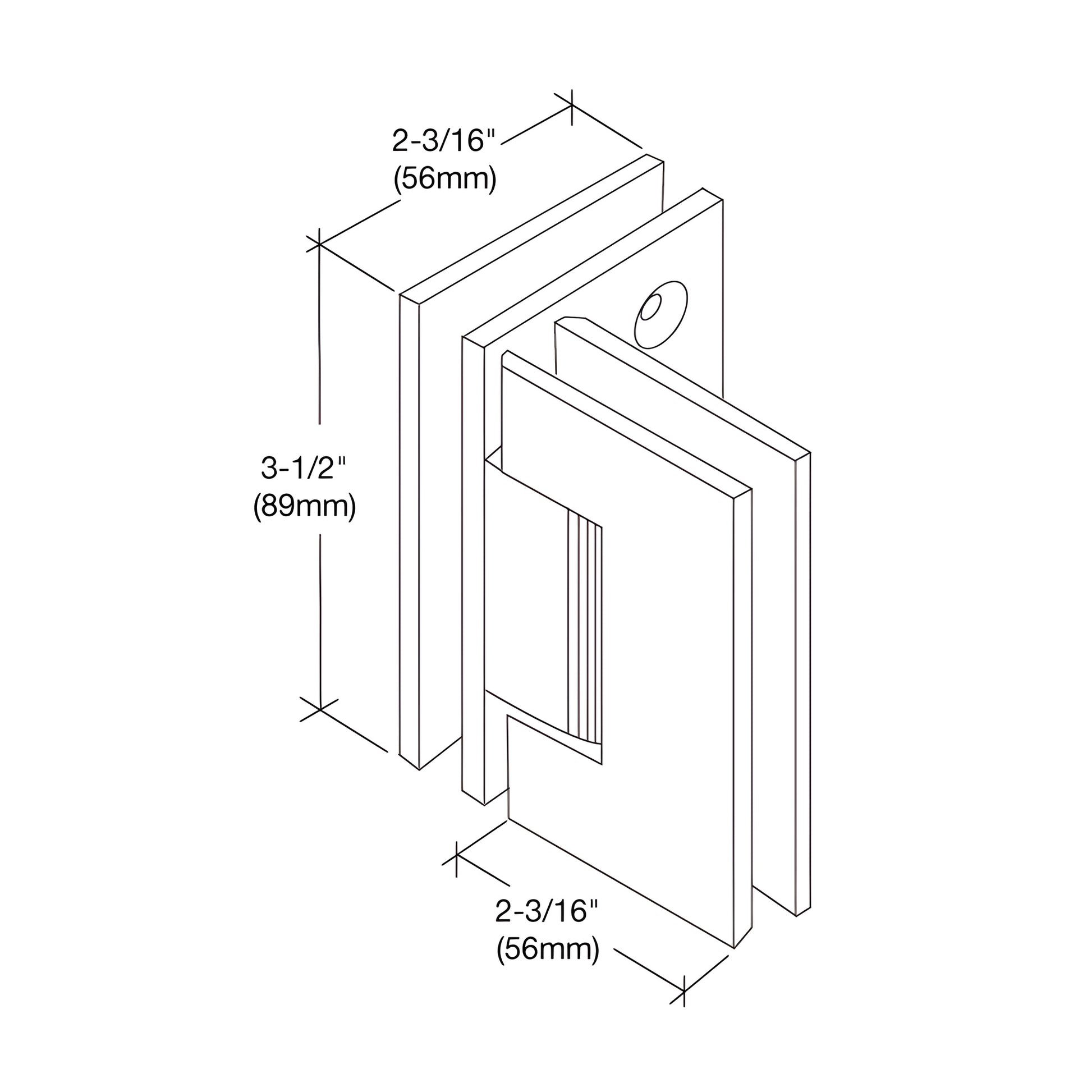

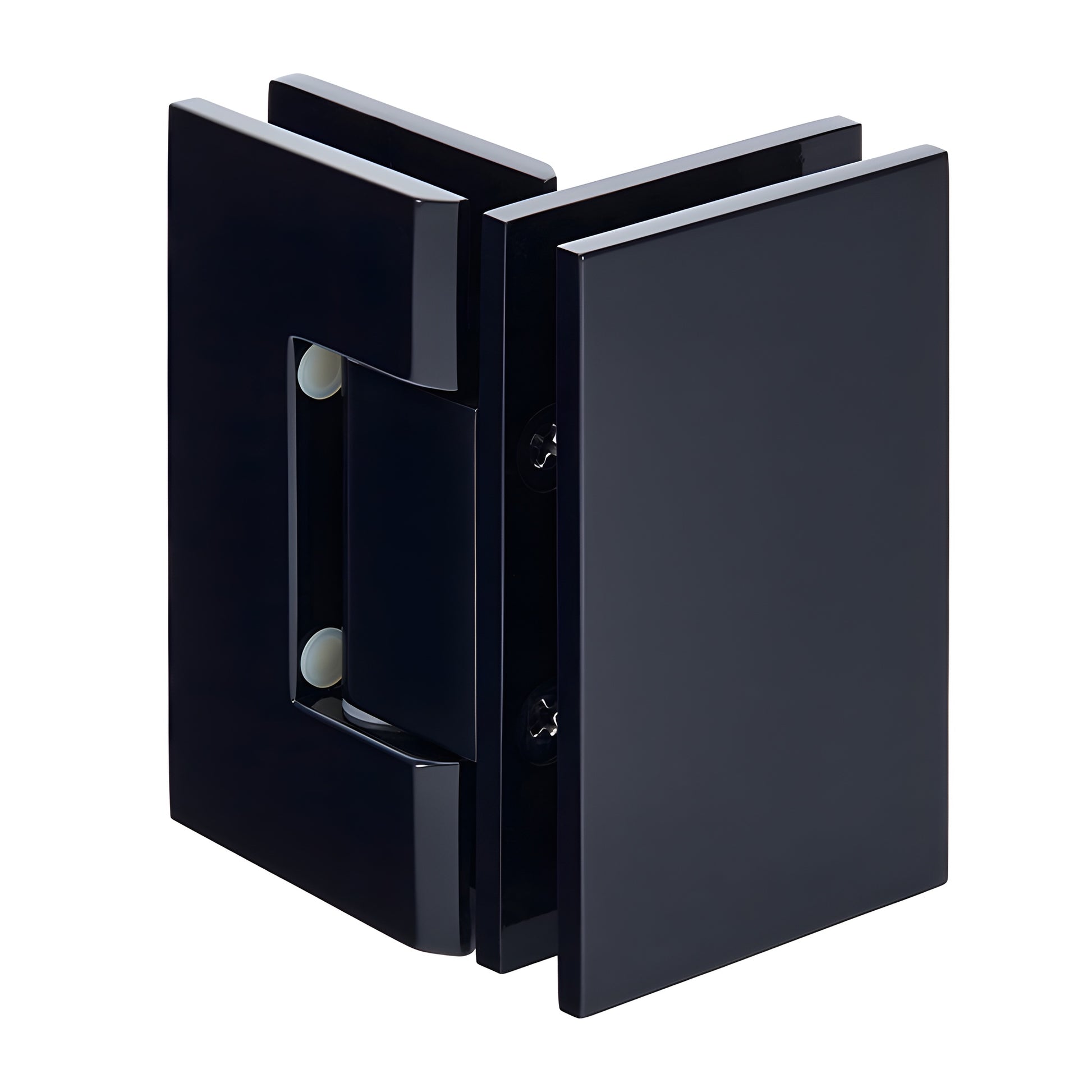

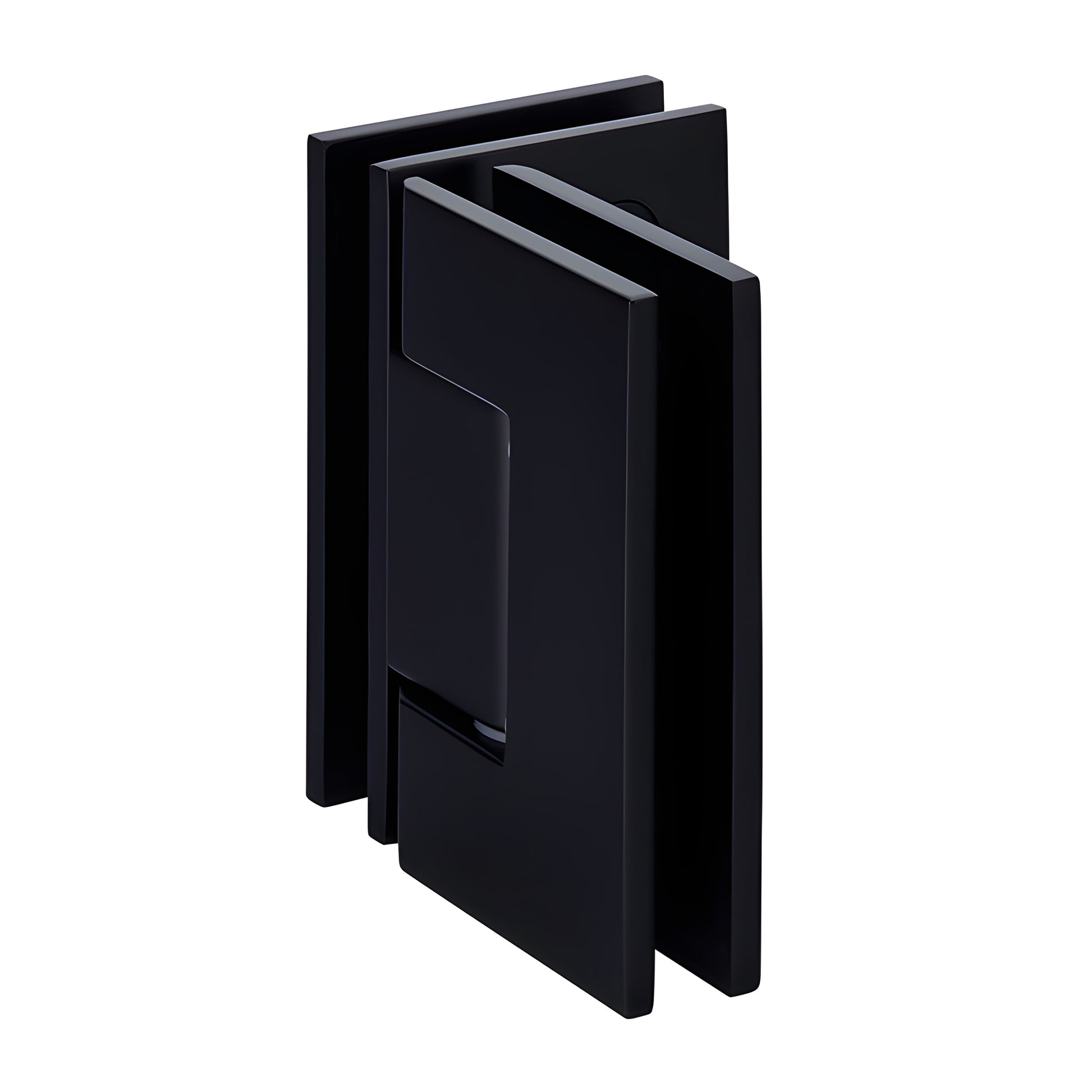

CRL Geneva 092 Matte Black 90 Degree Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple decorative finishes
• Three-year warranty
• 90° glass-to-glass and wall-mount configurations
• For monolithic tempered glass (8 mm–12 mm)

The CRL Geneva Series professional hinge fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is offered in six styles (three wall-mount and three glass-to-glass) for flexible shower-door designs. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless-steel pins and springs for durable, corrosion-resistant operation.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°; offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to change the active angle.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) are available to specify angles up to 45° for unique or off-angle installations. Ordering a custom pin may affect glass sizes and enclosure aesthetics—contact our Technical Sales Shower Door Department for guidance.

Capacity:

• Two hinges with 8–12 mm glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm)
• Three hinges with 8–12 mm glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard (0°) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless-steel moving parts
Hinge Swings: 90° in and 90° out (glass-to-glass 90° configuration available)
Closing Type: Self-centering within 15° of closed position
Cut-Out Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 8 mm glass.

Custom finishes available on request—contact Technical Sales, Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower applications. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template supplied with this hinge—cut-out
