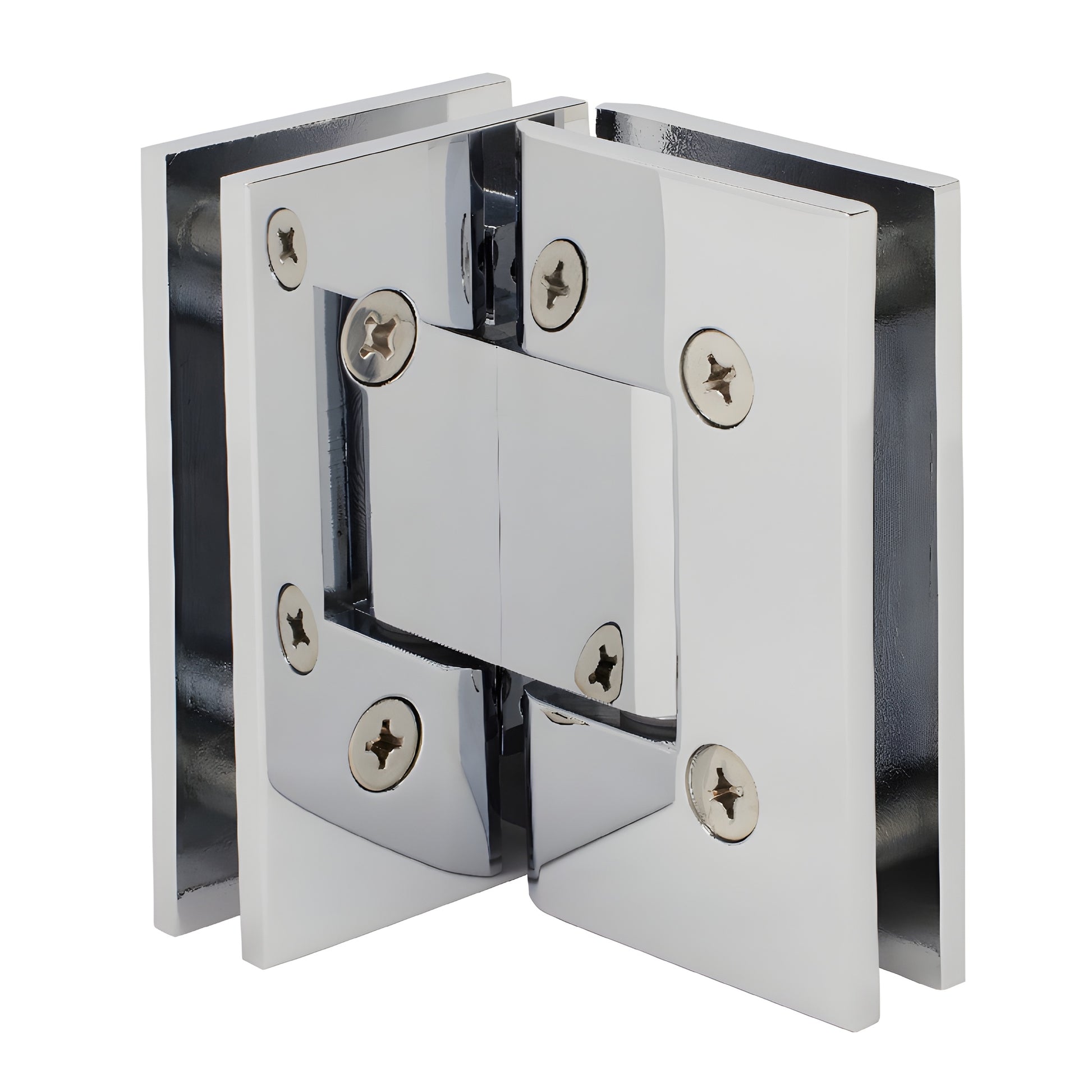

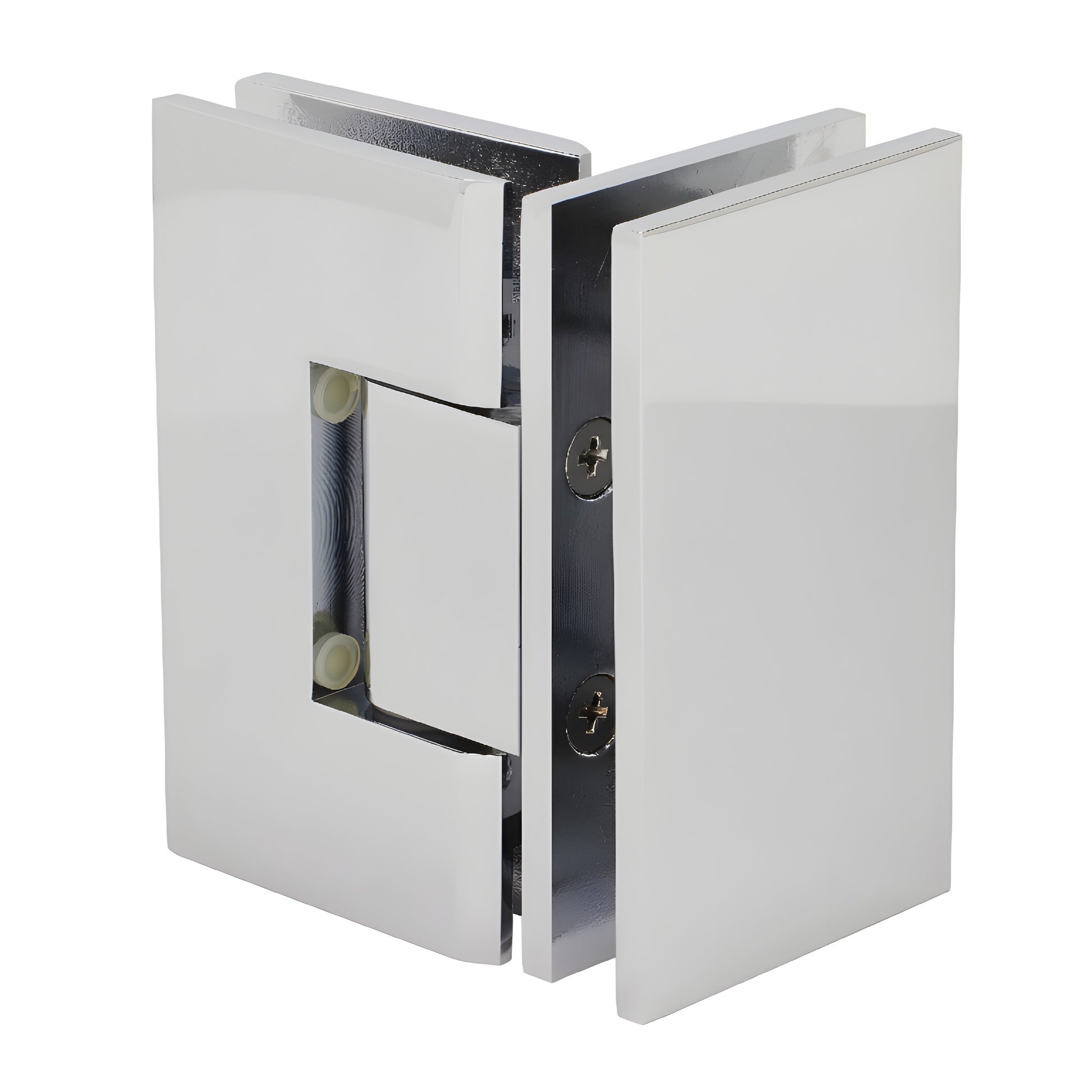

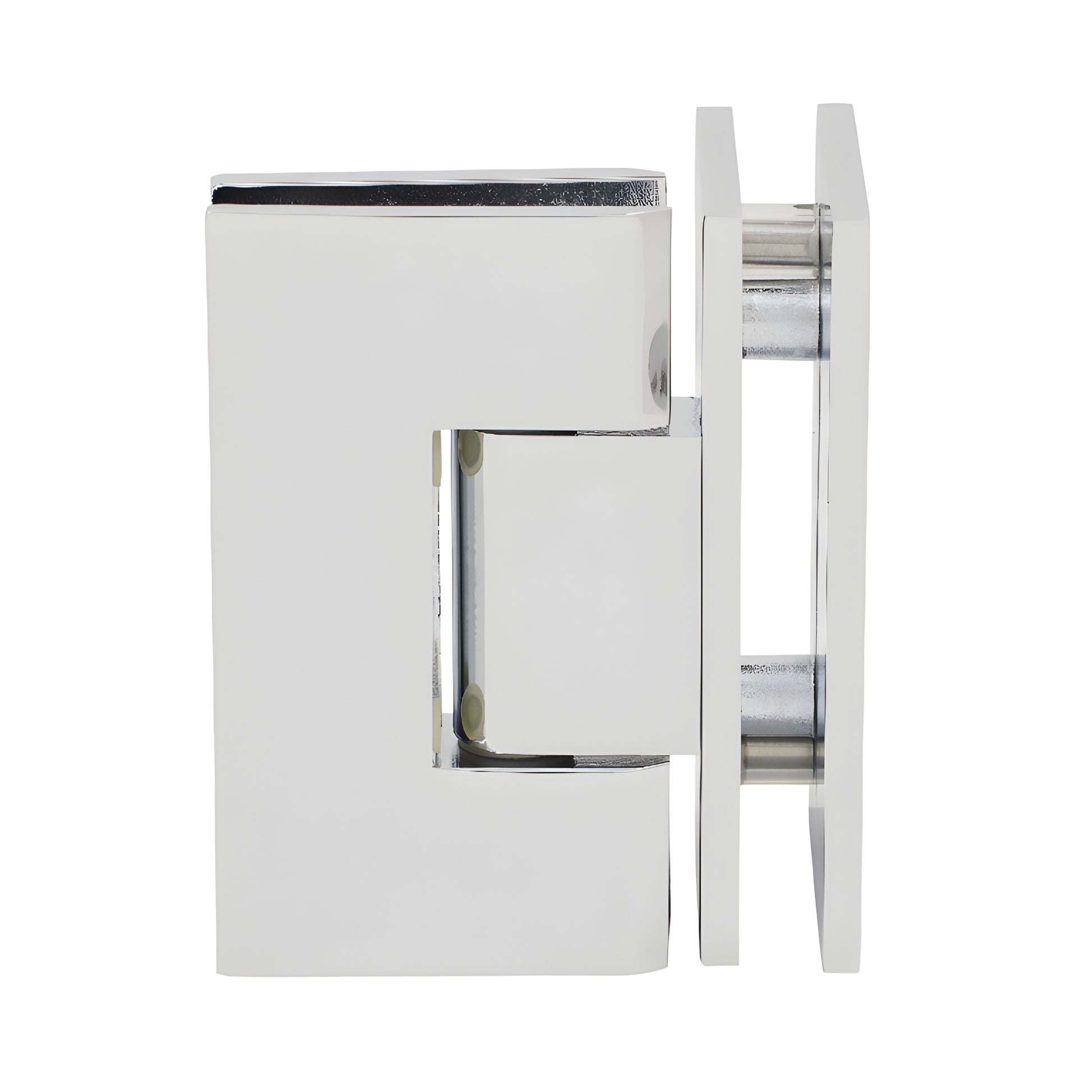

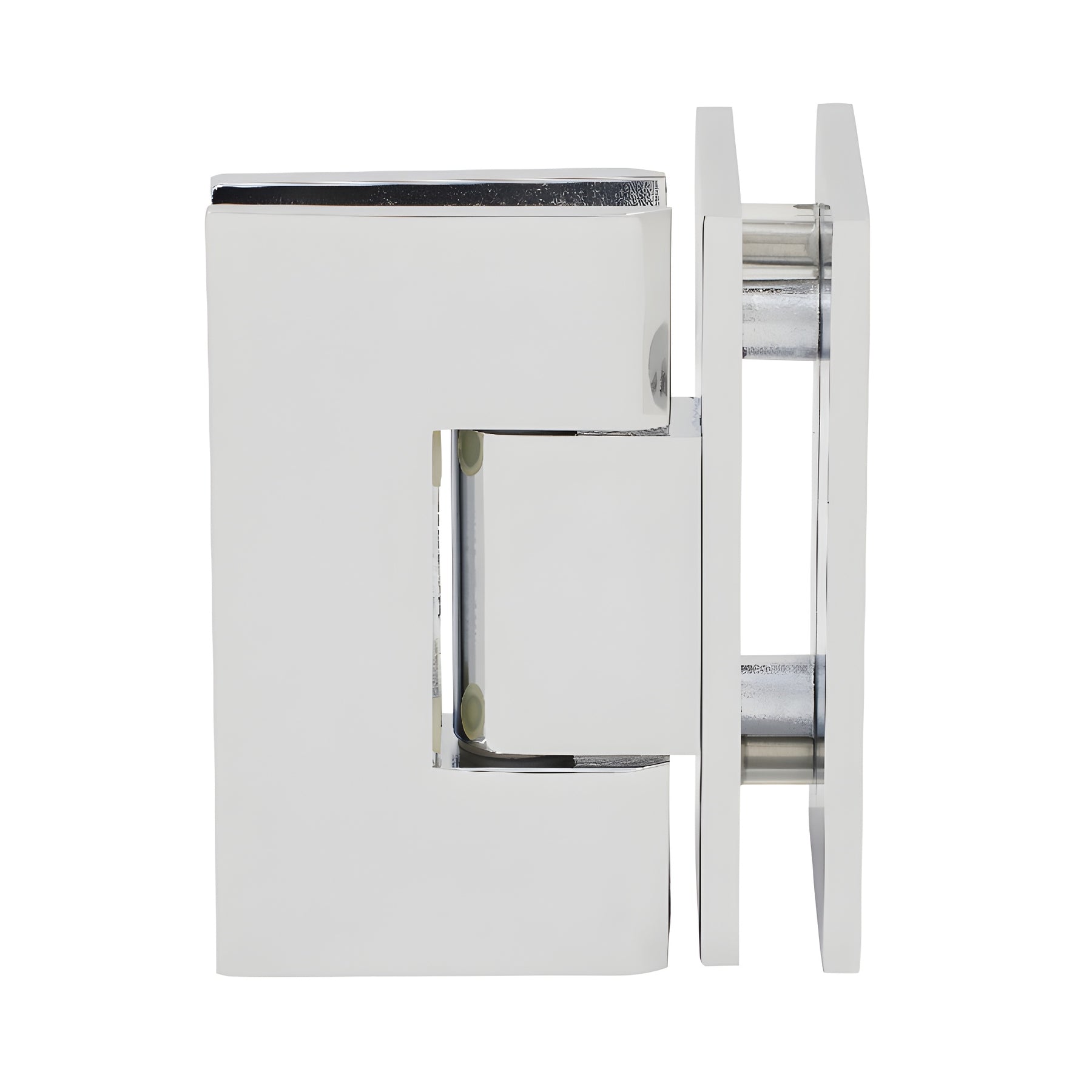

CRL Geneva 092 Polished Chrome 90° Frameless Glass-to-Glass Shower Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three Year Warranty
• 90 Degree Glass-to-Glass hinge
• For use with monolithic tempered glass

The CRL Geneva Series professional hinges (SKU: GEN092CH) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are available in six styles—three Wall Mount and three Glass-to-Glass—providing design flexibility for residential and hotel shower enclosures. Geneva Hinges are solid brass with stainless steel pins and springs, self-centering, and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with 90° activated; Offset models are pre-set to 85° for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to switch sides.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) can be specified up to 45° for non-standard closing angles. Using a custom pin may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model (0° factory-set) or 5° Pre-Set model for tighter closure into shower interior
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out (glass-to-glass applications)
Closing Type: Self-centering within 15° of the closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are engineered
