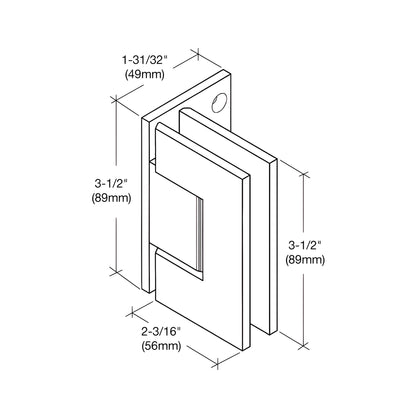

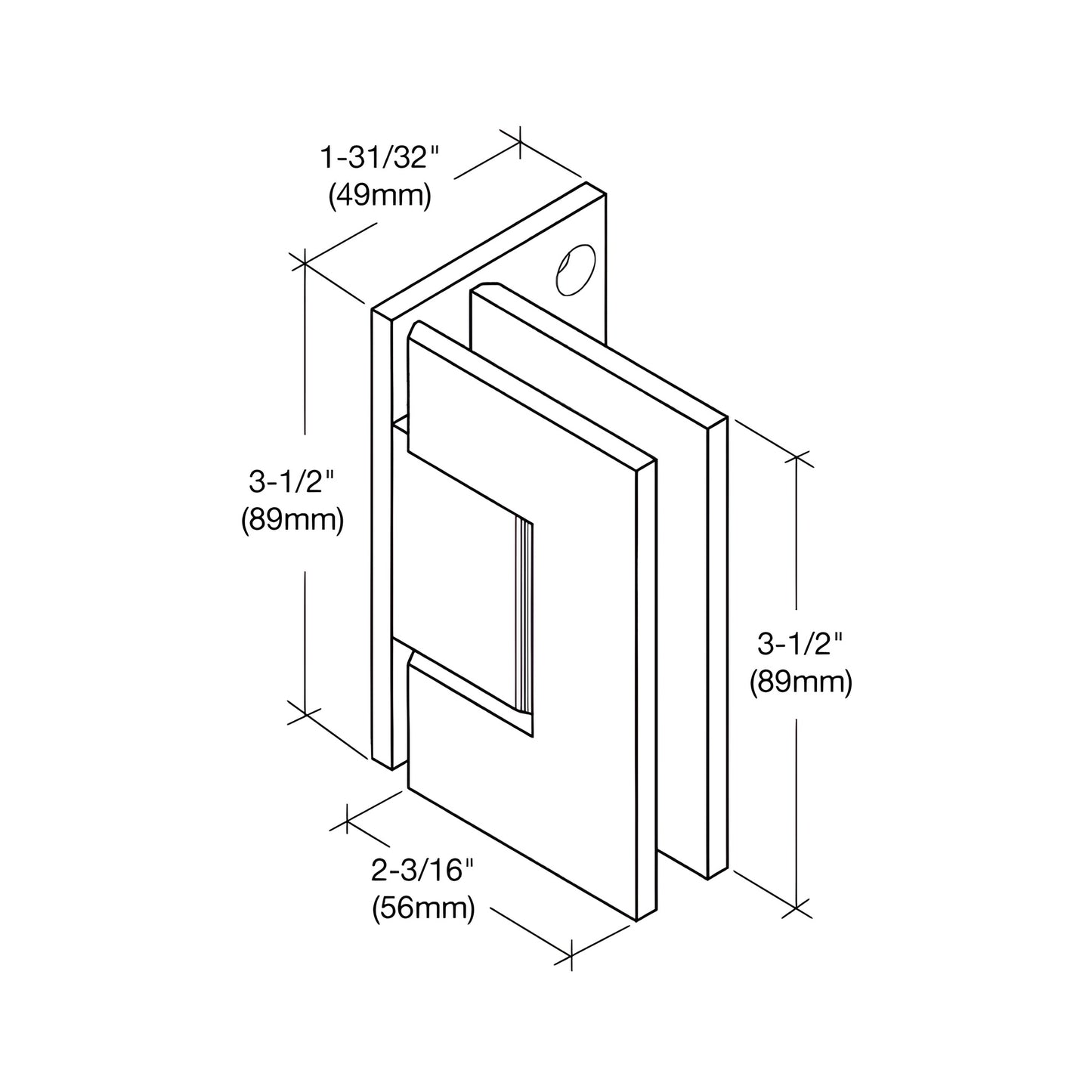

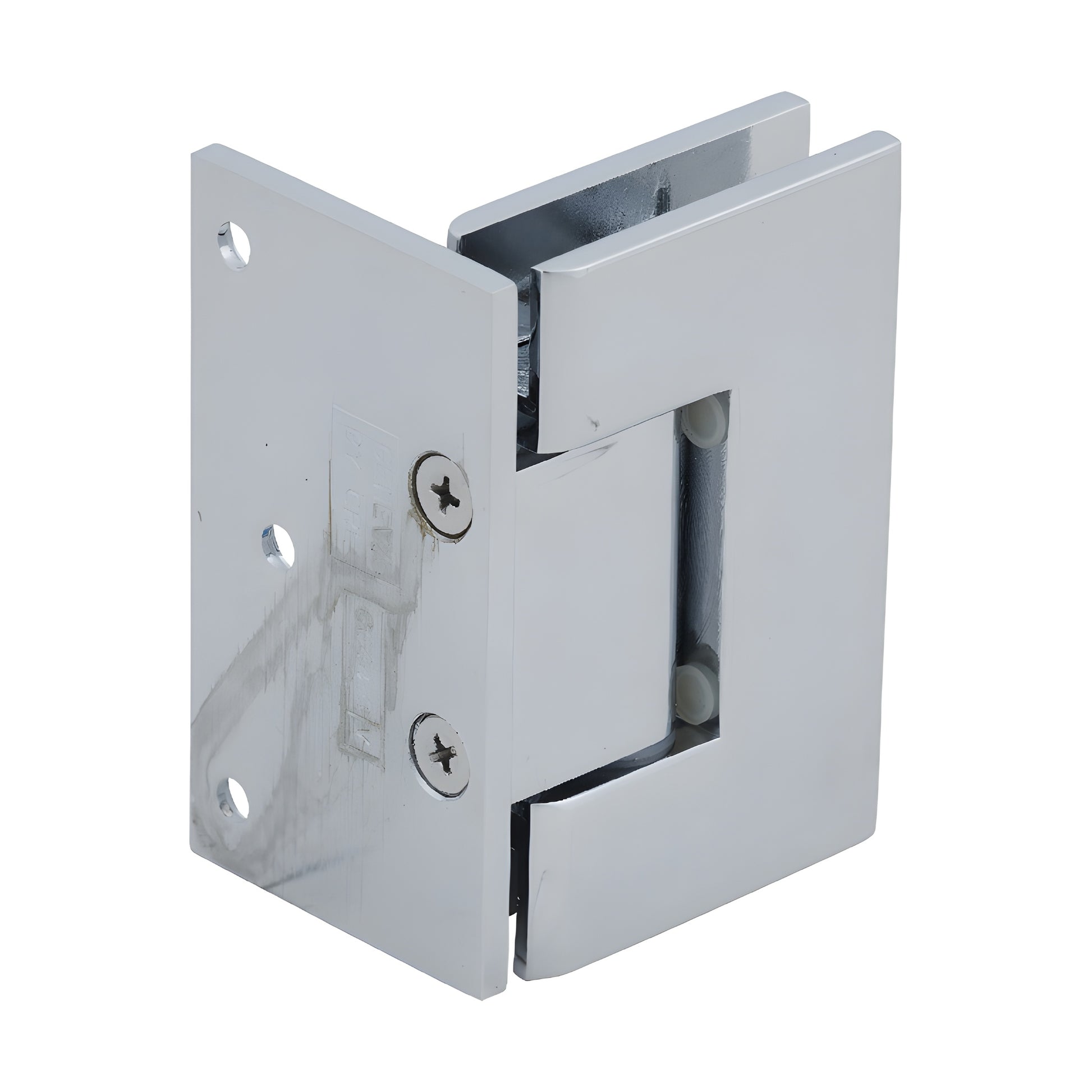

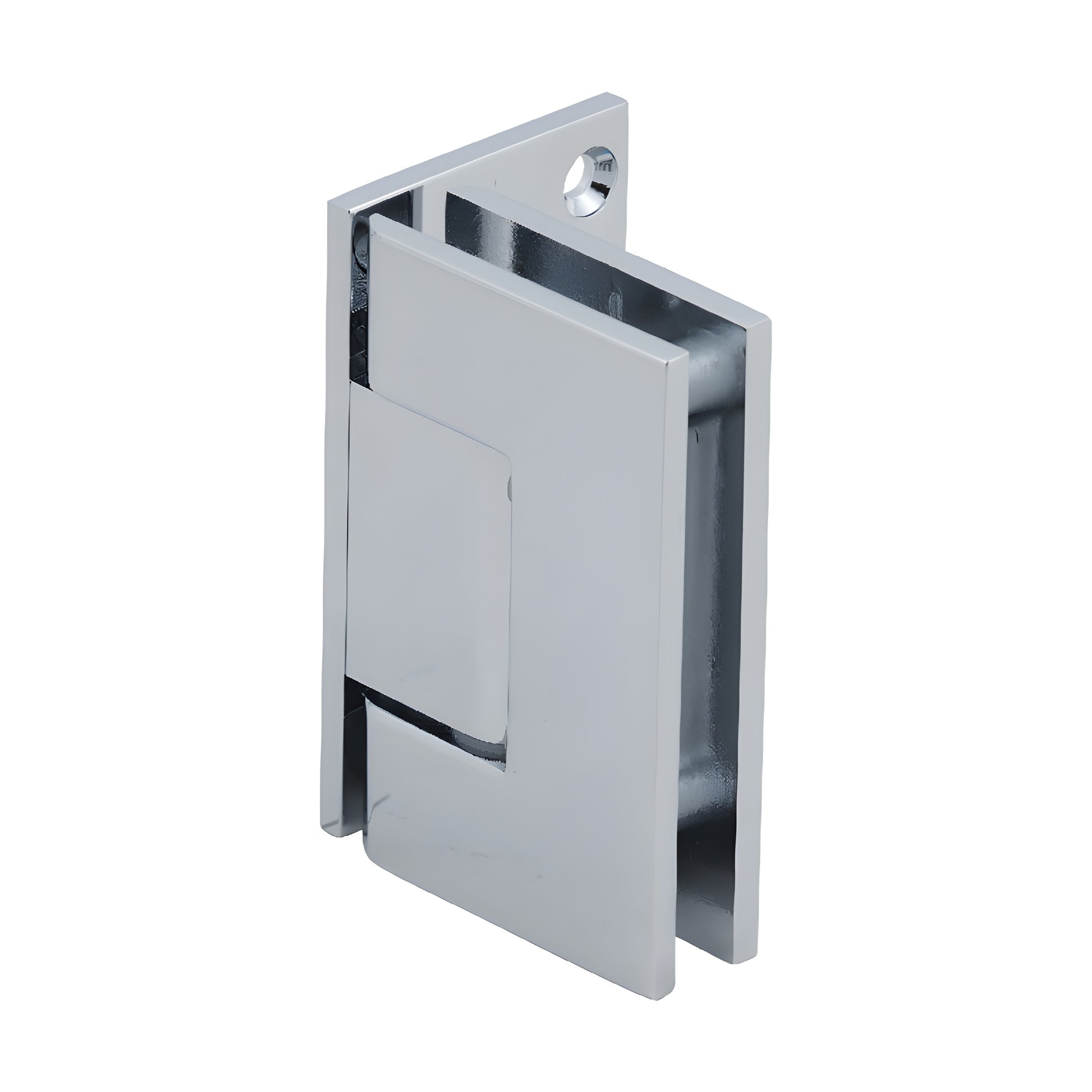

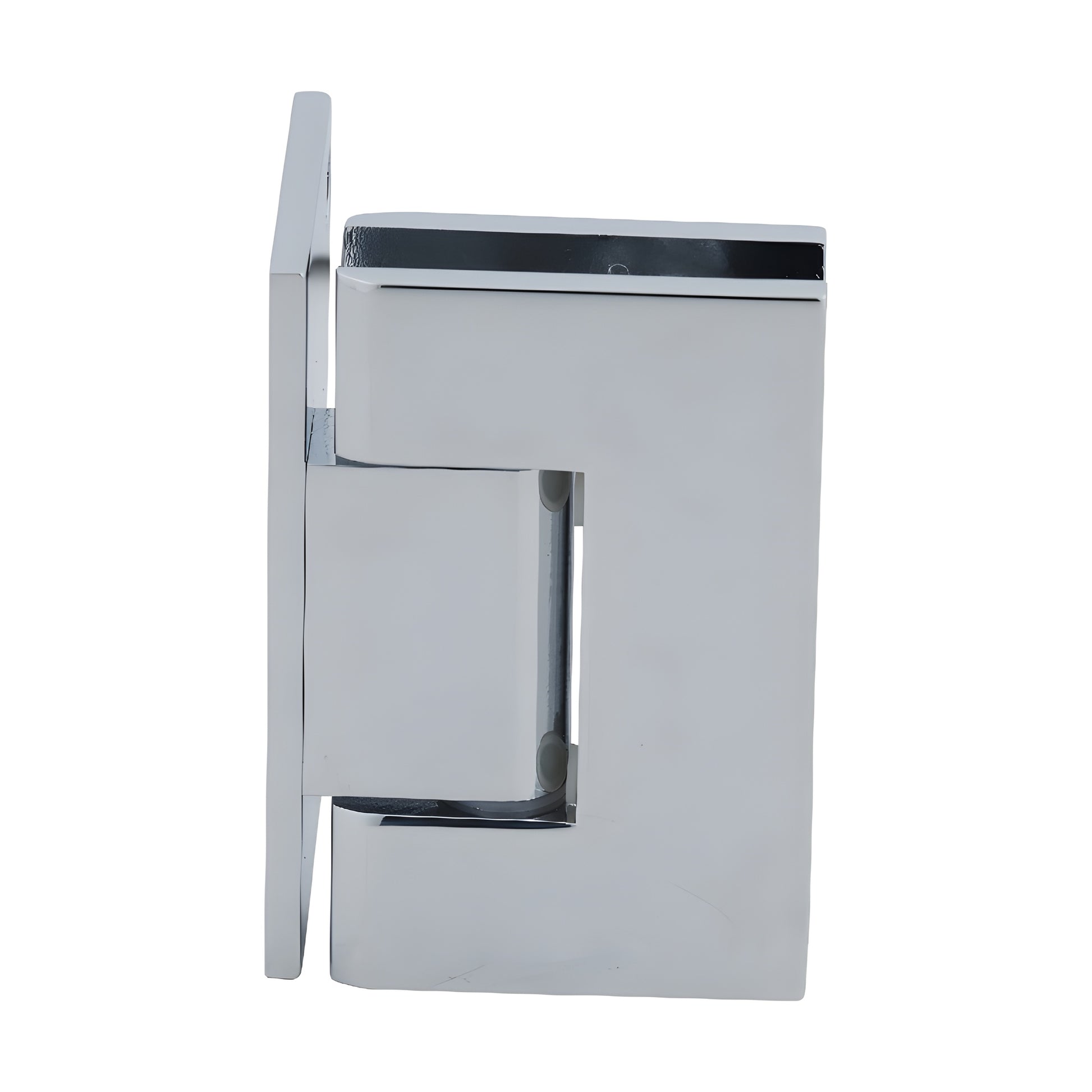

CRL Geneva 044 Polished Chrome Wall Mount Offset Hinge for Glass

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three Year Warranty
• Wall Mount Offset Back Plate (factory set for standard closing position)
• Use with monolithic tempered safety glass

The CRL Geneva Series professional hinge (SKU: GEN044CH) fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is available in six styles for design flexibility — three Wall Mount and three Glass-to-Glass types. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for long-lasting corrosion resistance in shower environments.

Each Geneva hinge contains a reversible pivot pin: one side marked 90° (standard factory setting) and the opposite side marked 85° (Pre-Set model for a 5° tighter closure into the shower interior). The pin can be rotated to change the activated side. Custom Pivot Pin (Cat. No. GENP1N) can be specified for angles up to 45°—contact Technical Sales Shower Door Department for assistance. Using a custom pin may affect glass sizes and enclosure aesthetics.

Performance: Using two hinges with 5/16"–1/2" (8–12 mm) glass, each hinge set will hold up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges, capacity increases to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (0° factory closing) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid Brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request — contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included
