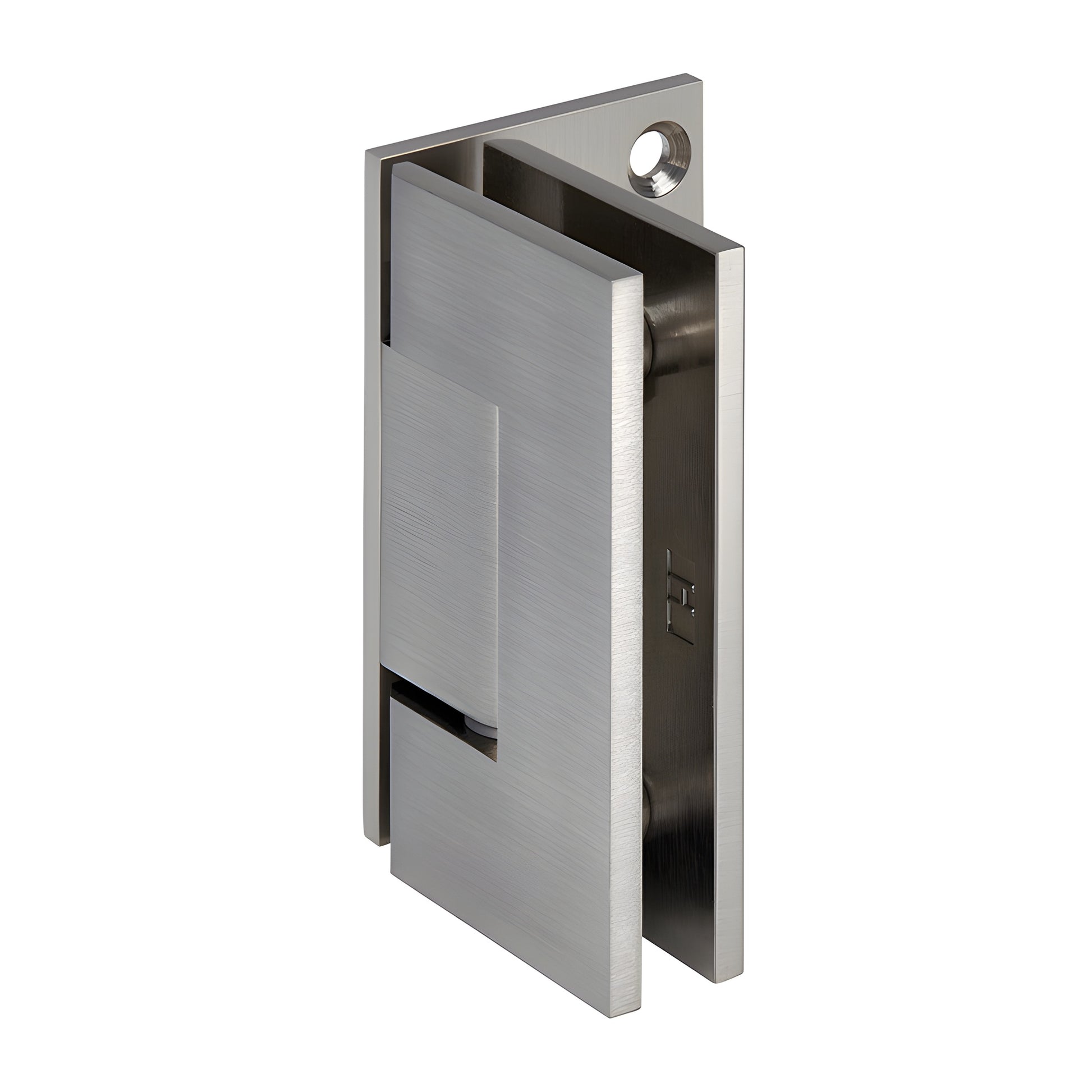

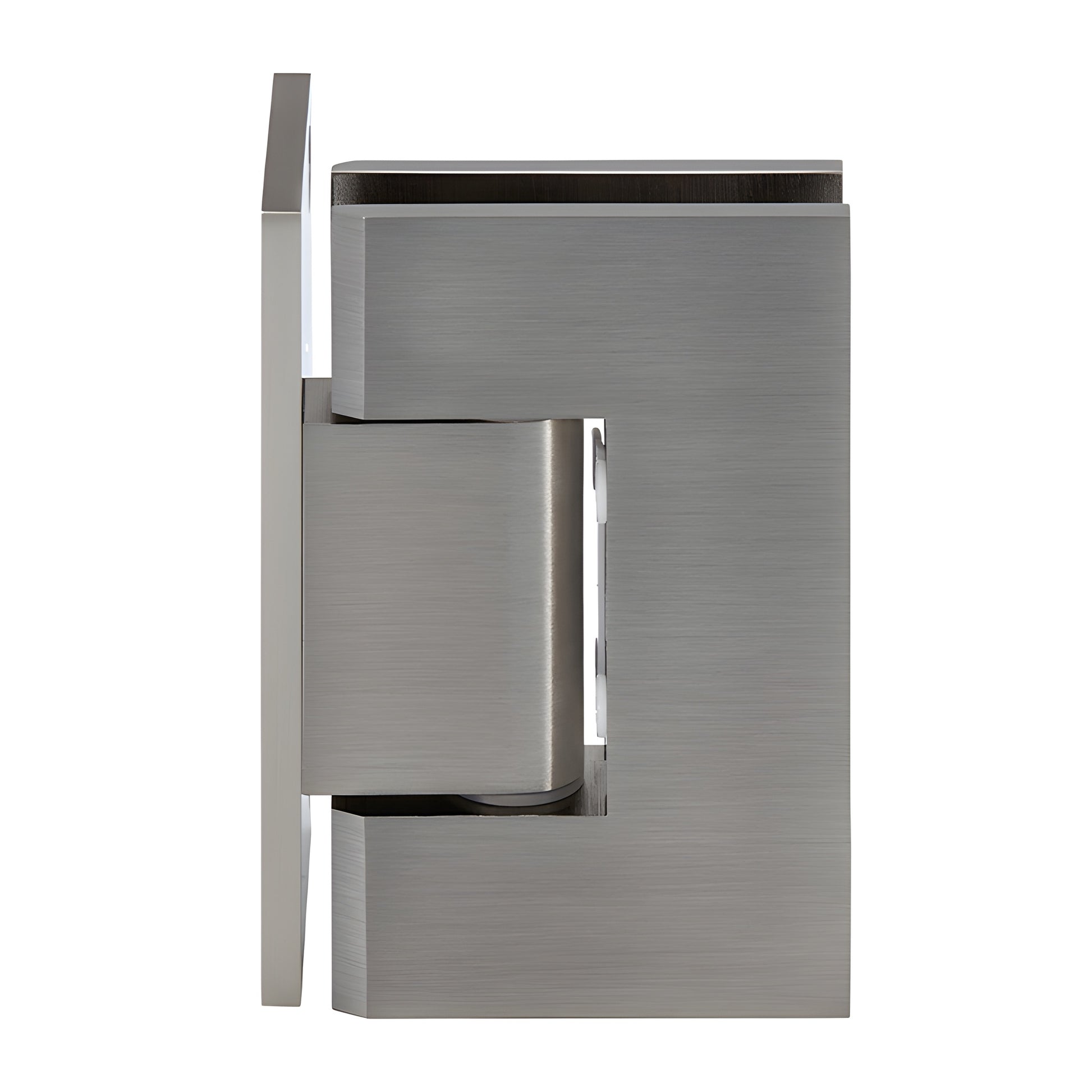

CRL Geneva 044 Brushed Nickel Wall-Mount Offset Back Plate Door Hinge

• Self-centering hinge with reversible 5 Degree pivot pin
• Available in several beautiful finishes
• Three year warranty

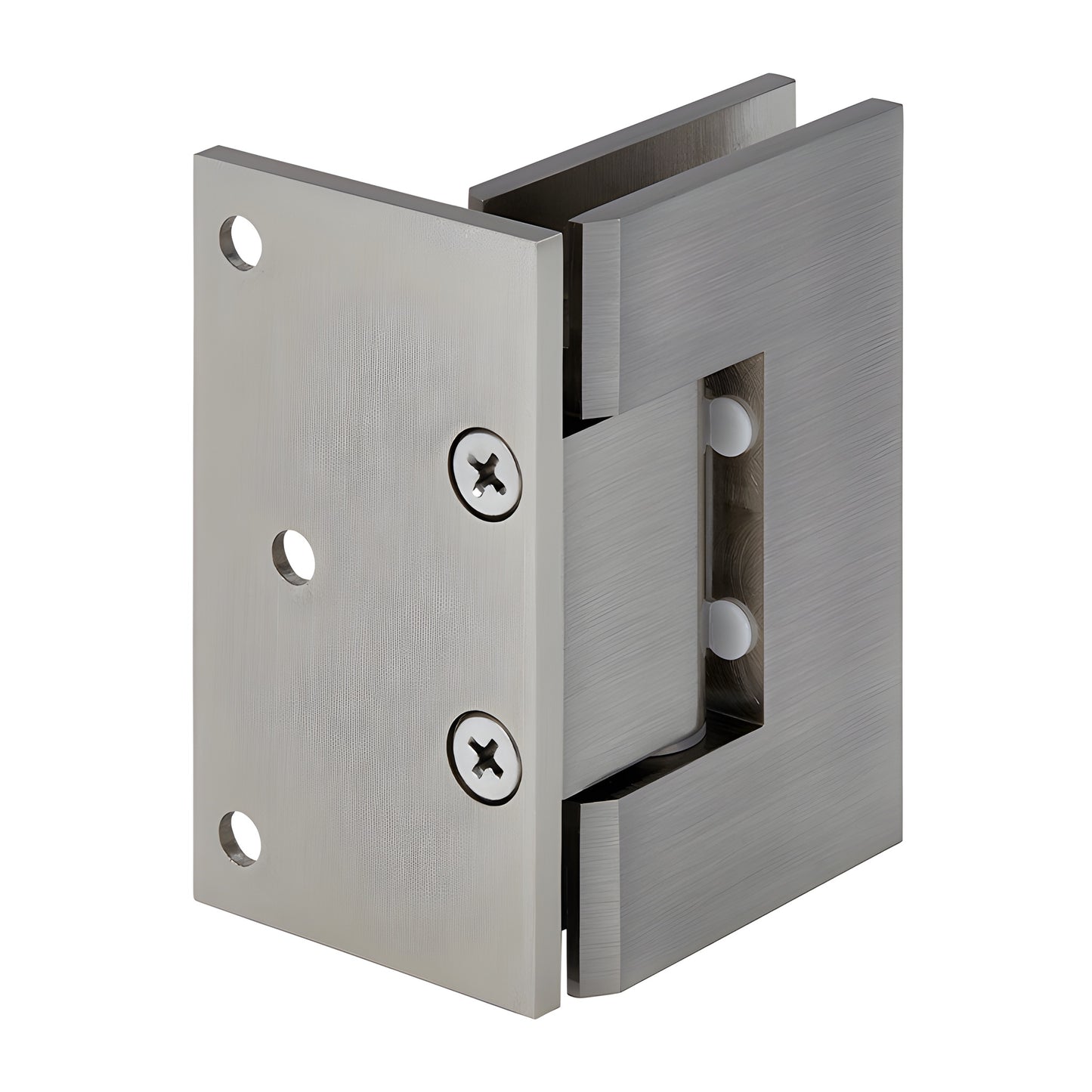

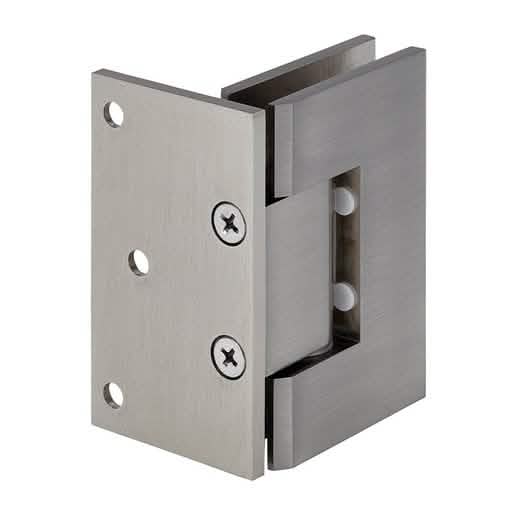

• Wall-mount offset back plate (factory set for standard closing position)
• Use with monolithic tempered glass

The CRL Geneva Series professional hinges (SKU: GEN044BN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are offered in six styles for design flexibility: three Wall Mount and three Glass-to-Glass types. These solid brass shower door hinges feature stainless-steel pins and springs, a self-centering action, and a reversible 5 Degree pivot pin for adjustable closing performance. Long-tail keywords: solid brass shower door hinge, reversible 5° pivot pin hinge for tempered glass, heavy-duty shower door hinge 8mm to 12mm.

Each Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models are factory-set to 85° for a 5° tighter closure into the shower interior. The pivot pin can be rotated to switch sides (do not flip upside down).

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available for off-angle installations up to 45°. If the standard 5° reversible pin does not achieve the desired closing position, specify the custom angle when ordering. Note: using a custom pivot pin may affect glass sizes and enclosure aesthetics; contact our Technical Sales Shower Door Department for assistance.

Performance: using two hinges with 5/16"–1/2" (8–12 mm) glass, each hinge set supports up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (0° closing) or 5° Pre-Set Model for tighter closure into the shower interior
Construction: Solid brass with stainless-steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes are available on request—contact Technical Sales Shower Door Division.
