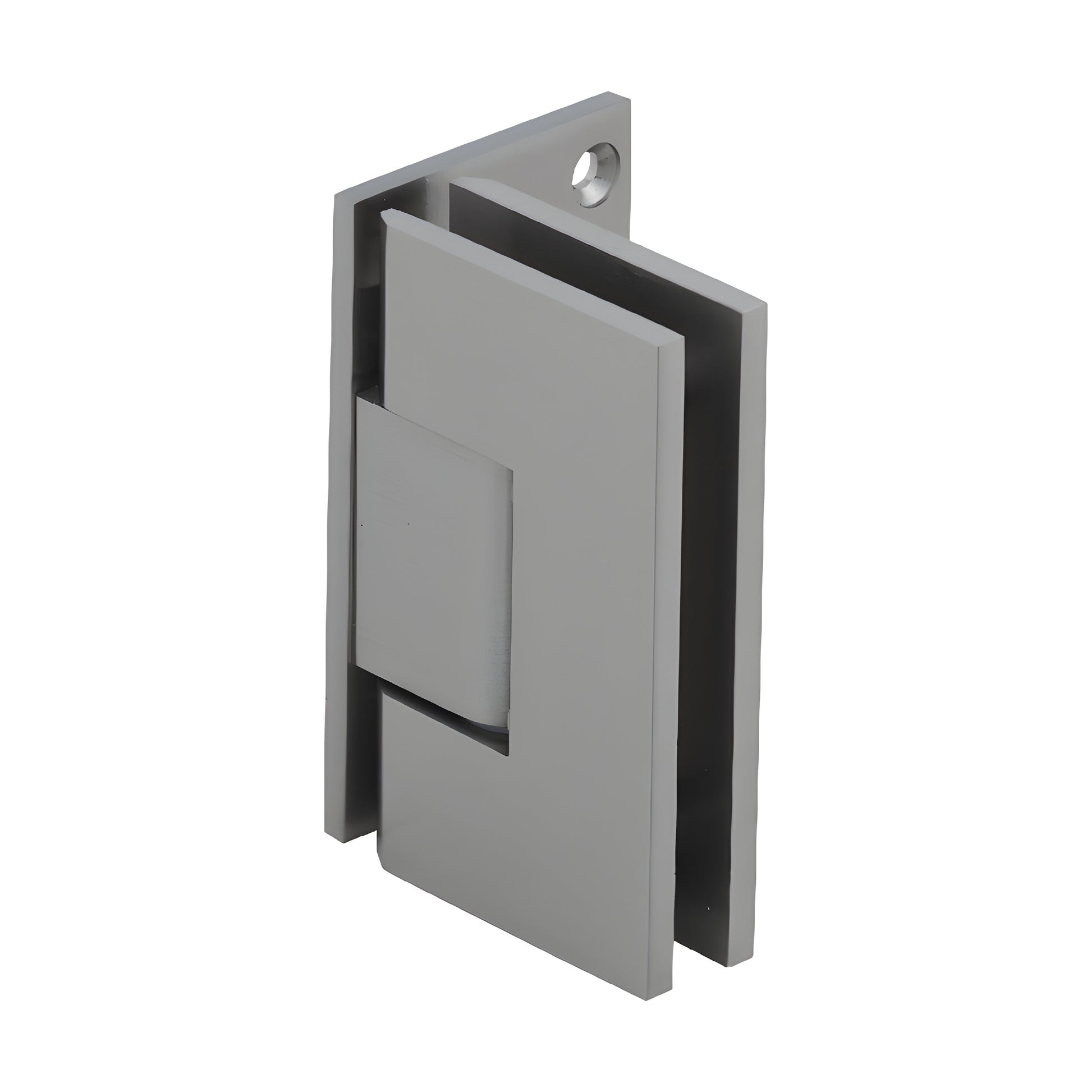

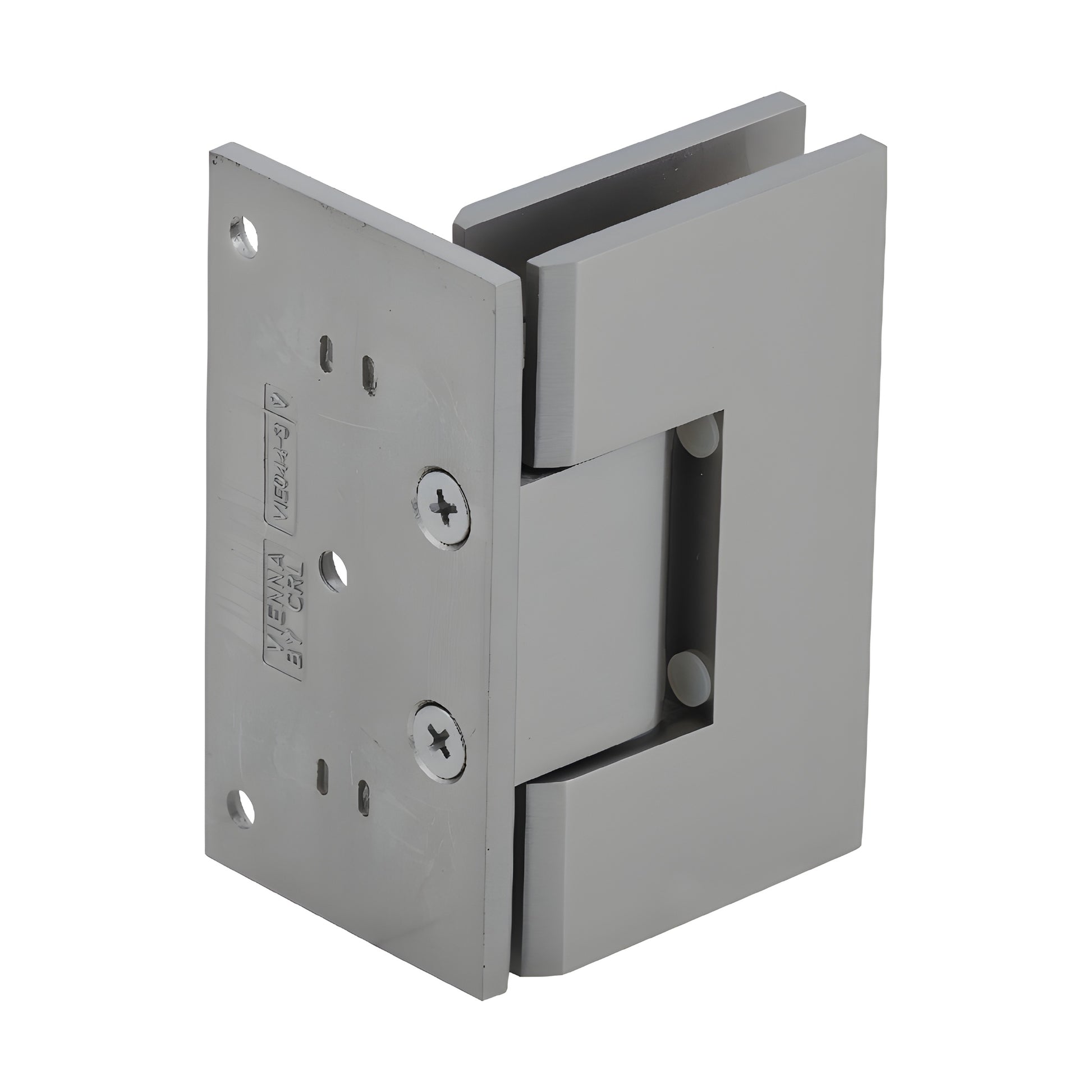

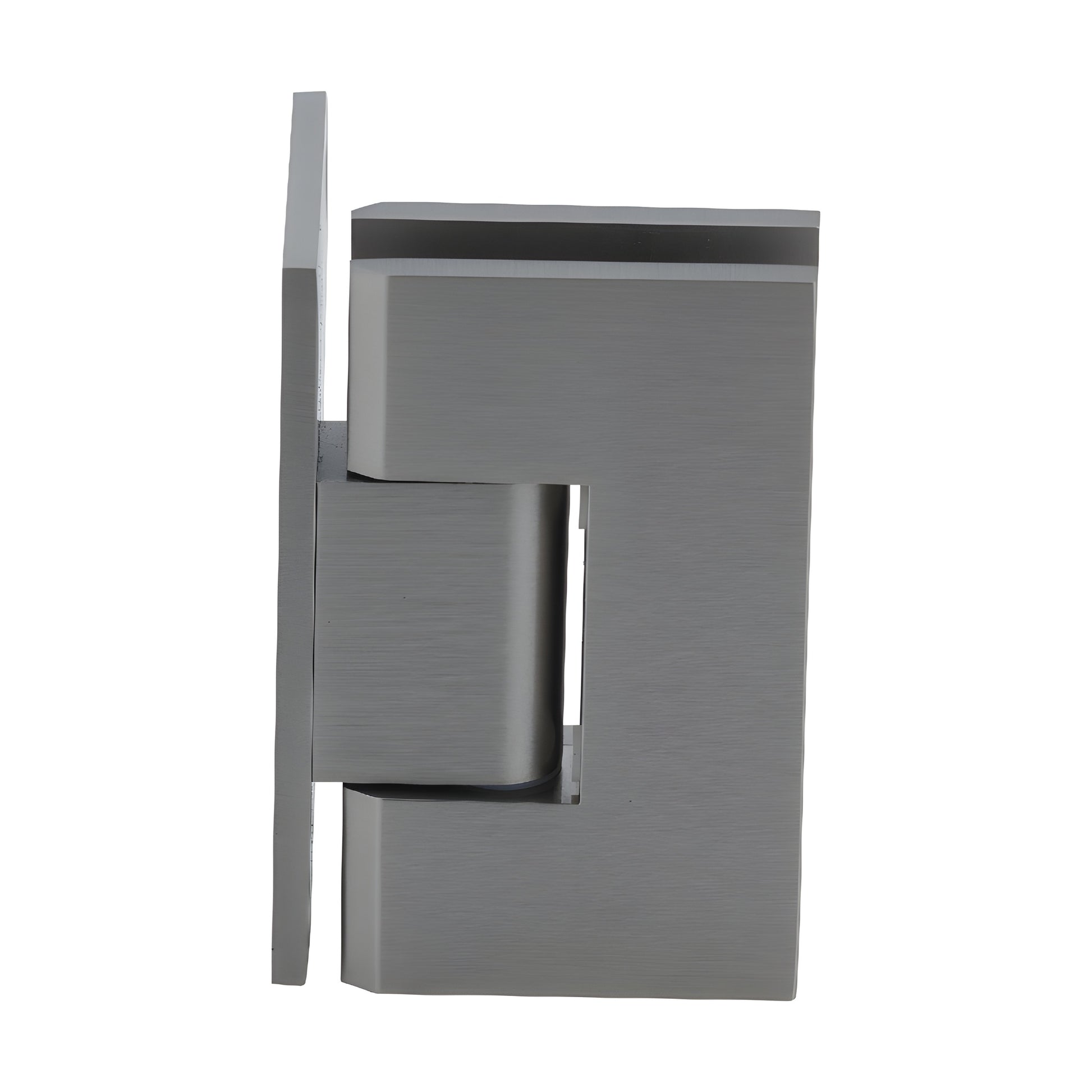

CRL Vienna 044 Brushed Nickel Offset Wall-Mount Backplate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Wall Mount Offset Back Plate — Standard Model
• Use Monolithic Tempered Glass

CRL Vienna Hinges provide a heavy-duty shower door hinge solution for wider, heavier tempered glass shower doors where traditional hinges fail. Built with solid brass construction and two internal steel pins, the Vienna Hinge offers dual template options: leave the pins in for CRL "mouse-ears" cut-outs or remove them for increased adjustability and compatibility with CRL rectangular, square-corner cut-outs (may fit some competitive rectangular cut-outs). These features make the hinge ideal as a heavy-duty, tempered glass shower door hinge and a durable choice for residential and hotel shower hardware solutions.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°. Pre-set models ship at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the setting.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45°) are available to accommodate off-angle installations when the standard 5° offset is insufficient.

Load Ratings & Door Widths:
Two hinges with 3/8" (10 mm) glass: holds up to 100 lbs. (45 kg), max door width 34" (864 mm).
Two hinges with 1/2" (12 mm) glass: holds up to 100 lbs. (45 kg), max door width 32" (813 mm).
Three hinges with 3/8" (10 mm) glass: holds up to 130 lbs. (59 kg), max door width 34" (864 mm).
Three hinges with 1/2" (12 mm) glass: holds up to 130 lbs. (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° In and 90° Out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque
