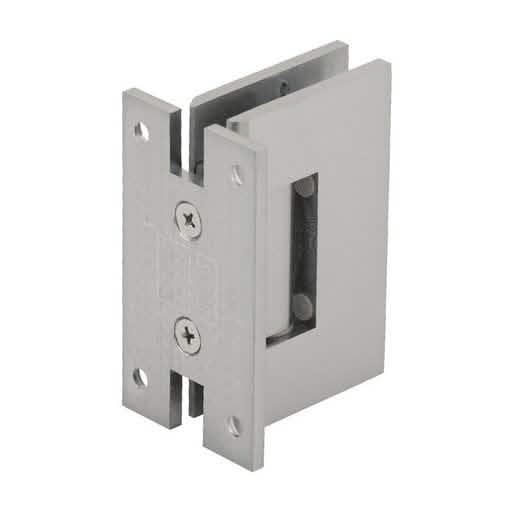

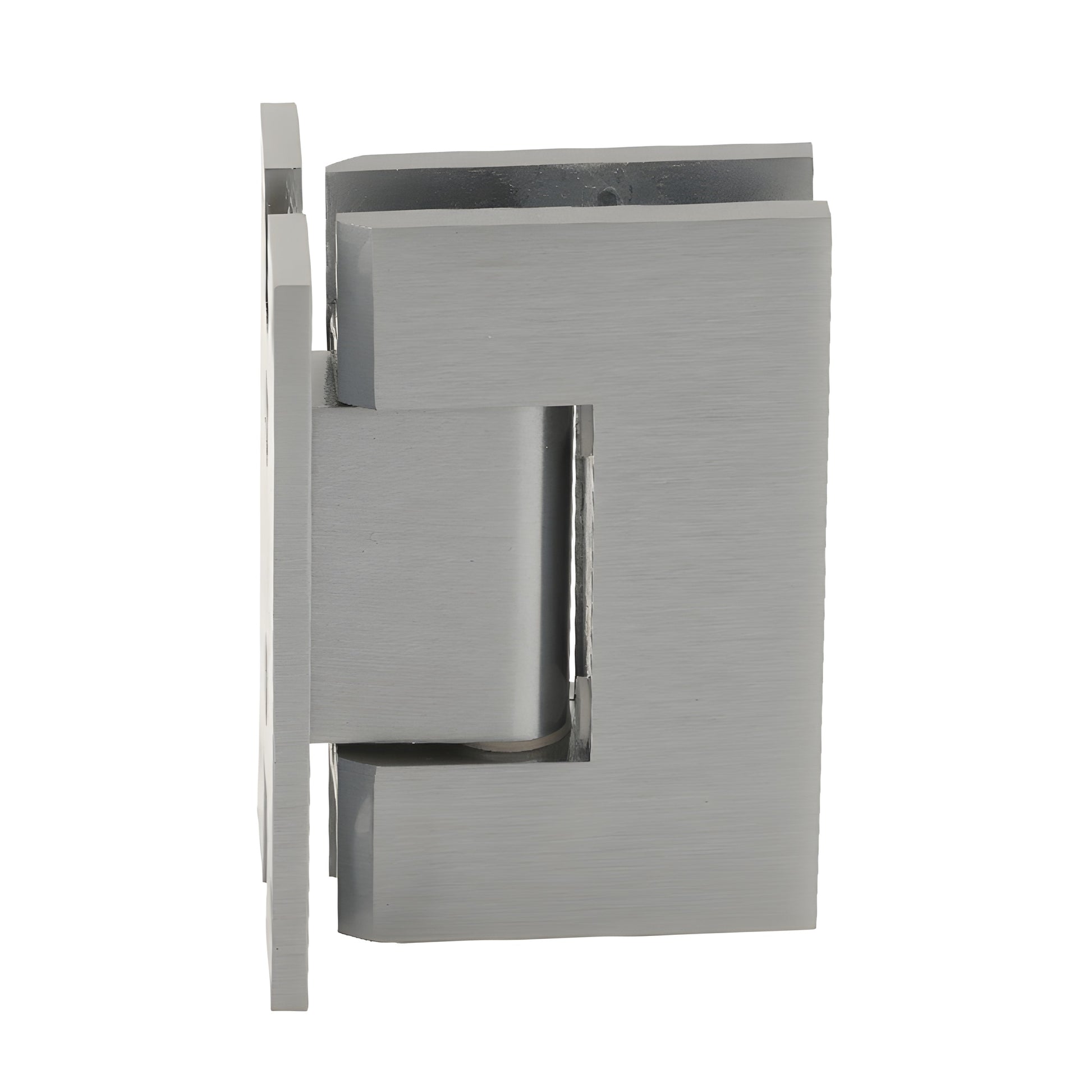

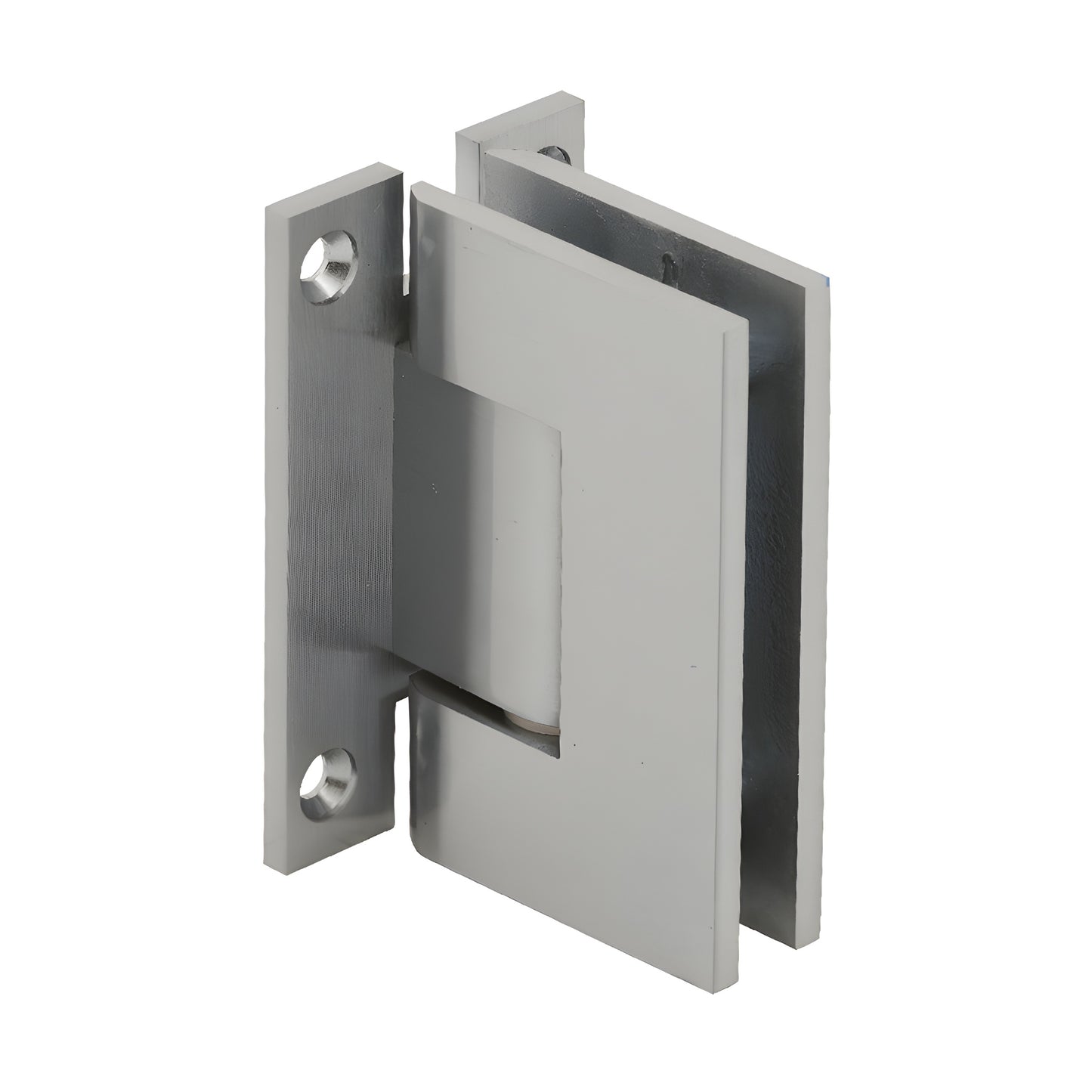

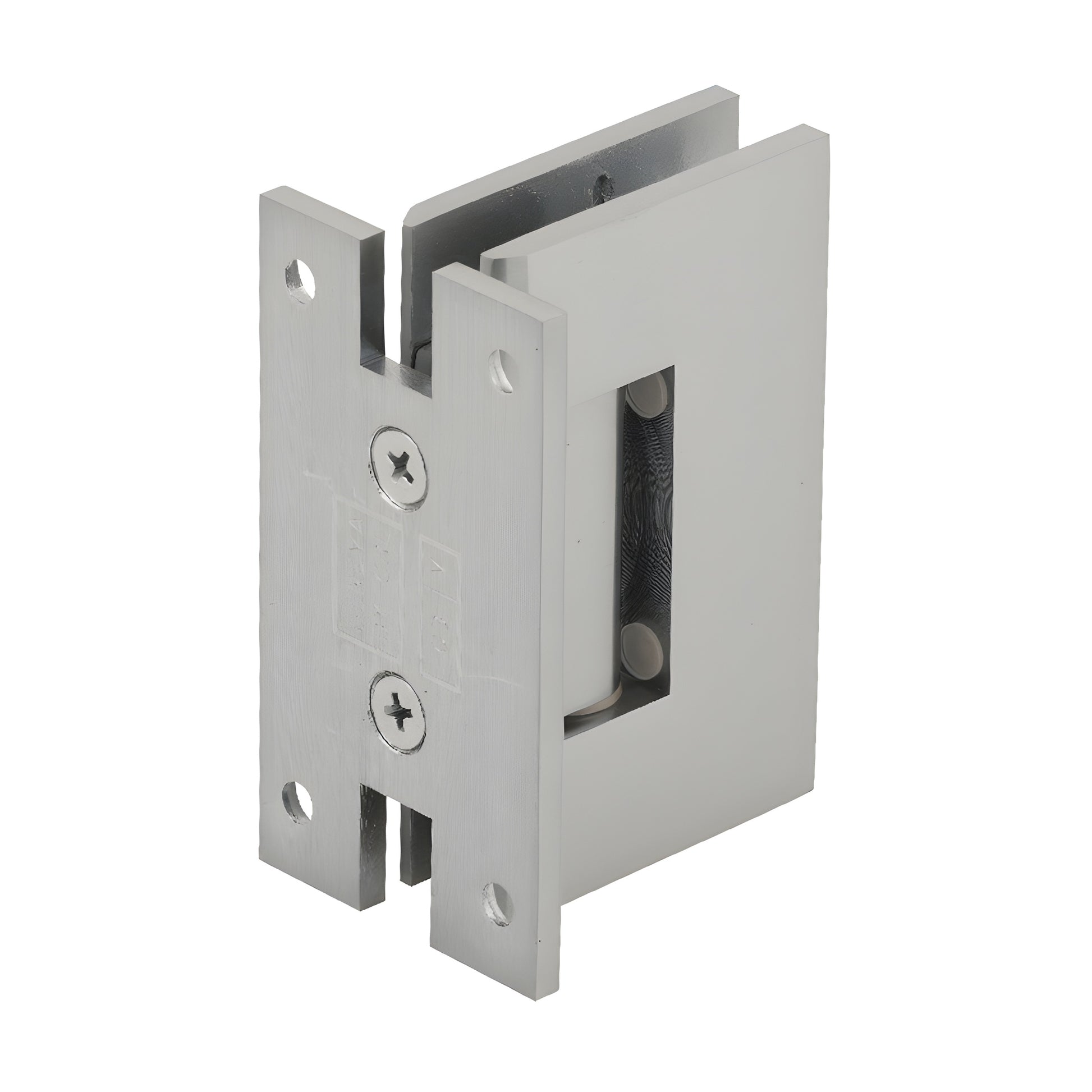

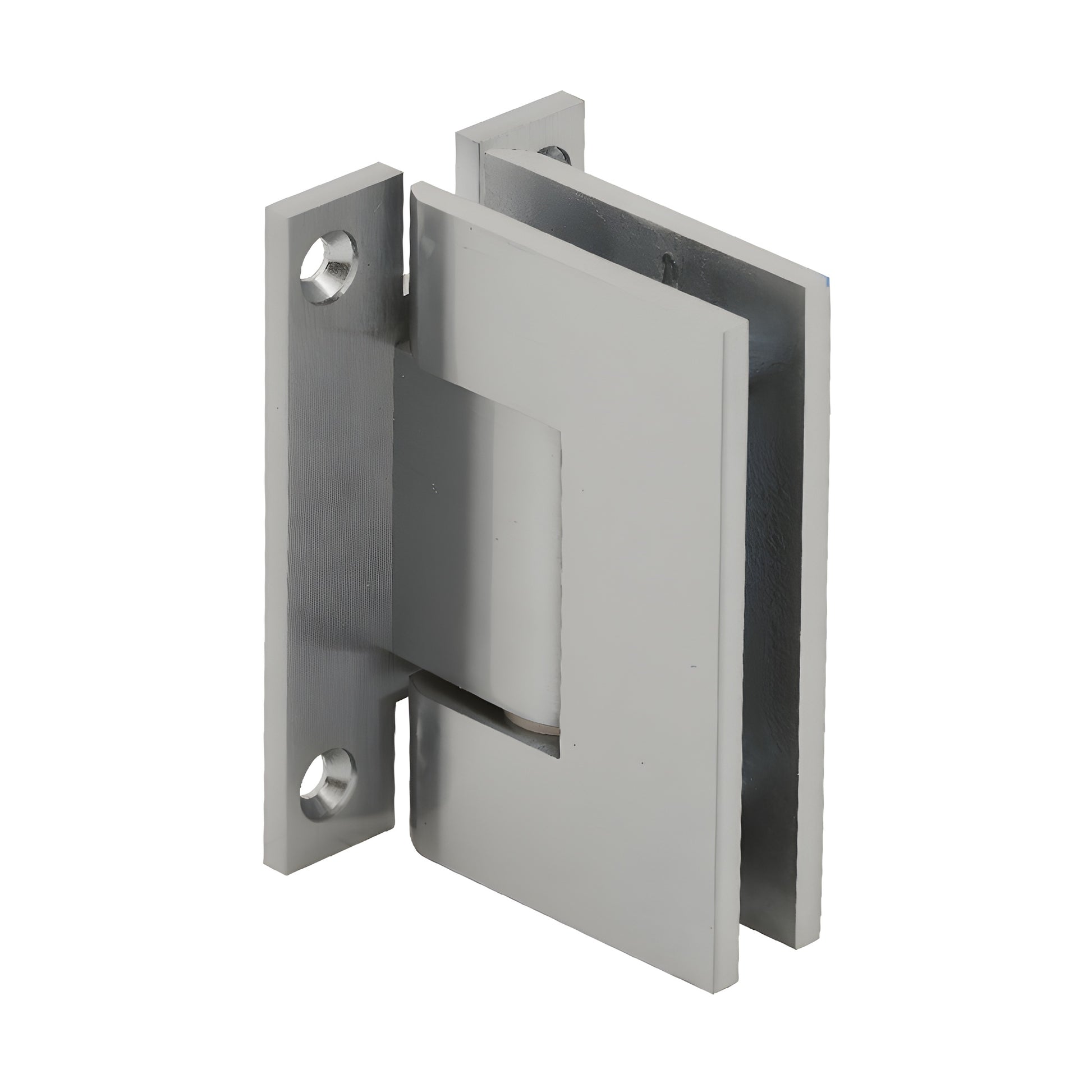

CRL Brushed Nickel Vienna 037 Series Wall Mount 'H' Back Plate Hinge

Finish (5)

Mounting Type (5)

Series (4)

Overview

SKUV1EH037BN
Sold as1 Each
5 Degree Pre-SetNo
AdjustableNo
Back Plate'H'
Design StyleSquared
Enclosure TypeCorner, Niche, Bathtub, Tailor Made Solutions
Finish/Color:Brushed Nickel
Glazing Thickness1/2 in. (12 mm)

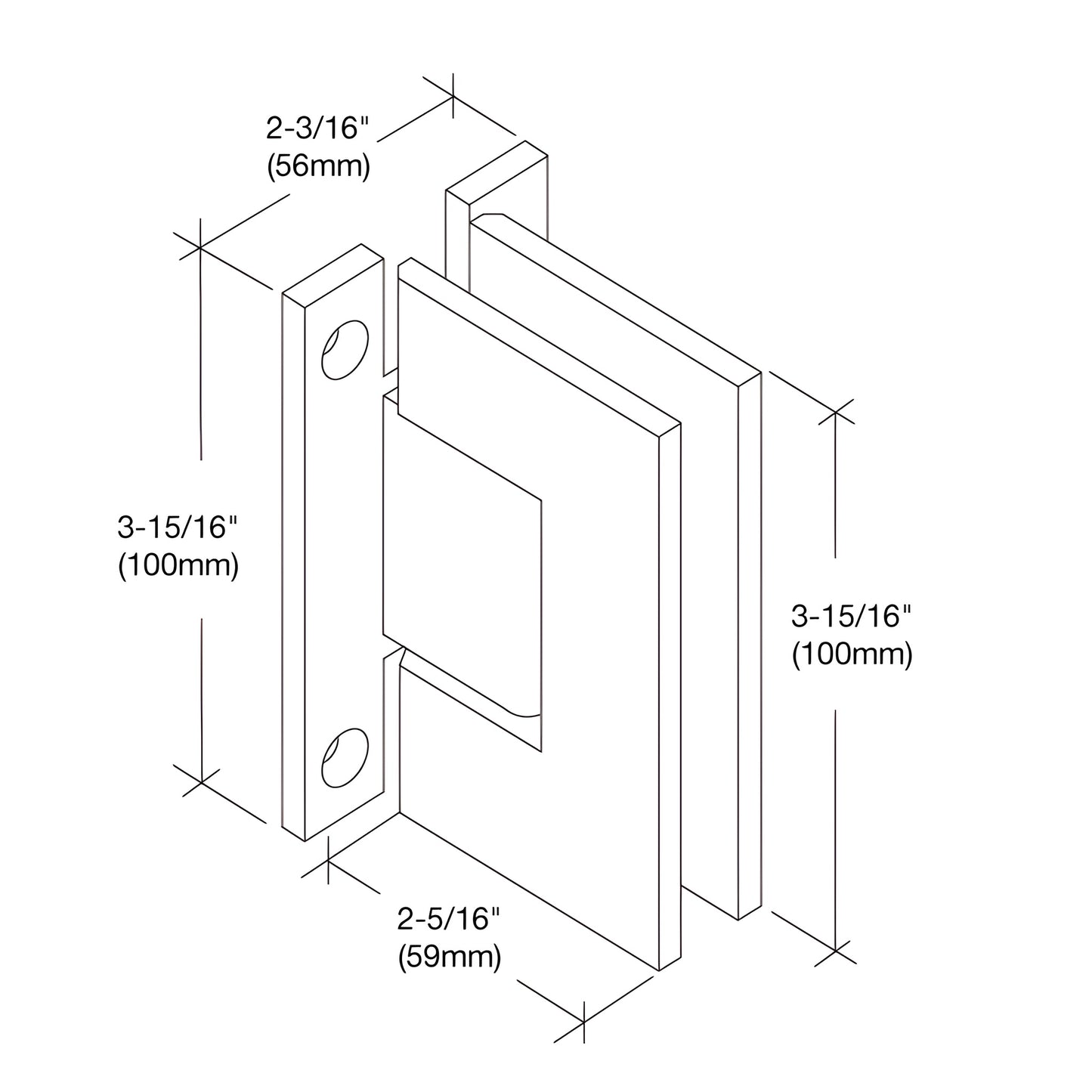

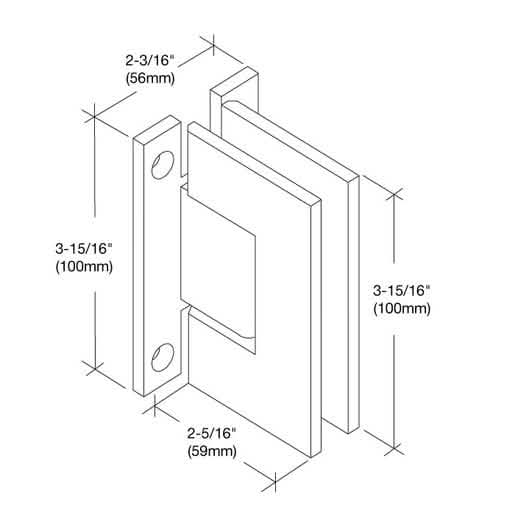

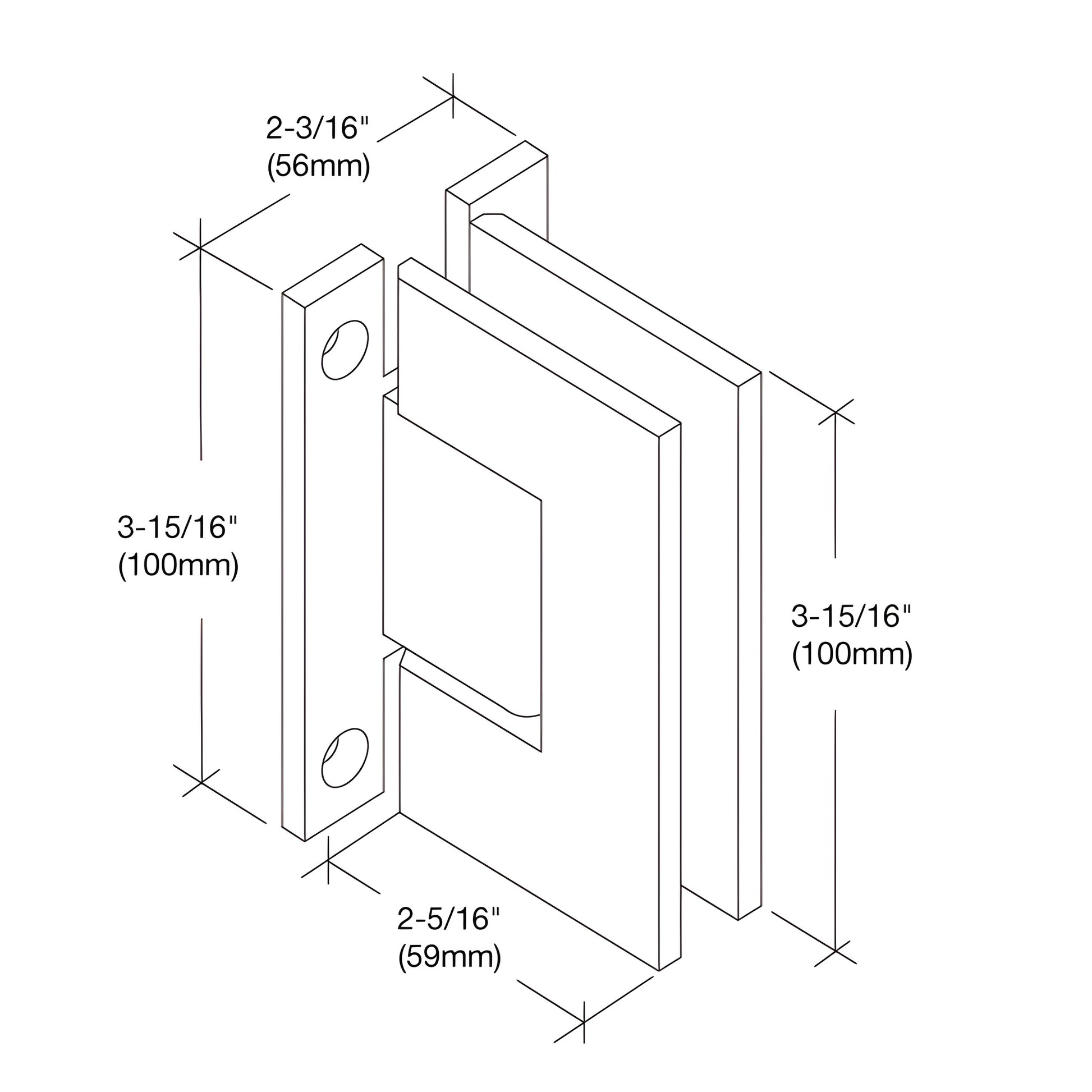

Height3-15/16 in. (100 mm)
MaterialBrass
Maximum Clamping Screw Torque60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges140 lbs. (63.5 kg)
Maximum Door Width36 in. (914 mm)
Mounting TypeWall Mount
Opening StyleSwing(side)
Self-CenteringYes
SeriesVienna
Width2-1/4 in. (57 mm)

Description

Product Details

  • New Wall Plate Design Allows for Tighter Clearance
  • Same Vienna Quality with a Different Look
  • Square Design is the Most Contemporary Look

The Vienna product line has been updated to include an "H" shaped wall mounting plate, allowing the installer to get the glass closer to the wall. This new design will give increased flexibility in regards to the clearance between the glass and the wall.

Specifications

Technical Resources

Brochures & Literature

PDF
Frameless Shower Door Hardware CatalogOpen PDF ↗
PDF
Hardware Finish Cross-Reference GuideOpen PDF ↗

Quote Request Forms

PDF
Frameless Shower Door Quote Request FormOpen PDF ↗

Templates

PDF
V1EH037 TemplateOpen PDF ↗

Cleaning & Maintenance

PDF
Frameless Shower Door Glass and Hardware Cleaning InstructionsOpen PDF ↗
