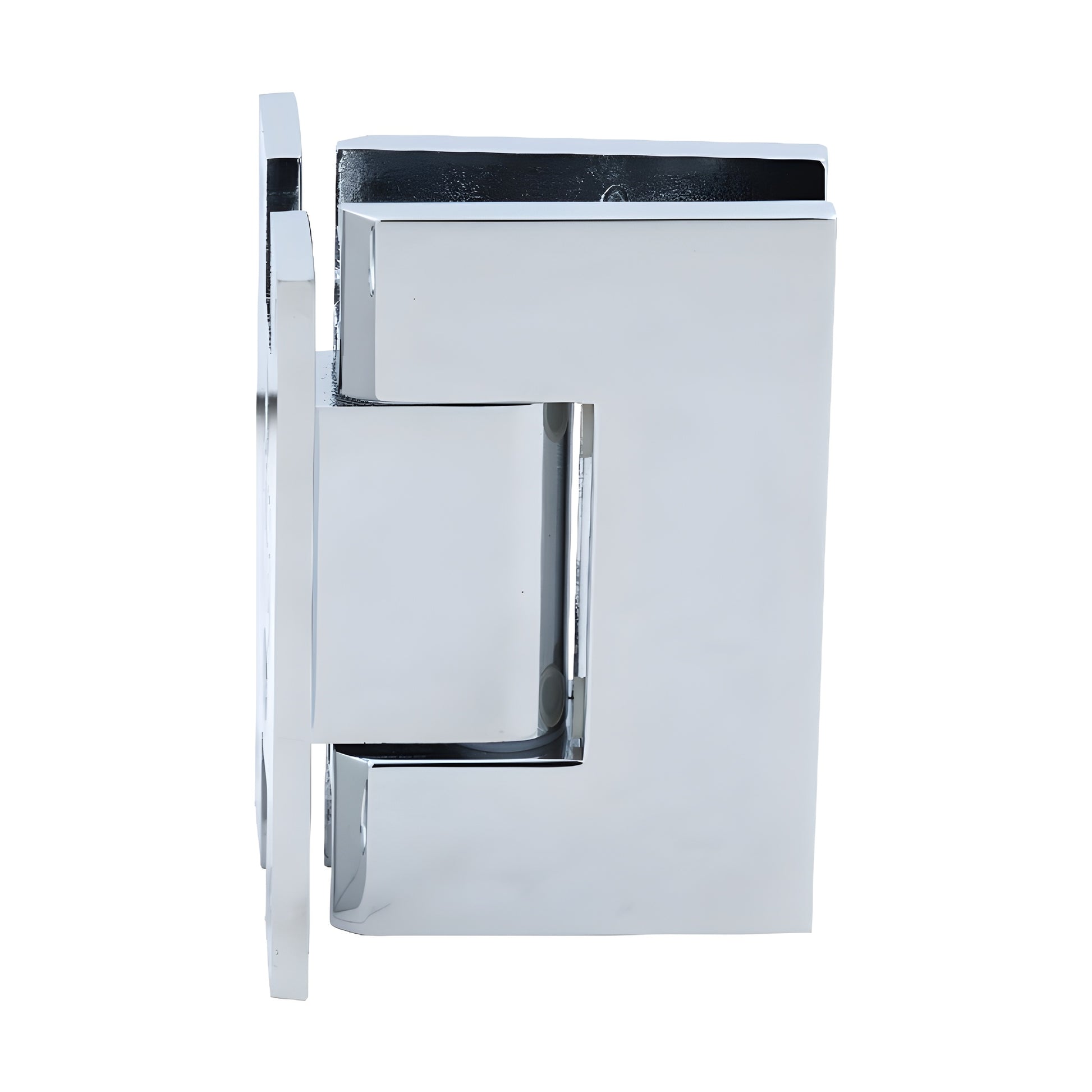

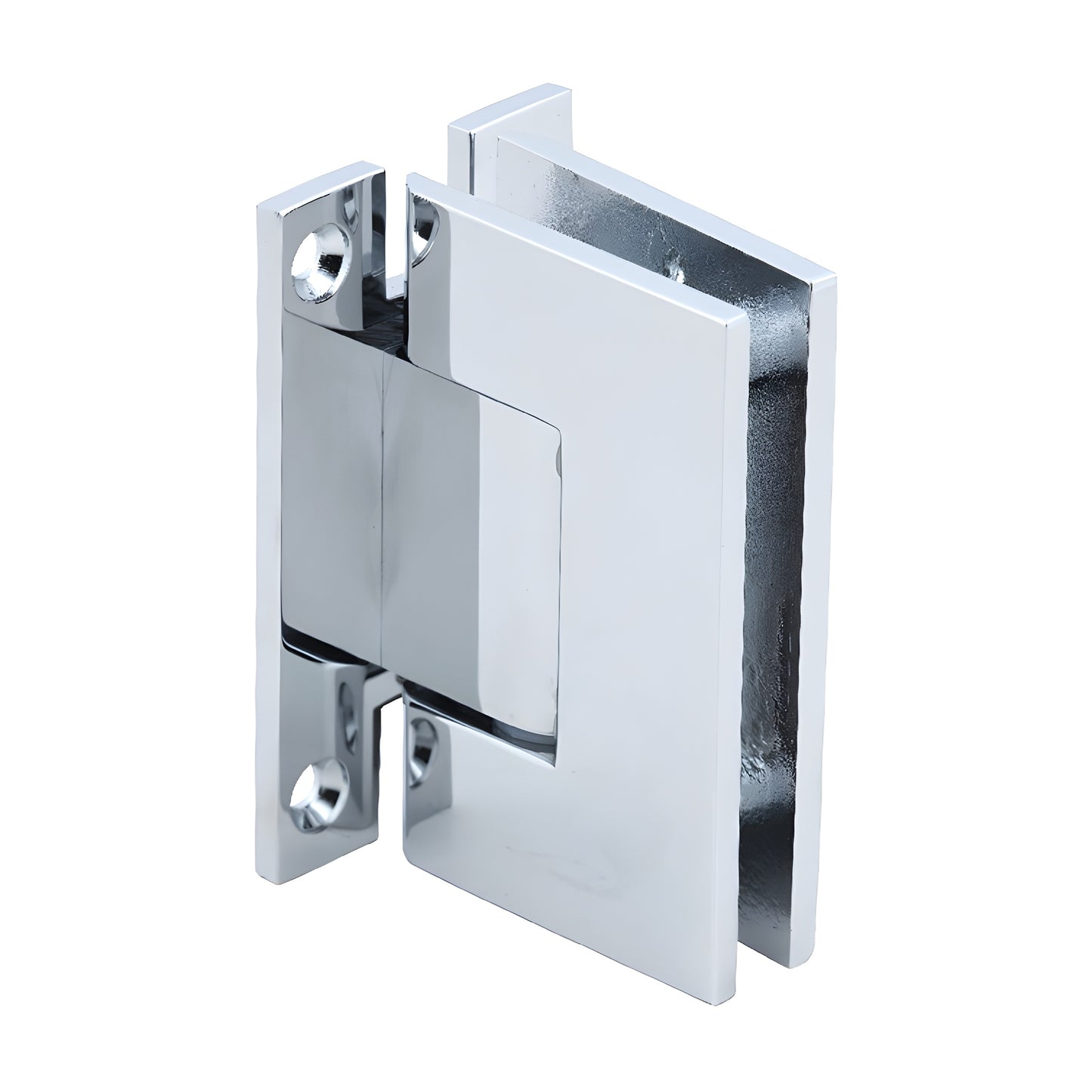

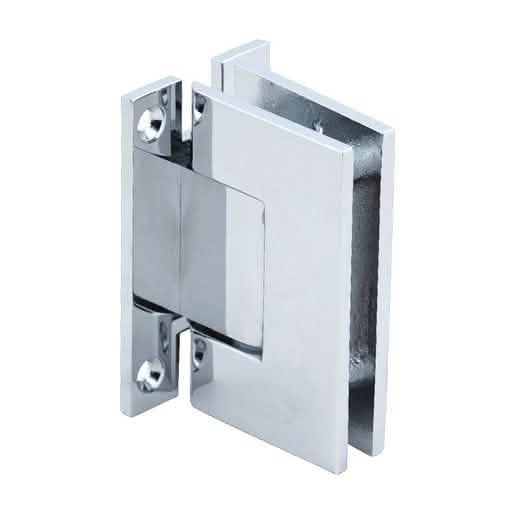

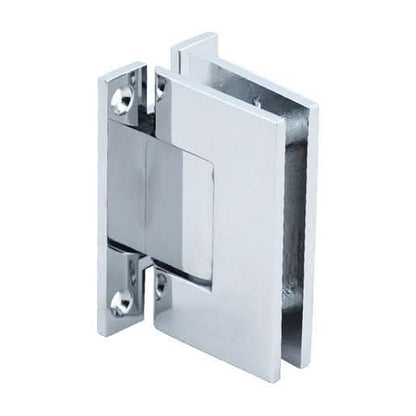

CRL Vienna 037 Polished Chrome Wall Mount H-Back Plate Hinge
CRL Vienna 037 Polished Chrome Wall Mount H-Back Plate Hinge
Regular price
$91.10 CAD
Regular price
Sale price
$91.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1EH037CH
Shipping Weight: 2.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
'H'
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
1/2 in. (12 mm)

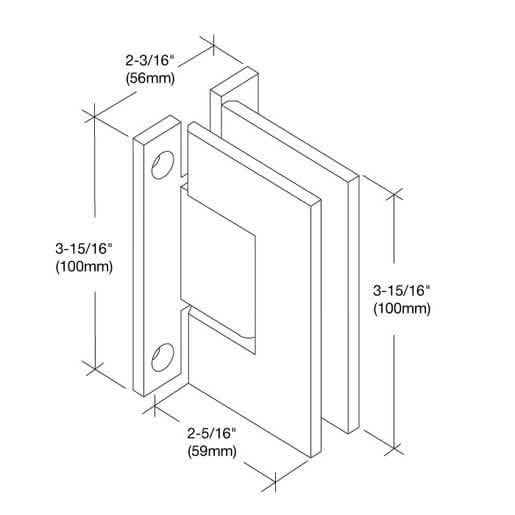

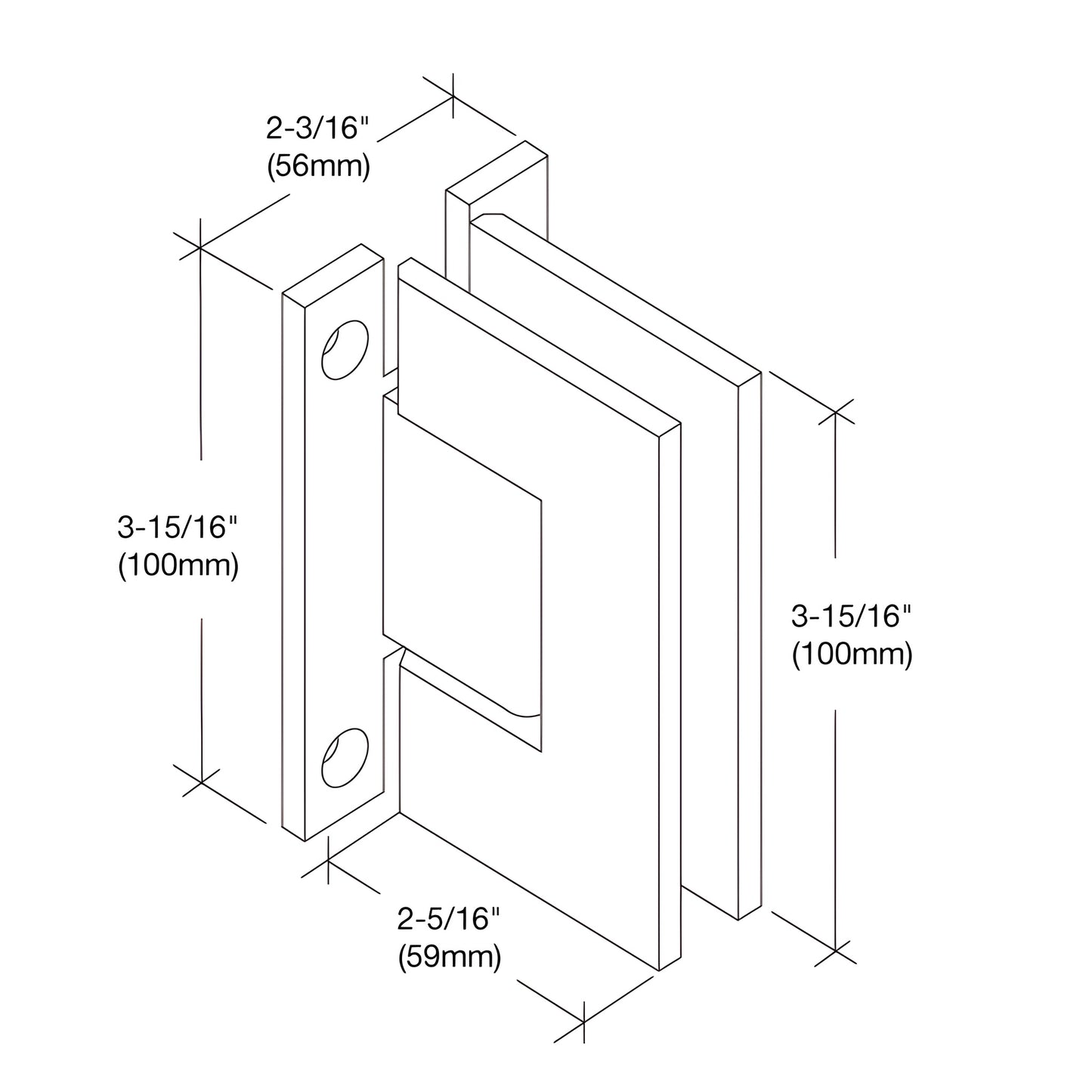

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Door Width
36 in. (914 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-1/4 in. (57 mm)
Overview

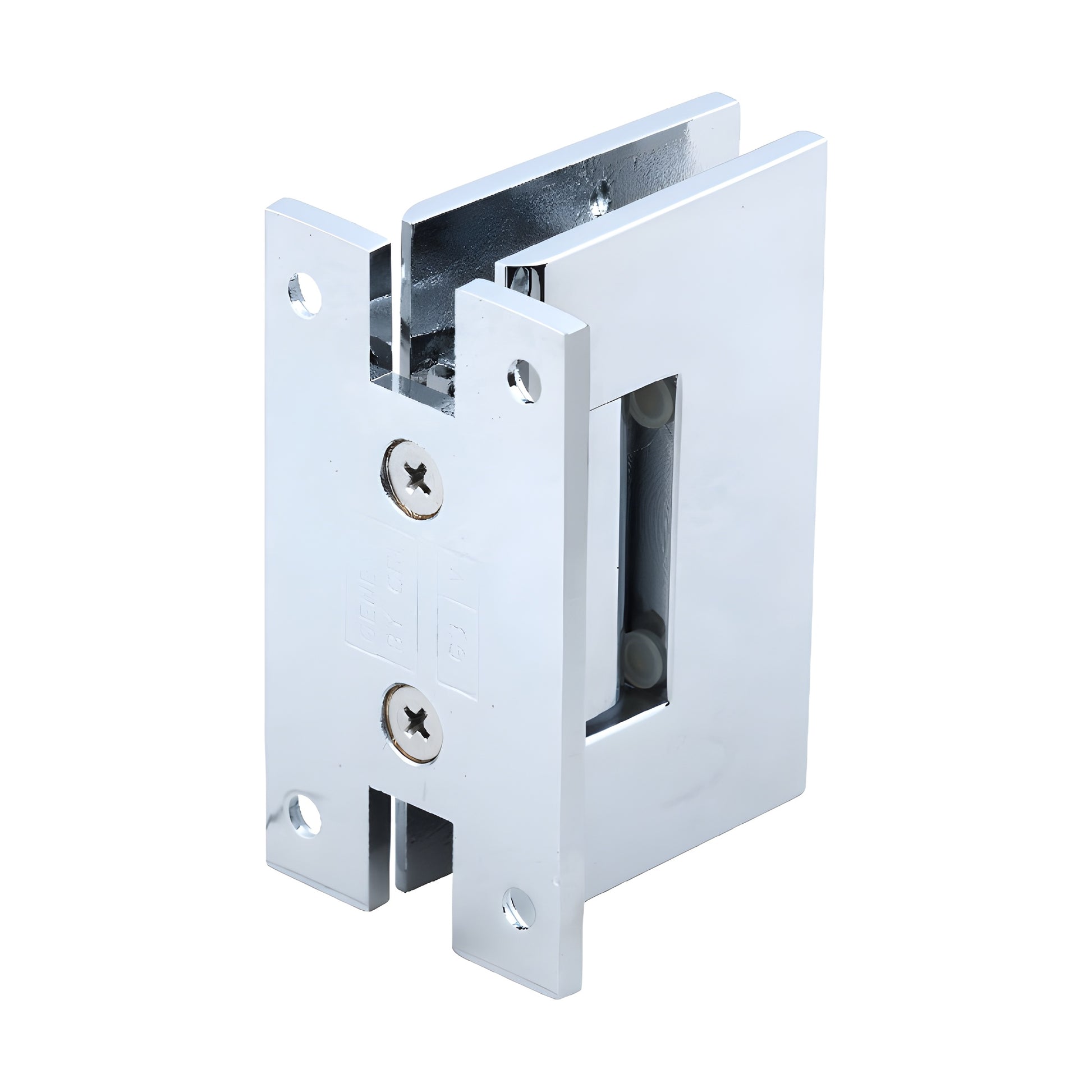

- H-shaped wall mounting plate for tighter glass-to-wall clearance
- Same Vienna quality and durability with an updated aesthetic
- Square, contemporary design for modern frameless glass installations
The Vienna product line now features an H-shaped wall mounting plate that lets installers position glass closer to the wall, increasing flexibility for glass-to-wall clearance in frameless shower and partition applications. SKU: V1EH037CH.
For availability and pricing of V1EH037CH, contact CRL or add to your cart to complete checkout.
