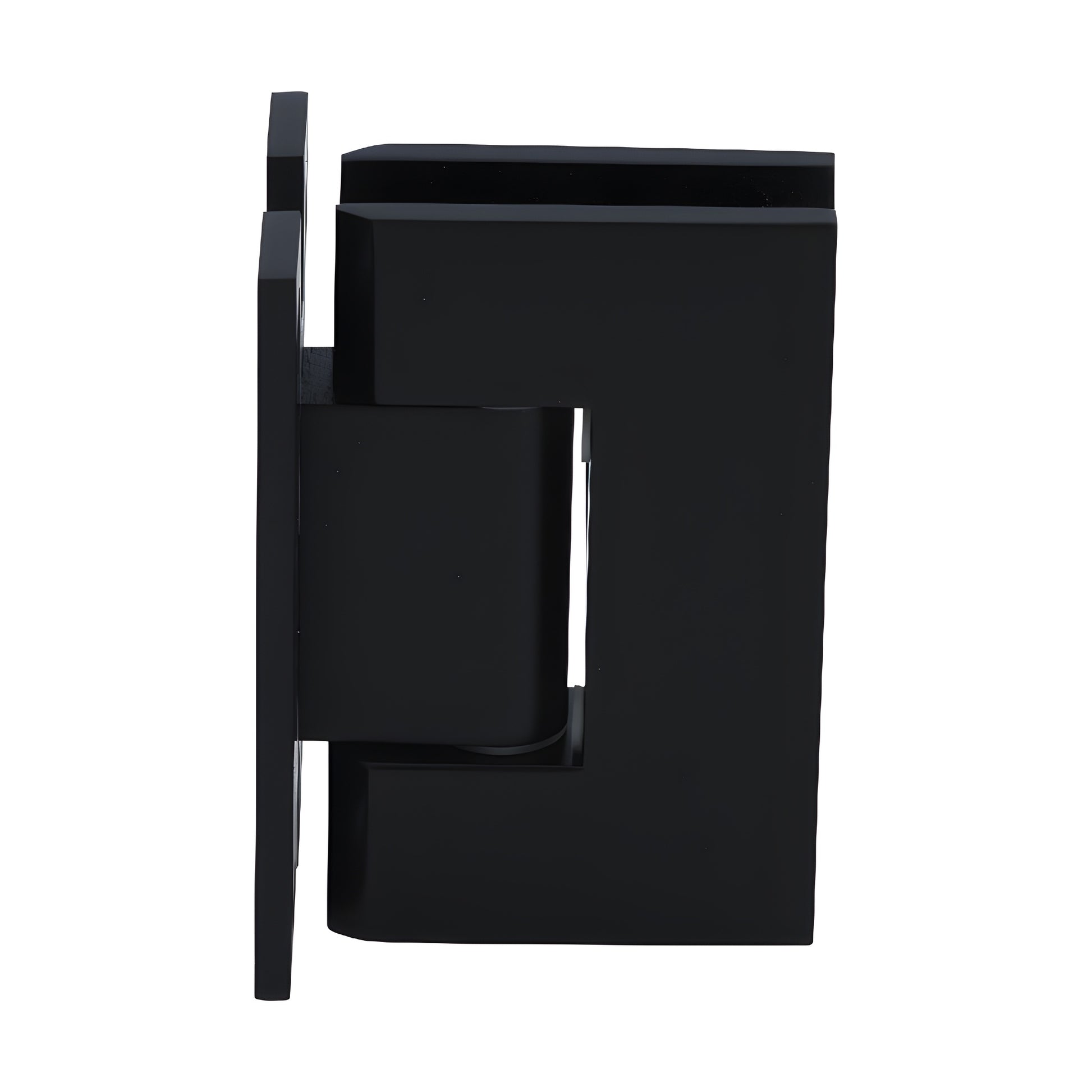

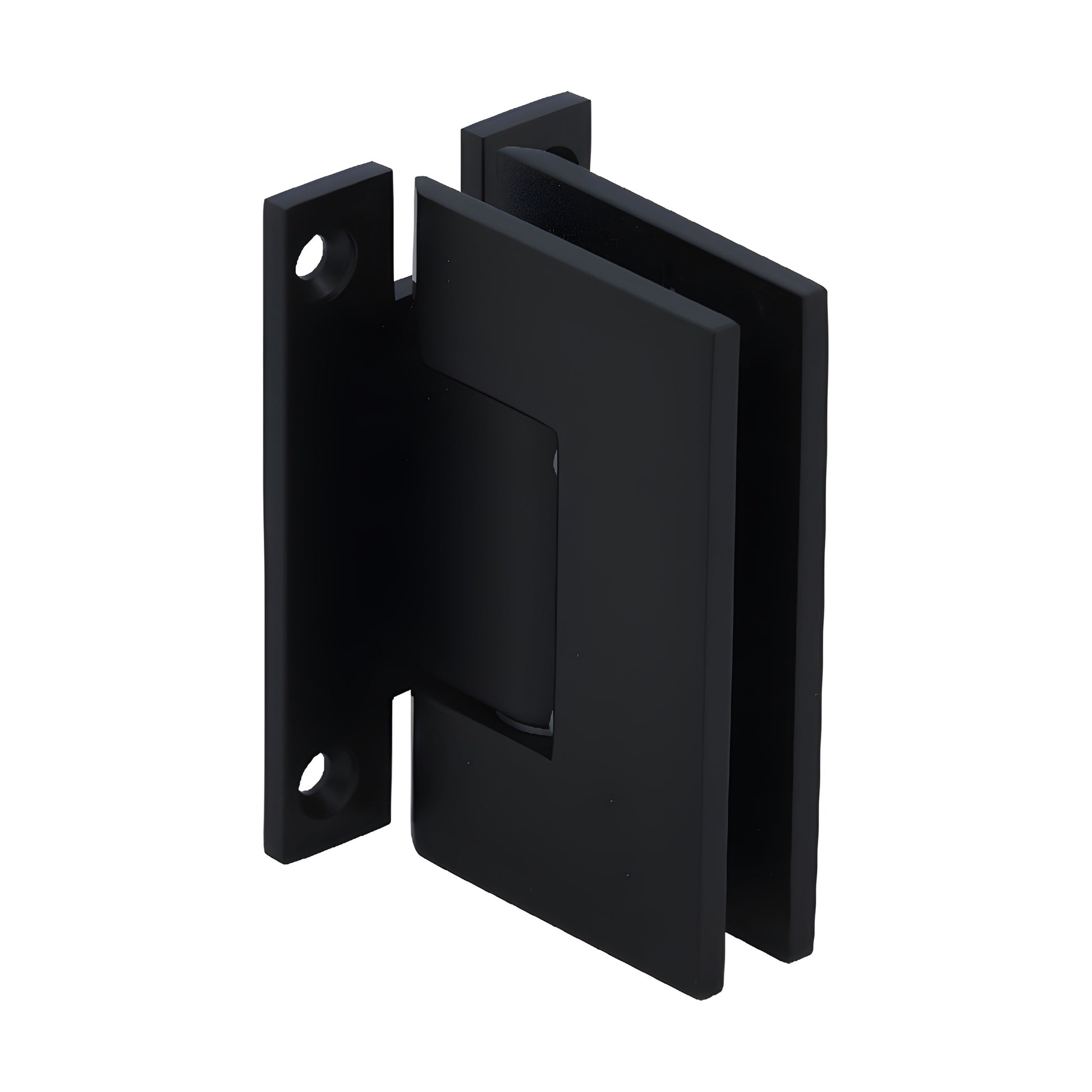

CRL Vienna 037 Matte Black Wall-Mount Glass Door H Back Plate Hinge
CRL Vienna 037 Matte Black Wall-Mount Glass Door H Back Plate Hinge
Regular price
$115.84 CAD
Regular price
Sale price
$115.84 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1EH037MBL
Shipping Weight: 2.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.04 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
'H'
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Matte Black
Glazing Thickness
1/2 in. (12 mm)

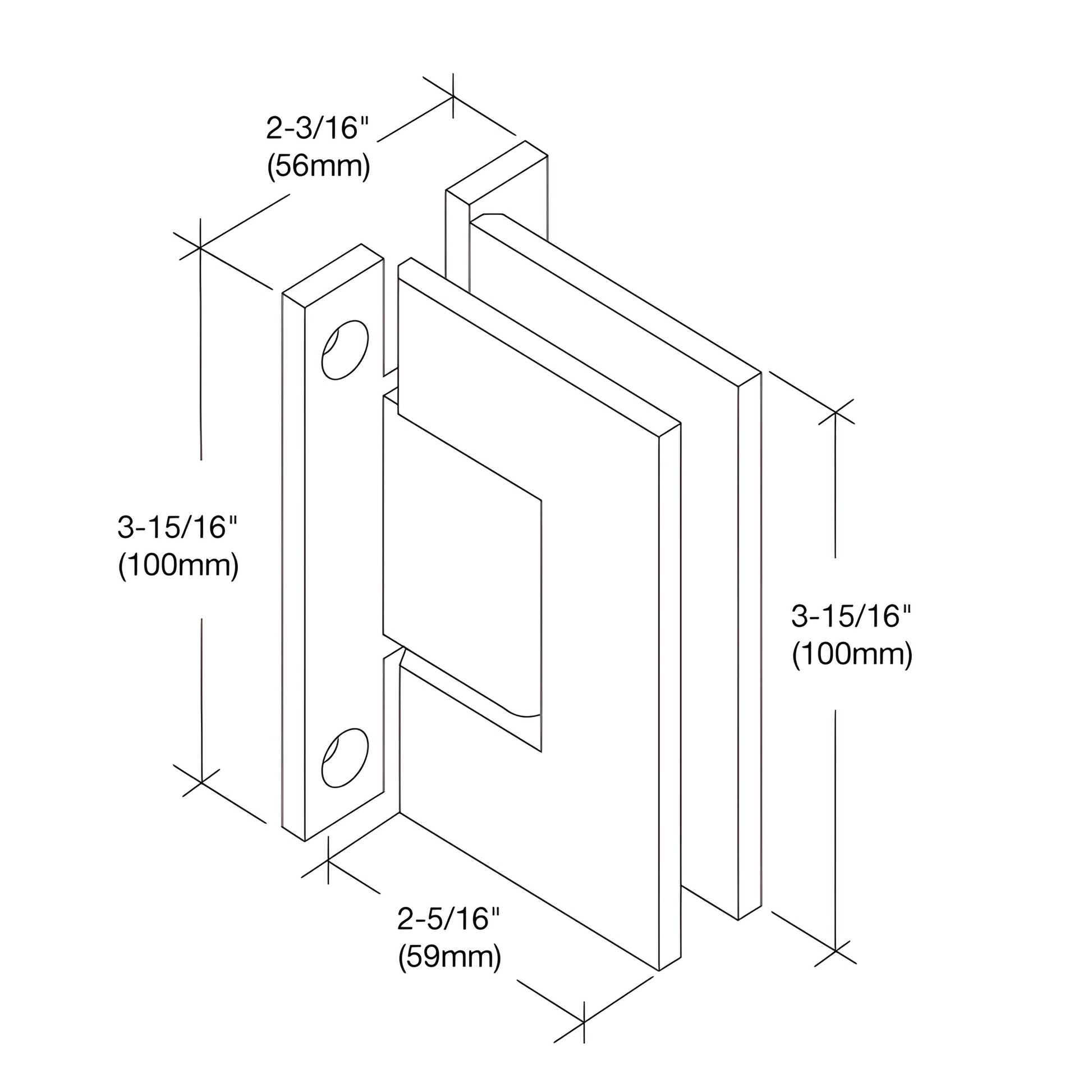

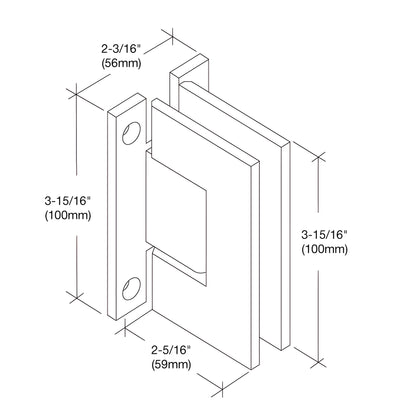

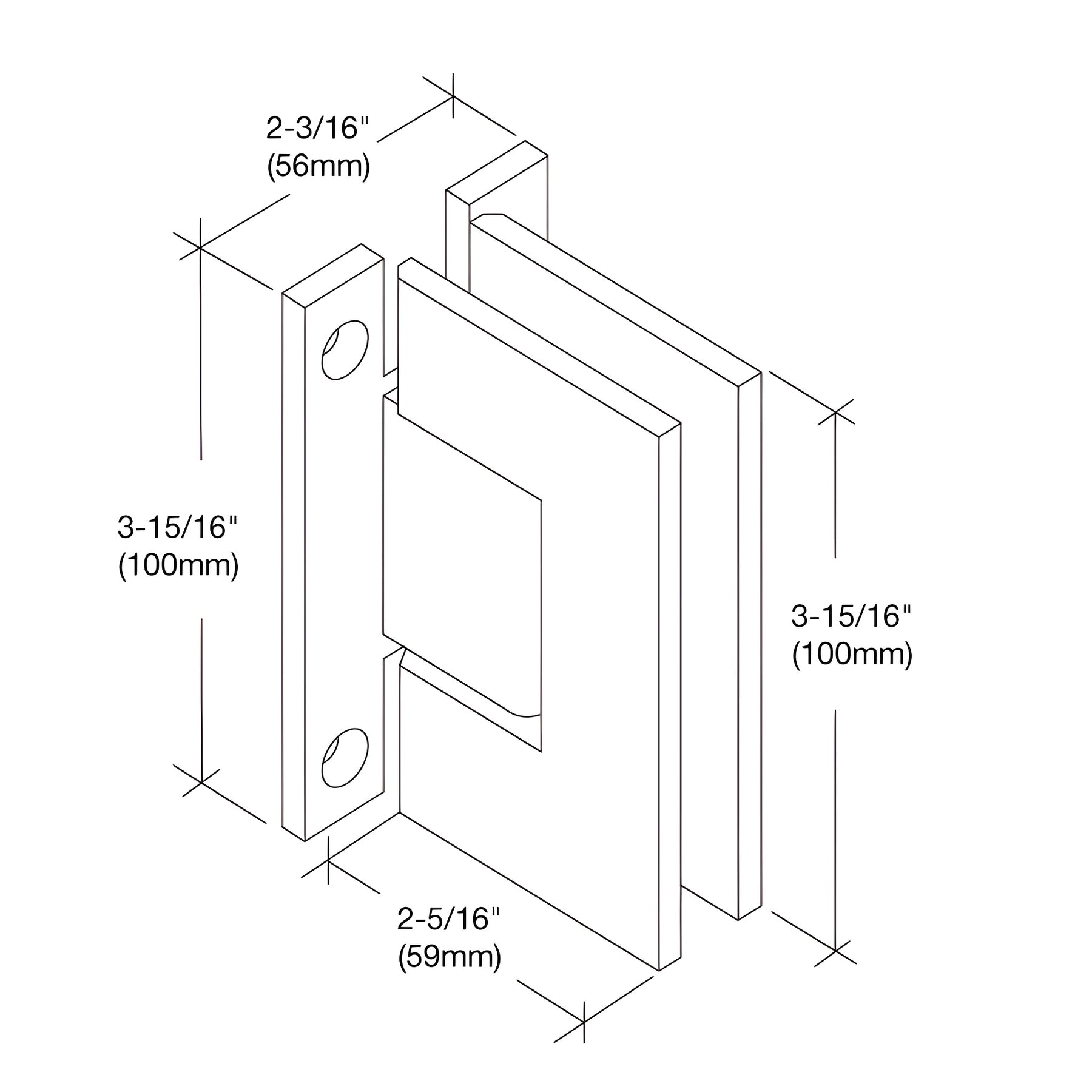

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Door Width
36 in. (914 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-1/4 in. (57 mm)
Overview
- New H‑shaped wall plate design for tighter glass-to-wall clearance
- Same Vienna quality and reliable performance—now with a different look
- Contemporary square design for modern shower door hardware

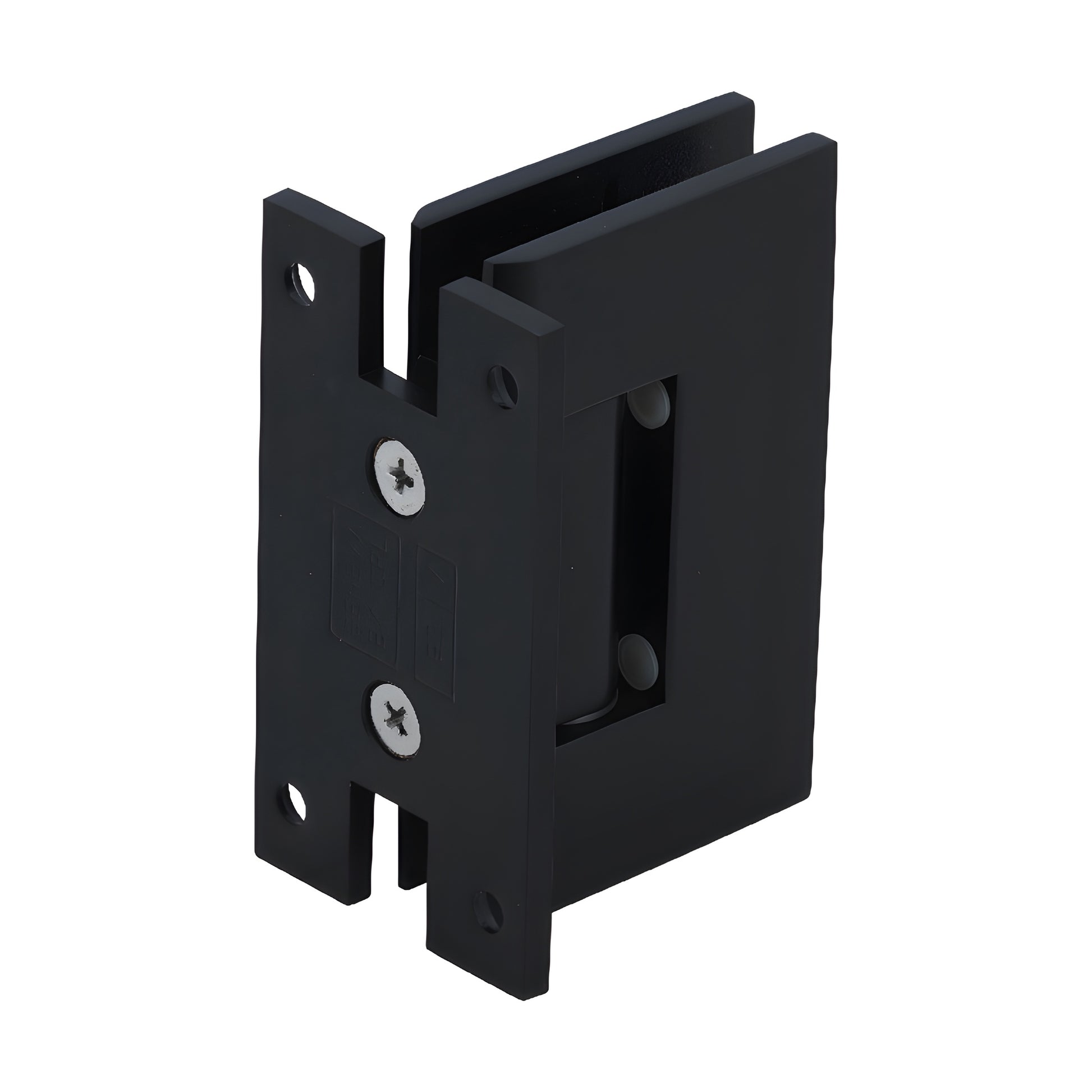

The Vienna product line (SKU: V1EH037MBL) now features an H‑shaped wall mounting plate that lets installers position glass closer to the wall for minimal clearance. This updated mounting plate increases installation flexibility while preserving Vienna’s proven durability and finish quality—ideal for contemporary square shower door and frameless glass installations.
Order the Vienna H wall mounting plate (V1EH037MBL) today to achieve a cleaner, more contemporary glass installation.
