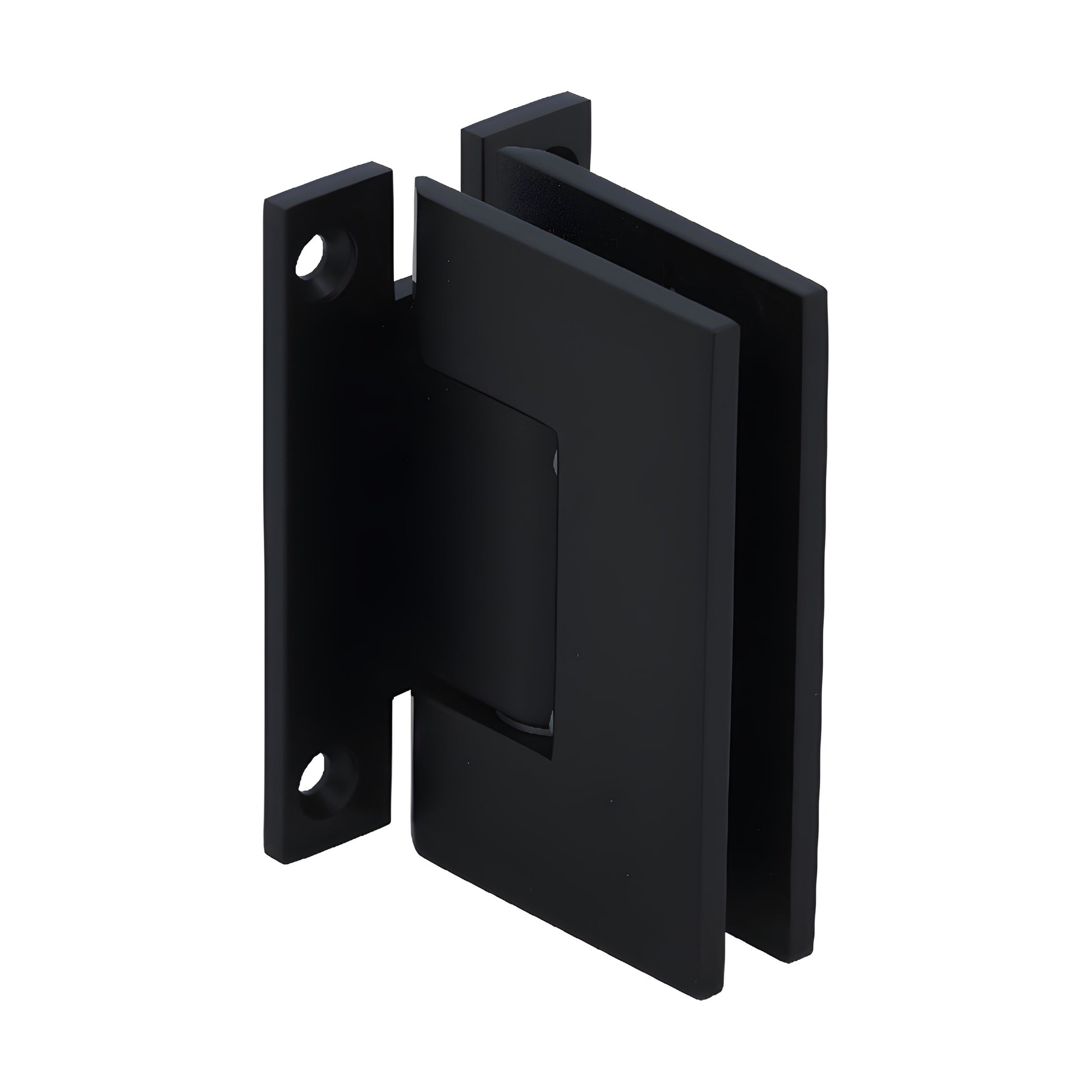

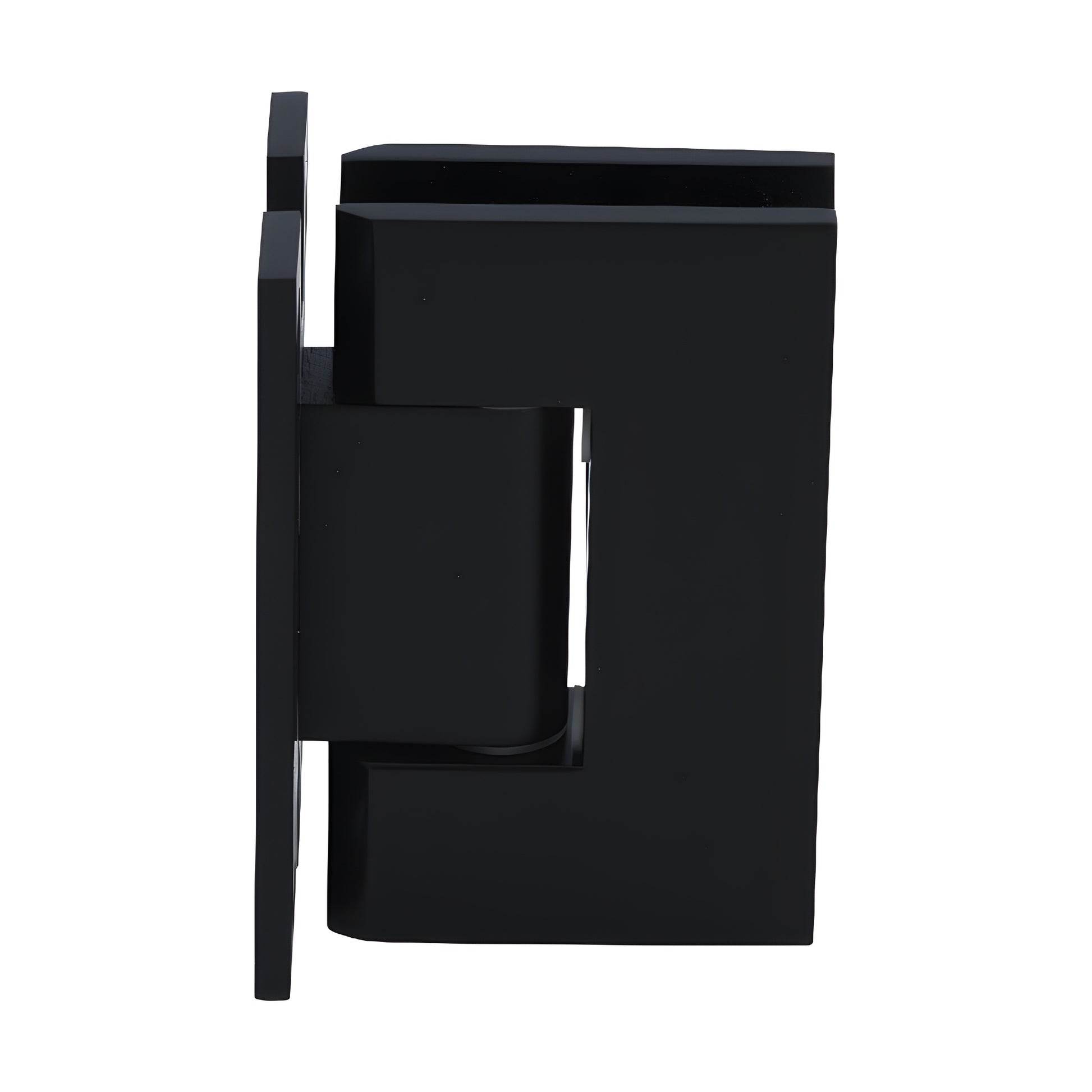

CRL Matte Black Geneva 037 Series Wall Mount 'H' Back Plate Hinge
Item # GENH037MBL
$58.35
CAD
Finish (5)
Mounting Type (5)
- 'H' Back
- Full Back
- Glass To Glass
- Offset Back
- Short Back
Overview
| SKU | GENH037MBL |
|---|---|
| Sold As | 1 Each |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | 'H' |
| Edge Profile | Square |
| Finish/Color | Matte Black |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |

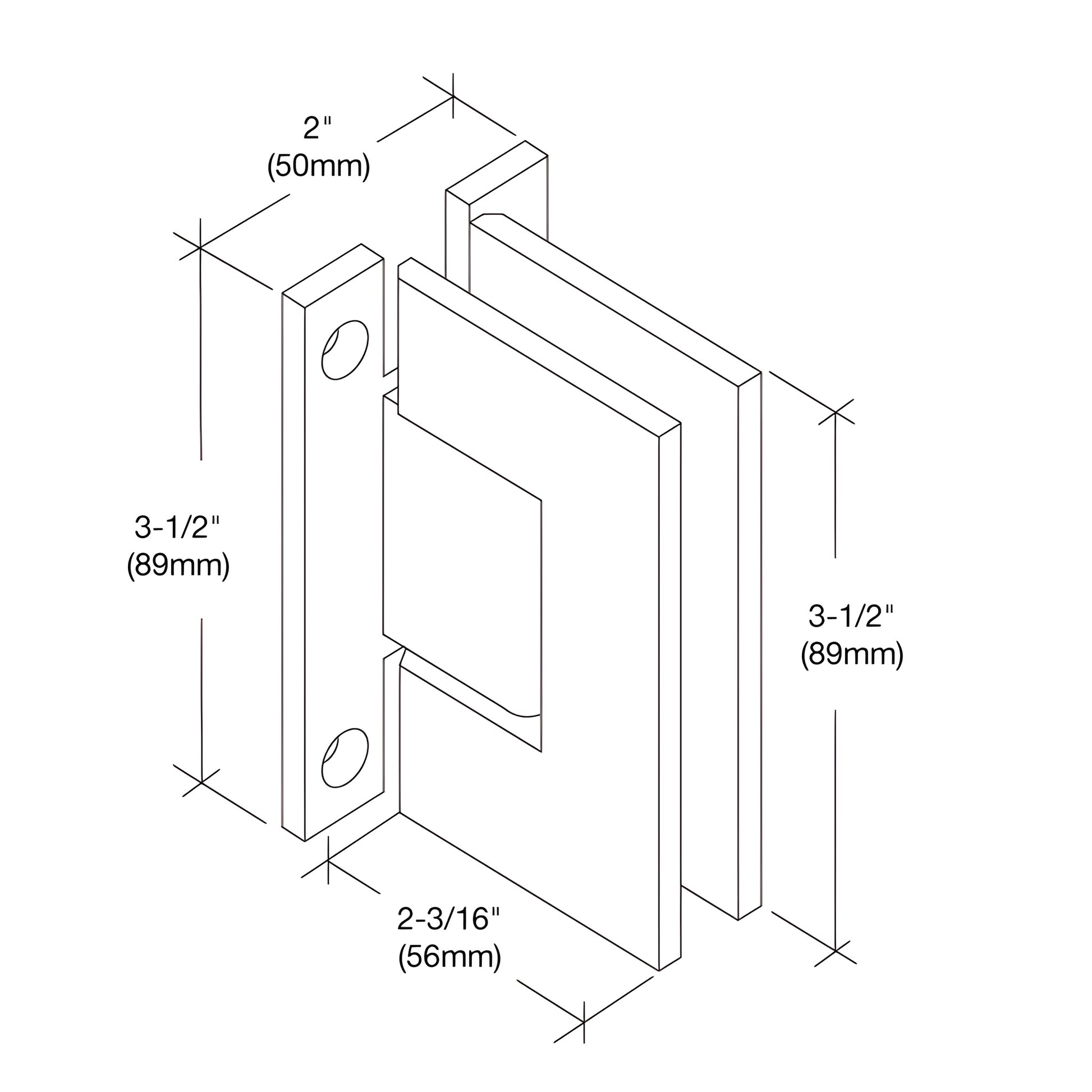

| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 80 lbs. (36.3 kg) |
| Maximum Door Weight - 3 Hinges | 120 lbs. (54.4 kg) |
| Maximum Door Width - 2 Hinges | 28 |
| Maximum Door Width - 3 Hinges | 32 |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Series | Geneva |
| Width | 2-3/16 in. (56 mm) |
Description
- New Wall Plate Design Allows for Tighter Clearance
- Same Geneva Quality with a Different Look
- Square Design is the Most Contemporary Look
- Apply medium-strength threadlocker on cover plate screws

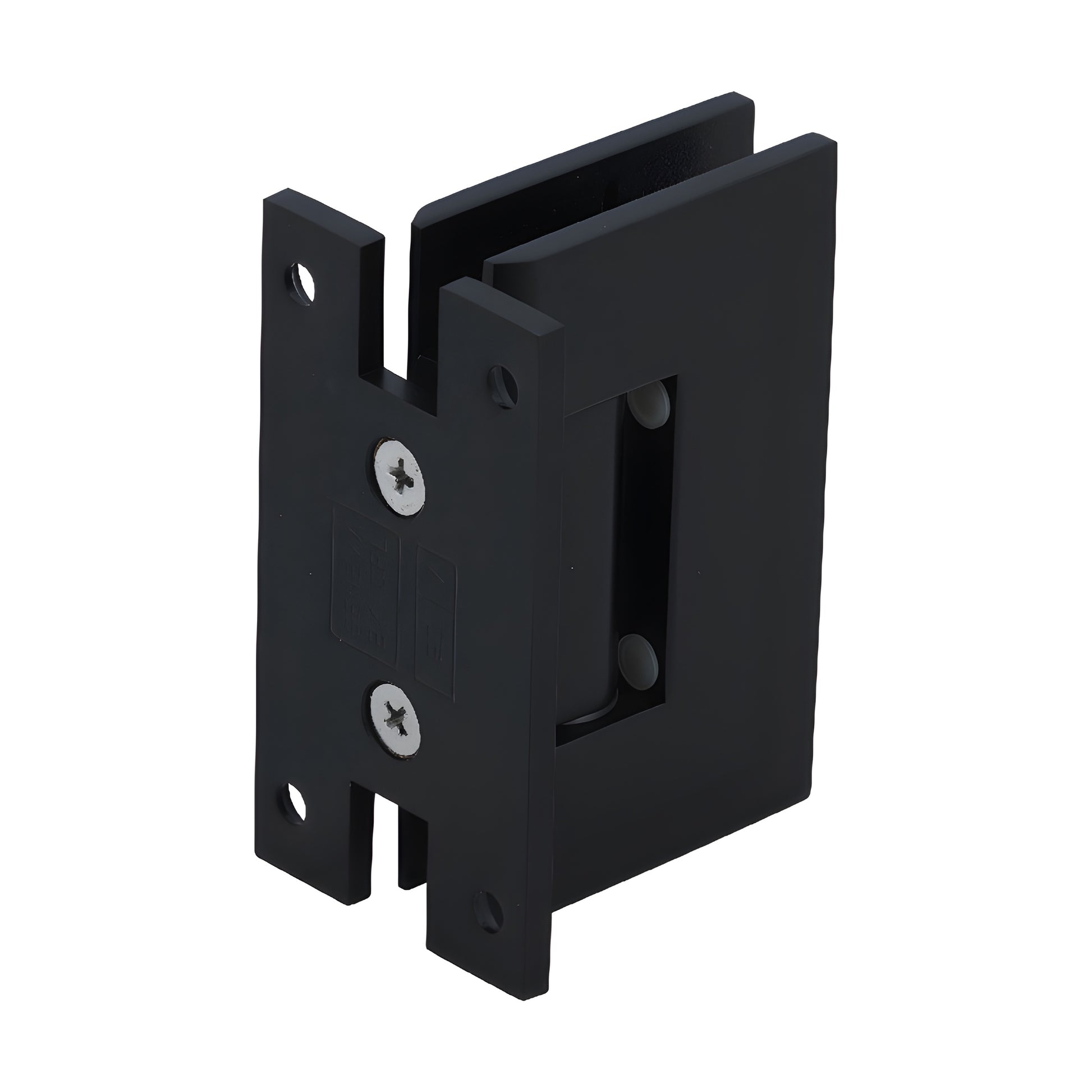

The Geneva/V1e product line has been updated to include an "H" shaped wall mounting plate, allowing the installer to get the glass closer to the wall. This new design will give increased flexibility in regards to the clearance between the glass and the wall.
