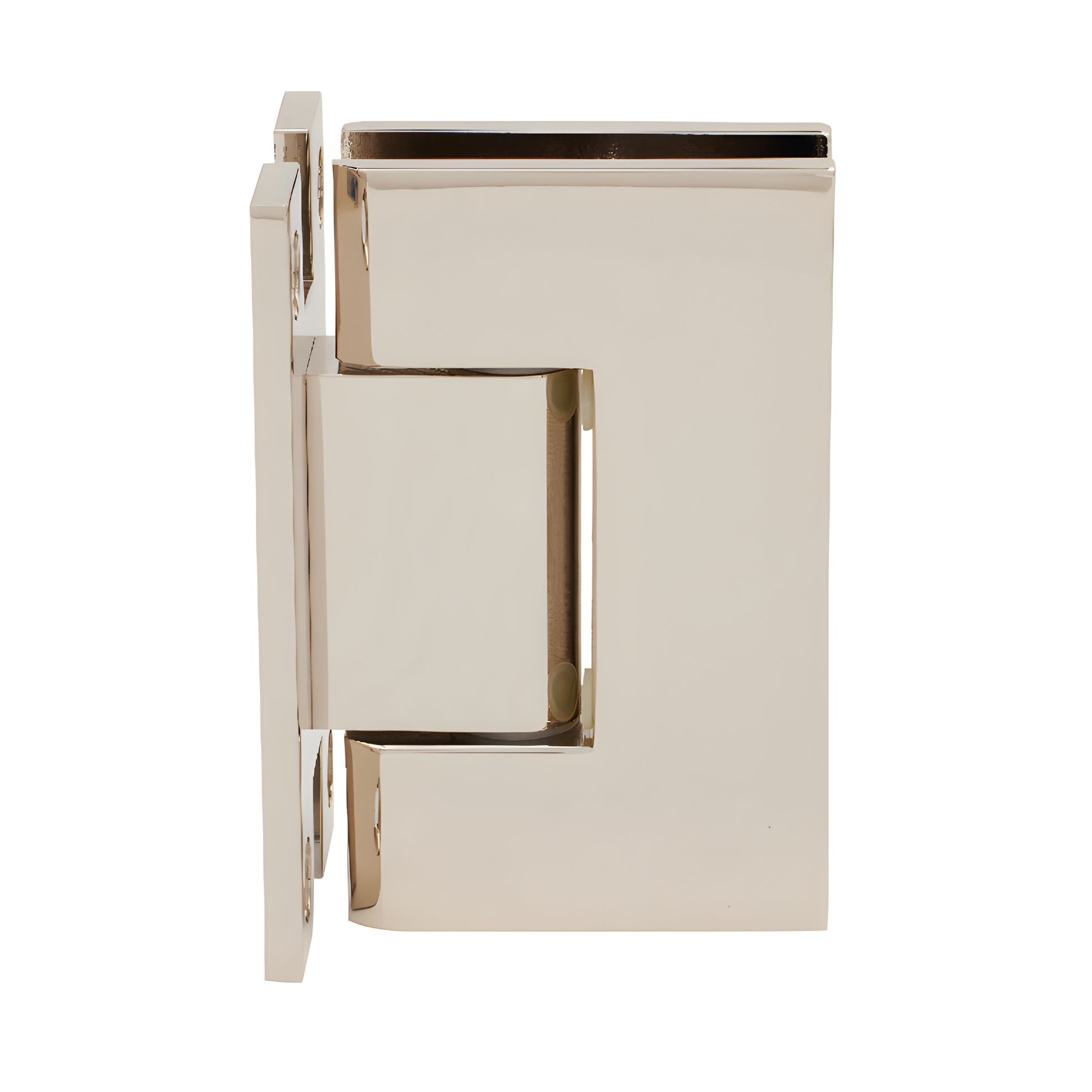

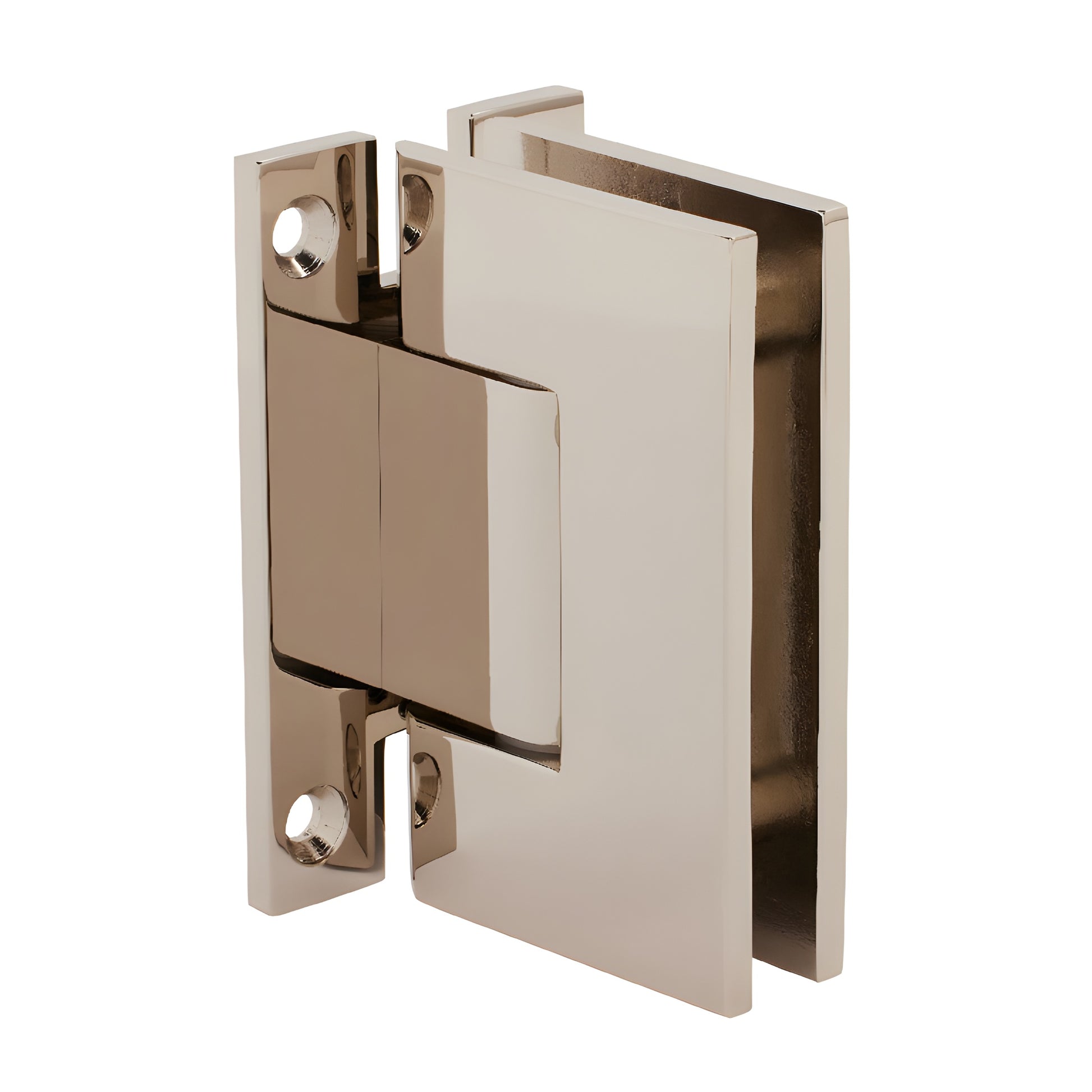

CRL Geneva 037 Polished Nickel Wall-Mount H Back Plate Hinge
CRL Geneva 037 Polished Nickel Wall-Mount H Back Plate Hinge
Regular price
$93.71 CAD
Regular price
Sale price
$93.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GENH037PN
Shipping Weight: 9.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
'H'
Edge Profile
Square
Finish/Color
Polished Nickel
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)

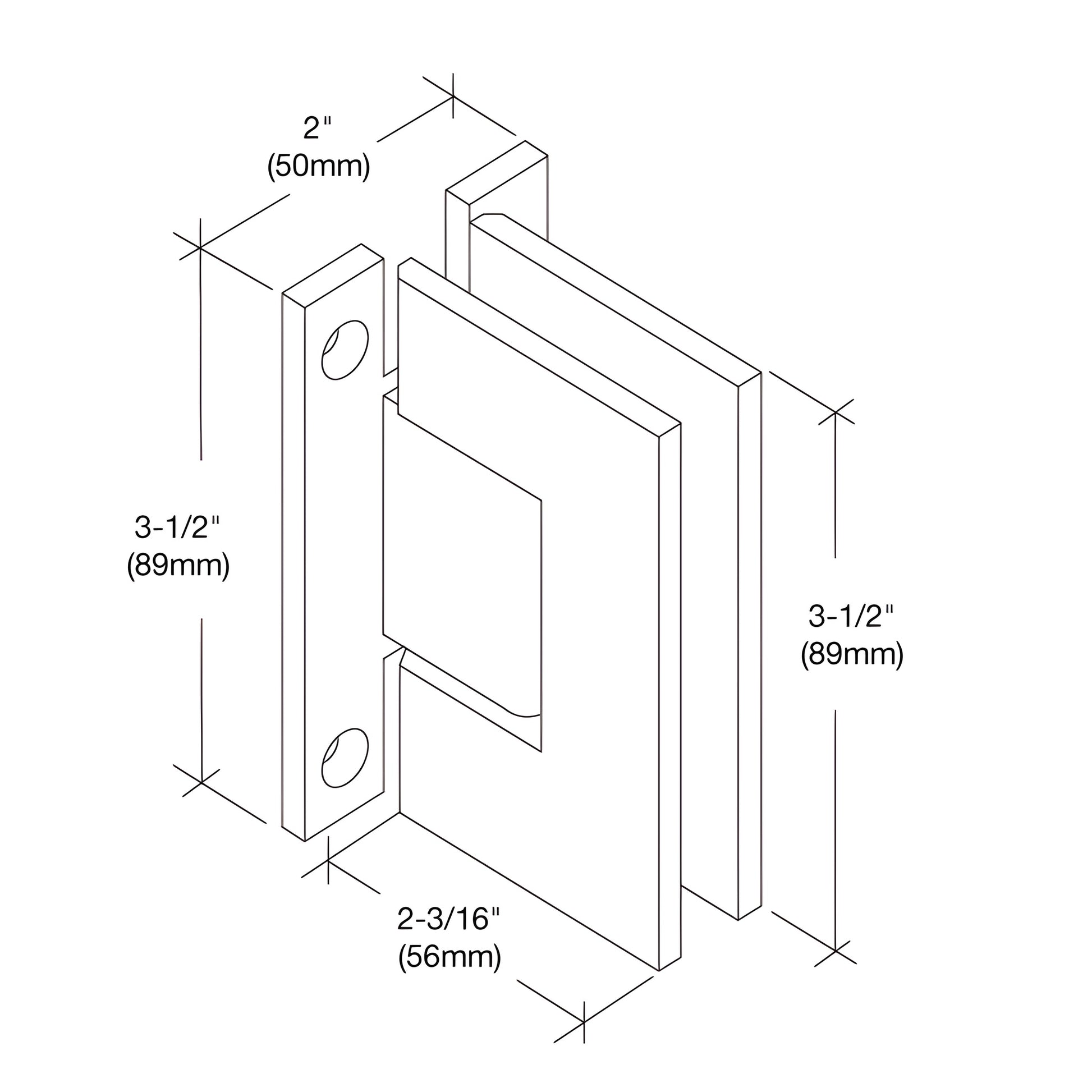

Height
3-1/2 in. (89 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Geneva
Width
2-3/16 in. (56 mm)
Overview

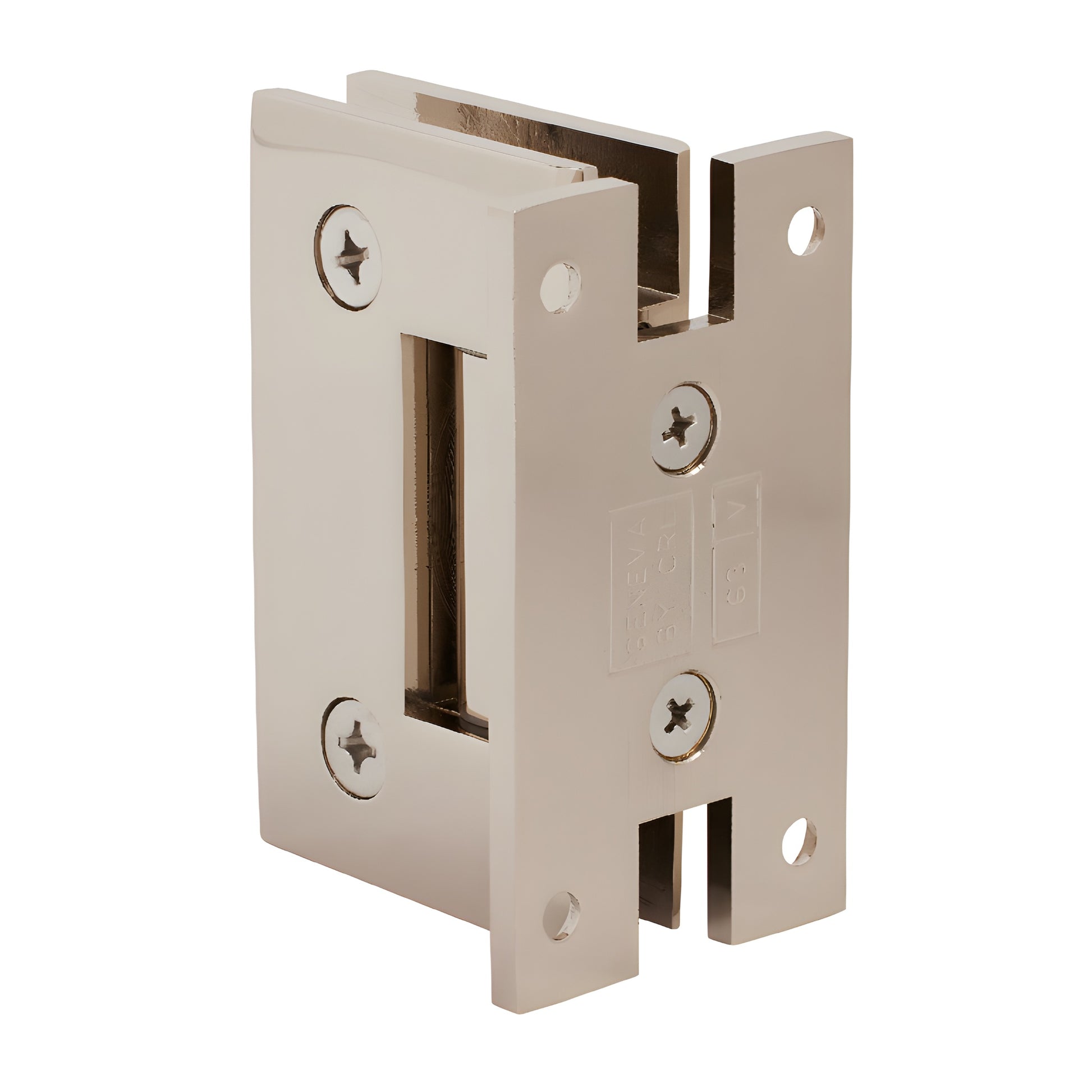

- New H-shaped wall plate for tighter glass-to-wall clearance
- Same Geneva quality with an updated contemporary appearance
- Square design provides a clean, modern architectural look
The Geneva/V1e line (SKU: GENH037PN) now features an H-shaped wall mounting plate that lets installers position glass closer to the wall for minimal clearance. Ideal for glass shower doors and frameless glass partitions, this updated mounting plate increases installation flexibility while maintaining Geneva’s proven performance and finish quality.
