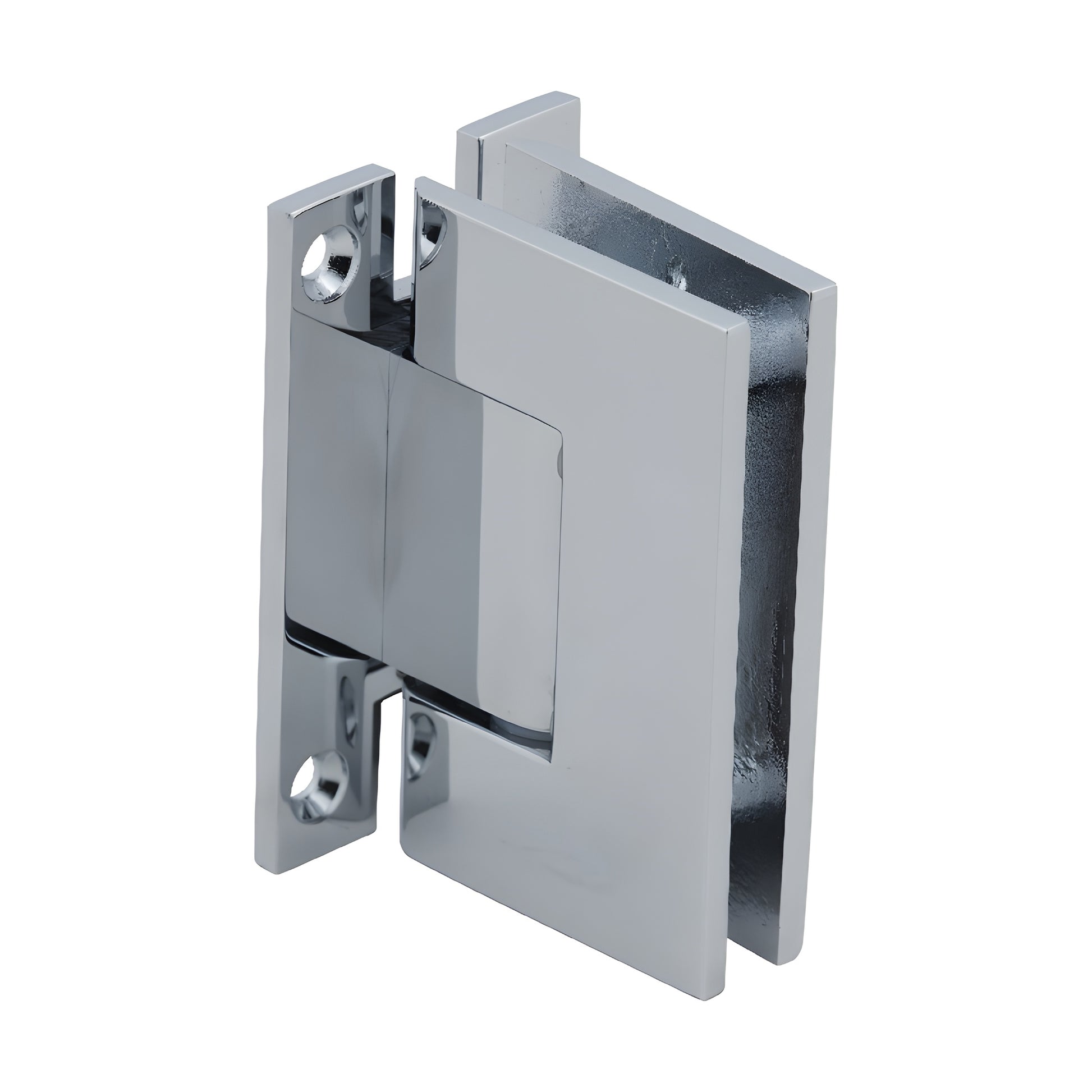

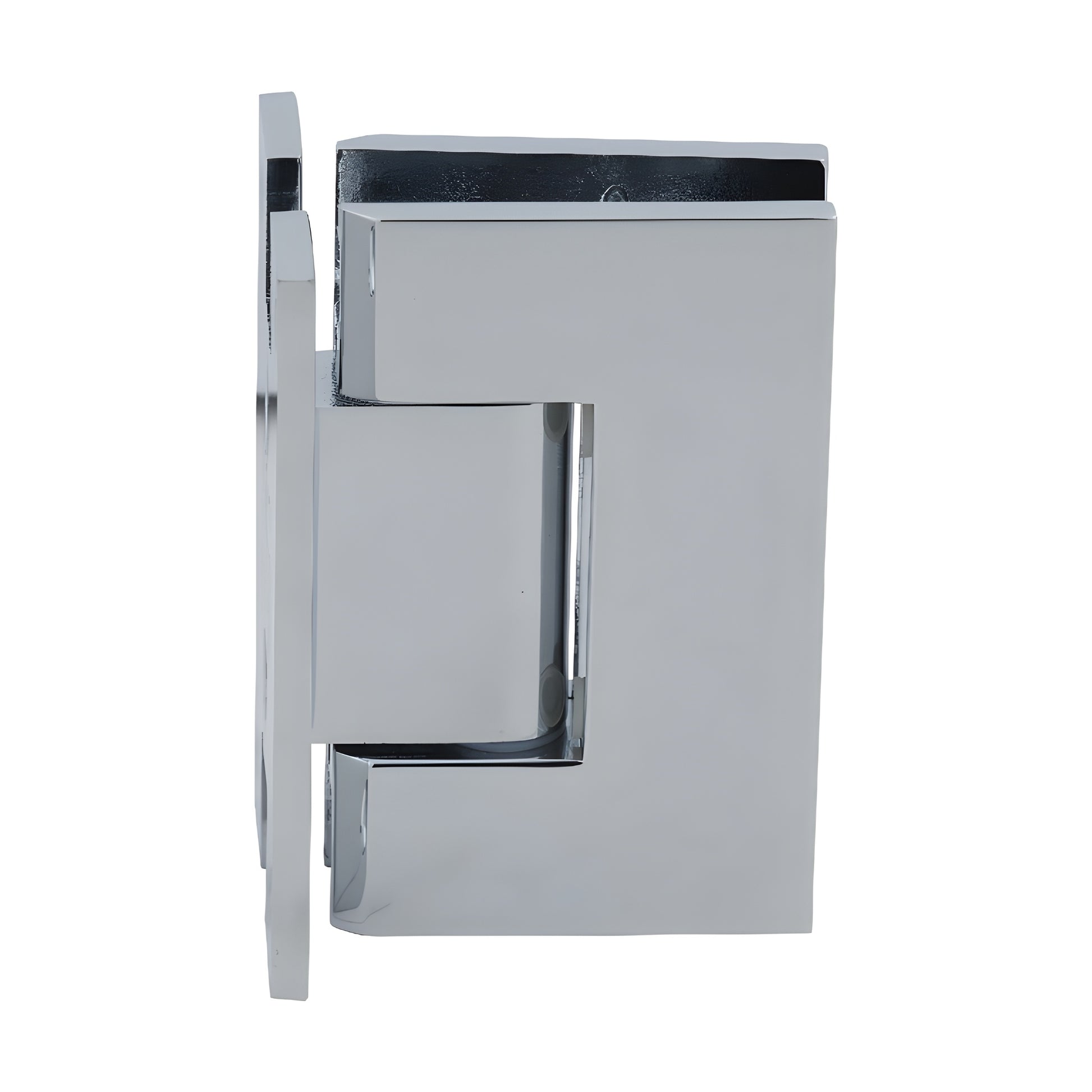

CRL Polished Chrome Geneva 037 Series Wall Mount 'H' Back Plate Hinge

Item # GENH037CH

$55.57 CAD

Finish (5)

Mounting Type (6)

Series (4)

Related Products

Overview

SKUGENH037CH
Sold as1 Each
5 Degree Pre-SetNo
AdjustableNo
Back Plate'H'
Edge ProfileSquare
Finish/Color:Polished Chrome
Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)

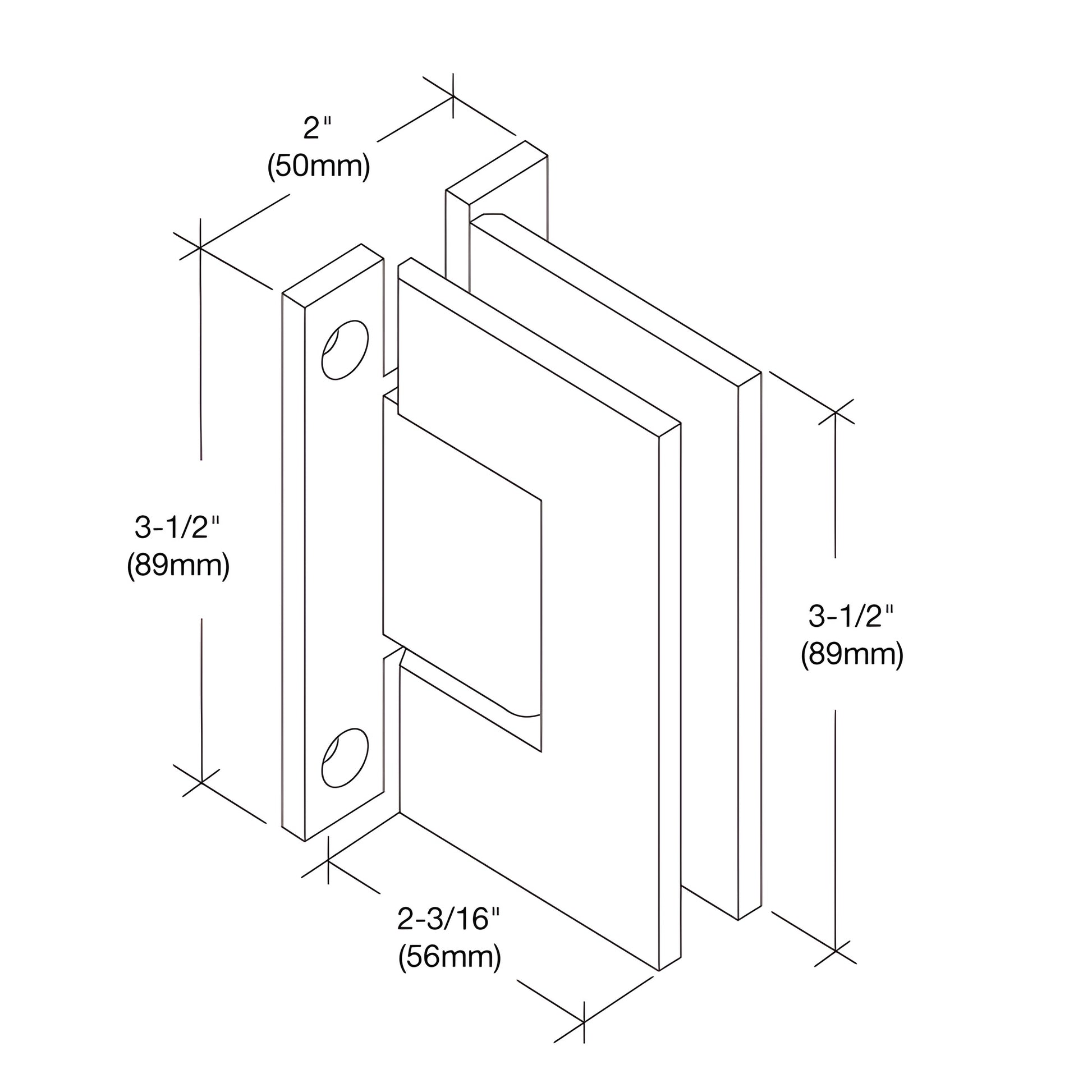

Height3-1/2 in. (89 mm)
MaterialBrass
Maximum Clamping Screw Torque60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges62 lbs. (28.1 kg)
Maximum Door Weight - 3 Hinges120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges28
Maximum Door Width - 3 Hinges32
Mounting TypeWall Mount
Self-CenteringYes
SeriesGeneva
Width2-3/16 in. (56 mm)

Description

Product Details

  • New Wall Plate Design Allows for Tighter Clearance
  • Same Geneva Quality with a Different Look
  • Square Design is the Most Contemporary Look
  • Apply medium-strength threadlocker on cover plate screws

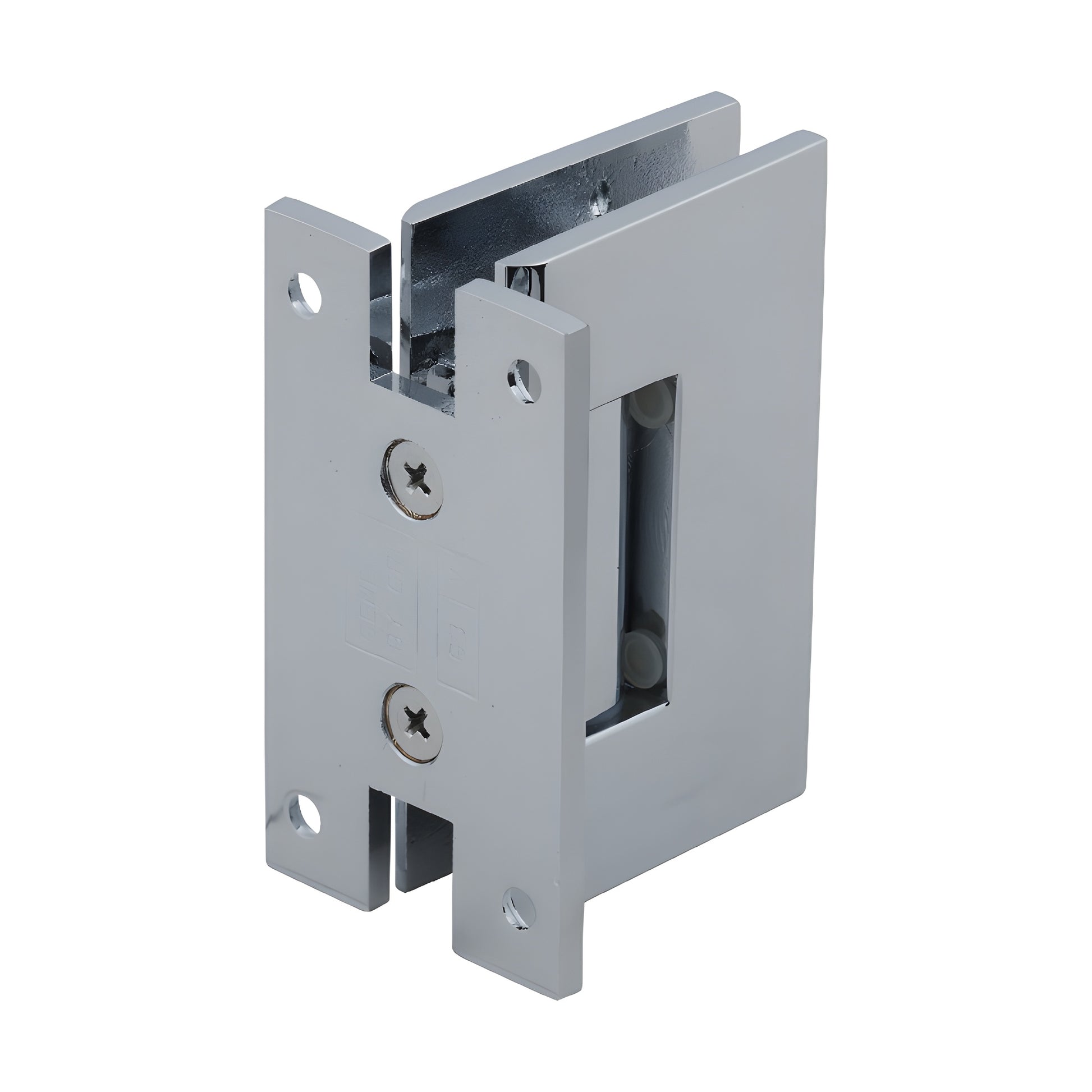

The Geneva/V1e product line has been updated to include an "H" shaped wall mounting plate, allowing the installer to get the glass closer to the wall. This new design will give increased flexibility in regards to the clearance between the glass and the wall.

Specifications

Technical Resources

Brochures & Literature

PDF
Frameless Shower Door Hardware CatalogOpen PDF ↗
PDF
Hardware Finish Cross-Reference GuideOpen PDF ↗

Quote Request Forms

PDF
Frameless Shower Door Quote Request FormOpen PDF ↗

Templates

PDF
GENH037 TemplateOpen PDF ↗

Cleaning & Maintenance

PDF
Frameless Shower Door Glass and Hardware Cleaning InstructionsOpen PDF ↗
