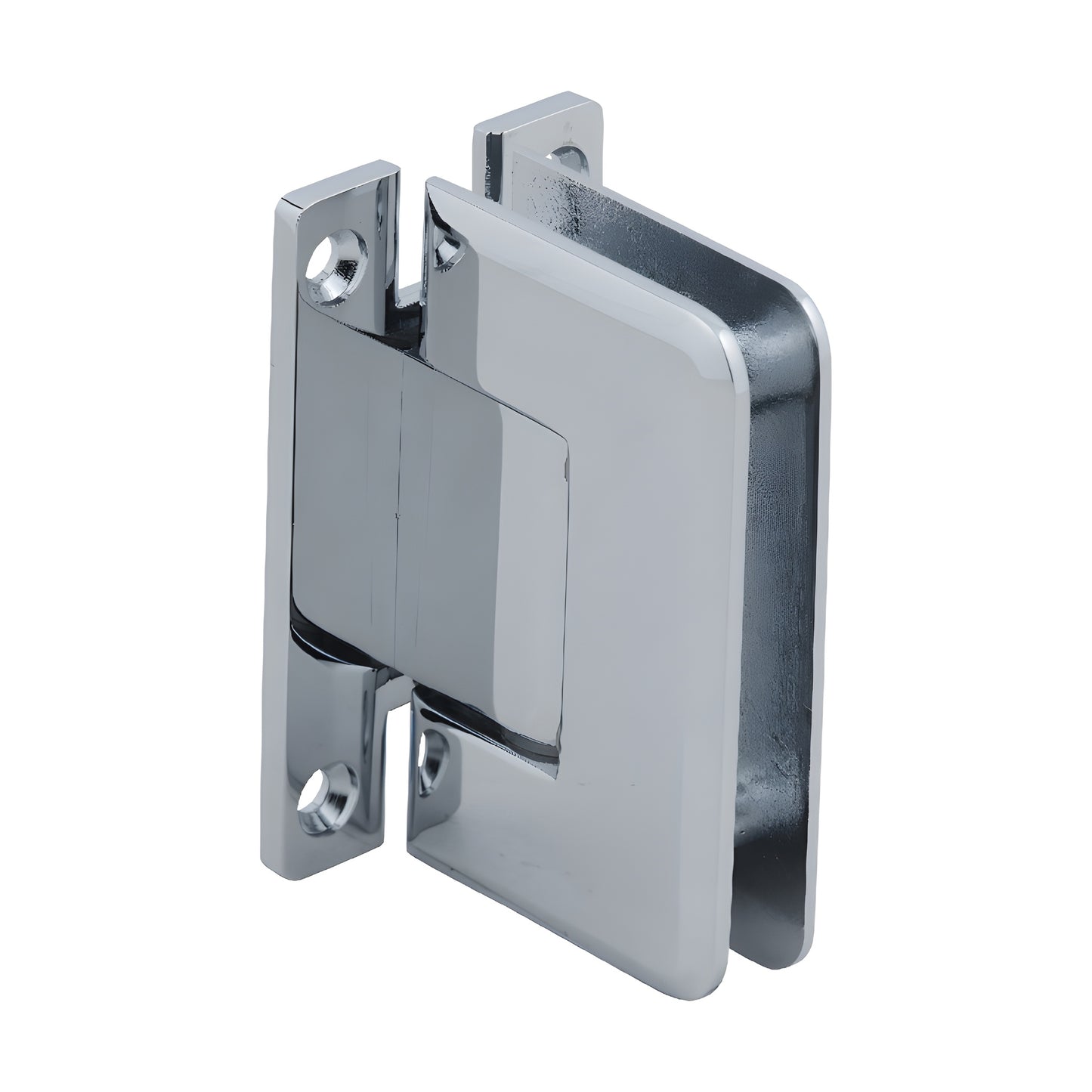

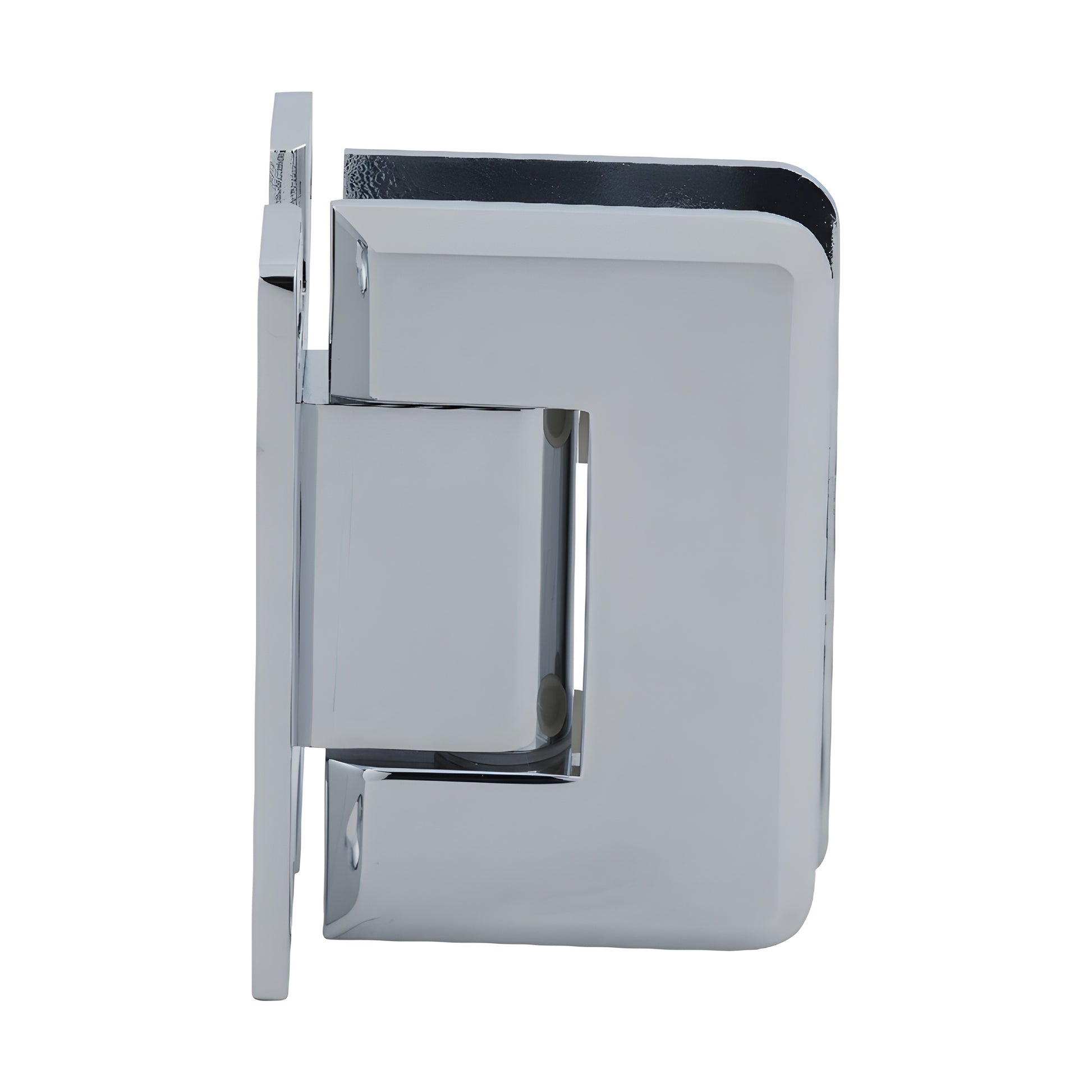

CRL Pinnacle 037 Polished Chrome Glass Door Wall-Mount Hinge

• Self-Centering hinge with Reversible 5° Pivot Pin for reliable shower door closure
• Available in several beautiful finishes
• Three year warranty

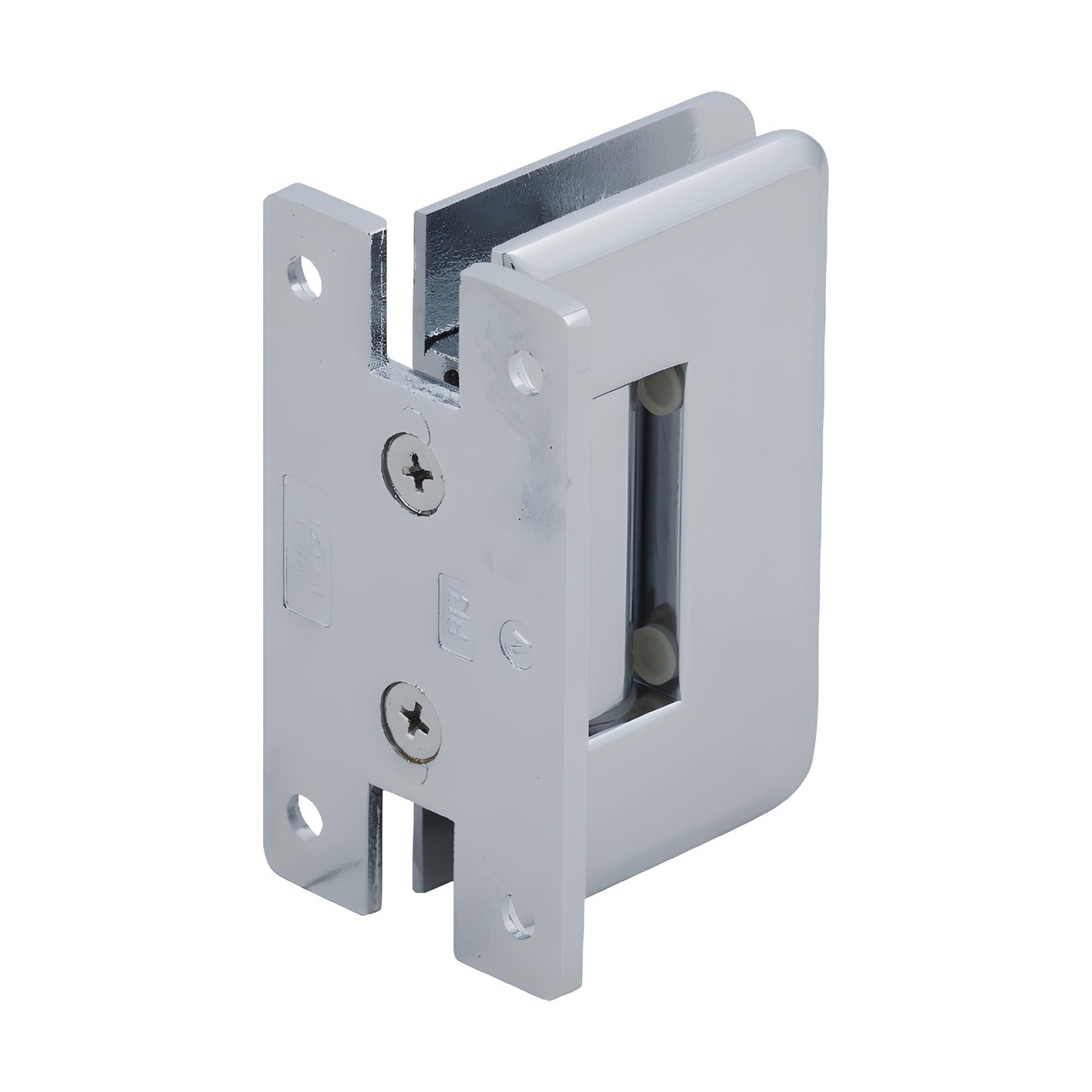

• Wall mount 'H' back plate standard model (factory set for standard closing position)
• Designed for monolithic tempered safety glass

The CRL Pinnacle Hinge (SKU: P1N037CH) is a premium brass shower door hinge with radius corners and beveled edges for a sleek, modern look. Similar to our Geneva Series but with refined styling, Pinnacle accepts 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, this shower hinge delivers long service life and consistent door closure. It includes the reversible 5° pivot pin used across our Geneva, Cathedral, Roman, Ultimate, and Elite series. Custom pivot pins are available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship with the 85° side active for a 5° tighter closure into the shower interior. The pin can be rotated to change the active side.

CUSTOM PIVOT PIN: Custom pivot pins can be specified for off-angle walls (up to 45°) when the standard 5° offset is insufficient.

Capacity:

• Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg); maximum door width 28" (711 mm).
• Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Feature: Wall-mount hinges and 180° glass-to-glass hinge available as Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter closure into the shower interior
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets,
