CRL Pinnacle 037 Polished Brass Wall-Mount H Back-Plate Glass Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishes
• Three-year warranty
• Wall-mount "H" back plate standard (factory-set for standard closing position)
• Designed for monolithic tempered safety glass

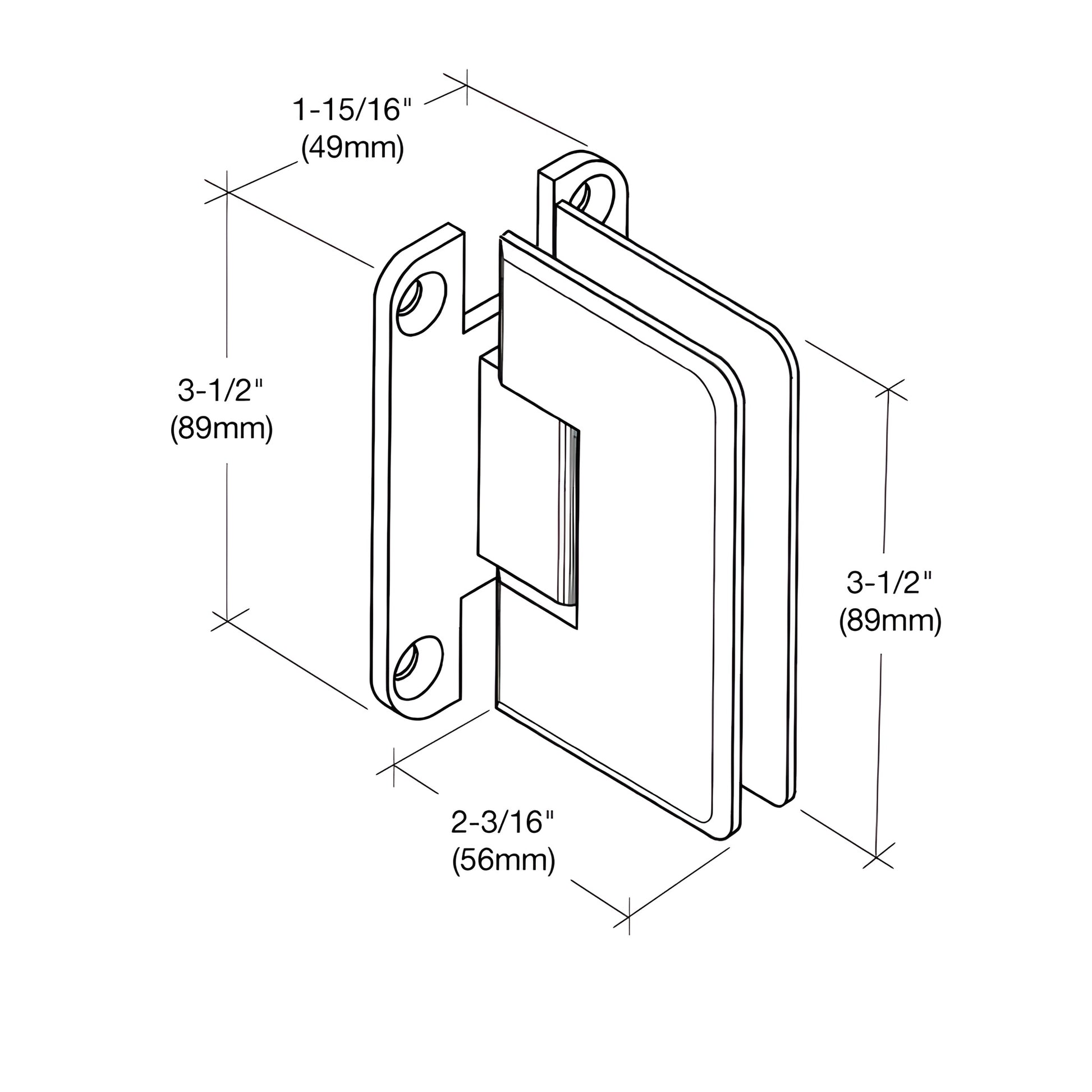

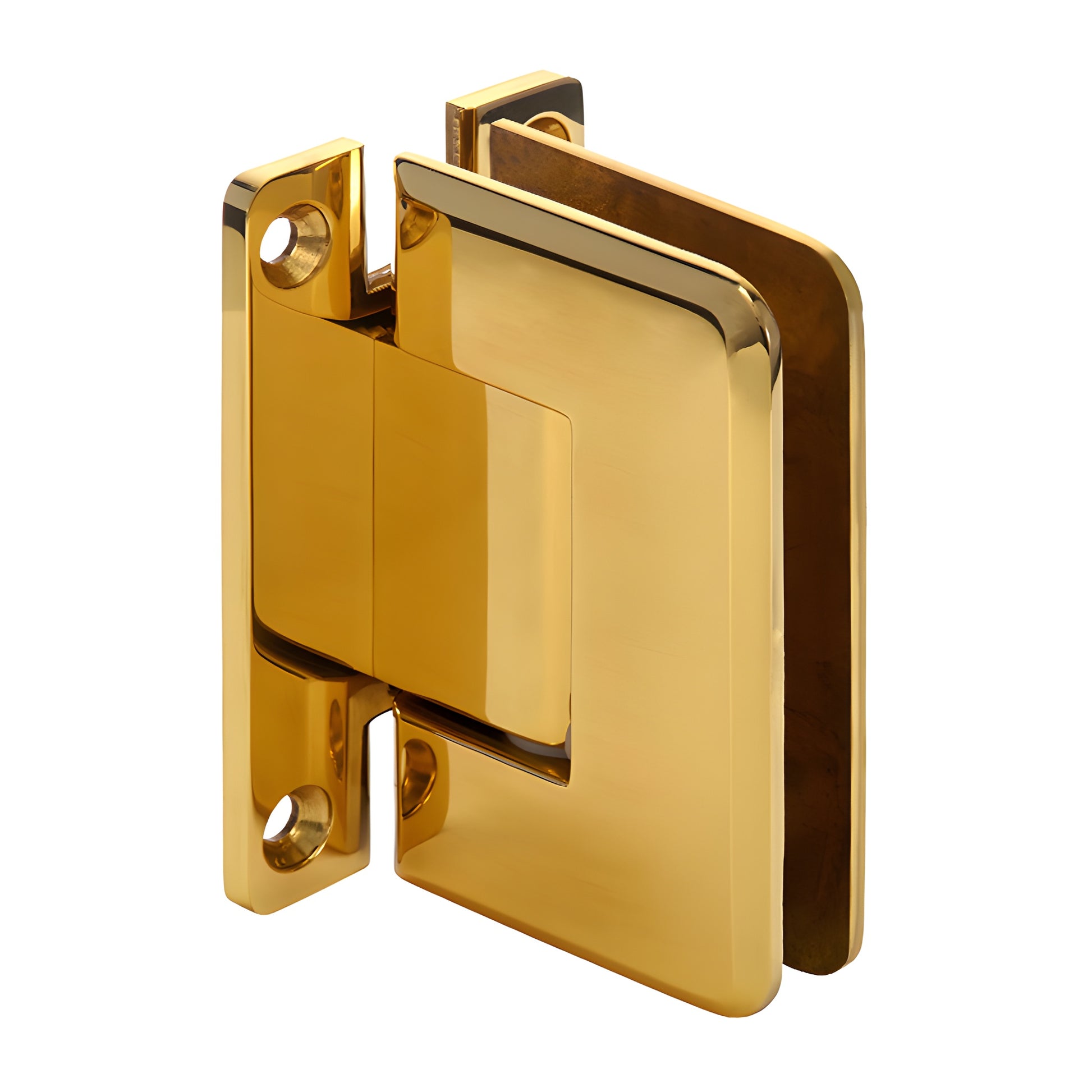

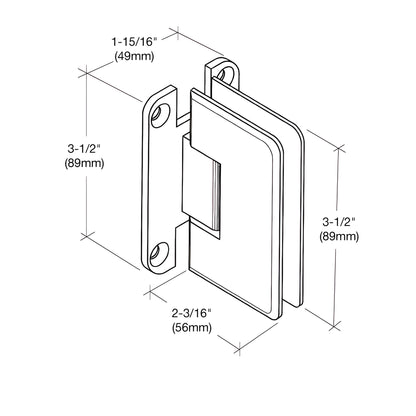

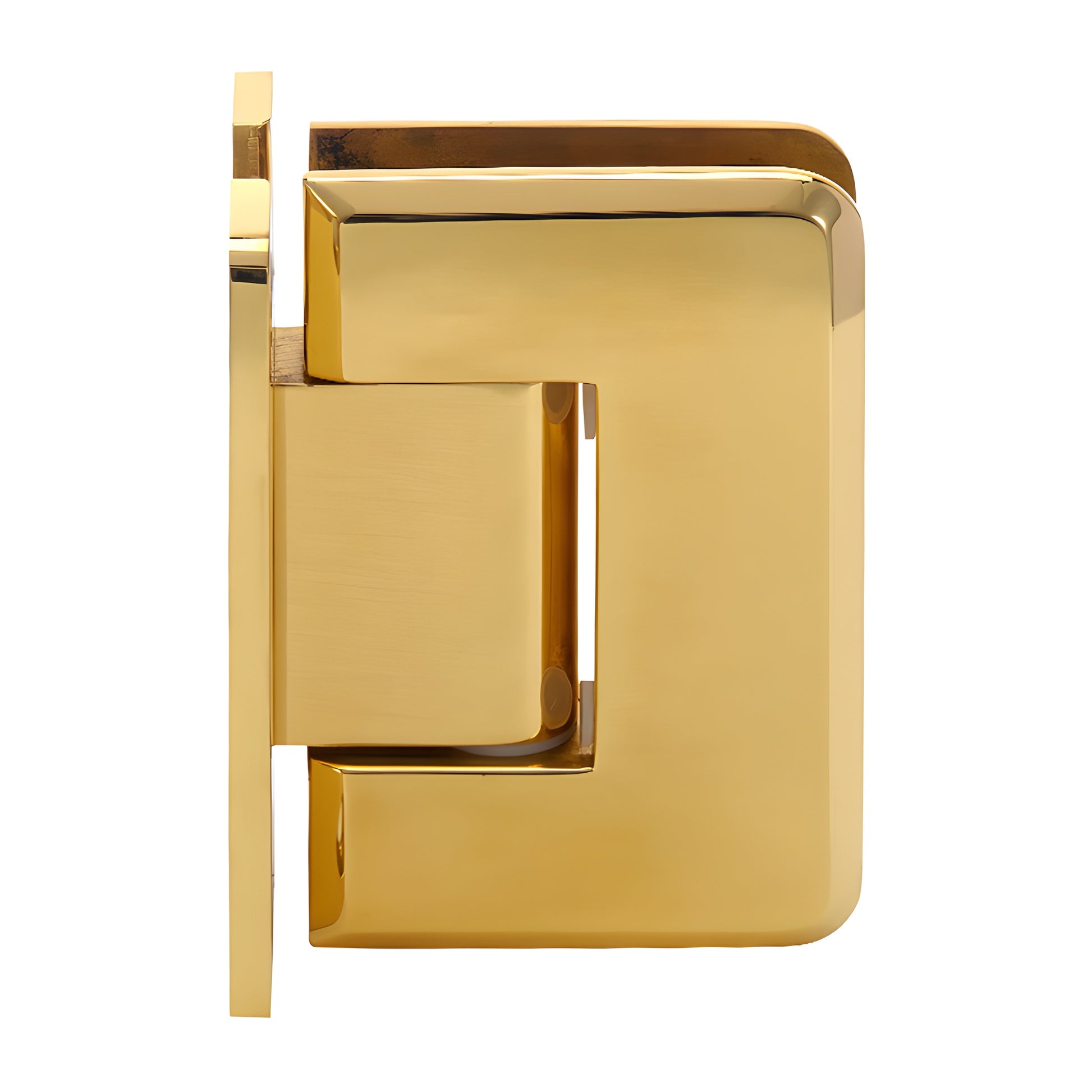

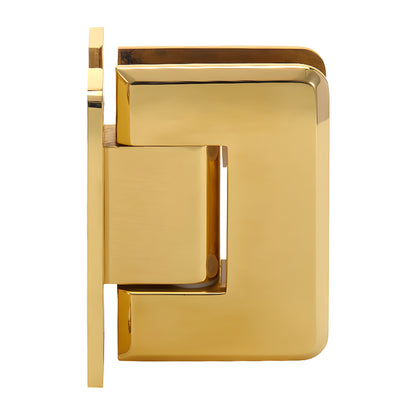

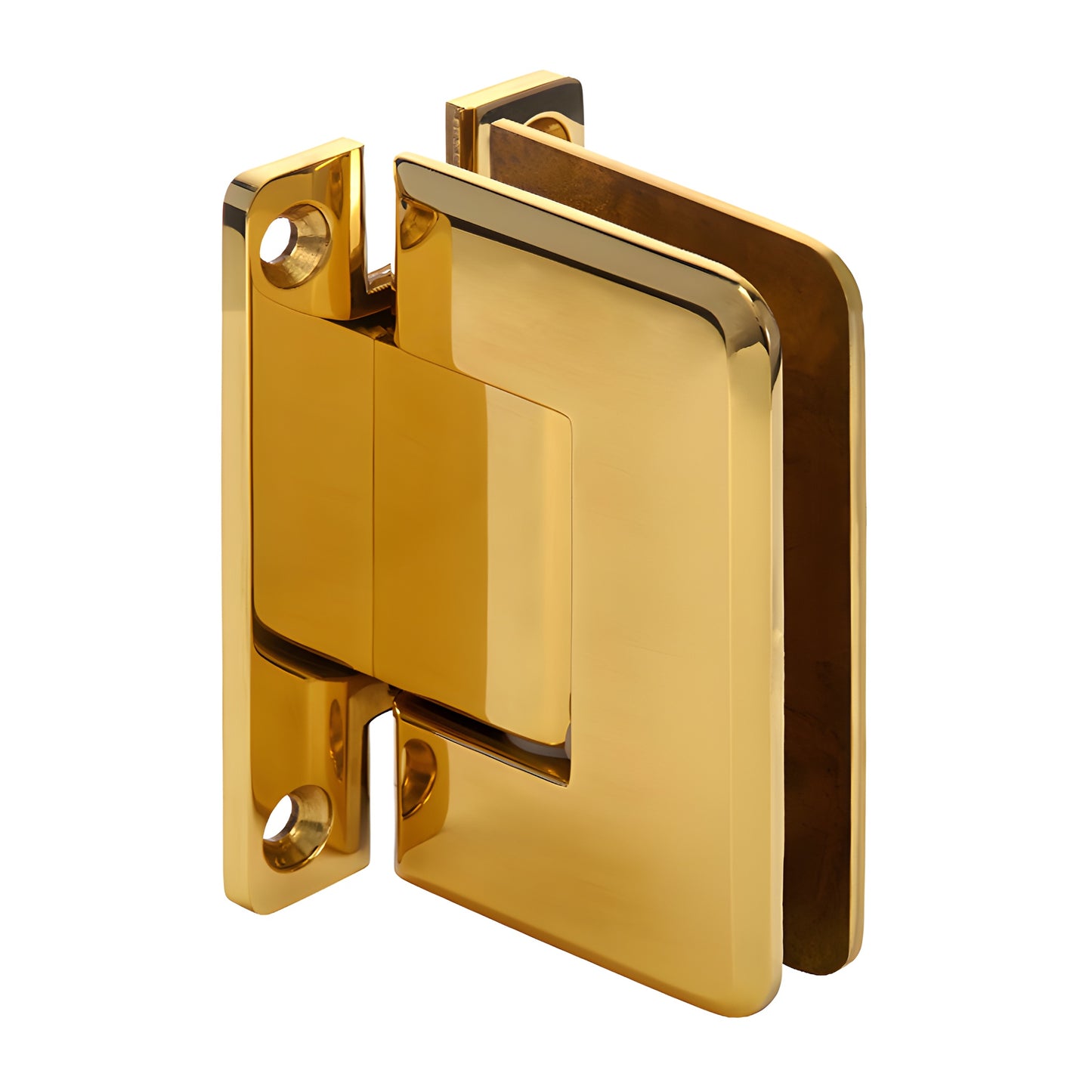

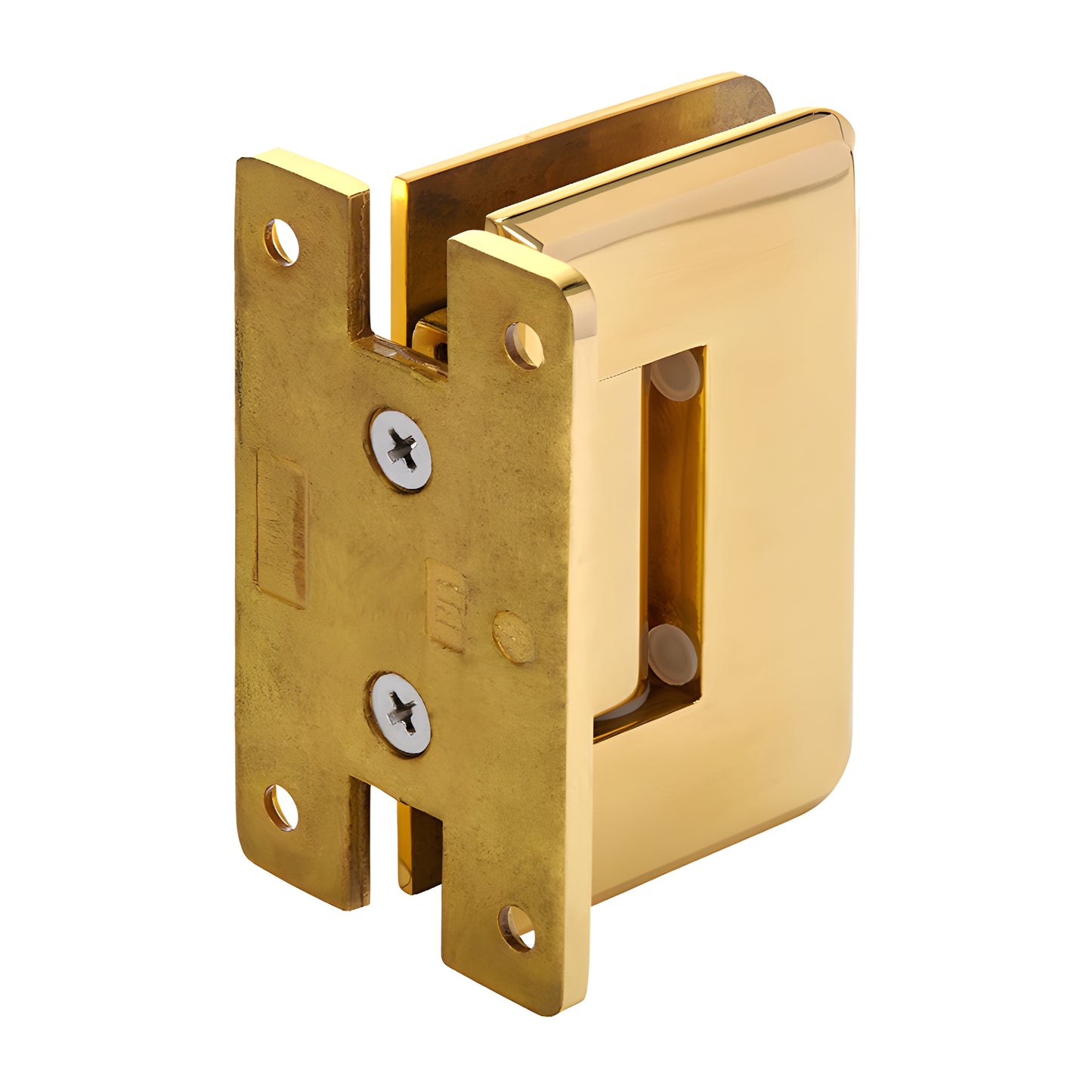

CRL Pinnacle Hinge — a brass shower door hinge with radius corners and beveled edges for a sleek, modern appearance. Similar to the Geneva Series but refined for upscale bathroom applications, the Pinnacle accepts 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs for long service life and reliable door closure. Includes the reversible 5° pivot pin used across CRL hinge families; a Custom Pivot Pin is available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin with 90° and 85° markings. Standard models ship with the 90° side activated; pre-set models are factory-set to 85° for a 5° tighter closure into the shower interior. The pin rotates to activate the alternate side.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45°) are available to accommodate non‑90° wall-to-door intersections for off-angle installations.

Performance:

• Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lb (36 kg); max door width 28" (711 mm)
• Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lb (54 kg); max door width 32" (813 mm)

SPECIFICATIONS:

Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass

Special Feature: Choice of Standard Model (factory-set at 0°) or 5° Pre-Set Model for tighter closure into shower interior. Available as wall-mount hinge and 180° glass-to-glass hinge.

Construction: Solid brass with stainless steel internal components

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must
