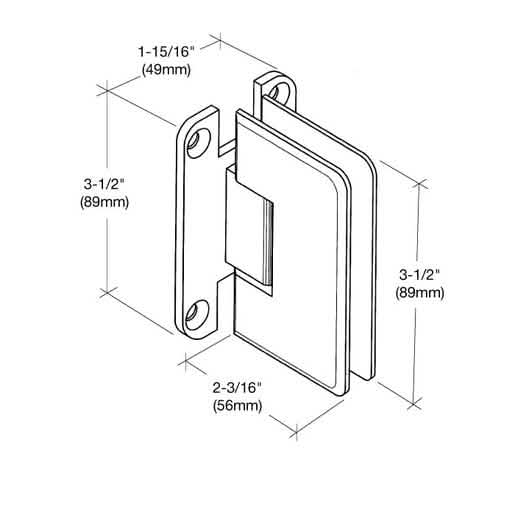

CRL Pinnacle 037 Brushed Bronze Shower Door H-Back Plate Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty

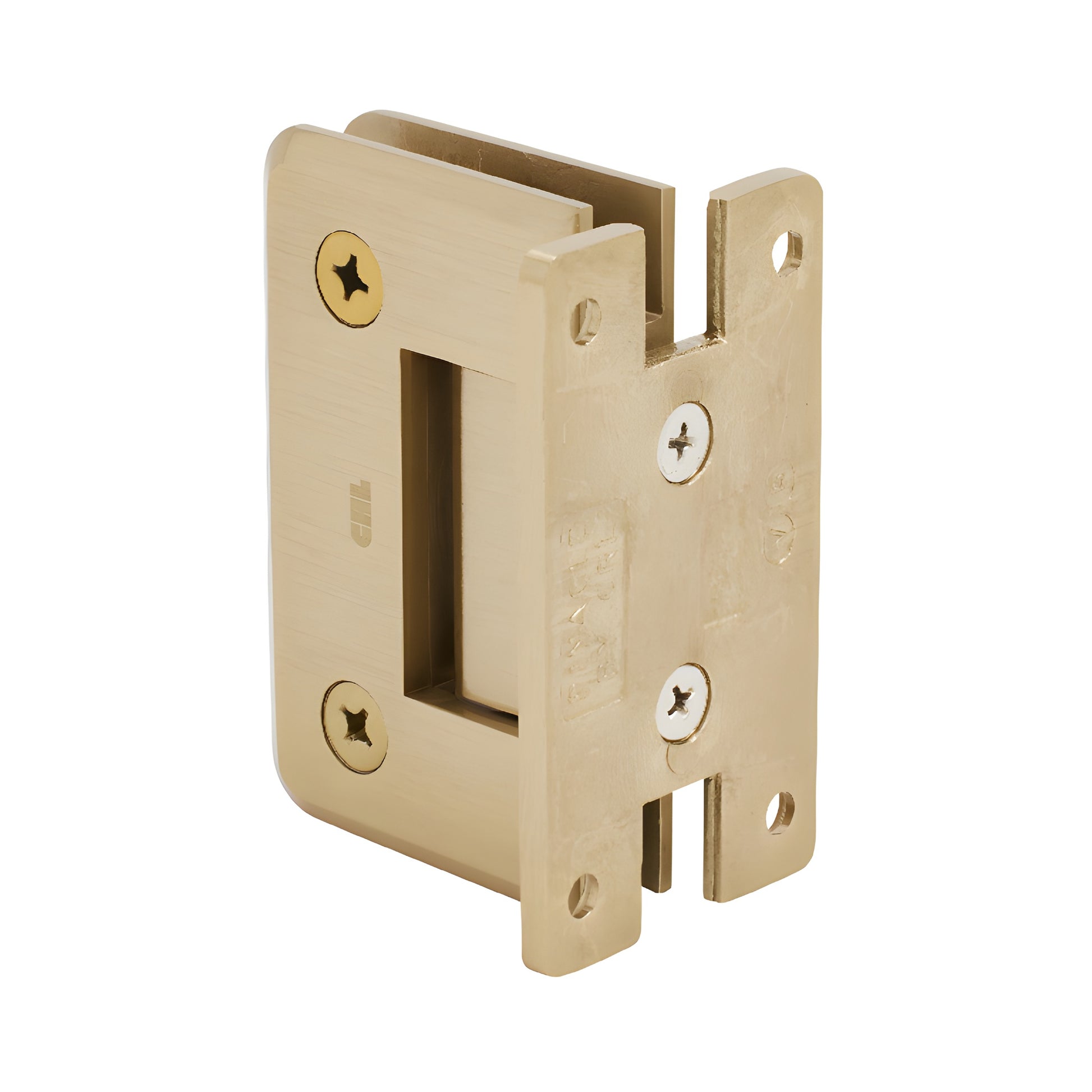

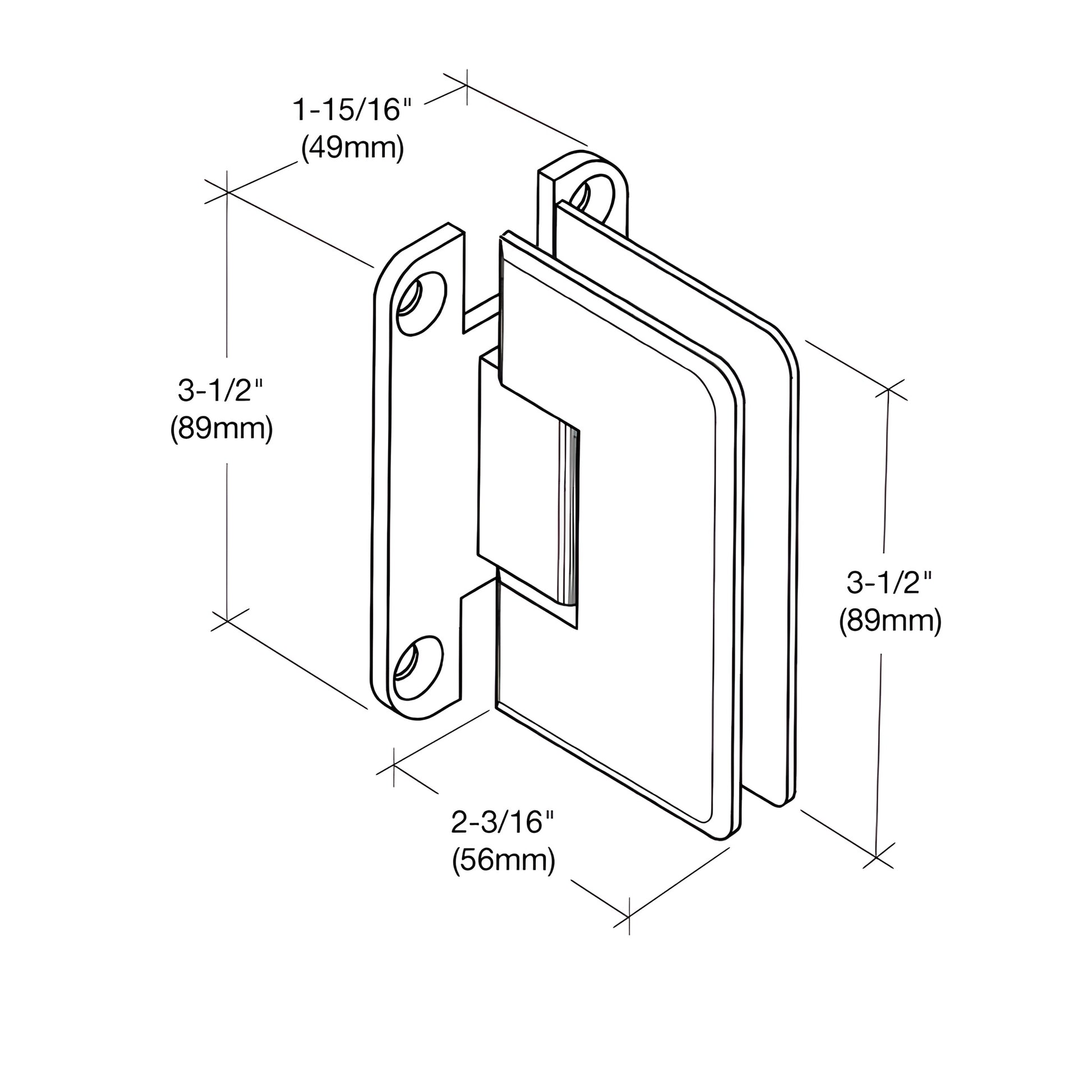

• Wall-mount "H" back plate — standard model factory set for standard closing position
• For use with monolithic tempered safety glass

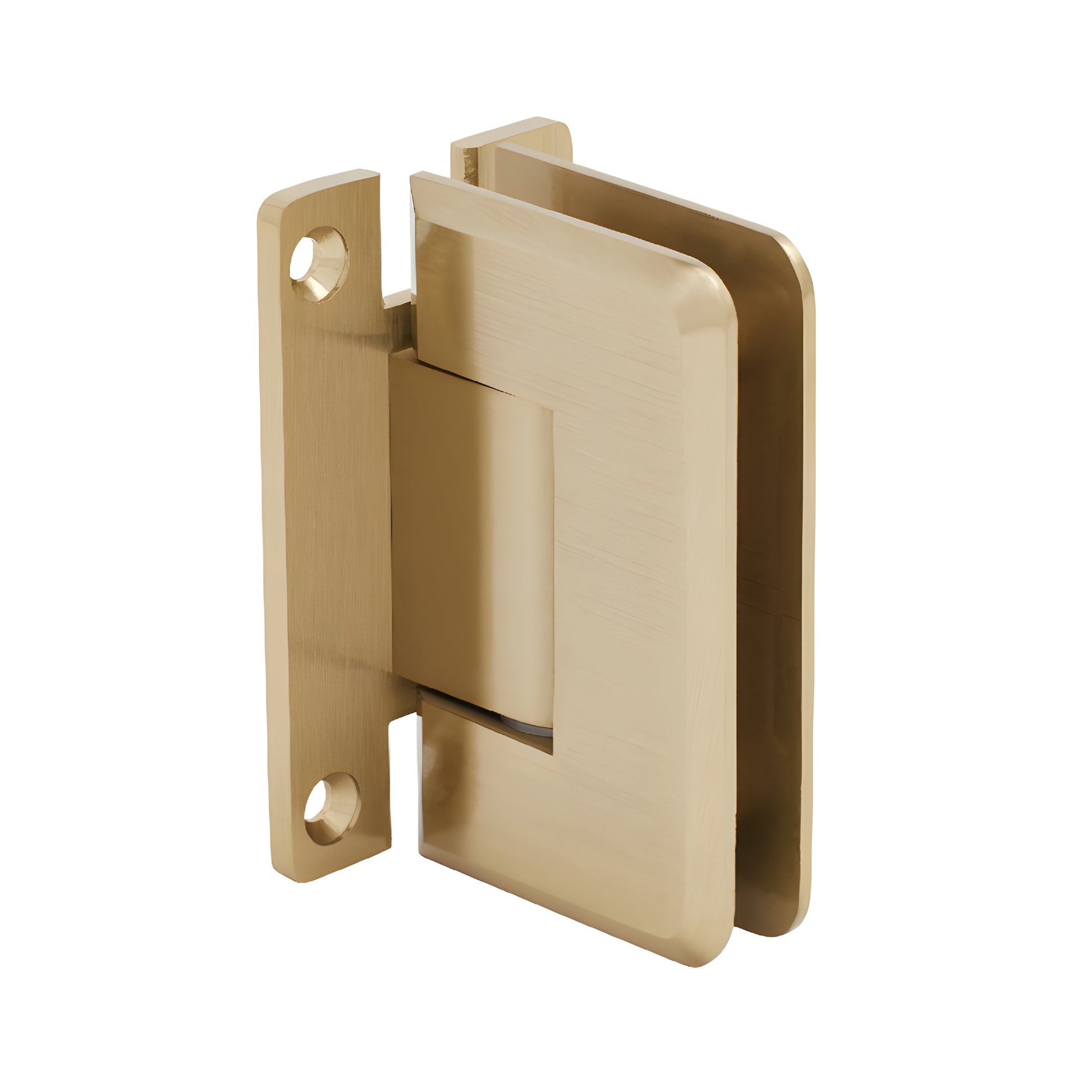

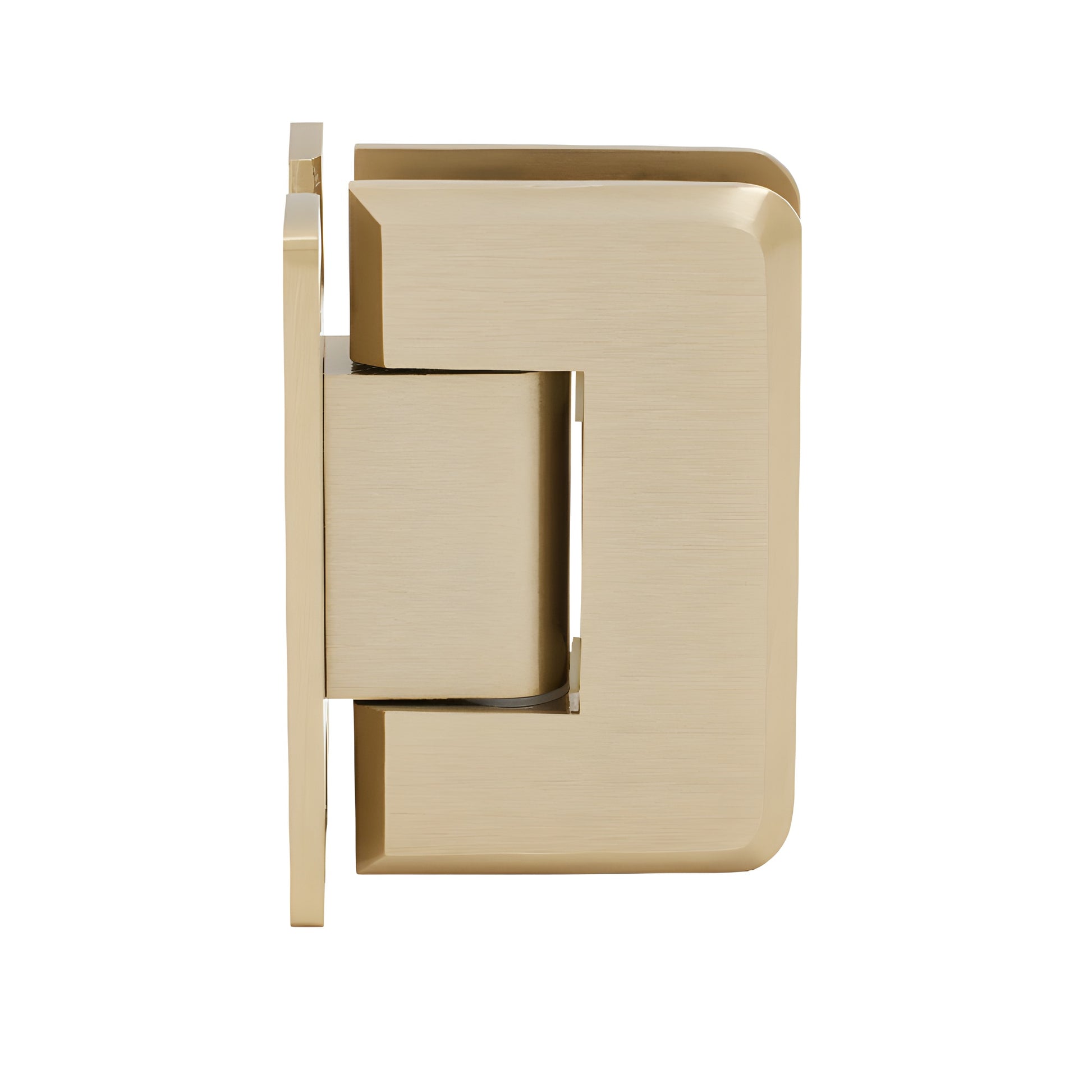

CRL Pinnacle Hinge (SKU: P1N037BBRZ) is a solid brass shower door hinge with radius corners and beveled edges for a sleek, modern appearance. Similar to the Geneva Series but with refined styling, the Pinnacle accepts 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and is self-centering when within 15° of the closed position. Stainless steel plunger tips, pins, and springs ensure long service life and reliable door closure. The hinge includes a reversible 5° pivot pin for adjustable closing behavior; custom pivot pins up to 45° are available for off-angle installations.

Standard Reversible Pivot Pin: One side of the pivot pin is marked 90° (standard setting), the opposite side 85° (5° tighter closure). Standard models ship with the 90° side activated. Rotate the pin (do not flip) to change settings.

Custom Pivot Pin: Specify a custom angle (up to 45°) when site conditions require an off-angle closing solution—useful where walls do not meet the door at 90°.

Load Capacity:

• Two hinges (5/16"–1/2" glass): up to 80 lb (36 kg), max door width 28" (711 mm)
• Three hinges (5/16"–1/2" glass): up to 120 lb (54 kg), max door width 32" (813 mm)

Specifications:

• Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
• Special Feature: Choice of Standard Model (factory-set 0°) or 5° Pre-Set Model for tighter closure into the shower interior
• Construction: Solid brass with stainless steel internal components
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering when within 15° of closed position
• Cut-Out Required
• Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack sold separately for 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws
