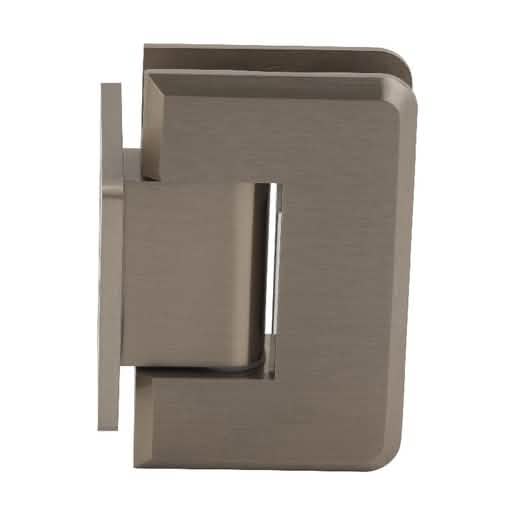

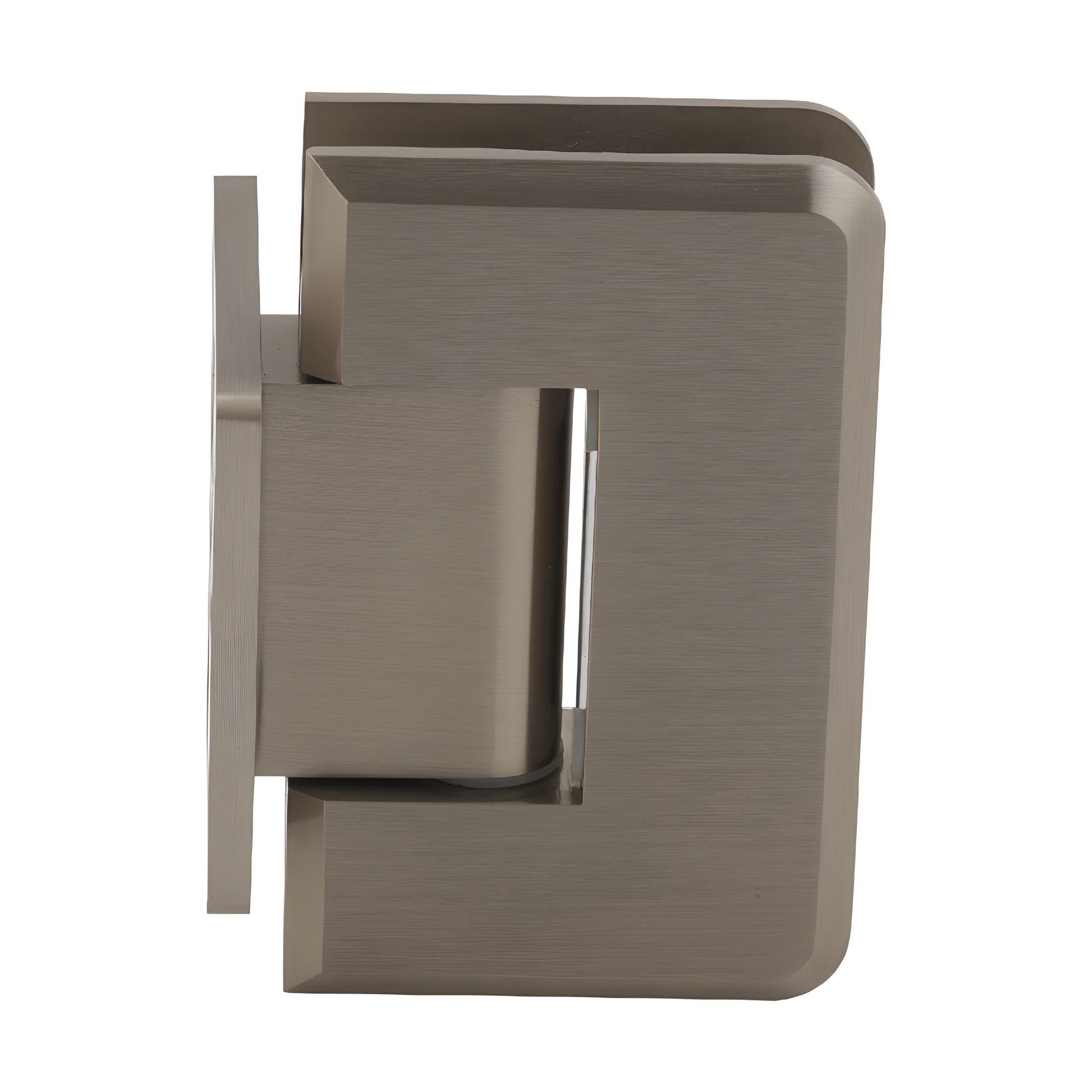

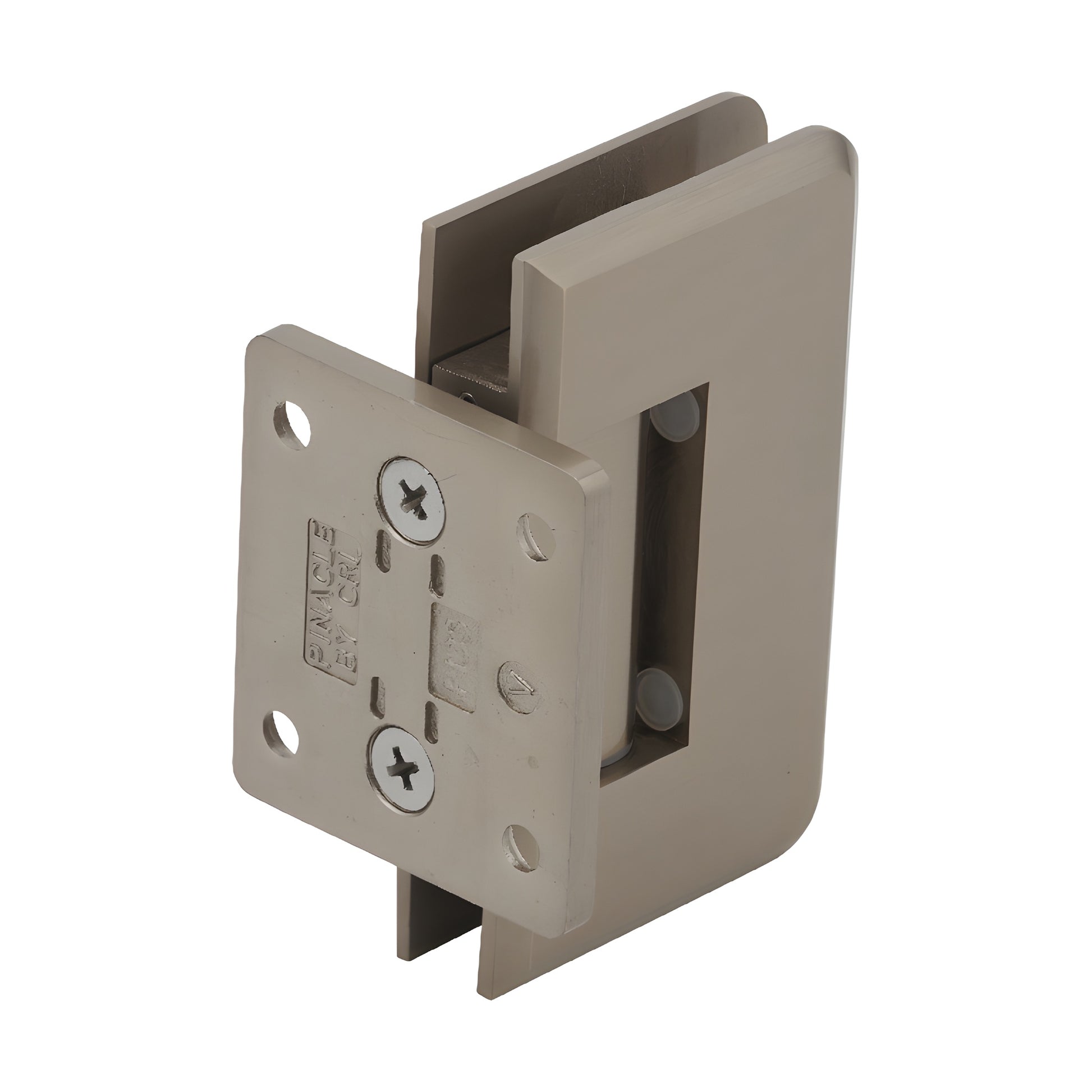

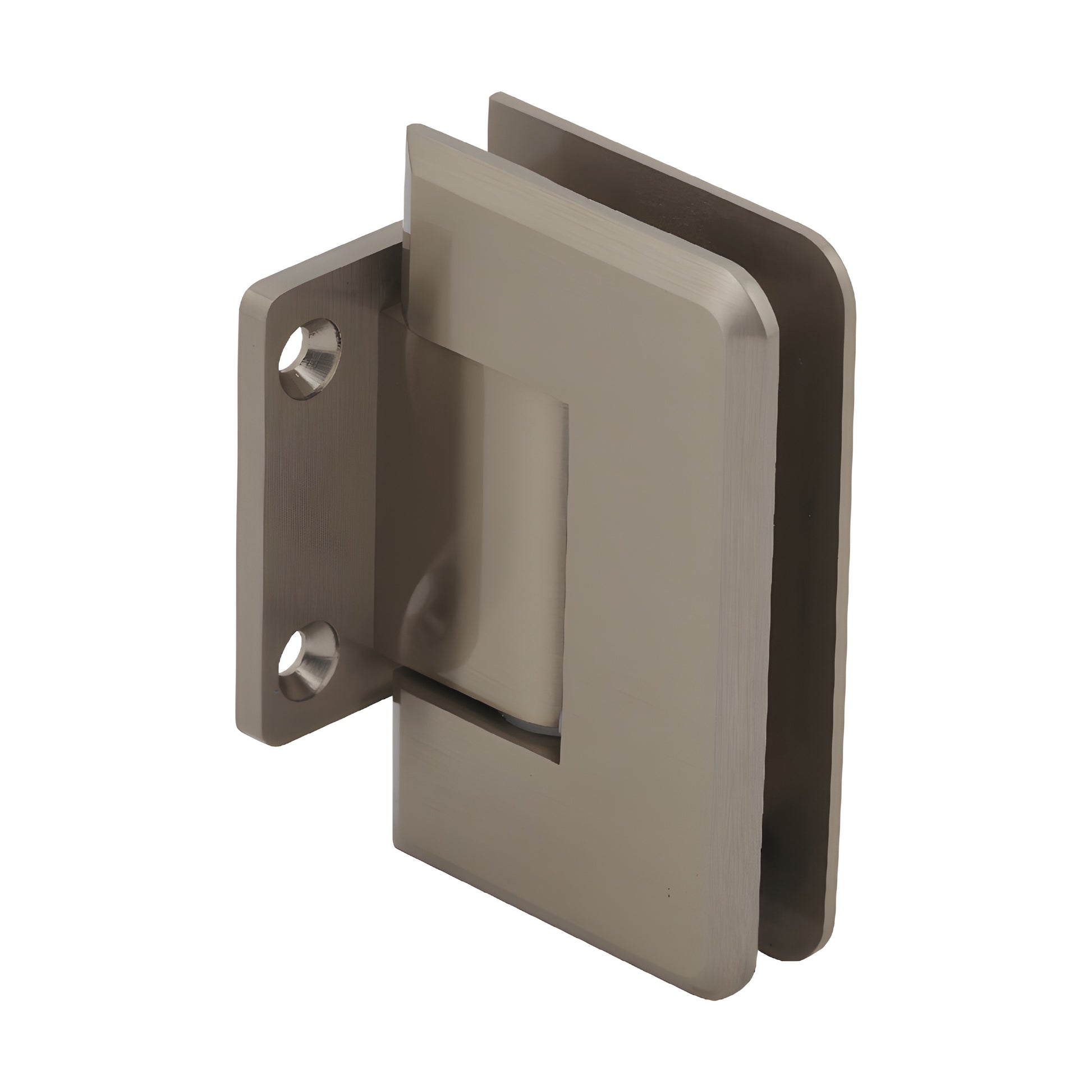

CRL Pinnacle 074 Brushed Bronze Wall-Mount Door Hinge Short Backplate

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Short Back Plate Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

The CRL Pinnacle Hinge (SKU: P1N074BBRZ) is a premium brass shower door hinge engineered for tempered glass shower doors. Compared to the Geneva Series, Pinnacle adds radius corners and beveled edges for a sleeker, modern look—an ideal choice for upscale residential and hotel shower enclosures. These solid brass hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and use stainless steel plunger tips, pins, and springs for long service life and dependable performance. Pinnacle Hinges are self-centering within 15° of the closed position and include the reversible 5° pivot pin found in our Geneva, Cathedral, Roman, Ultimate, and Elite Series. Custom pivot pins (up to 45°) are available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge ships with a reversible pivot pin marked 90° (standard) on one side and 85° (5° tighter closure) on the other. Standard models are factory set to 90°; Pre-Set models are factory set to 85°. Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Specify a custom pivot pin angle (up to 45°) when wall or door geometry prevents proper closing with the standard 5° option.

LOAD CAPACITY:
Two hinges: Holds up to 80 lbs. (36 kg) with maximum door width 28" (711 mm) using 5/16"–1/2" (8–12 mm) glass.
Three hinges: Holds up to 120 lbs. (54 kg) with maximum door width 32" (813 mm) using 5/16"–1/2" (8–12 mm) glass.

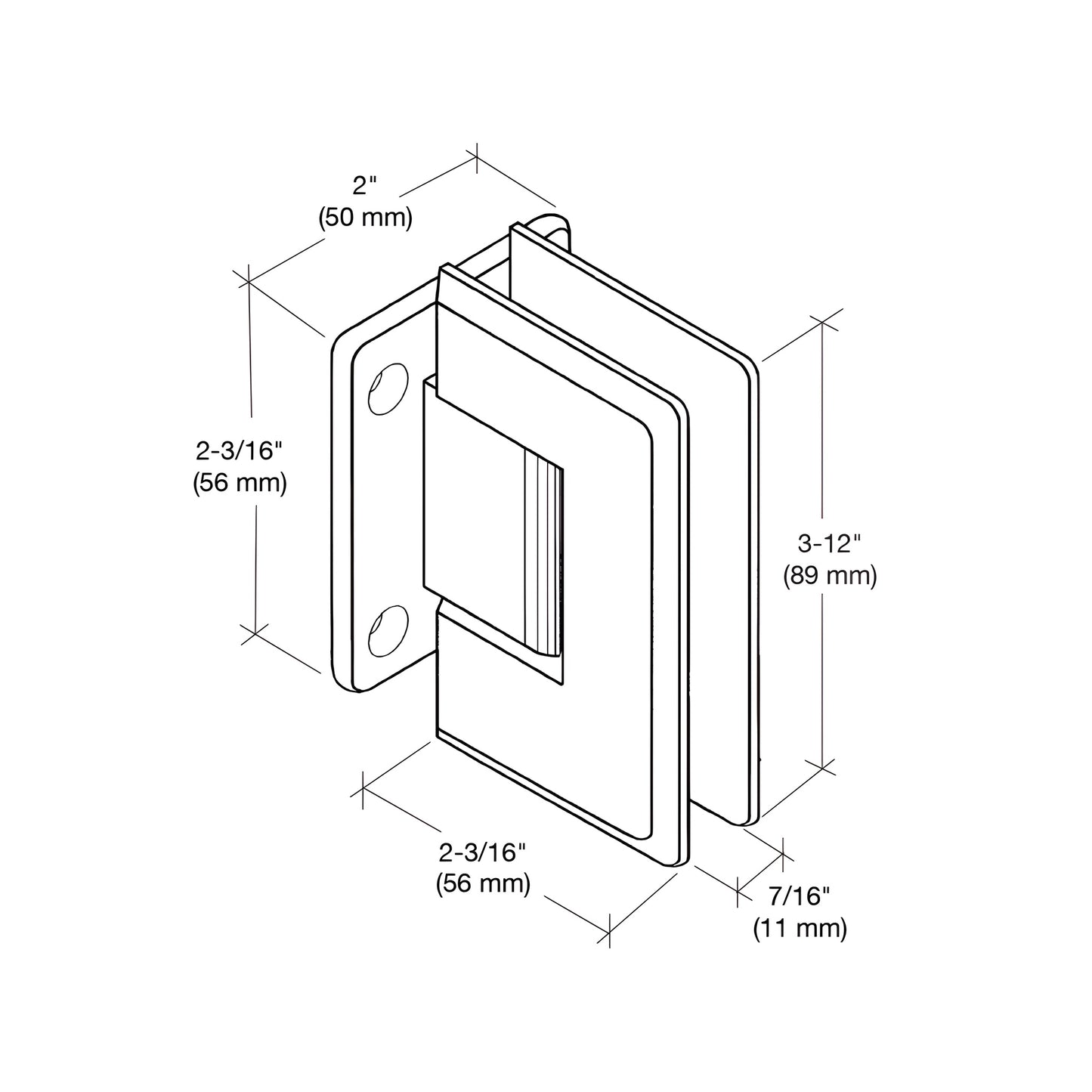

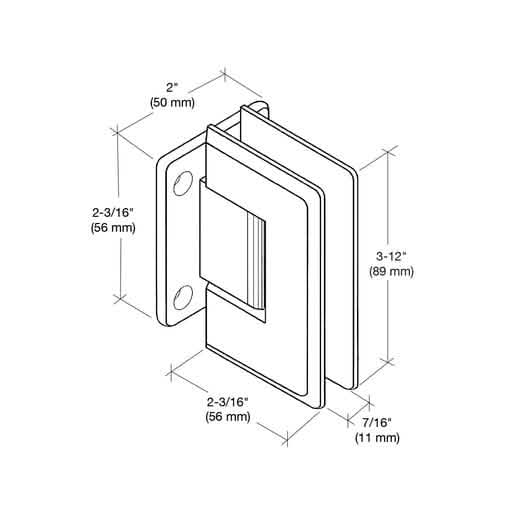

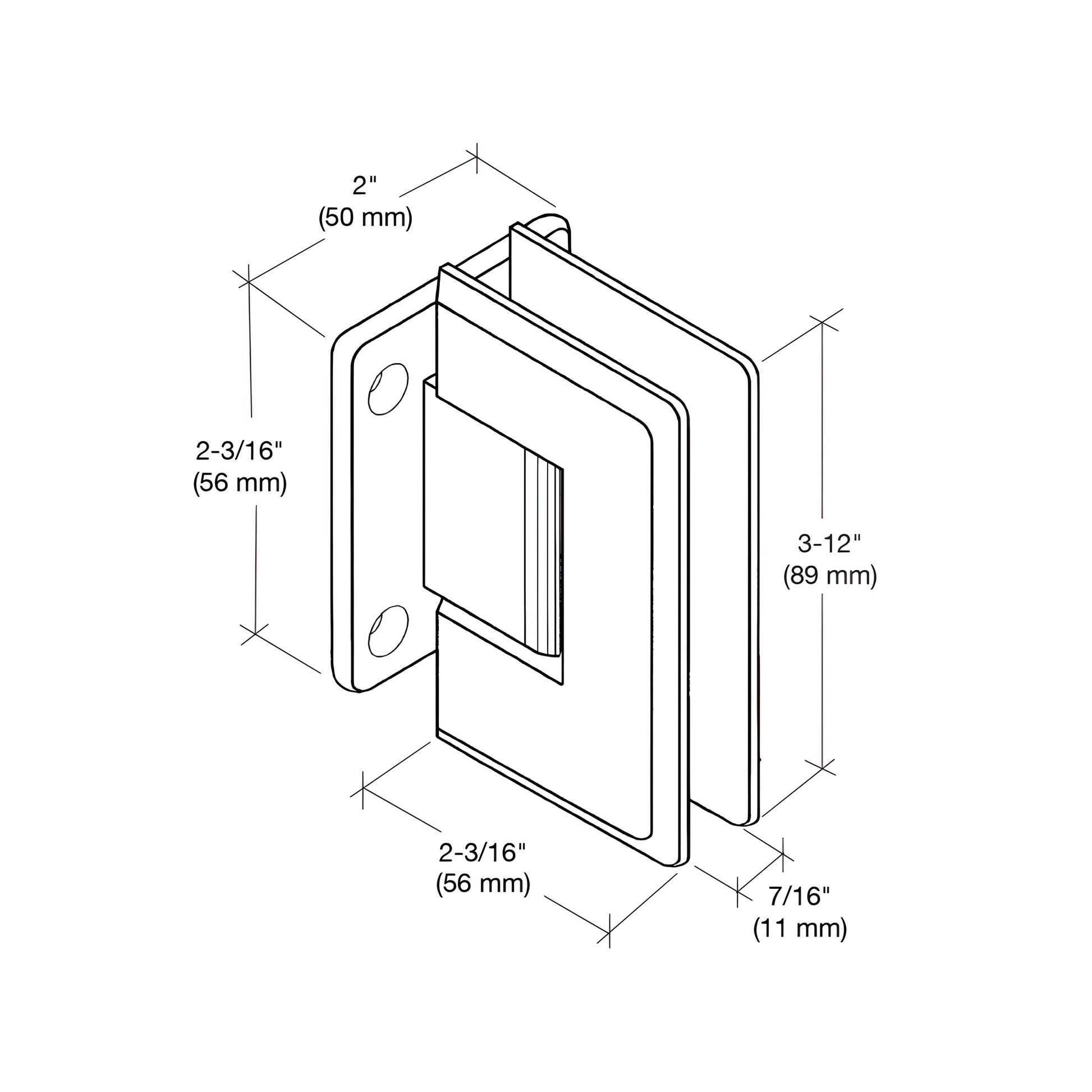

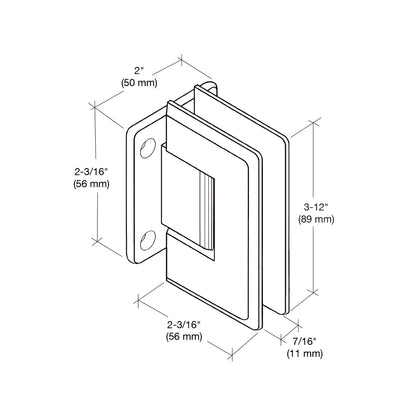

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) – 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180° Glass-to-Glass Hinge available as Standard (0°) or 5° Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
