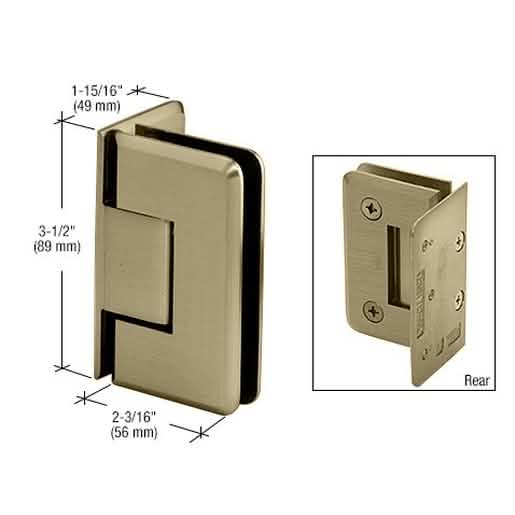

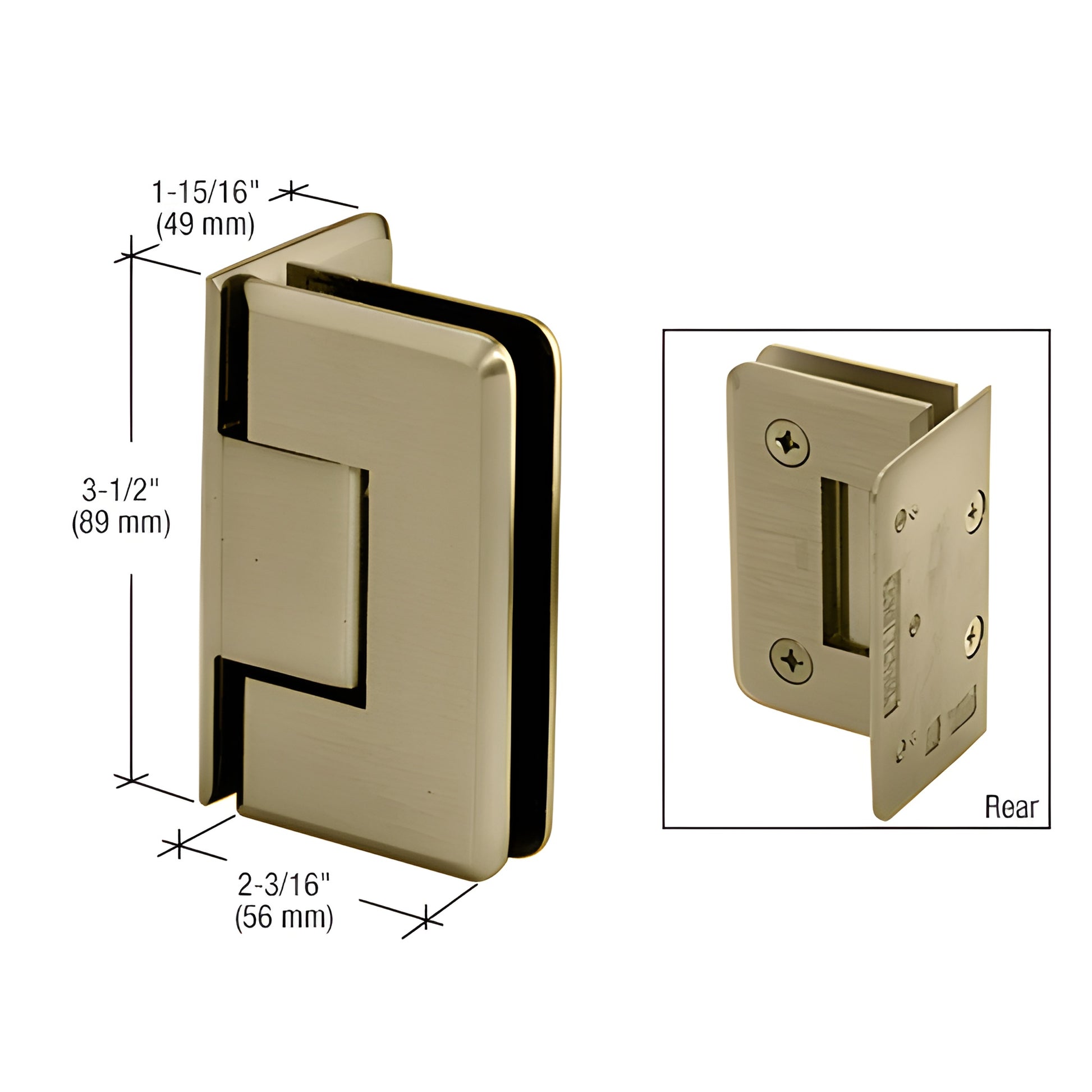

CRL Pinnacle 044 Brushed Bronze Wall-Mount Offset Glass Door Hinge

• Self-centering with reversible 5 degree pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall-mount offset back plate standard model (factory set for standard closing position)
• Use monolithic tempered glass

The CRL Pinnacle Hinge (SKU P1N044BBRZ) is a solid-brass, radius-corner hinge designed for frameless tempered glass shower doors. Like the Geneva Series, Pinnacle offers durable construction with stainless steel plunger tips, pins, and springs for reliable door closure and long service life. Distinguishing features include beveled edges for a sleek, modern appearance and a reversible 5° pivot pin for adjustable closing behavior—ideal for custom shower door installations and retrofit projects.

Glass Compatibility: Fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Use monolithic tempered glass only.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Rotate the pin to activate the 85° side for a 5° tighter closure into the shower interior. Pre-set models ship factory-set to 85°.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° offset does not achieve the desired door position.

CAPACITY:

• Two hinges: holds up to 80 lbs (36 kg); maximum door width 28" (711 mm)
• Three hinges: holds up to 120 lbs (54 kg); maximum door width 32" (813 mm)

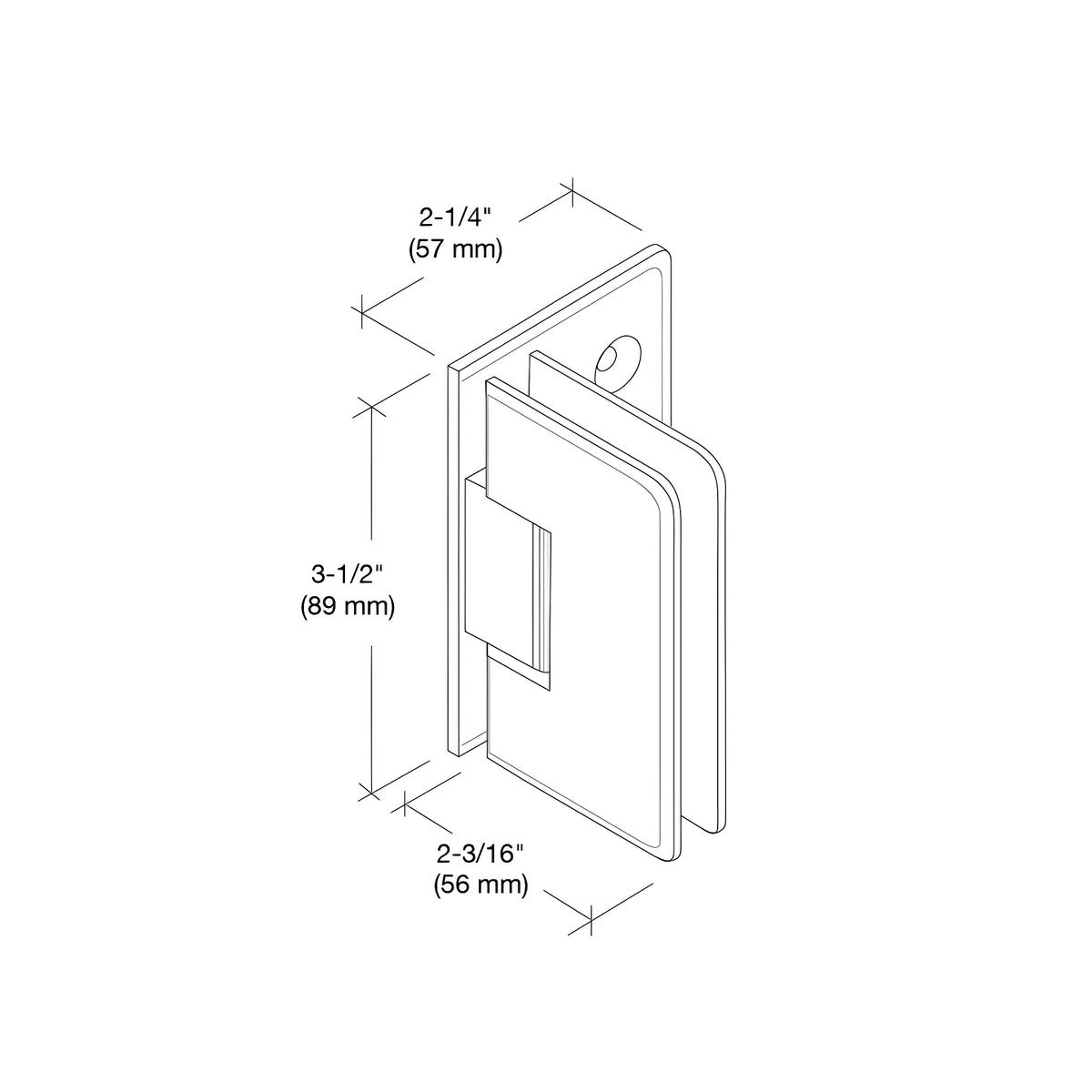

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Wall-mount hinges and 180° glass-to-glass hinge available as Standard Model (factory set at standard closing position) or 5° Pre-Set Model for tighter closure into the shower interior

Construction: Solid brass with stainless steel internal components

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for use with 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws
