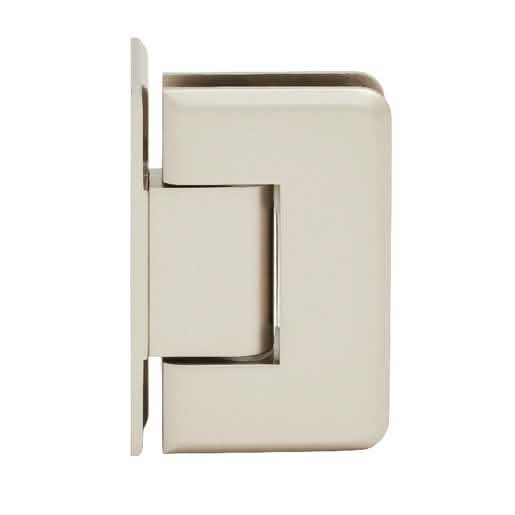

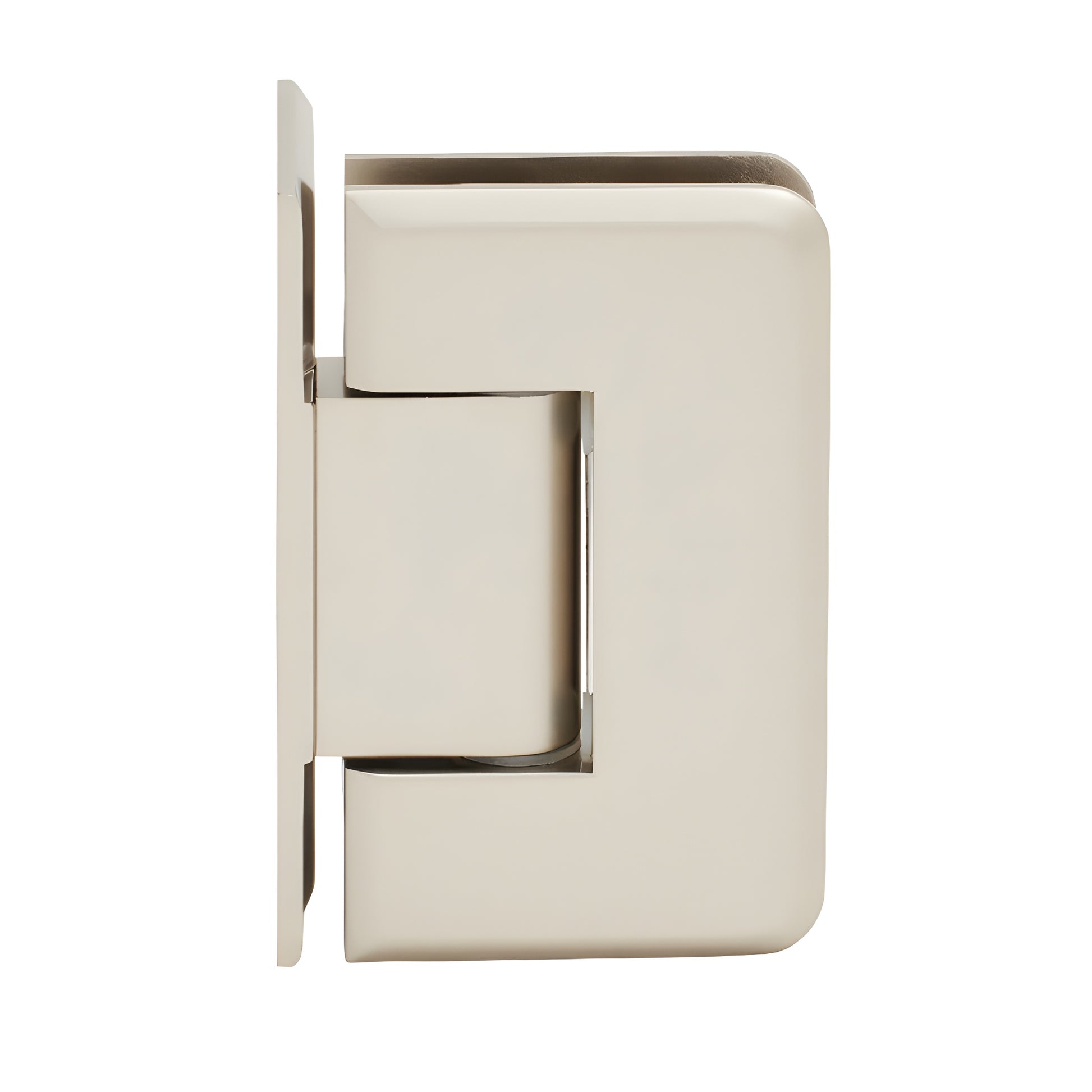

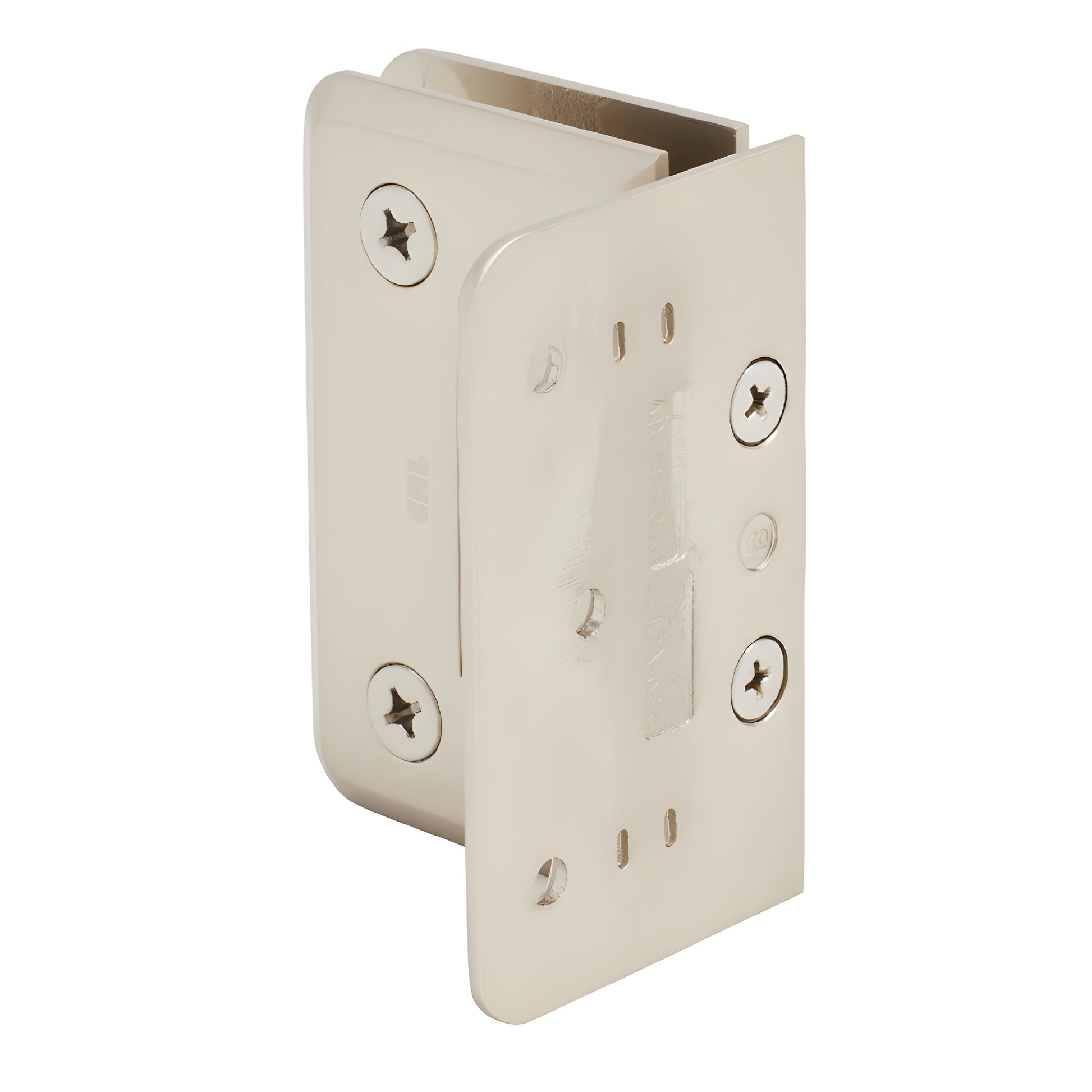

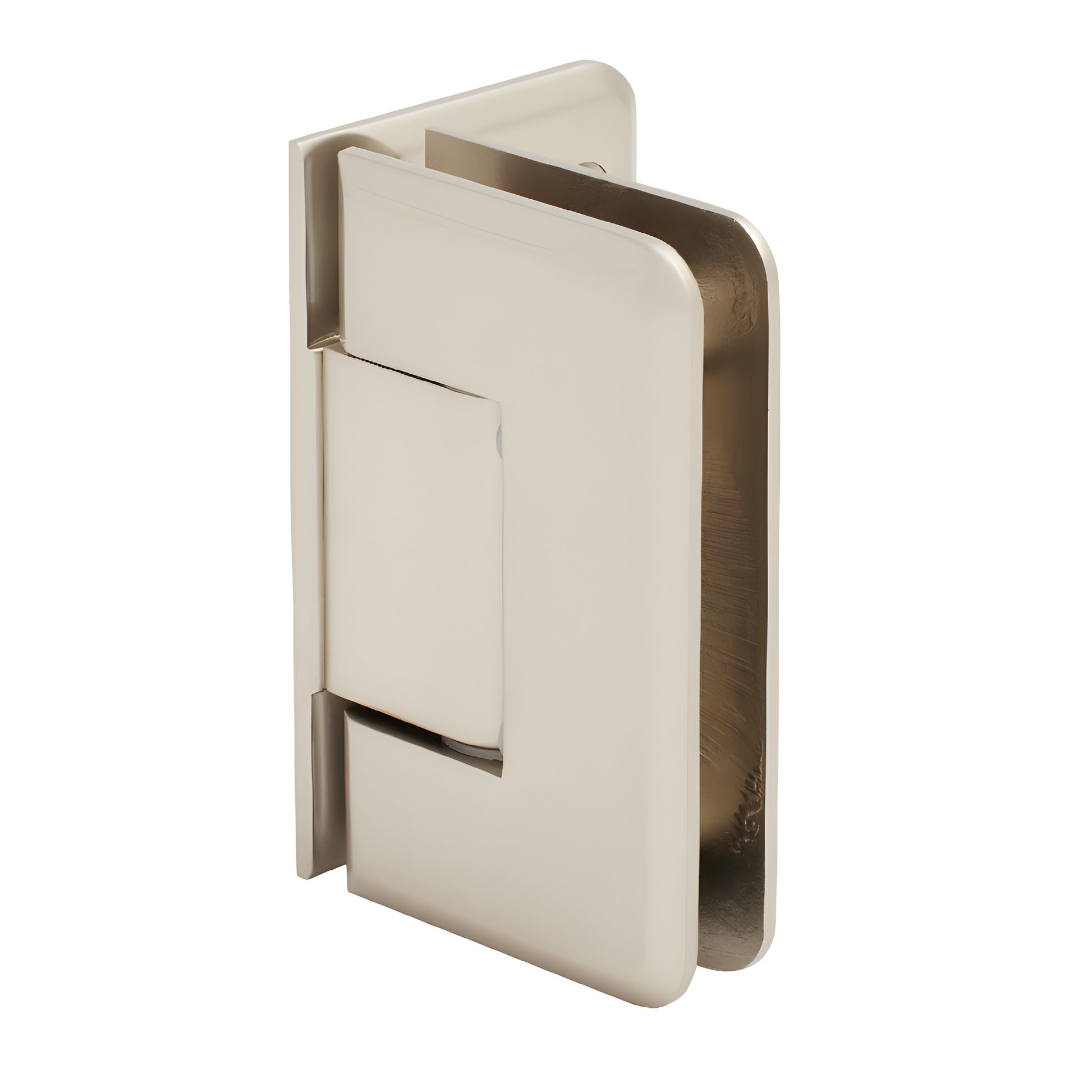

CRL Pinnacle 044 Satin Nickel Offset Wall-Mount Backplate Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Offset Back Plate Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

The CRL Pinnacle Hinge (SKU: P1N044SN) is a radius‑corner, beveled‑edge version of our Geneva Series designed for sleek, modern glass shower doors. These solid brass shower door hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and include stainless steel plunger tips, pins, and springs for long service life and reliable door closure. Pinnacle Hinges are self-centering within 15° of the closed position and feature the reversible 5° pivot pin found on our Geneva, Cathedral, Roman, Ultimate, and Elite Series.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; Pre‑Set models ship with the 85° side activated for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off‑angle installations (specify up to 45°) when the standard 5° adjustment is insufficient.

PERFORMANCE:

• Using two hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 80 lbs (36 kg); maximum door width 28" (711 mm).
• Using three hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass

Special Feature: Wall Mount Hinges and 180° Glass‑to‑Glass Hinge available as Standard Model (factory set at standard closing position) or 5° Pre‑Set Model for tighter interior closure.

Construction: Solid Brass

Hinge Swings: 90° in and 90° out

Closing Type: Self‑Centering when within 15° of closed position

Cut‑Out Required

Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack
