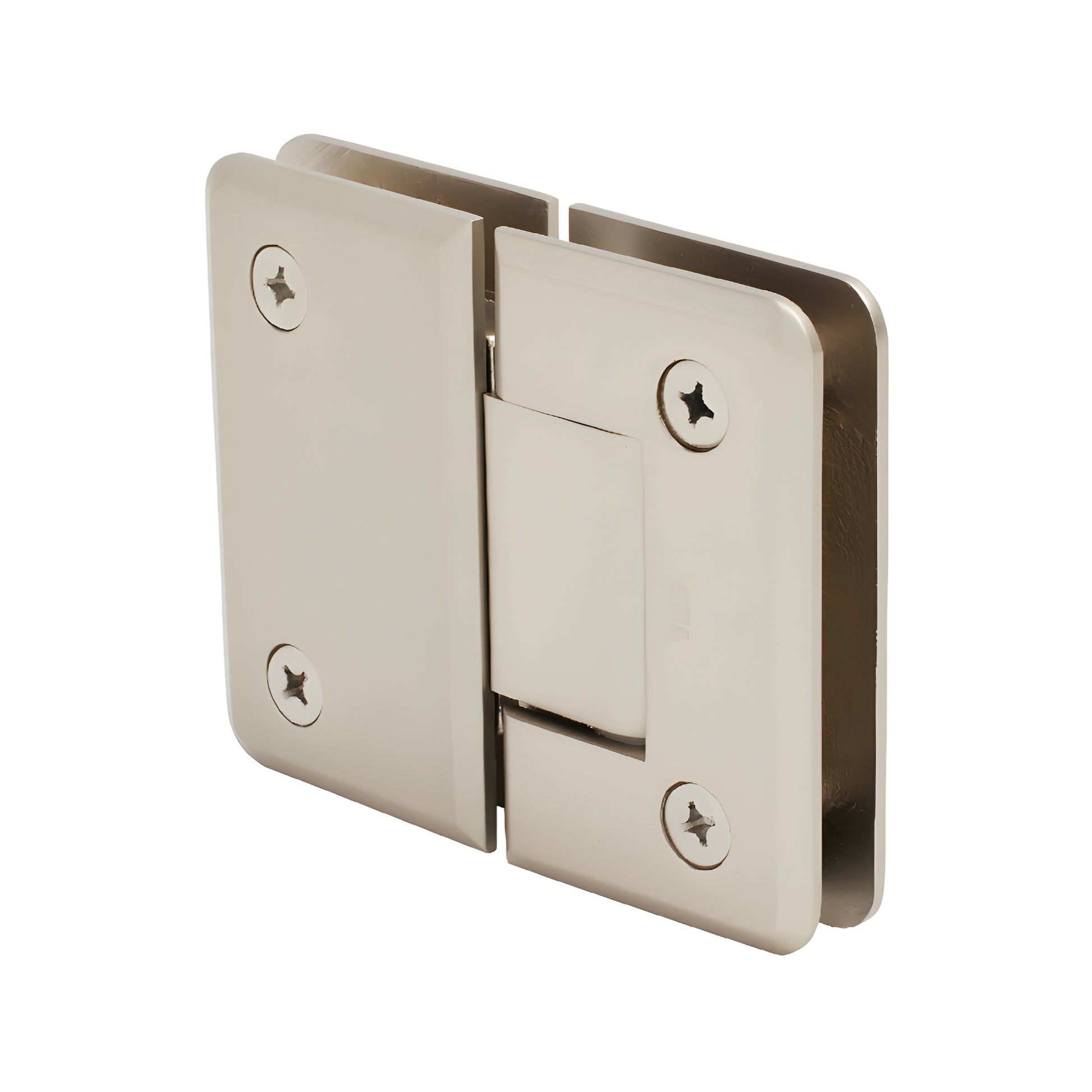

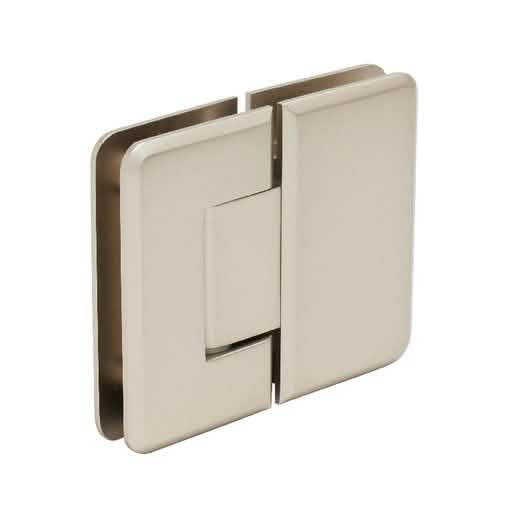

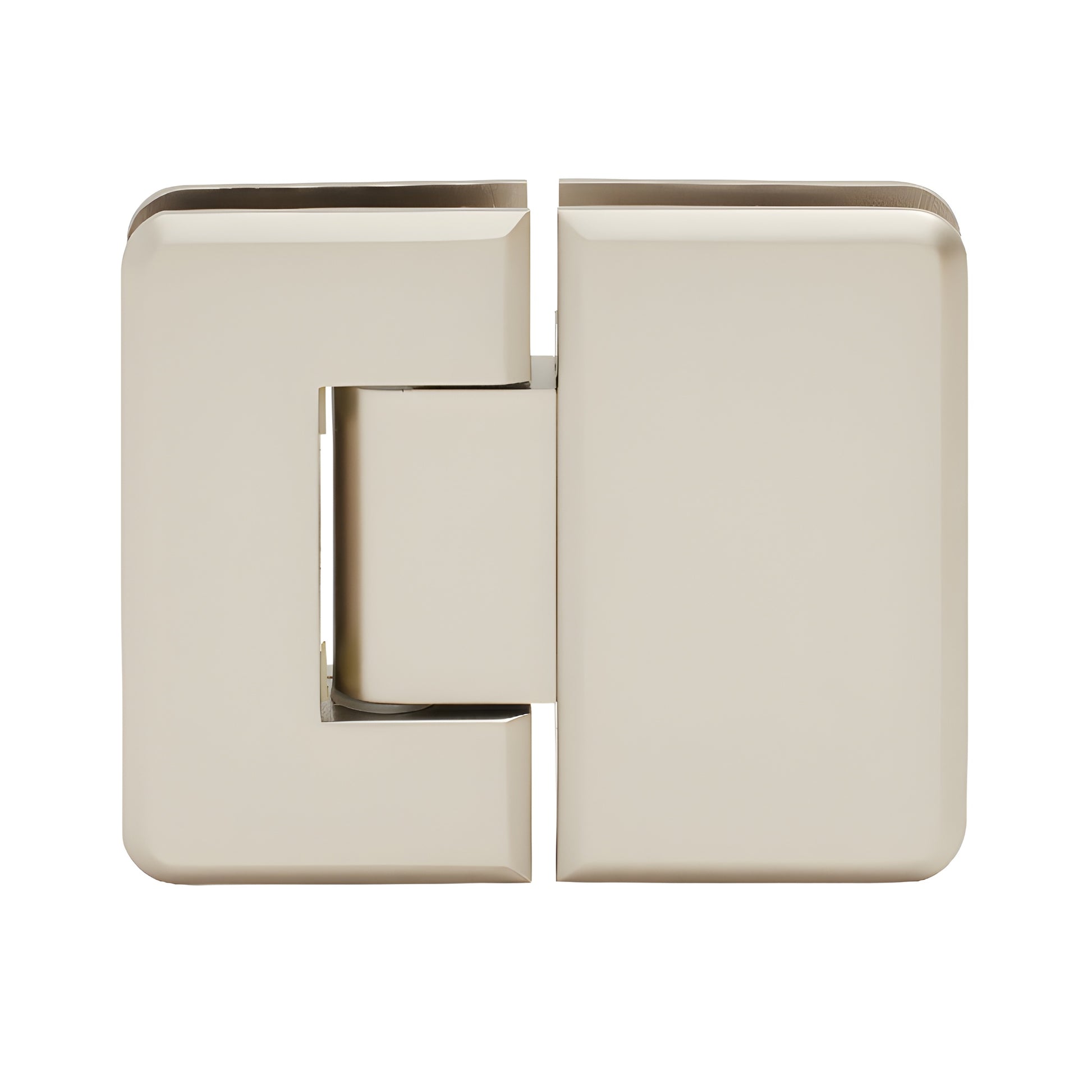

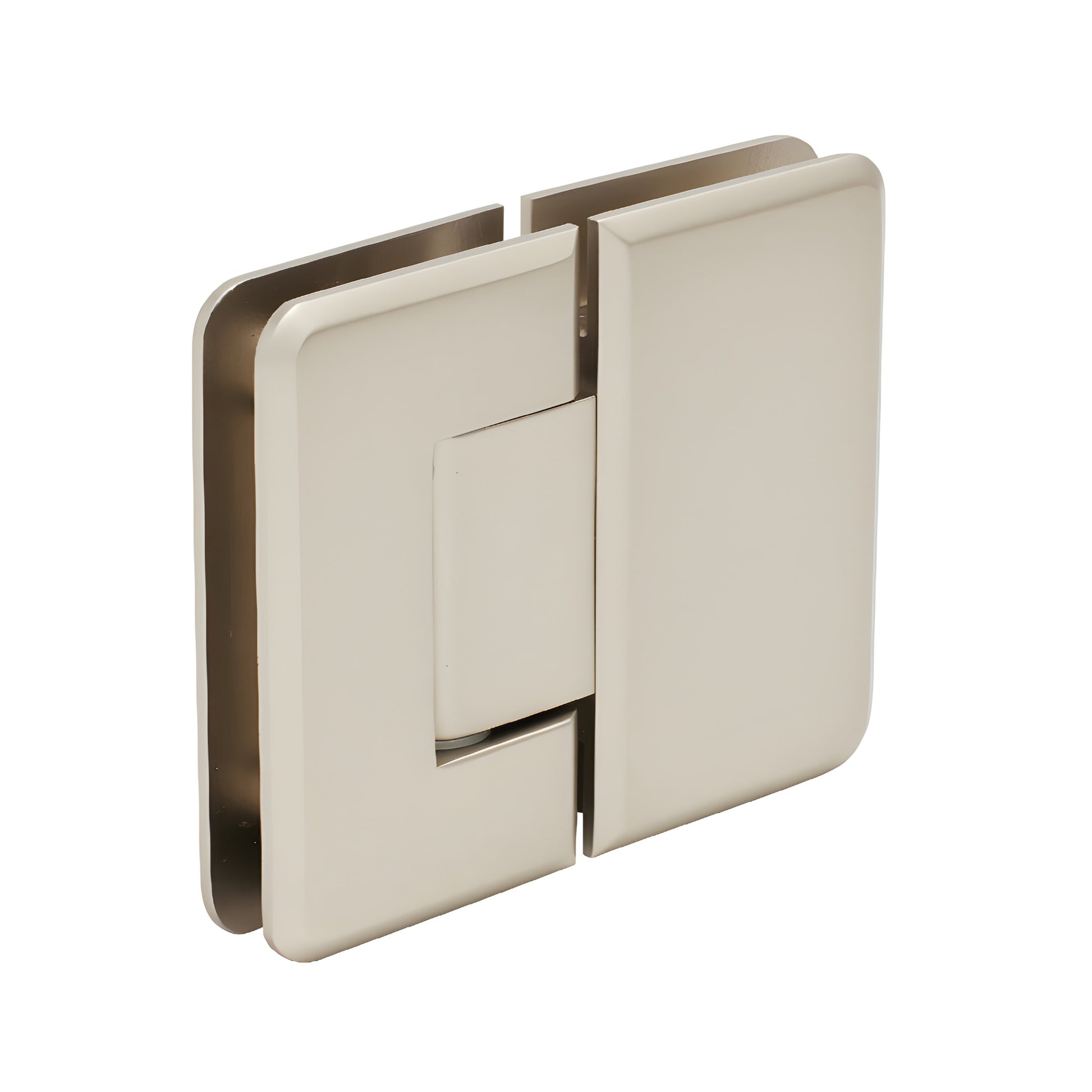

CRL Pinnacle 180 Satin Nickel 180° Glass-to-Glass Shower Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin for reliable shower door closure
• Available in several beautiful finishes
• Three year warranty
• 180 Degree Glass-to-Glass standard model (factory set for standard closing position)
• Use monolithic tempered safety glass

CRL Pinnacle Hinge (SKU: P1N180SN) is a premium glass shower hinge similar to the Geneva Series but with radius corners and beveled edges for a sleek, modern appearance. Designed for glass shower doors, Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and are self-centering within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these tempered glass shower door hinges deliver long service life and dependable door closure. The hinge includes a reversible 5° pivot pin; custom pivot pins up to 45° are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; pre-set models ship with the 85° side activated for a tighter 5° closure into the shower interior. Rotate the pin (do not flip) to change the operating side.

Custom Pivot Pin: Specify a custom pivot pin angle (up to 45°) when walls or conditions require an off-angle closing solution.

Load Capacity:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

Specifications:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter interior closure
Construction: Solid Brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required.
Includes: Gaskets, screws, and glass fabrication dimensions. (Cat. No. P1N13 gasket pack must be purchased separately for 5/16" (8 mm) glass.)

Replacement Hardware:

• P102** - Wall plate replacement screws
