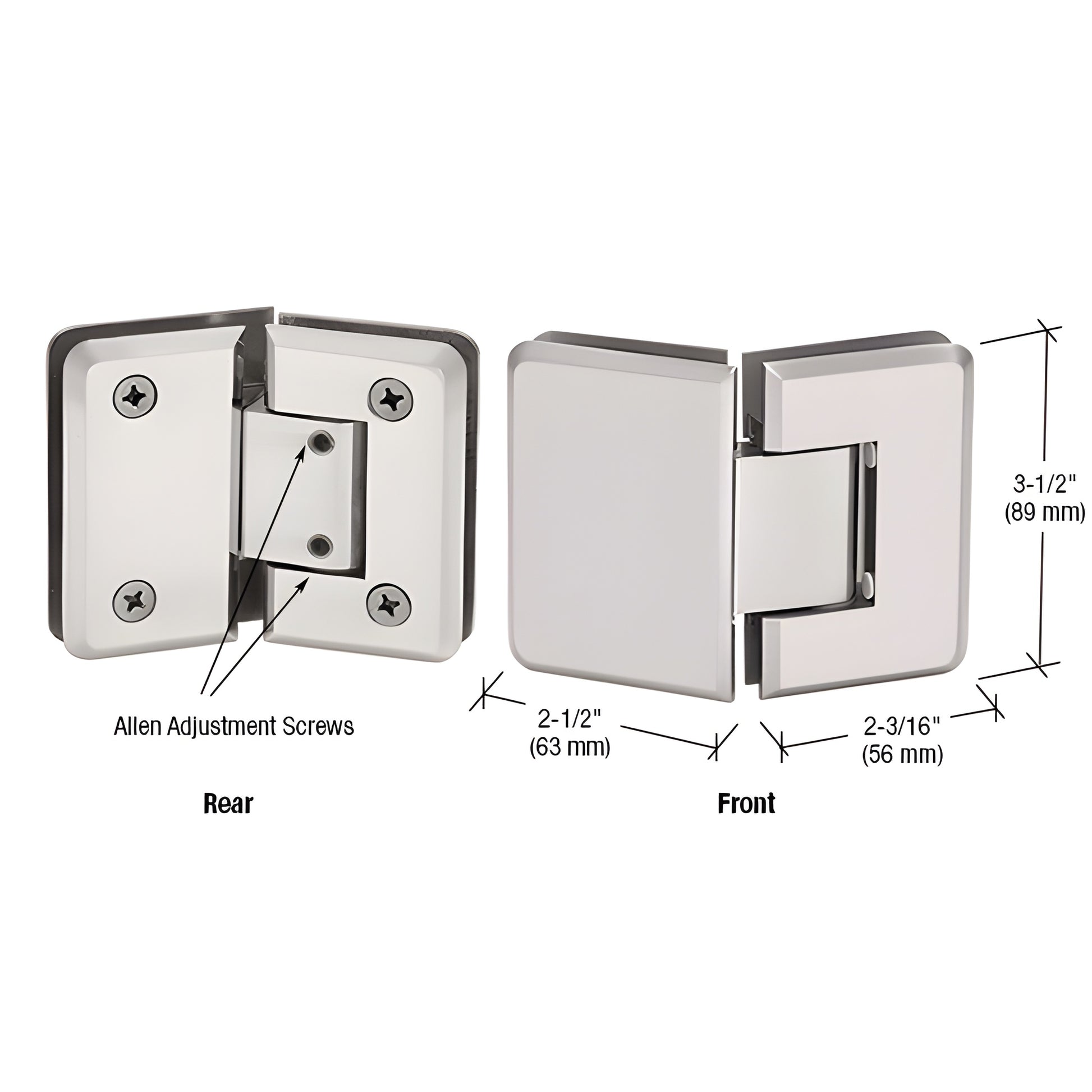

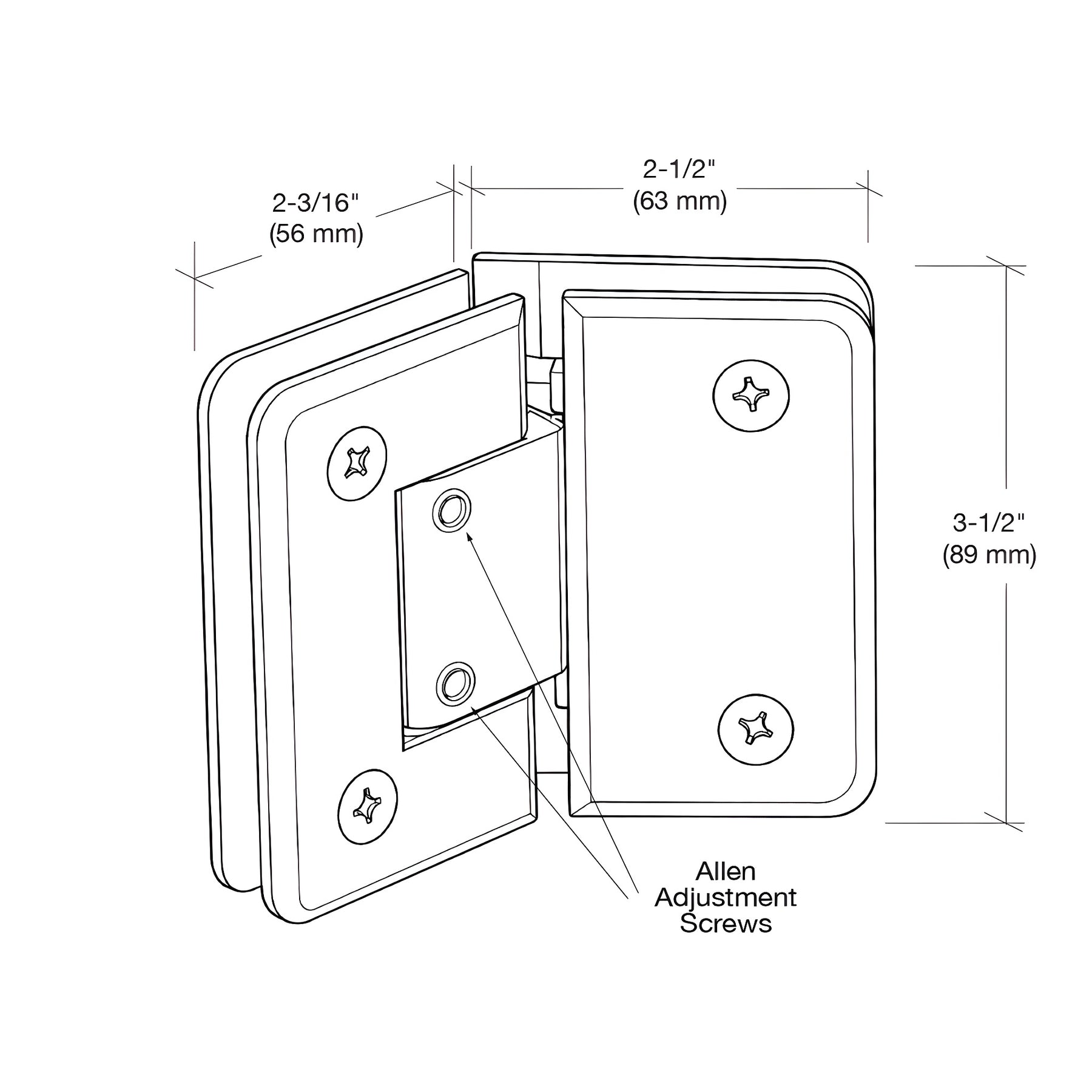

CRL Pinnacle 345 135° Adj. Glass-to-Glass Shower Hinge, Satin Nickel

• Adjustable to any angle up to 90° without removing door
• Adjustable 135° glass-to-glass configuration for frameless shower doors
• Available in several durable, decorative finishes
• Three-year warranty
• Designed for monolithic tempered glass

Our CRL Adjustable Pinnacle Series hinge upgrades the popular Pinnacle hinge with on-door angle adjustment for frameless shower doors. After installation, loosen the Allen set screws, rotate the door to the desired closed position and retighten—your door will self-center to that position. The hinge supports 90° swing in or out at the factory set position; adjustment reduces swing in the adjusted direction. For outward-swinging doors (clear jamb), you can set the hinge to close 5° inside the shower so the door seals snugly against the jamb.

Using two hinges with 5/16"–1/2" (8–12 mm) tempered safety glass: supports up to 80 lb (36 kg), maximum door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) tempered safety glass: supports up to 120 lb (54 kg), maximum door width 32" (813 mm).

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass — corrosion resistant, ideal for shower door hinges and frameless glass installations
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes are available on request—contact the CRL Technical Sales Shower Door Department.

CRL shower door hinges are designed for residential or hotel shower use. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
