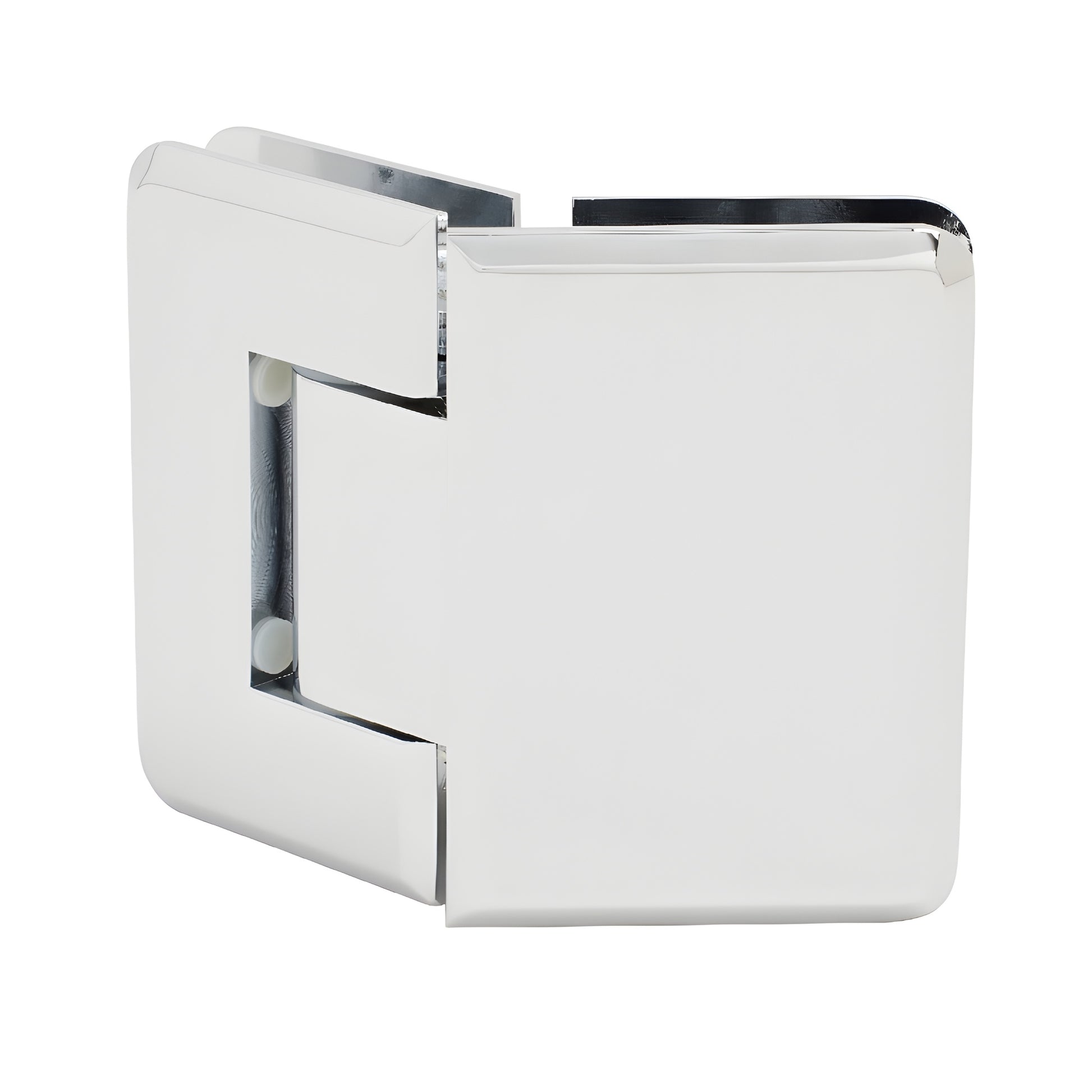

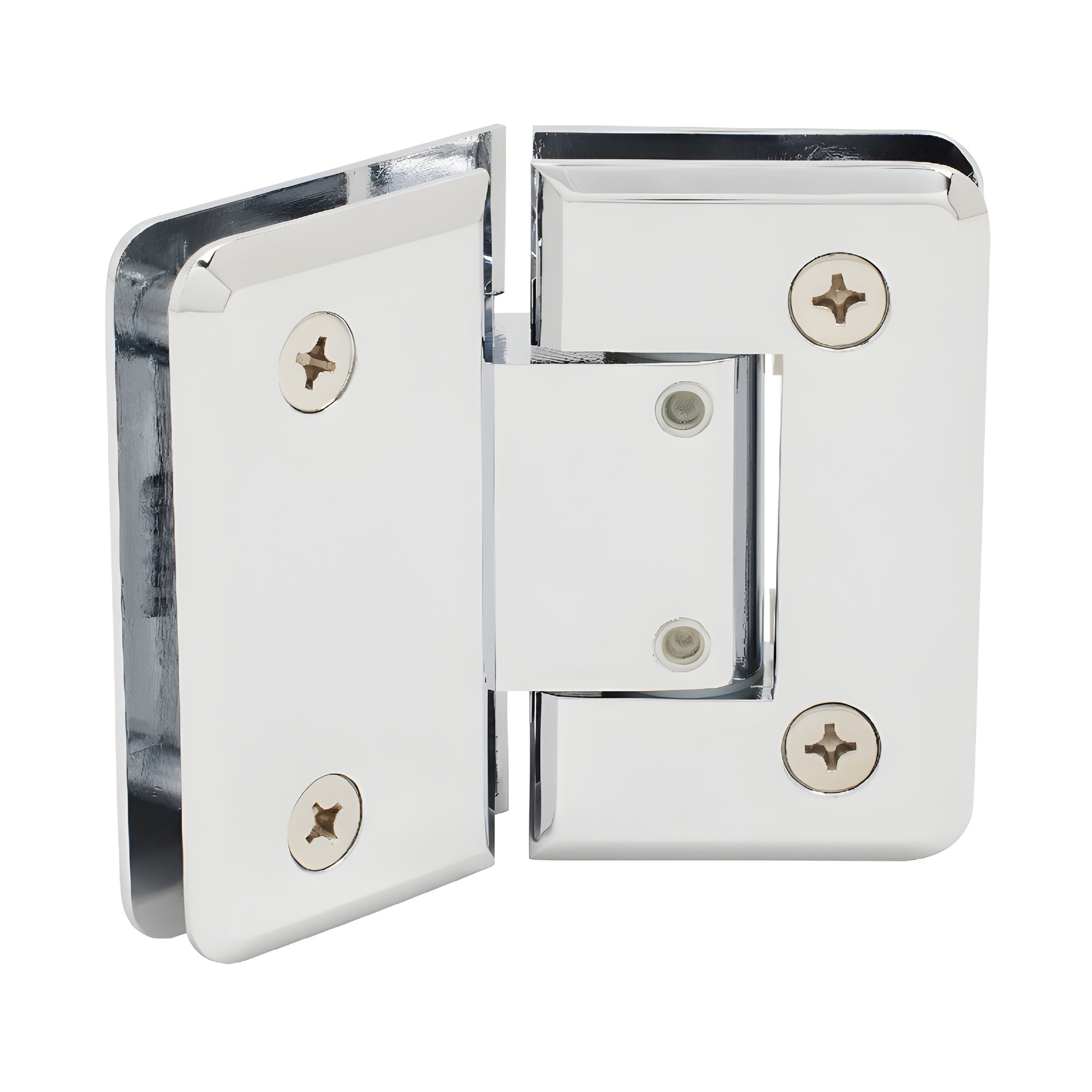

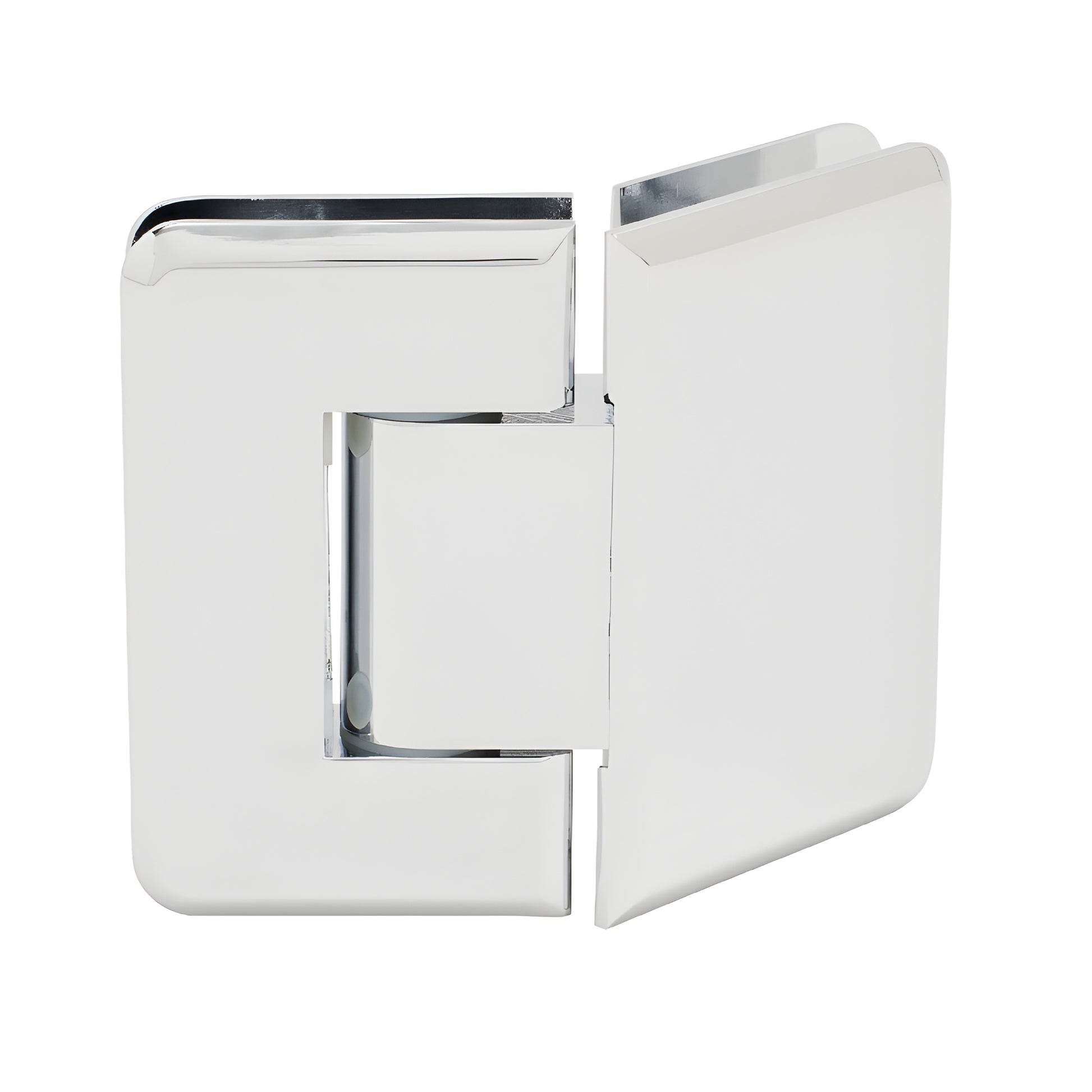

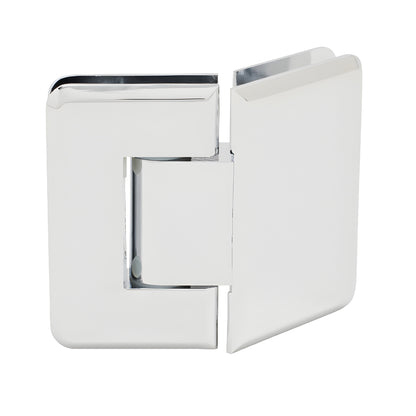

CRL Pinnacle 345 135° Polished Chrome Adjustable Glass-to-Glass Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 135° glass-to-glass
• For use with monolithic tempered glass

CRL Adjustable Pinnacle Series Hinges enhance the popular Pinnacle Hinge with on-install adjustment. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position and re-tighten — the hinge self-centers to that position. The door can swing 90° inward and 90° outward (factory set). For outward-pulling doors using a clear jamb, you can set the hinge to close 5° inside the shower for a snug jamb seal. These features make this product a top choice for adjustable shower door hinges and tempered glass shower door installations.

Load Capacity & Glass Size
Using two hinges: Supports up to 80 lbs. (36 kg) with 5/16"–1/2" (8–12 mm) glass; maximum door width 28" (711 mm).

Using three hinges: Supports up to 120 lbs. (54 kg) with 5/16"–1/2" (8–12 mm) glass; maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template — cut-out dimensions for CRL hinges may differ from other brands.

SKU: P1
