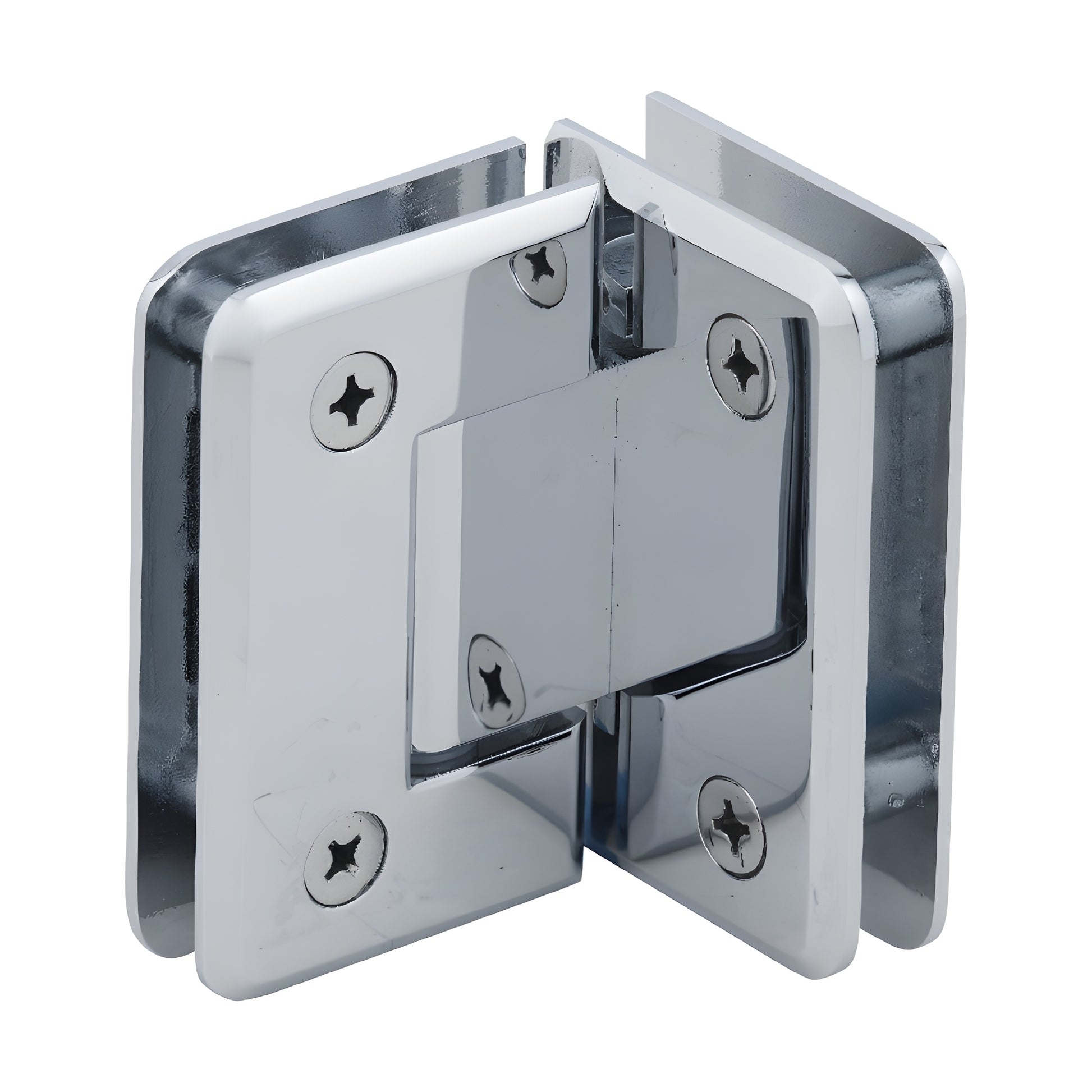

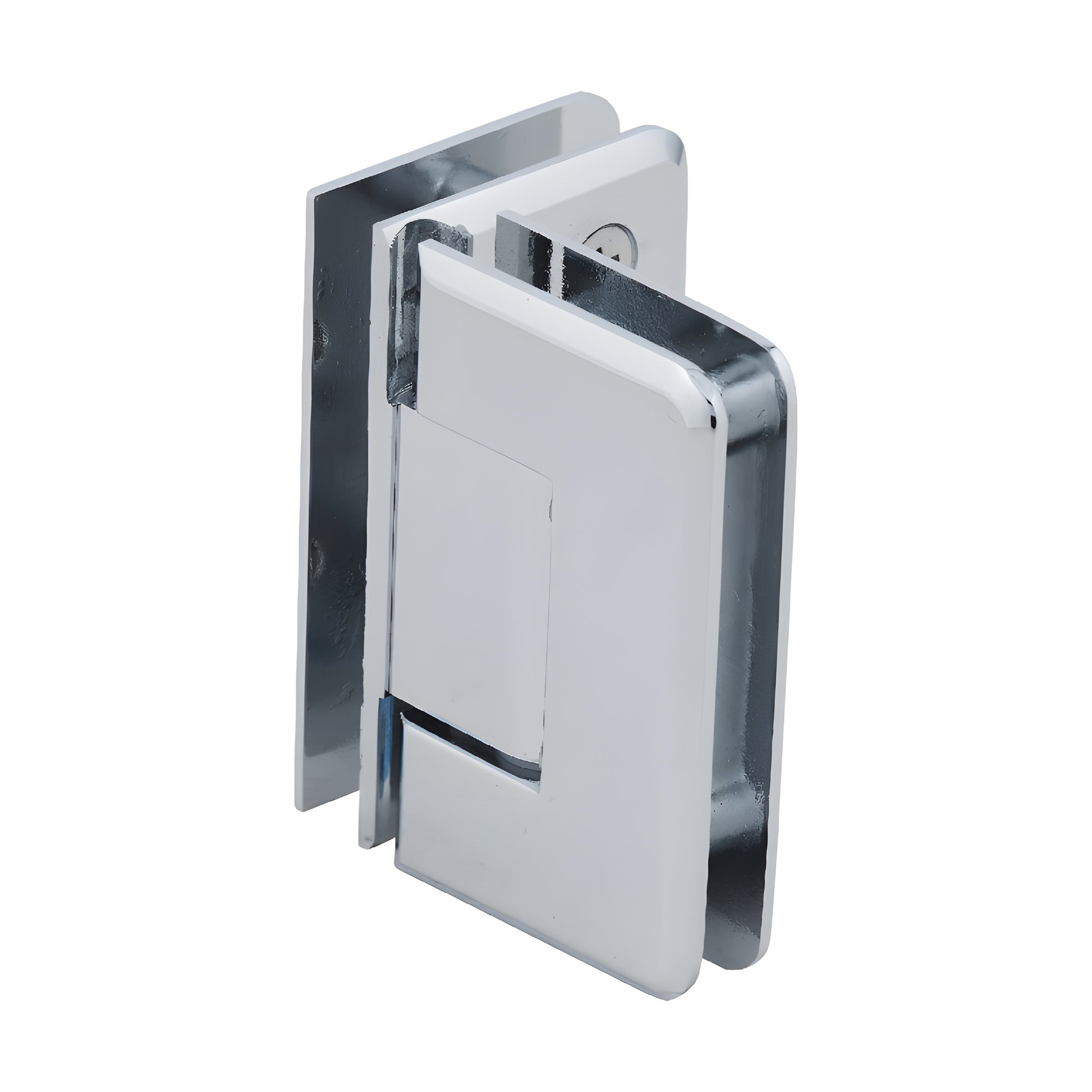

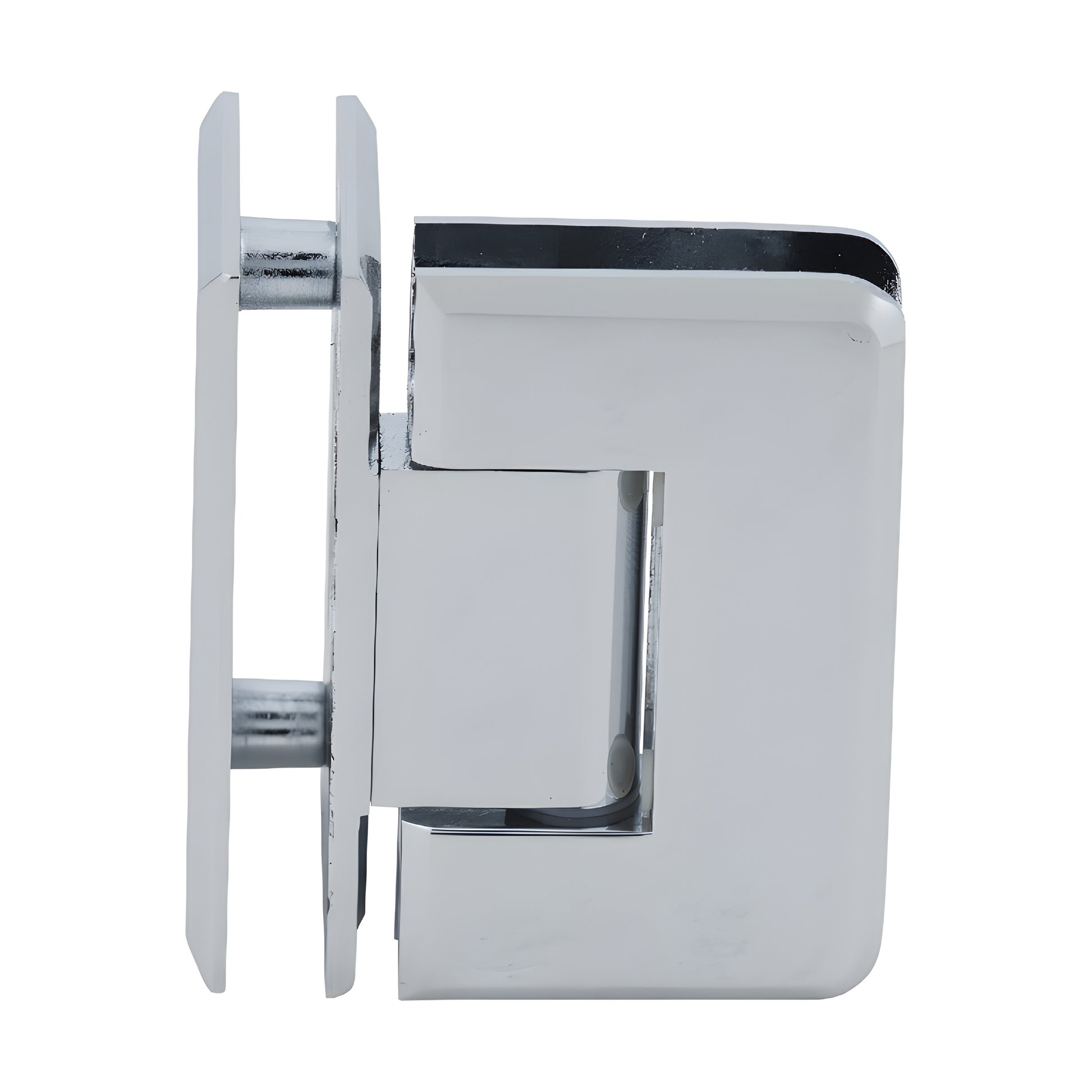

CRL Pinnacle 092 Polished Chrome 90° Glass-to-Glass Shower Hinge

• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty
• 90° glass-to-glass and wall-mount options
• Use with monolithic tempered safety glass (8–12 mm)

The CRL Pinnacle Hinge (SKU: P1N092CH) is a solid-brass shower door hinge designed for premium glass shower enclosures. Compared to the Geneva Series, Pinnacle adds radius corners and beveled edges for a sleek, modern look. It accepts 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and features stainless steel plunger tips, pins, and springs for long service life and reliable door closure.

Key differentiators: a Reversible 5° Pivot Pin for adjustable closing force, radius corners and beveled edges for refined aesthetics, and optional Custom Pivot Pins for off-angle installations—ideal for installers needing a tailored solution for non-90° walls.

STANDARD REVERSIBLE PIVOT PIN:

Each Pinnacle Hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active; Pre-Set models ship with the 85° side activated for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to change the active angle.

CUSTOM PIVOT PIN:

Custom Pivot Pins are available up to 45° for "off-angle" installations when the standard 5° does not achieve the desired closing position.

Load Capacity:
Using two hinges with 8–12 mm glass: holds up to 80 lbs (36 kg), maximum door width 28" (711 mm).
Using three hinges with 8–12 mm glass: holds up to 120 lbs (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount hinges and 180° glass-to-glass hinges available as Standard (0°) or 5° Pre-Set models for tighter interior closure
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for use with 5
