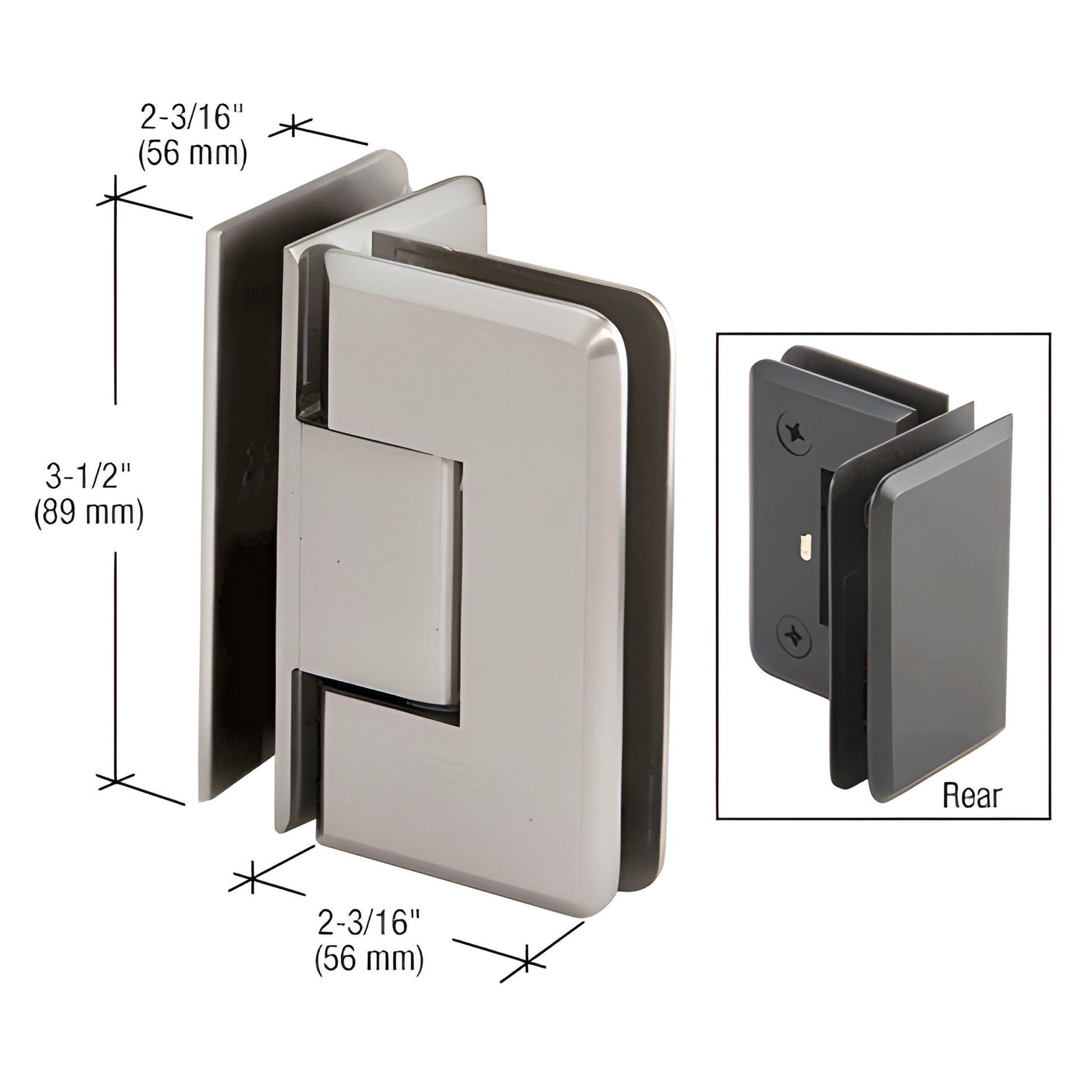

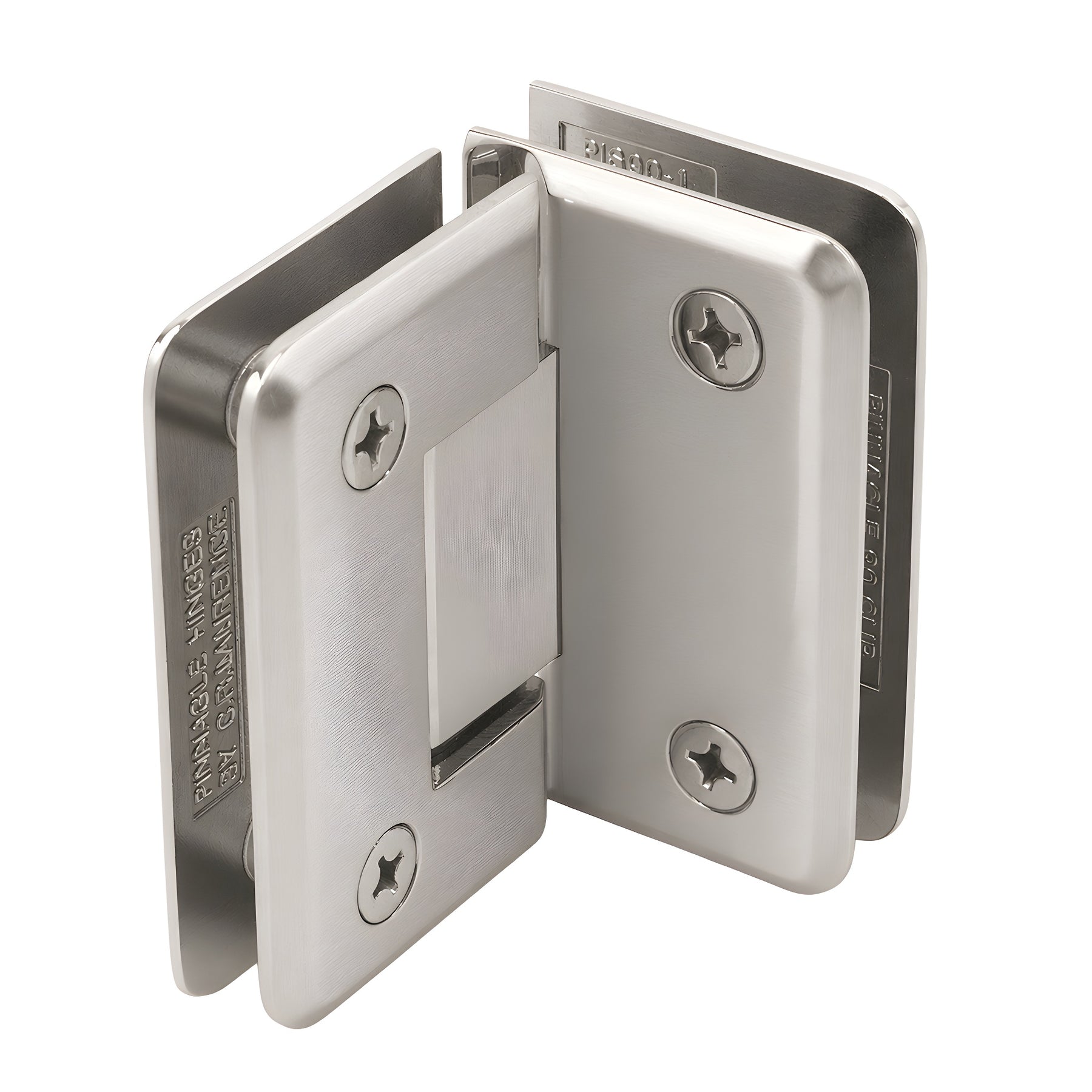

CRL Pinnacle 092 Brushed Nickel 90° Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 90° glass-to-glass and wall-mount options
• For monolithic tempered safety glass

CRL Pinnacle Hinge (SKU: P1N092BN) is a radius-corner, beveled-edge version of the popular Geneva Series—designed for a sleek look on frameless glass shower doors. These solid brass shower door hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and feature stainless steel plunger tips, pins, and springs for long service life and reliable door closure. The reversible 5° pivot pin provides fine closing adjustment; a custom pivot pin (up to 45°) is available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with one side set at 90° and the opposite side marked 85°. Standard models ship with the 90° side active; Pre-Set models ship with the 85° side for tighter closure into the shower. The pin can be rotated (not flipped) to change the active side.

Custom Pivot Pin: Specify a custom angle (up to 45°) when wall or door conditions require off-angle closing assistance.

Load Capacity:

• Using two hinges on 5/16"–1/2" (8–12 mm) glass: holds up to 80 lb (36 kg); max door width 28" (711 mm).
• Using three hinges on 5/16"–1/2" (8–12 mm) glass: holds up to 120 lb (54 kg); max door width 32" (813 mm).

Specifications:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (0°) or 5° Pre-Set Model for tighter interior closure; wall-mount and 180° glass-to-glass options available
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack sold separately for use with 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

Product Warning:
CRL shower door hinges are designed for residential
