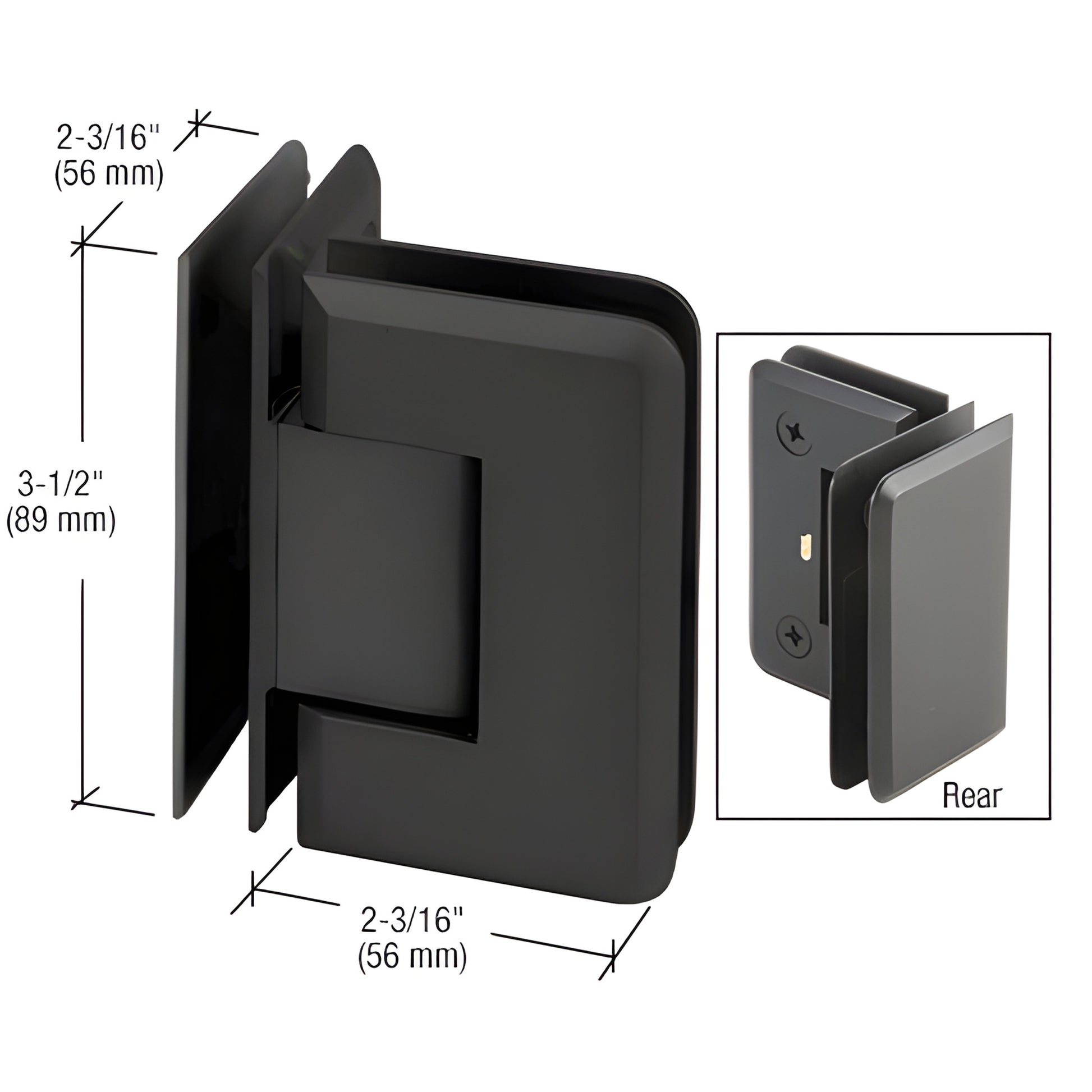

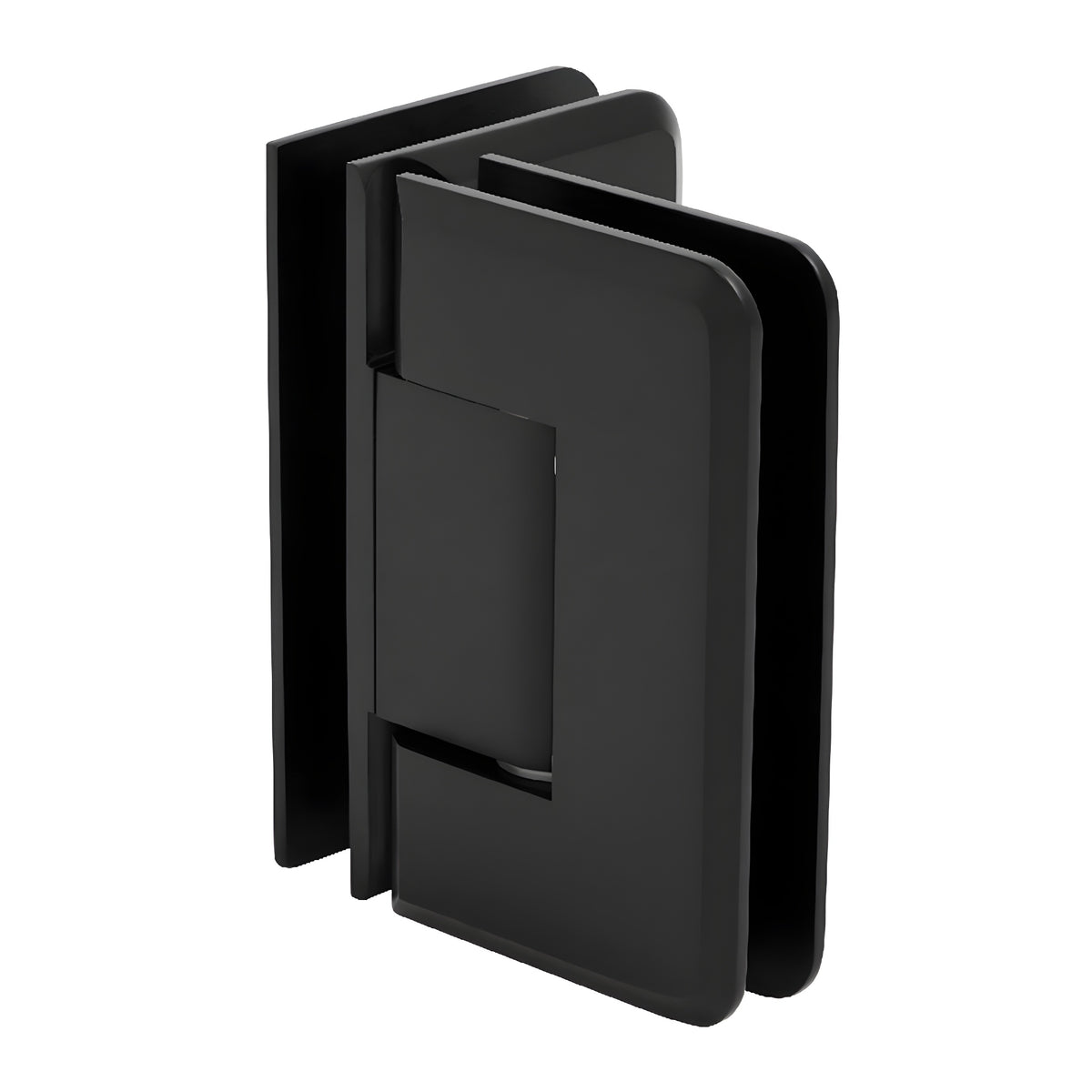

CRL Pinnacle 092 Matte Black 90° Glass-to-Glass Shower Door Hinge

• Self-centering with reversible 5 degree pivot pin
• Available in several beautiful finishes
• Three year warranty
• 90° glass-to-glass hinge
• Use monolithic tempered safety glass

The CRL Pinnacle Hinge (SKU: P1N092MBL) is a radius-corner, beveled-edge alternative to the Geneva Series, engineered for a sleek appearance on frameless shower doors. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs for long service life and reliable door closure, the Pinnacle includes the reversible 5° pivot pin featured across CRL hinge families. A custom pivot pin option is available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; pre-set models ship with the 85° side activated for a tighter 5° closure into the shower interior. The pin can be rotated (not flipped) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins can be specified for off-angle wall conditions (up to 45°) when the standard 5° offset does not achieve the desired closing position.

LOAD CAPACITY:

• Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg); maximum door width 28" (711 mm).
• Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass models available as Standard (0°) or 5° Pre-Set for tighter closure into shower interior
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out (glass-to-glass and wall-mount configurations)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws
