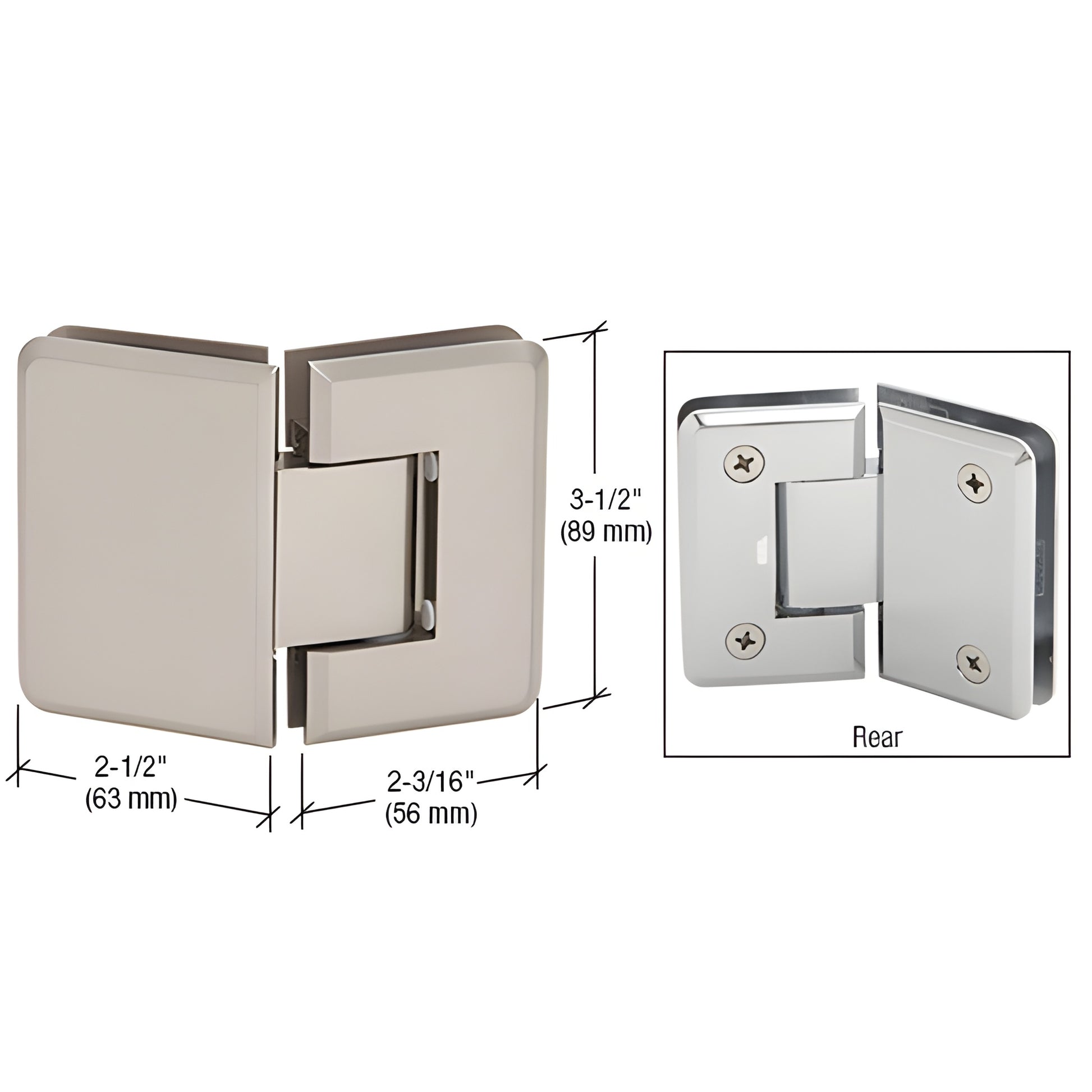

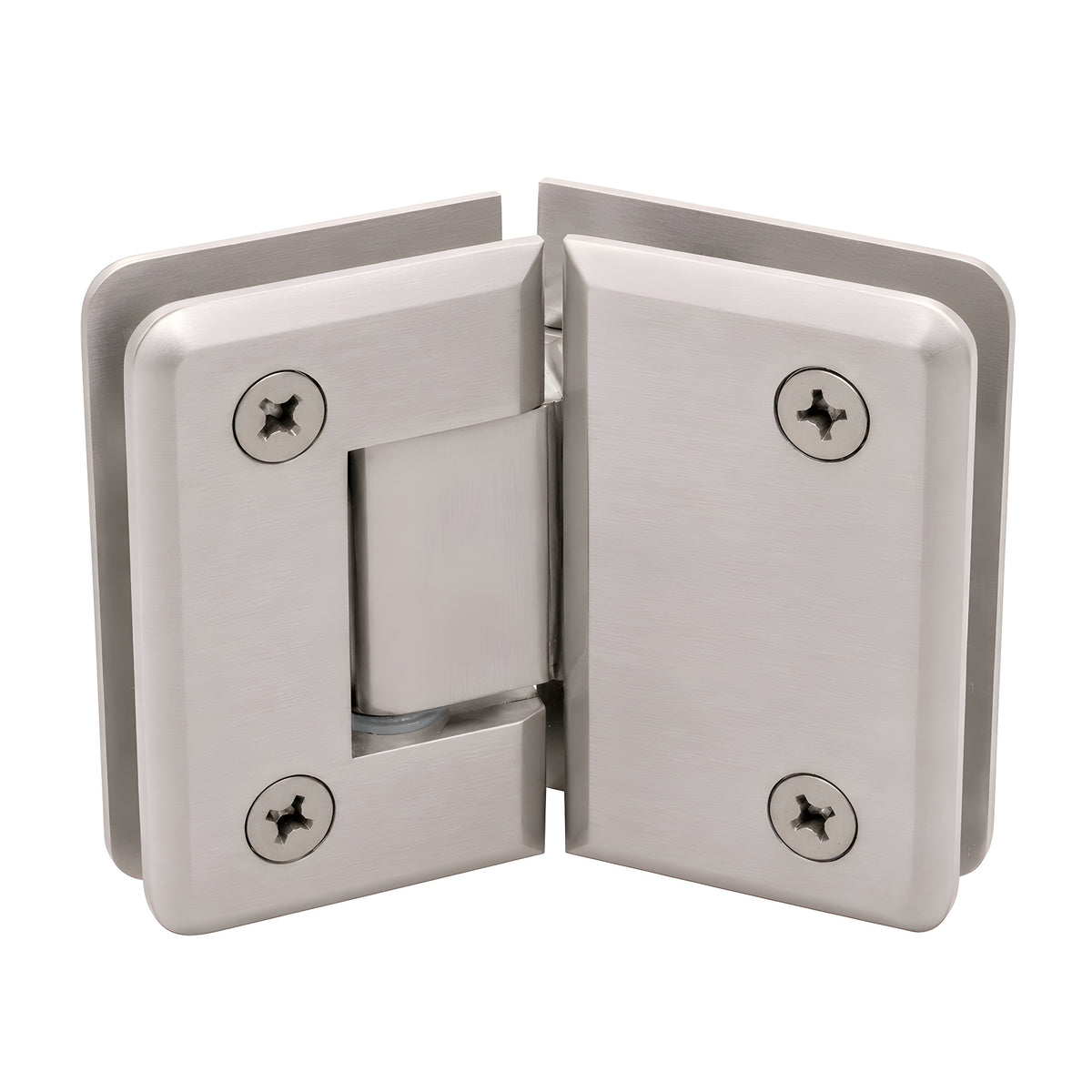

CRL Pinnacle 045 135° Brushed Nickel Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 135° glass-to-glass hinge
• For monolithic tempered safety glass

The CRL Pinnacle Hinge is a refined alternative to the Geneva Series with radius corners and beveled edges for a sleek, modern appearance. Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these shower door hinges deliver durable service life and reliable door closure. The Pinnacle includes the reversible 5° Pivot Pin used in our Geneva, Cathedral, Roman, Ultimate, and Elite Series—ideal for precise shower door alignment. A Custom Pivot Pin (up to 45°) is available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a reversible pivot pin. One side is marked 90° (standard); the opposite side is marked 85° for a 5° tighter closure into the shower interior. Pins can be rotated (not flipped) to select the desired closing angle.

CUSTOM PIVOT PIN: Custom Pivot Pins are available for non-90° wall-to-door conditions. Specify the required angle (up to 45°) when the standard 5° option does not achieve the desired closure.

Load Capacity:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 80 lbs (36 kg) with maximum door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 120 lbs (54 kg) with maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter closure into the shower interior. Wall mount and 180° glass-to-glass options available.
Construction: Solid Brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
