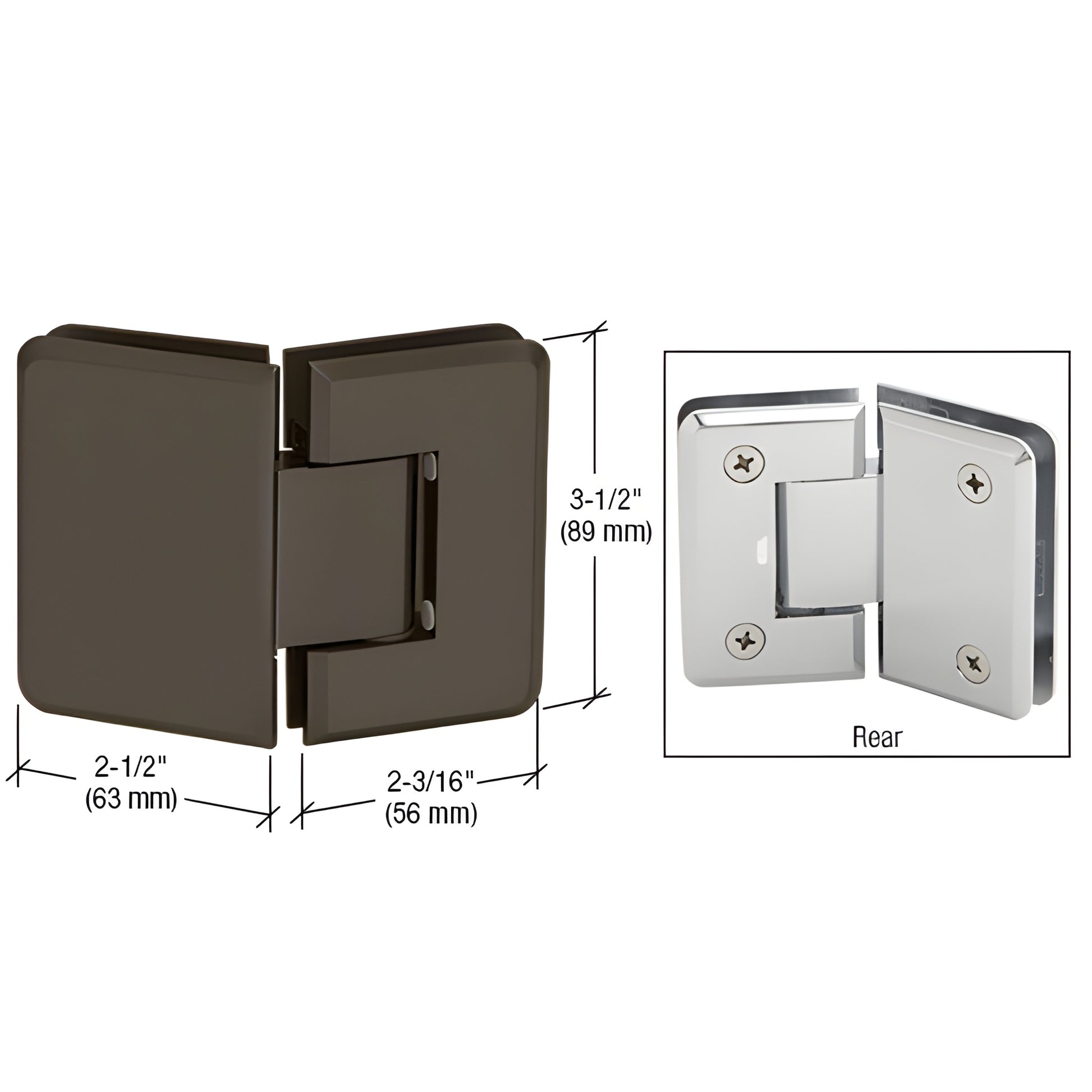

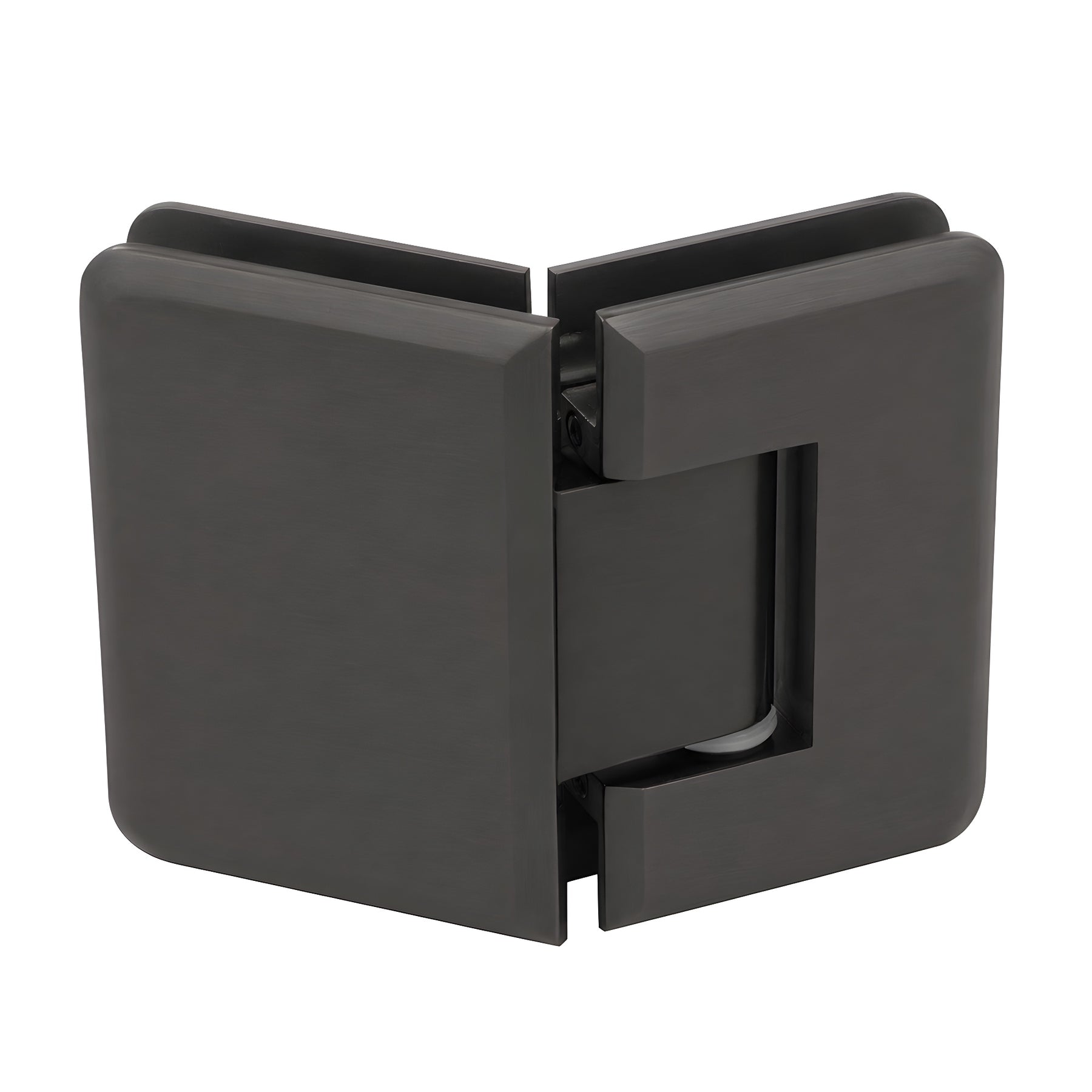

CRL Pinnacle 045 135° Oil Rubbed Bronze Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple decorative finishes
• Three year warranty
• 135° glass-to-glass and wall-mount options
• For monolithic tempered safety glass (5/16"–1/2" / 8–12 mm)

The CRL Pinnacle Hinge is a radius-corner, beveled-edge alternative to the Geneva Series, designed for a sleek appearance on glass shower doors. Constructed of solid brass with stainless steel plunger tips, pins, and springs, Pinnacle provides long service life and reliable door closure. Pinnacle accommodates 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering when within 15° of the closed position.

Reversible 5° Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models are set to 85° for a tighter closure into the shower interior. The pin can be rotated (not flipped) to change the closure angle.

Custom Pivot Pins: Available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

Load Ratings:

• Using two hinges (8–12 mm glass): holds up to 80 lb (36 kg), max door width 28" (711 mm)
• Using three hinges (8–12 mm glass): holds up to 120 lb (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Option of Standard (0°) or 5° Pre-Set model for tighter closure into shower interior. Wall-mount and 180° glass-to-glass versions available.
Construction: Solid brass with stainless steel internals
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.
