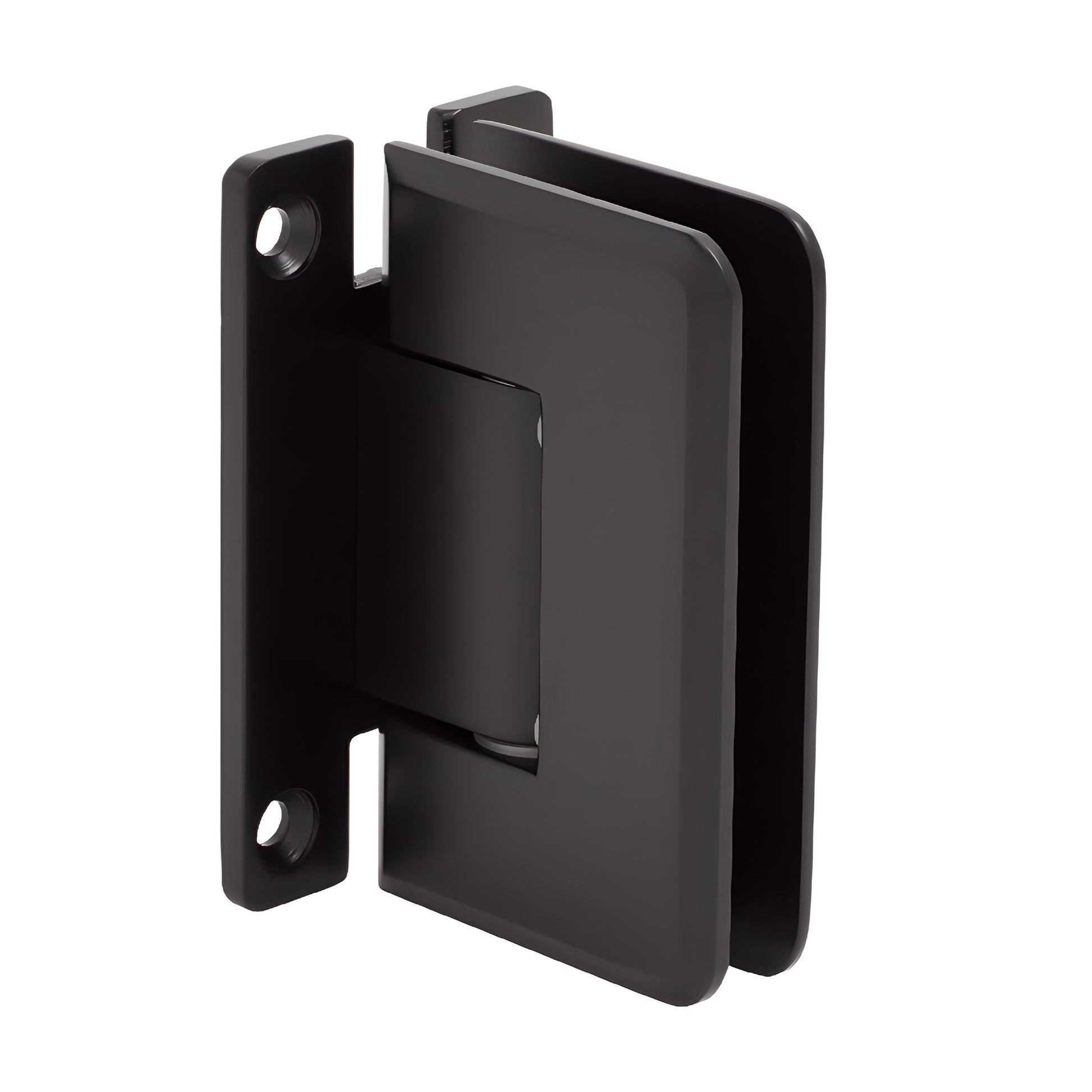

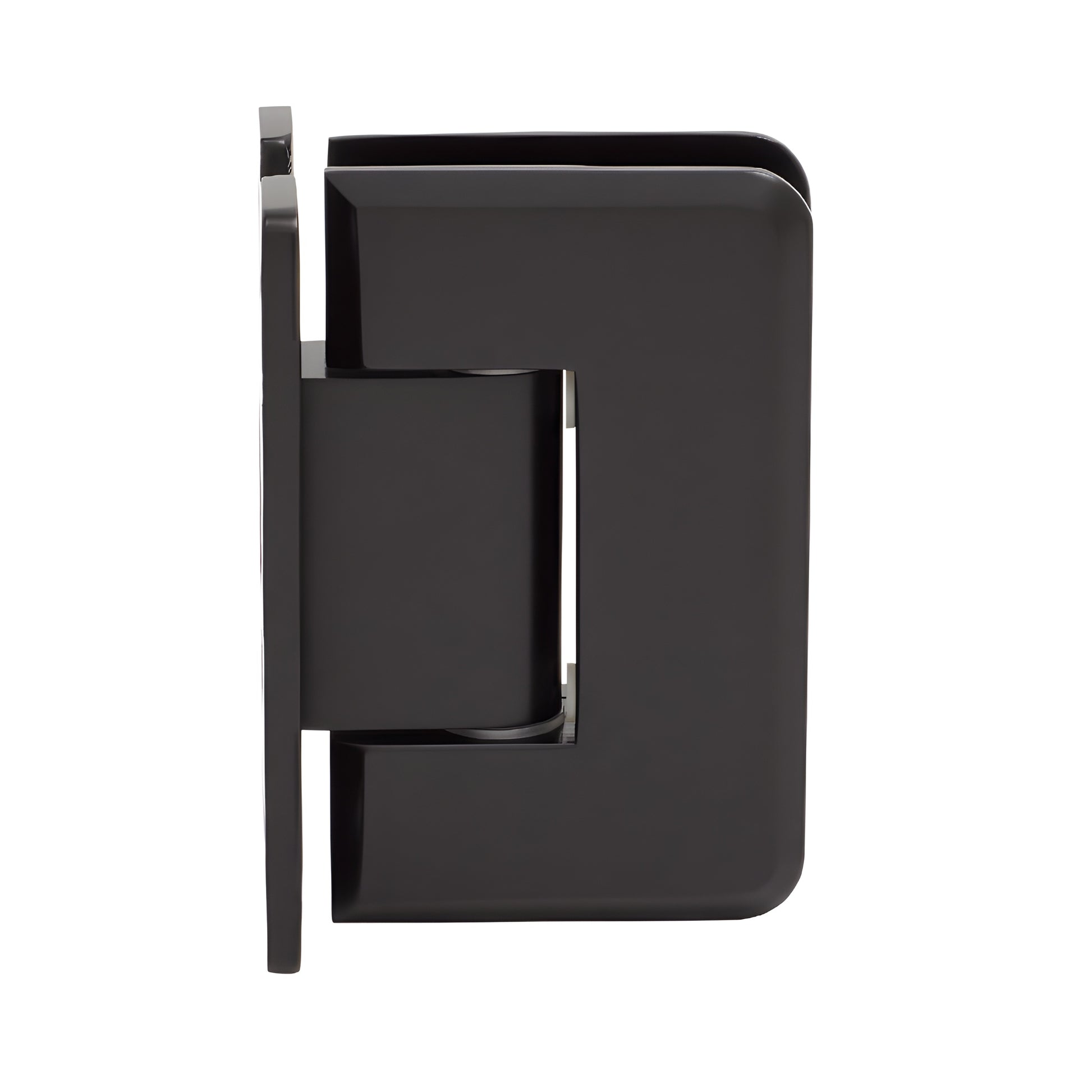

CRL Pinnacle 037 Oil Rubbed Bronze Wall-Mount H Back-Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three Year Warranty

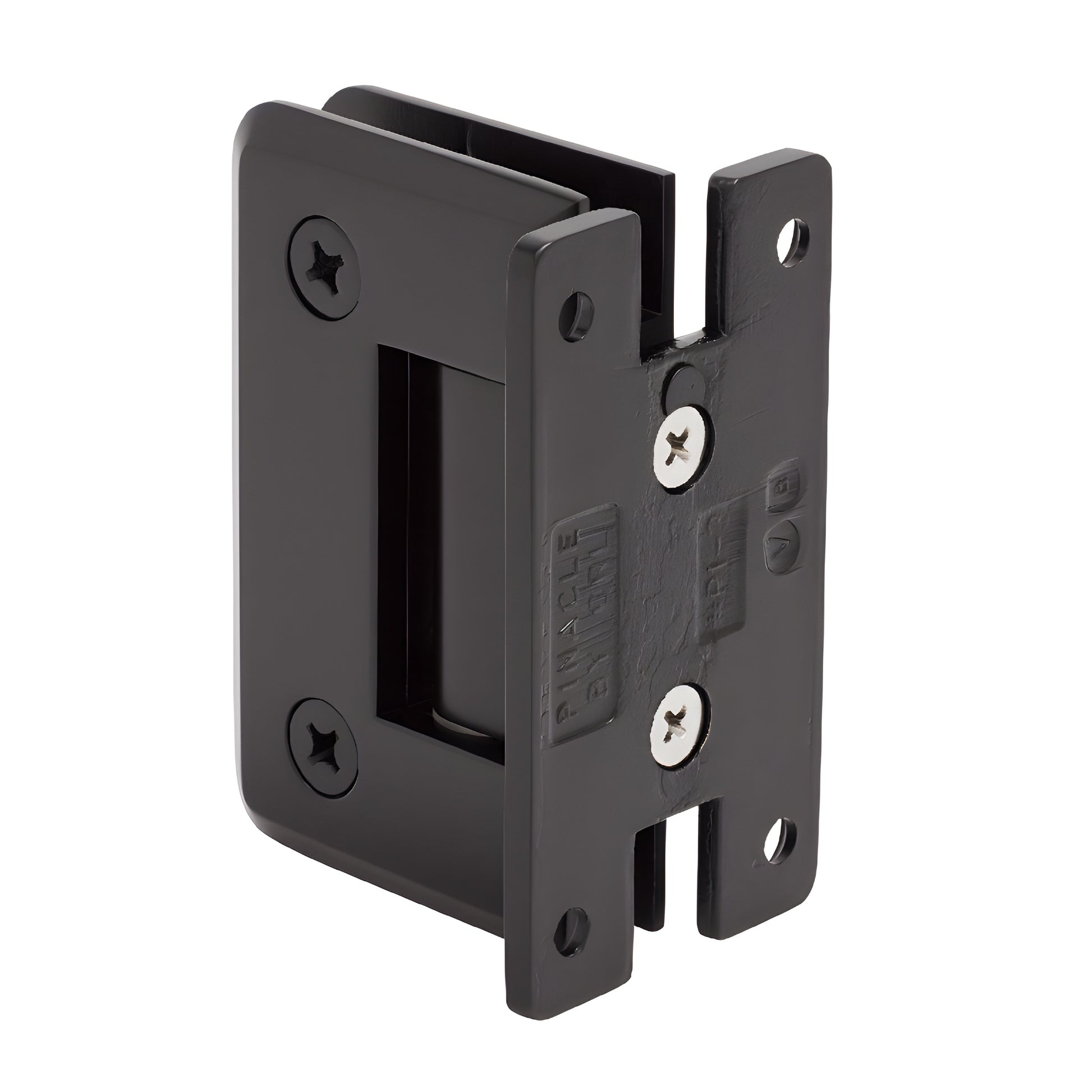

• Wall mount "H" back plate—standard model factory set for standard closing position
• Use with monolithic tempered safety glass (5/16"–1/2" / 8–12 mm)

CRL Pinnacle Hinge (SKU: P1N0370RB) — a solid-brass, radius-corner hinge with beveled edges for a sleek, premium look. Designed for tempered glass shower doors, the Pinnacle Hinge fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering within 15° of the closed position. Stainless steel plunger tips, pins, and springs provide corrosion resistance and long, reliable service life.

Key differentiators: radius corners and beveled edges for refined aesthetics; solid brass construction; stainless steel internal hardware for durability; reversible 5° pivot pin and optional custom pivot pins up to 45° for off-angle installations; available wall-mount "H" back plate.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set (5°) models come factory set to 85°. The pin can be rotated (not flipped) to change the active side.

CUSTOM PIVOT PIN: Custom pins are available to accommodate off-angle walls and non‑90° installations—specify the required angle up to 45°.

Load capacity:

• Using two hinges with 8–12 mm glass: holds up to 80 lbs (36 kg); maximum door width 28" (711 mm).
• Using three hinges with 8–12 mm glass: holds up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Feature: Wall mount hinges and 180° glass-to-glass hinge options available. Choose Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter interior closure.
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self
