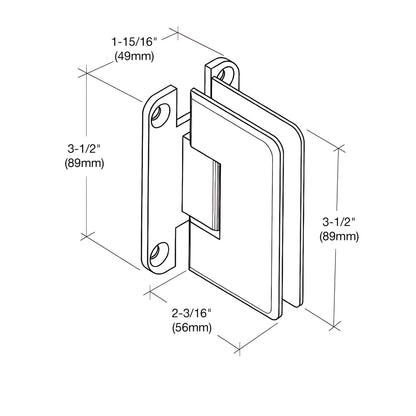

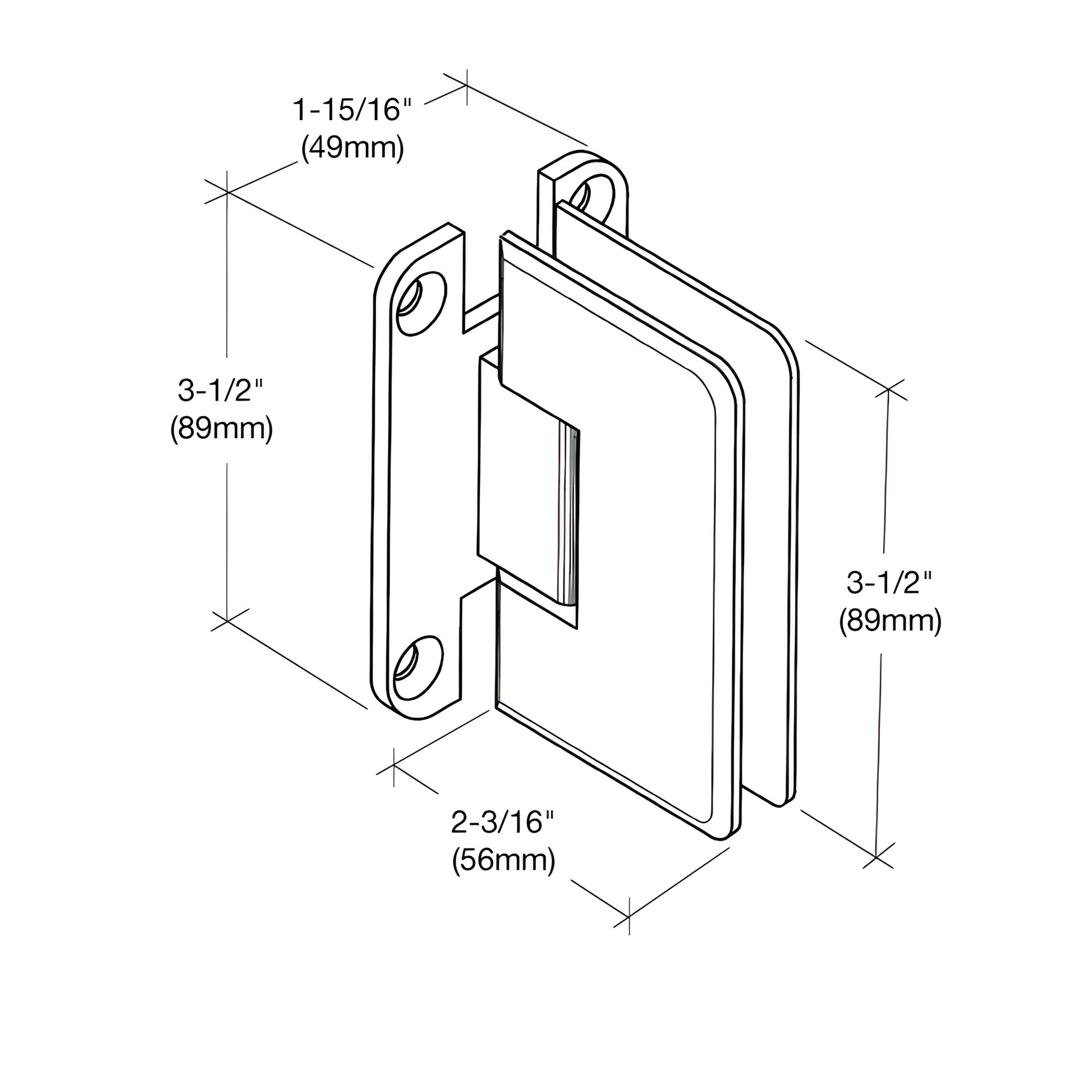

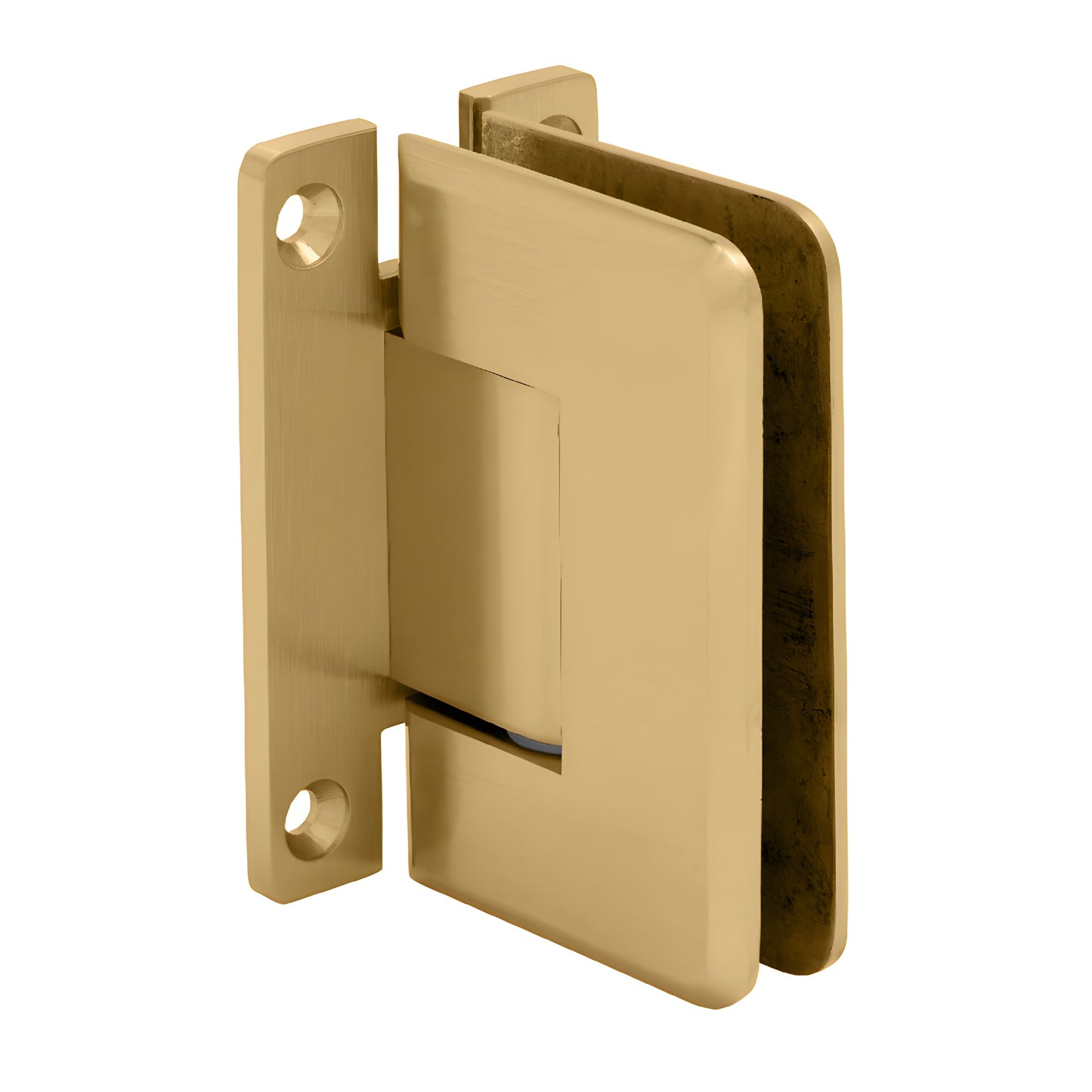

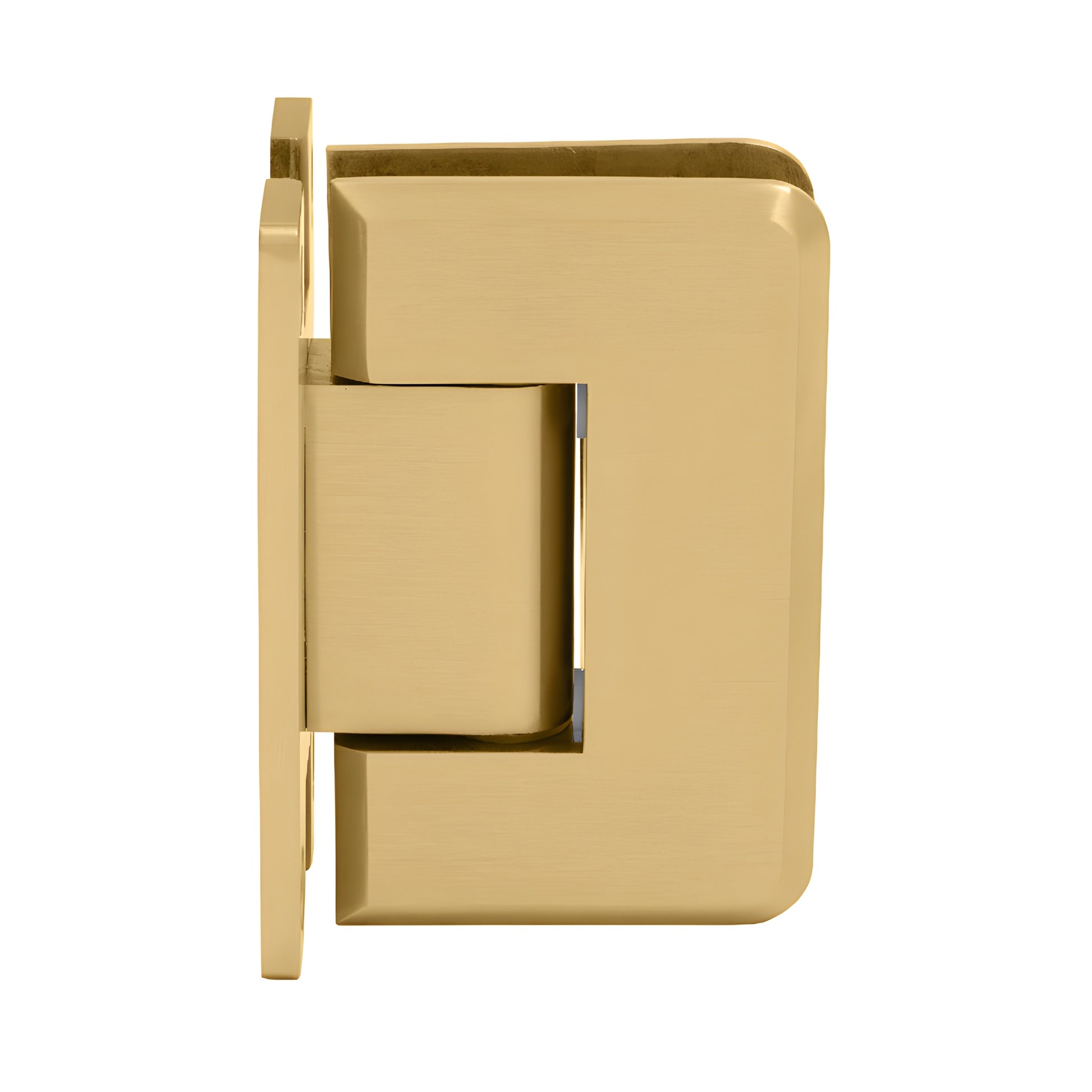

CRL Pinnacle 037 Satin Brass Wall-Mount H Back Plate Door Hinge

• Self-Centering hinge with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three year warranty

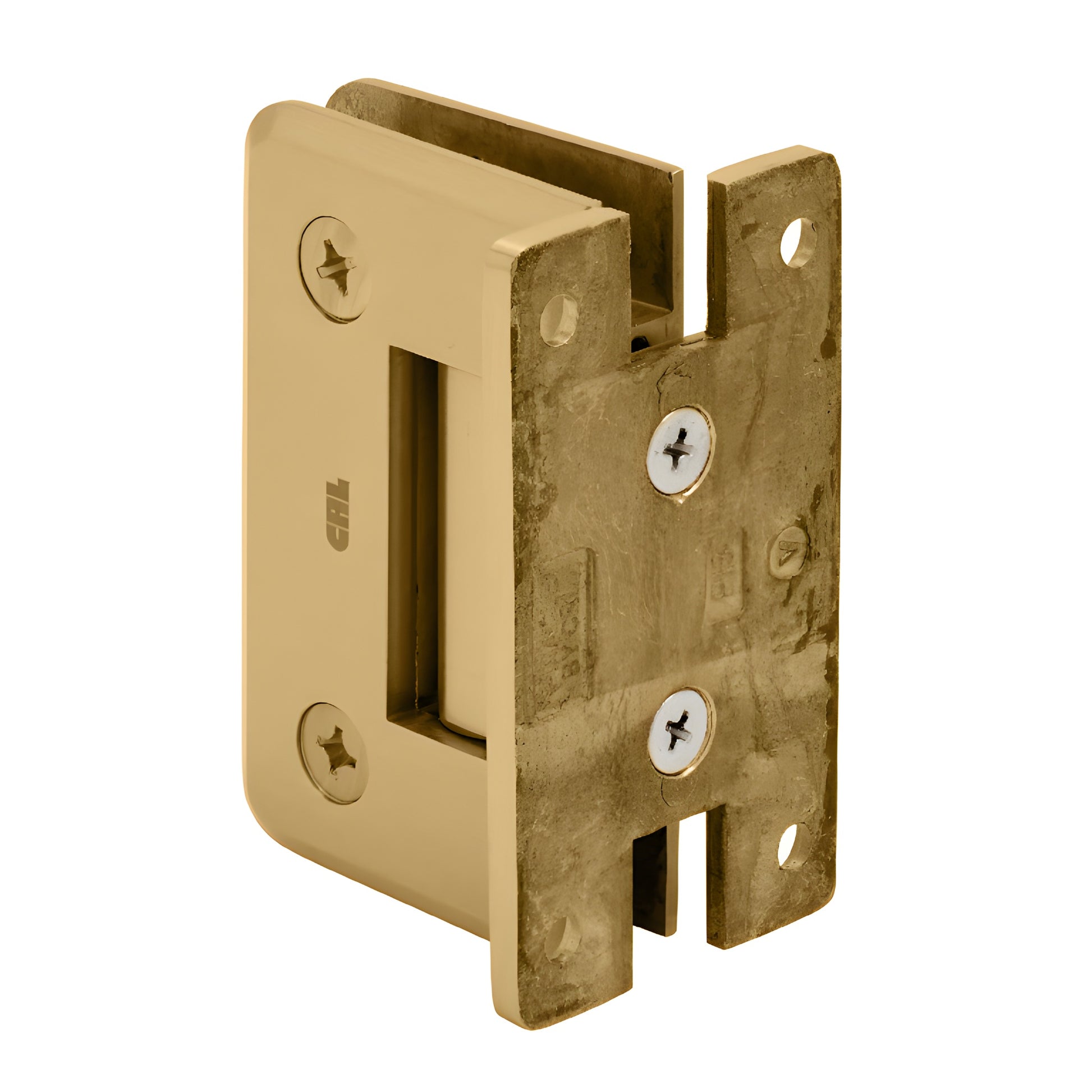

• Wall mount "H" back plate — standard model factory set for standard closing position
• Designed for monolithic tempered safety glass

The CRL Pinnacle Hinge (SKU: P1N037SB) is a brass shower door hinge designed for residential and hotel shower enclosures. Compared to the Geneva Series, Pinnacle adds radius corners and beveled edges for a sleek, premium look. Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, the Pinnacle offers durable, reliable door closure and long service life.

Key Differentiators:

• Reversible 5° pivot pin for adjustable closing force — standard 90° side activated; pre-set 85° models available
• Solid brass construction with stainless steel internal components for corrosion resistance
• Radius corners and beveled edges for a high-end appearance
• Custom pivot pins available up to 45° for off-angle installations

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° (standard closing) side activated. Pins can be rotated to switch sides.

CUSTOM PIVOT PIN: Custom Pivot Pins can be specified for off-angle installations (up to 45°) when the standard 5° offset does not achieve the desired closing position.

Load & Size Capacity:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Feature: Wall-mount hinges and 180° glass-to-glass hinge available as Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid brass with stainless steel plunger tips, pins, and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when
