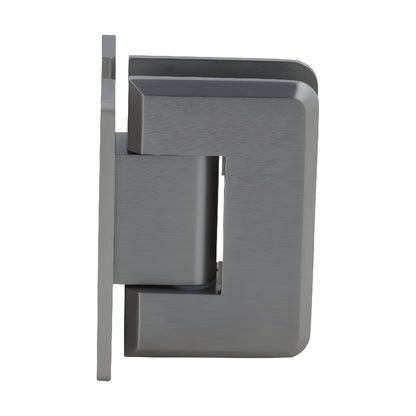

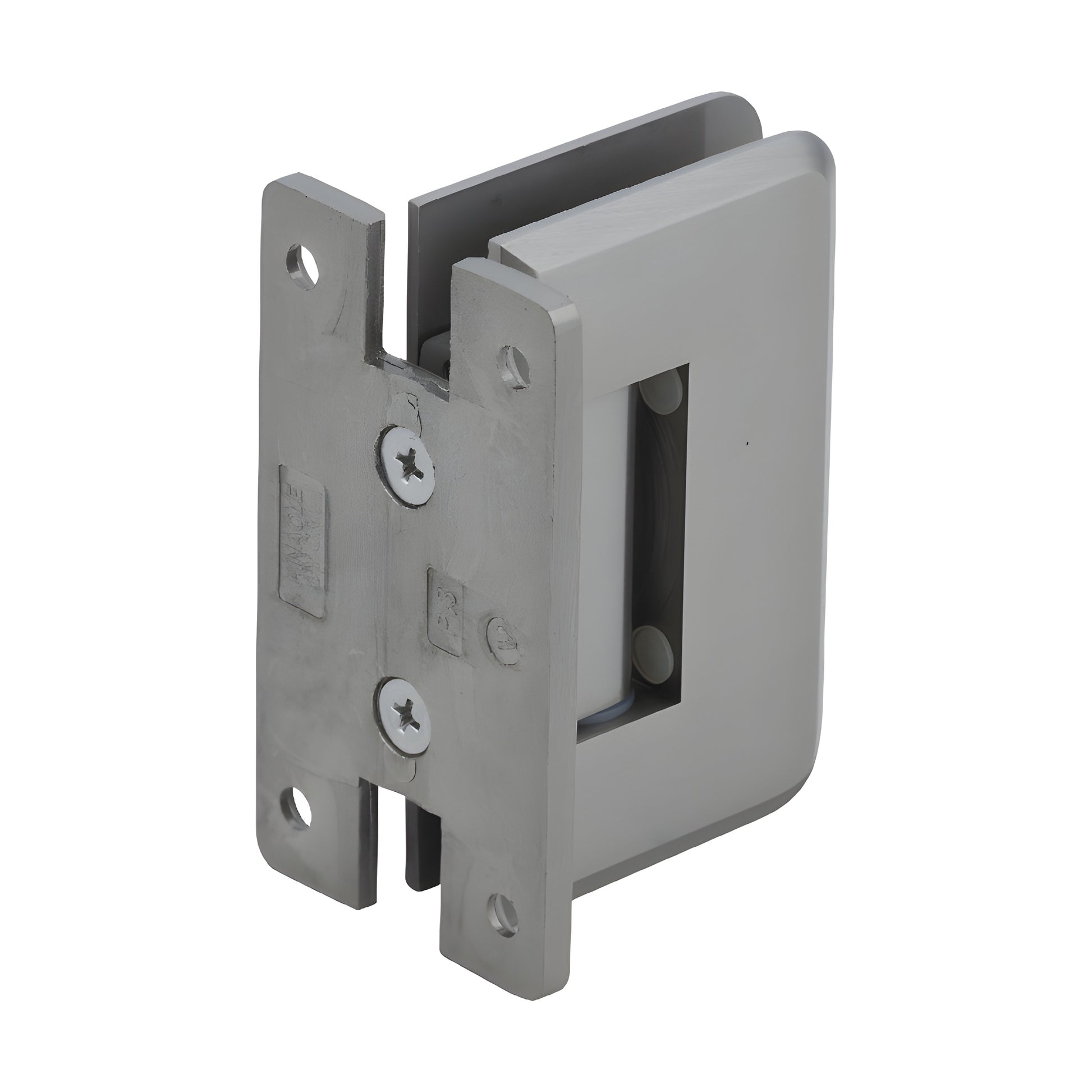

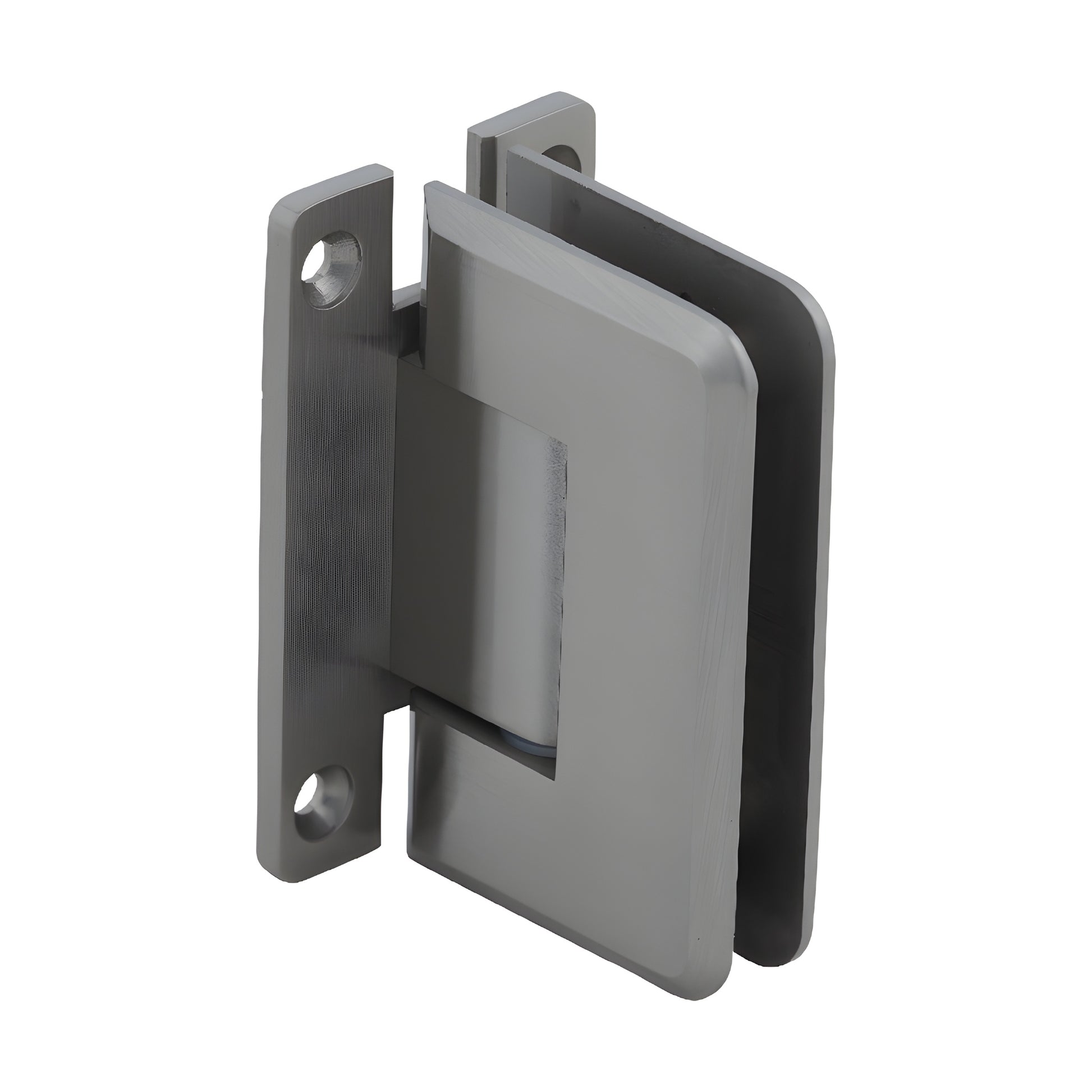

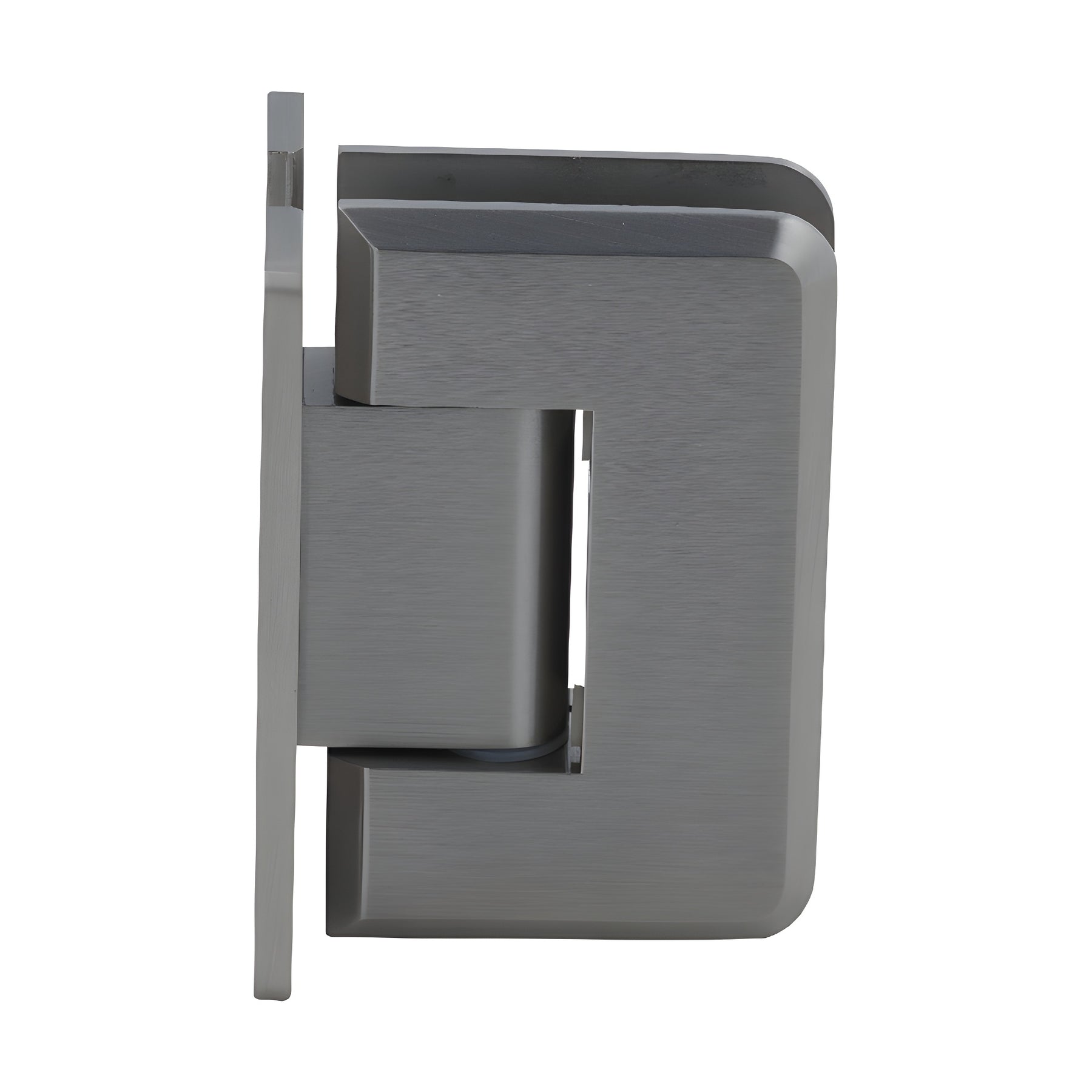

CRL Pinnacle 037 Brushed Nickel Wall Mount H Back Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three-year warranty
• Wall-mount 'H' back plate — standard model (factory set for standard closing position)
• For monolithic tempered safety glass

CRL Pinnacle Hinge — a sleek brass glass shower hinge with radius corners and beveled edges. Similar to the Geneva Series but refined for contemporary frameless shower doors, the Pinnacle accepts 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs for long service life and reliable door closure. Includes the reversible 5° pivot pin used across Geneva, Cathedral, Roman, Ultimate, and Elite series hinges. Custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; pre-set models are set to 85° (5° tighter closure into the shower interior). The pin can be rotated (not flipped) to change the active angle.

Custom Pivot Pin: Specify custom pivot angles up to 45° for off-angle walls or non-90° installations when the standard 5° pivot does not achieve the desired closure.

Load Capacity:

• Using two hinges with 5/16"–1/2" (8–12 mm) glass: up to 80 lb (36 kg); maximum door width 28" (711 mm)
• Using three hinges with 5/16"–1/2" (8–12 mm) glass: up to 120 lb (54 kg); maximum door width 32" (813 mm)

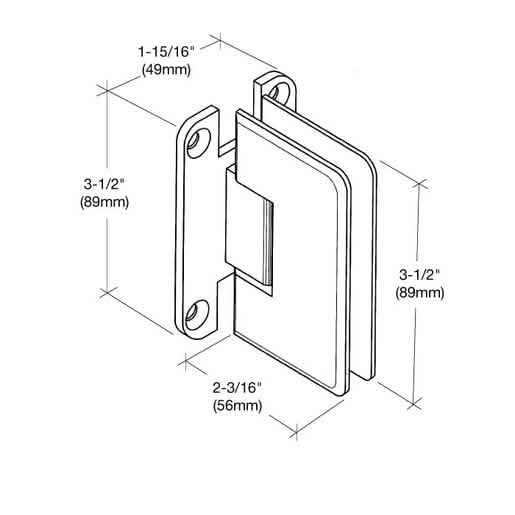

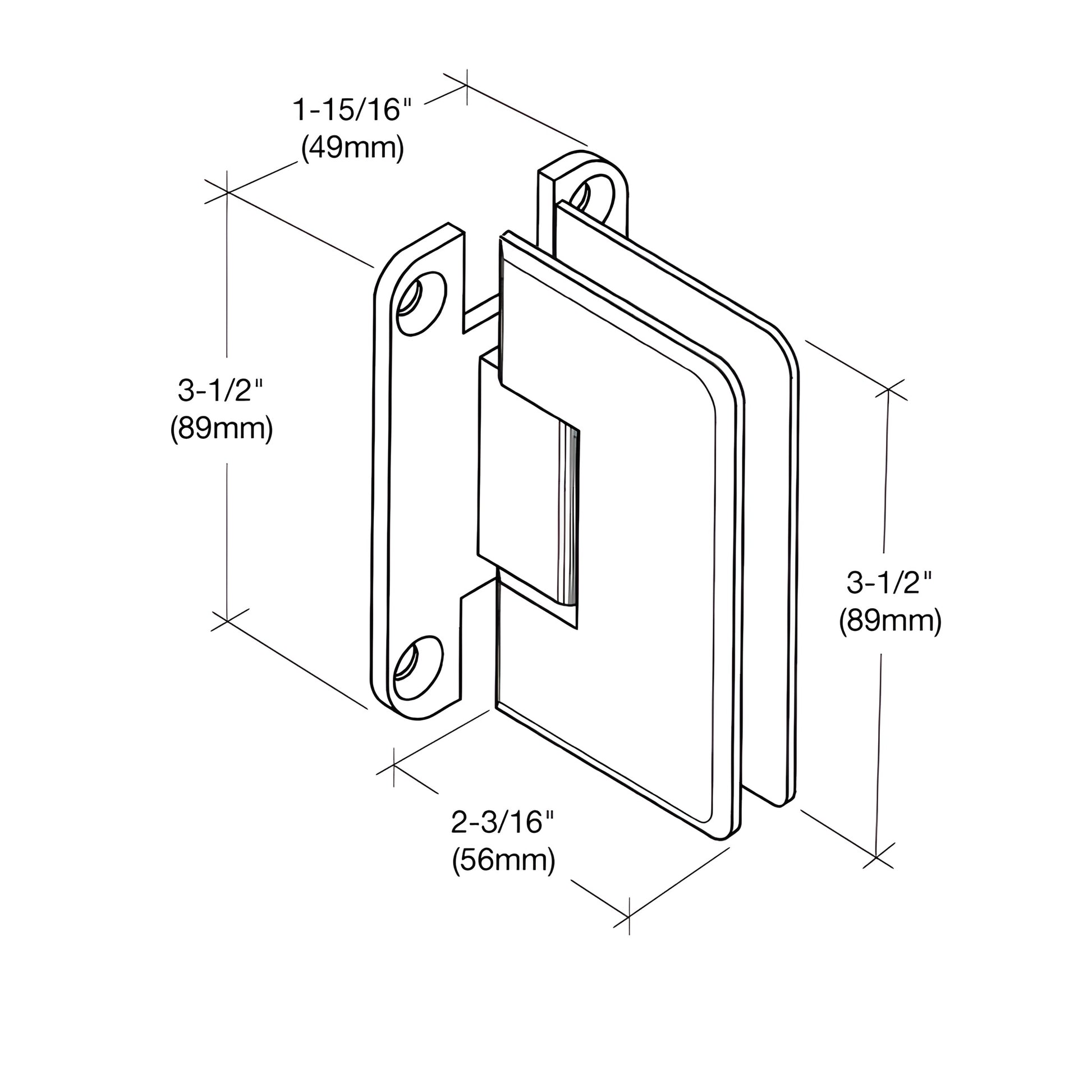

Specifications

• Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
• Special Feature: Choice of Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter closure into shower interior; also available as wall-mount hinges and 180° glass-to-glass hinge
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering when within 15° of closed position
• Cut-Out Required
• Includes: Gaskets, screws, and glass fabrication dimensions. Cat.
