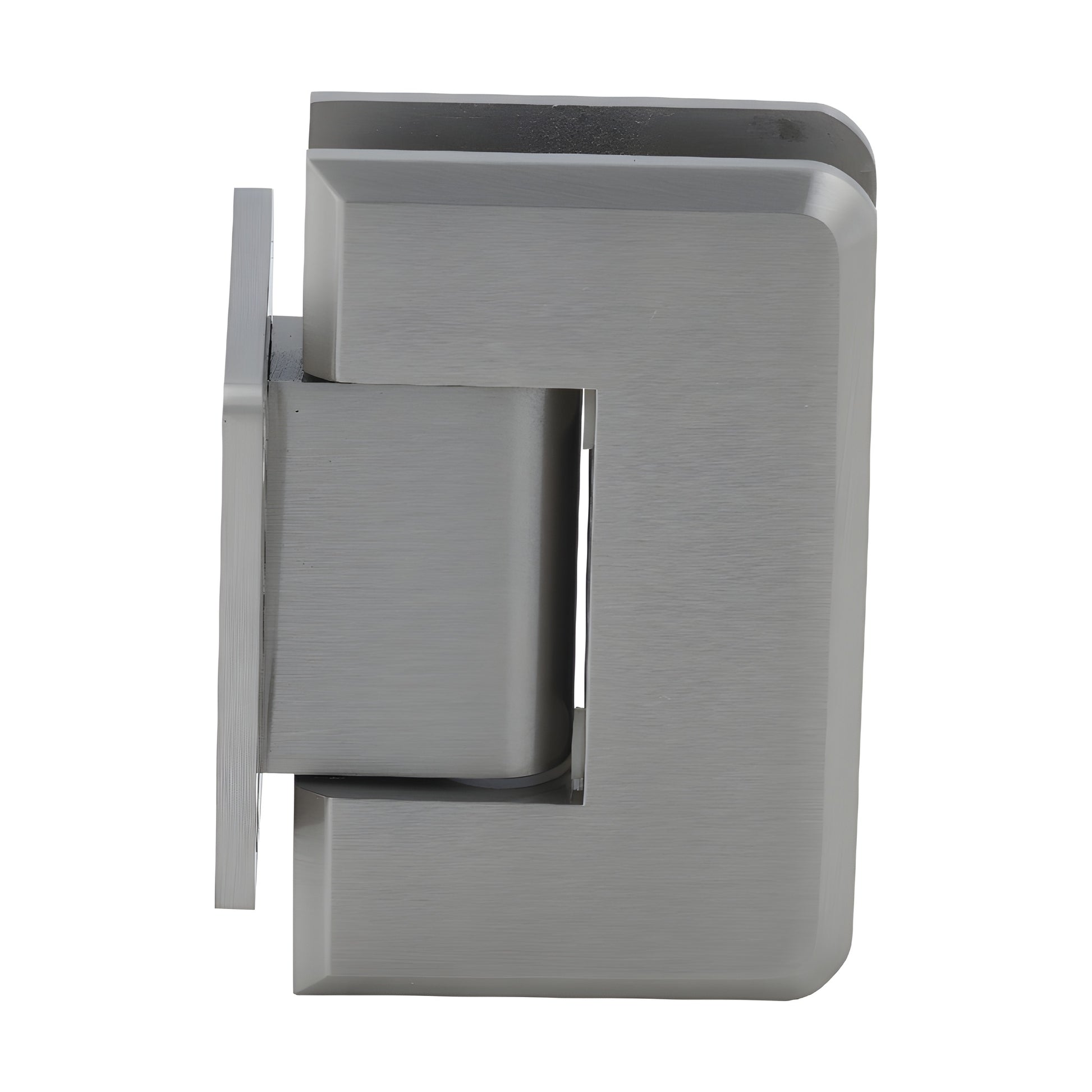

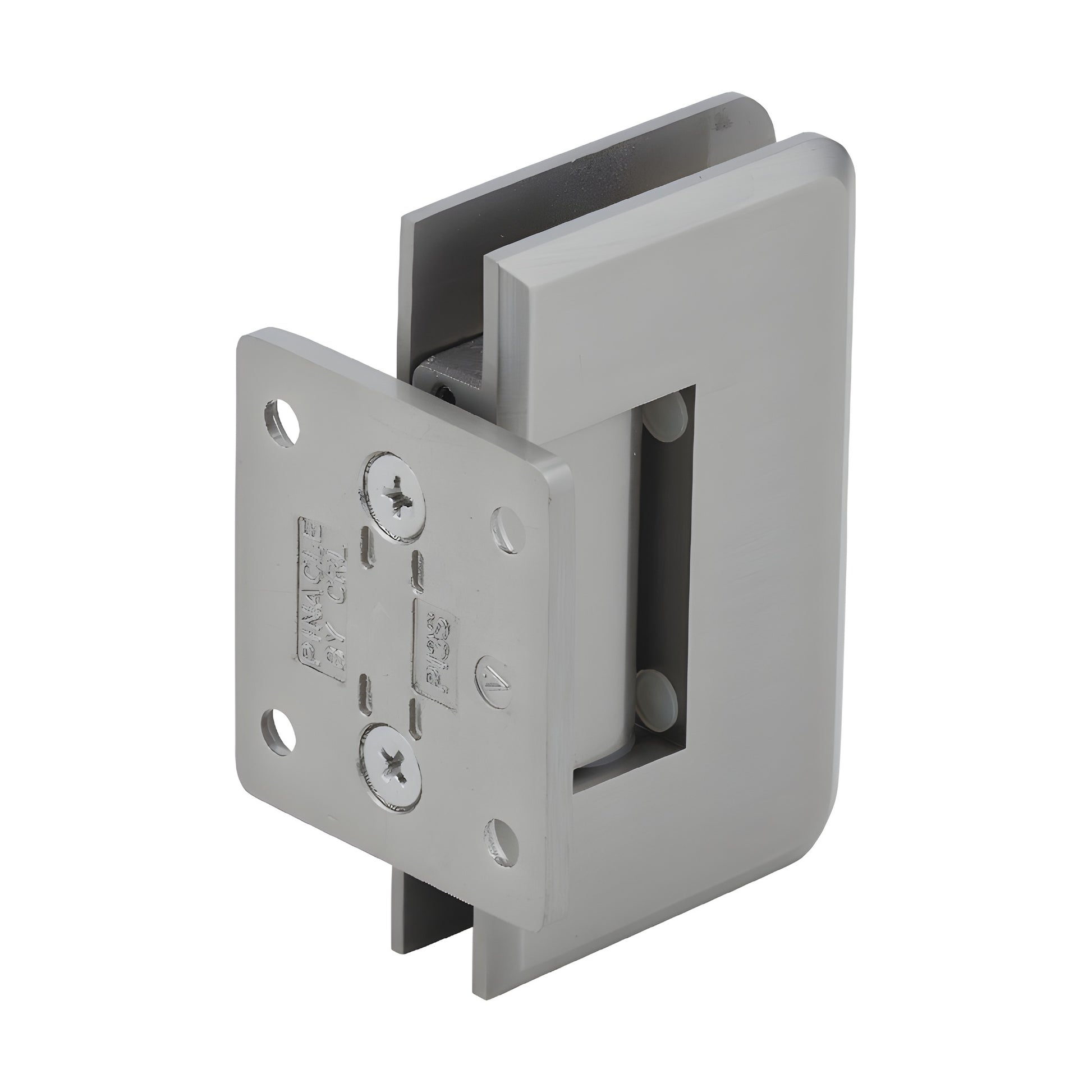

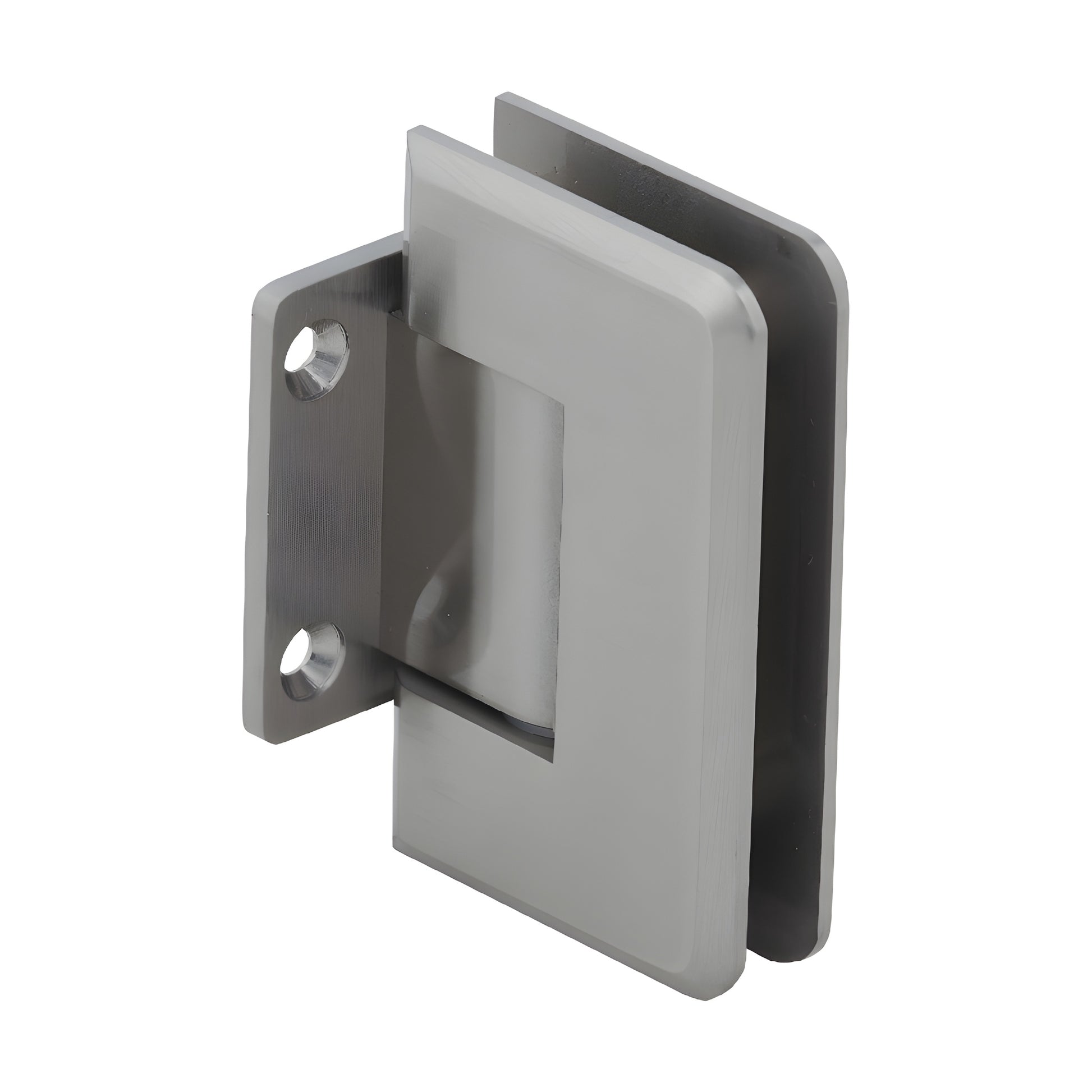

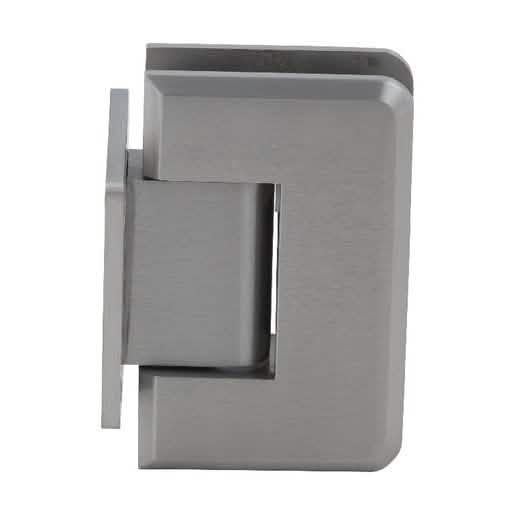

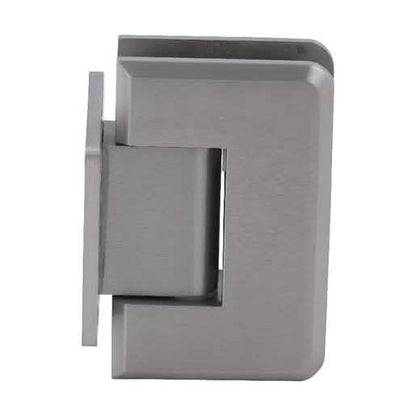

CRL Pinnacle 074 Brushed Nickel Short Backplate Frameless Glass Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall mount short back plate — standard model factory set for standard closing position
• Use with monolithic tempered safety glass

The CRL Pinnacle Hinge (SKU: P1N074BN) is a radius‑corner, beveled‑edge alternative to the Geneva Series, offering a sleek brass shower door hinge for tempered glass. Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self‑centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, the Pinnacle provides long service life and reliable door closure.

The hinge includes the same reversible 5° pivot pin used across the Geneva, Cathedral, Roman, Ultimate, and Elite Series. A Custom Pivot Pin is available for off‑angle installations up to 45°.

STANDARD REVERSIBLE PIVOT PIN:

Each Pinnacle Hinge contains a reversible pivot pin with two settings: 90° (standard) and 85° (5° tighter closure). Standard models ship with the 90° side activated; pre‑set models ship with the 85° side activated. Rotate the pin (do not flip) to change settings.

CUSTOM PIVOT PIN:

Specify a Custom Pivot Pin for off‑angle installations (up to 45°) when the standard 5° pivot does not bring the door to the desired closing position.

Load Capacity

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), maximum door width 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), maximum door width 32" (813 mm).

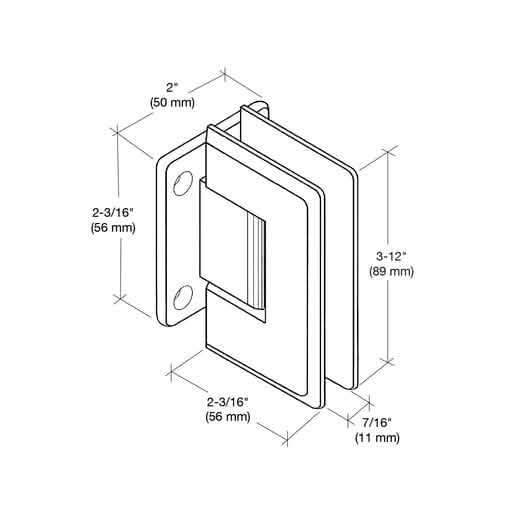

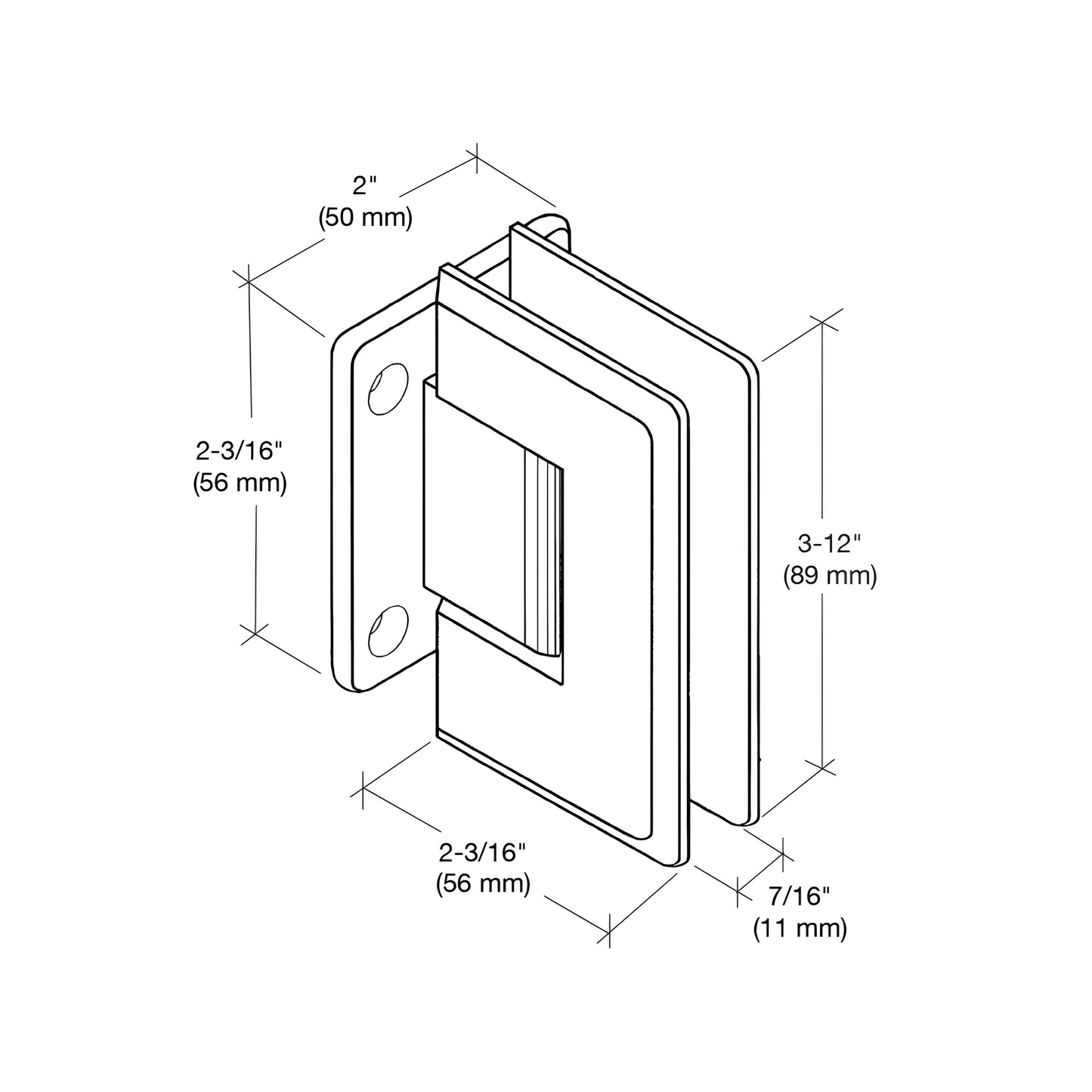

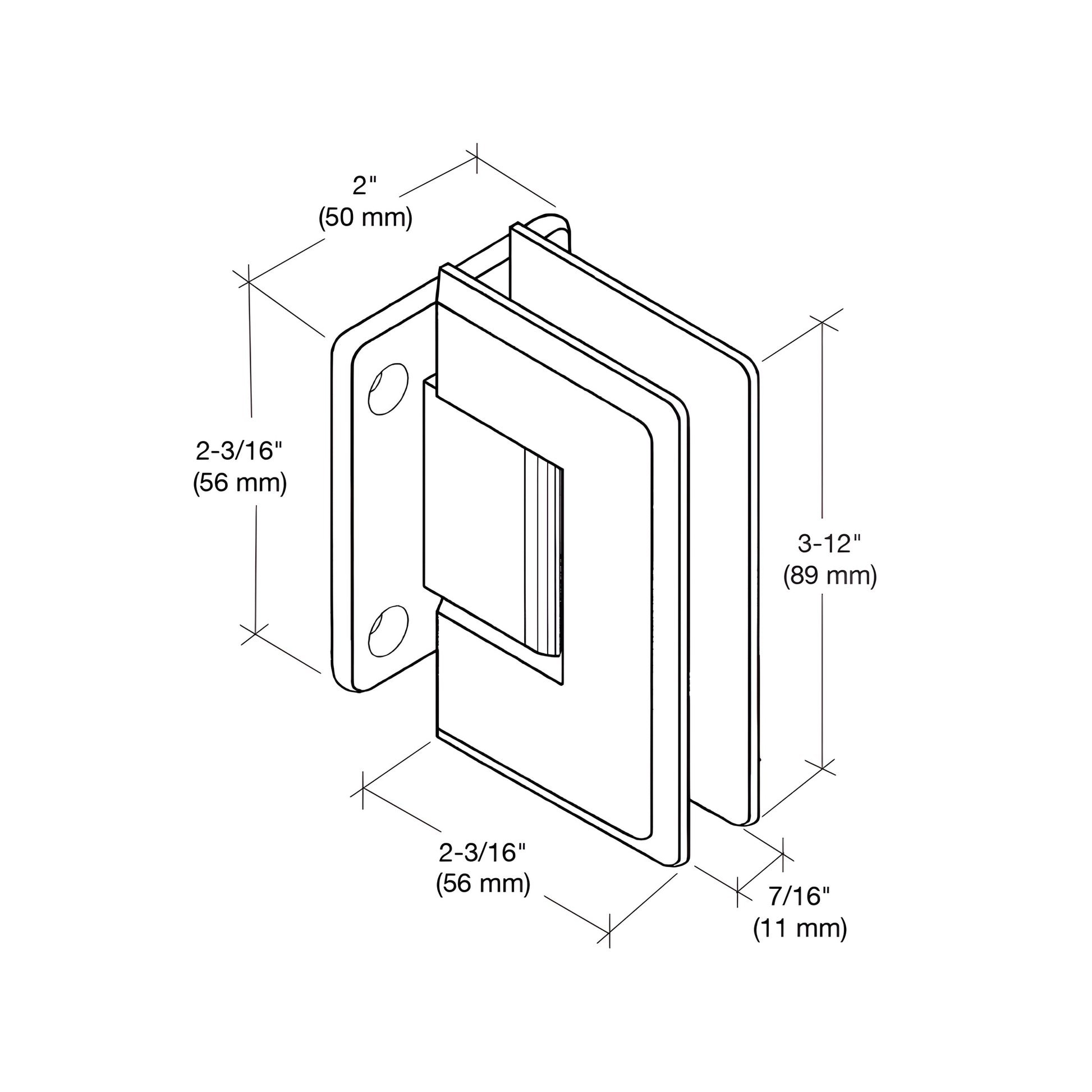

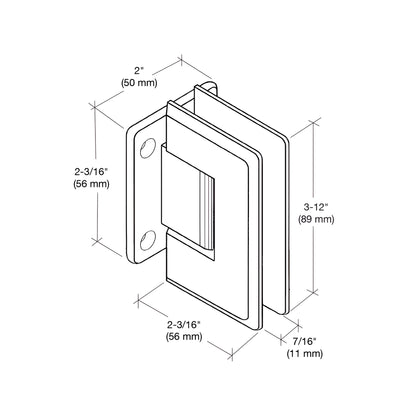

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall mount hinges and 180° glass‑to‑glass hinge available in Standard (0°) or 5° Pre‑Set model for tighter closure into shower interior.
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self‑centering when within 15° of closed position
Cut‑Out Required
Includes: Gaskets,
