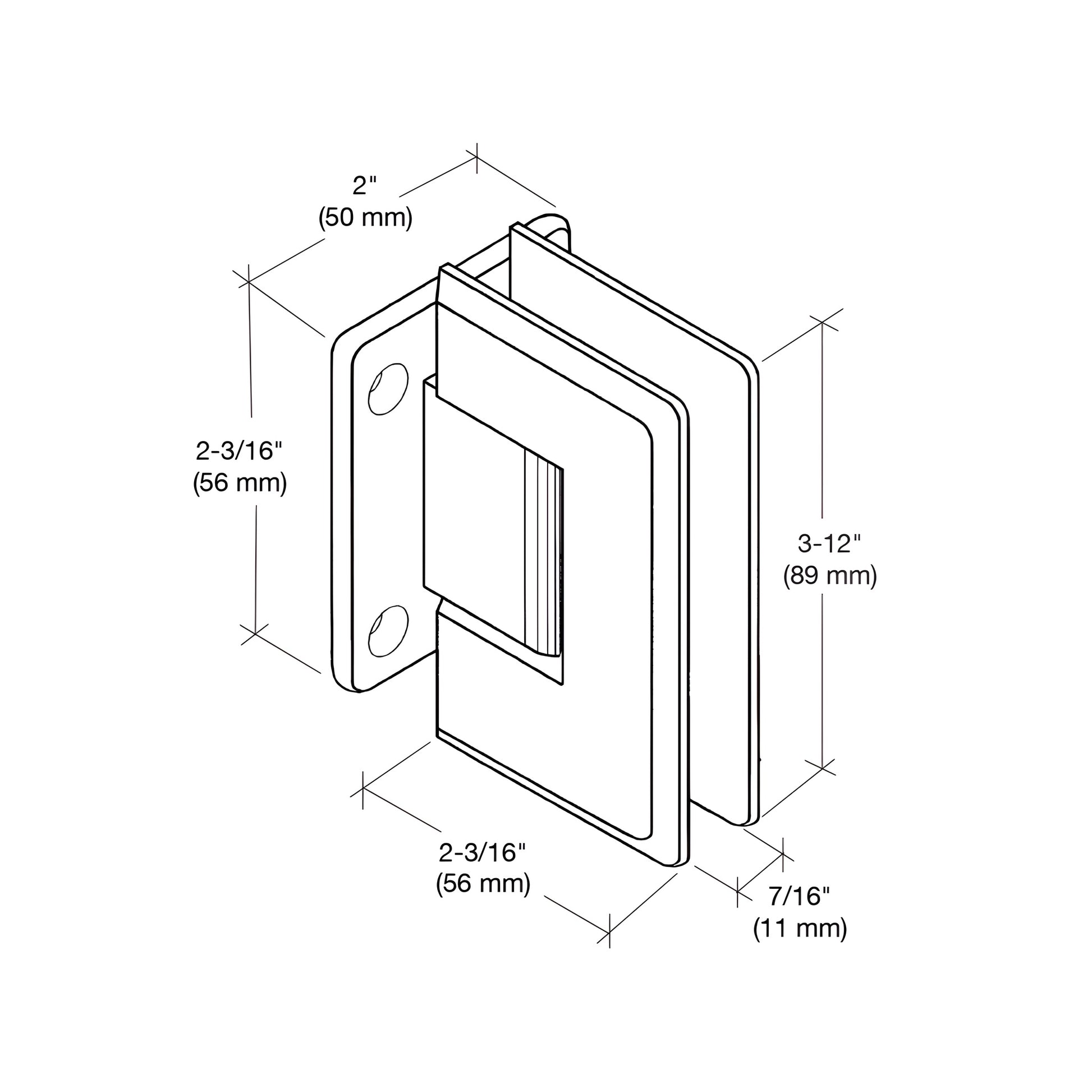

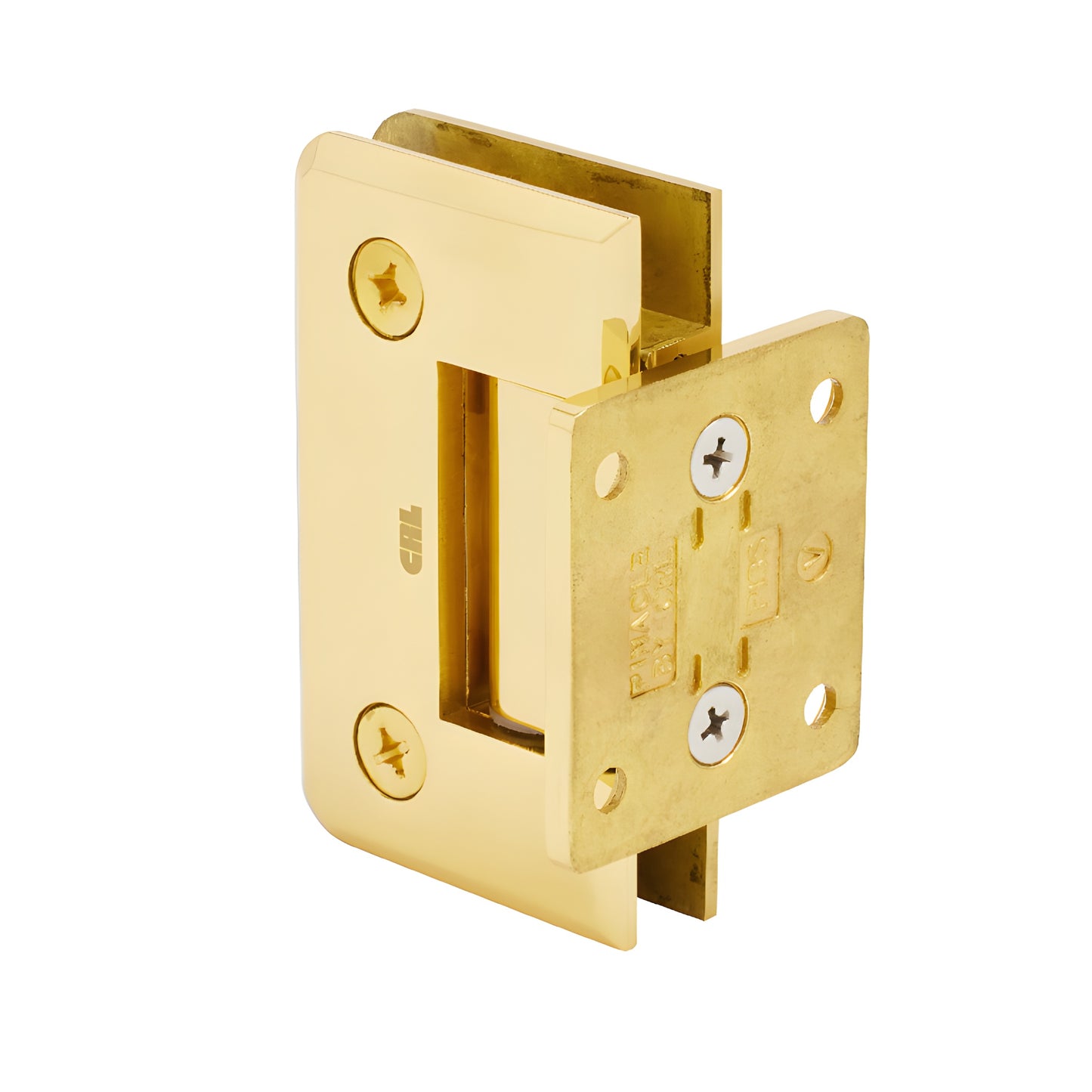

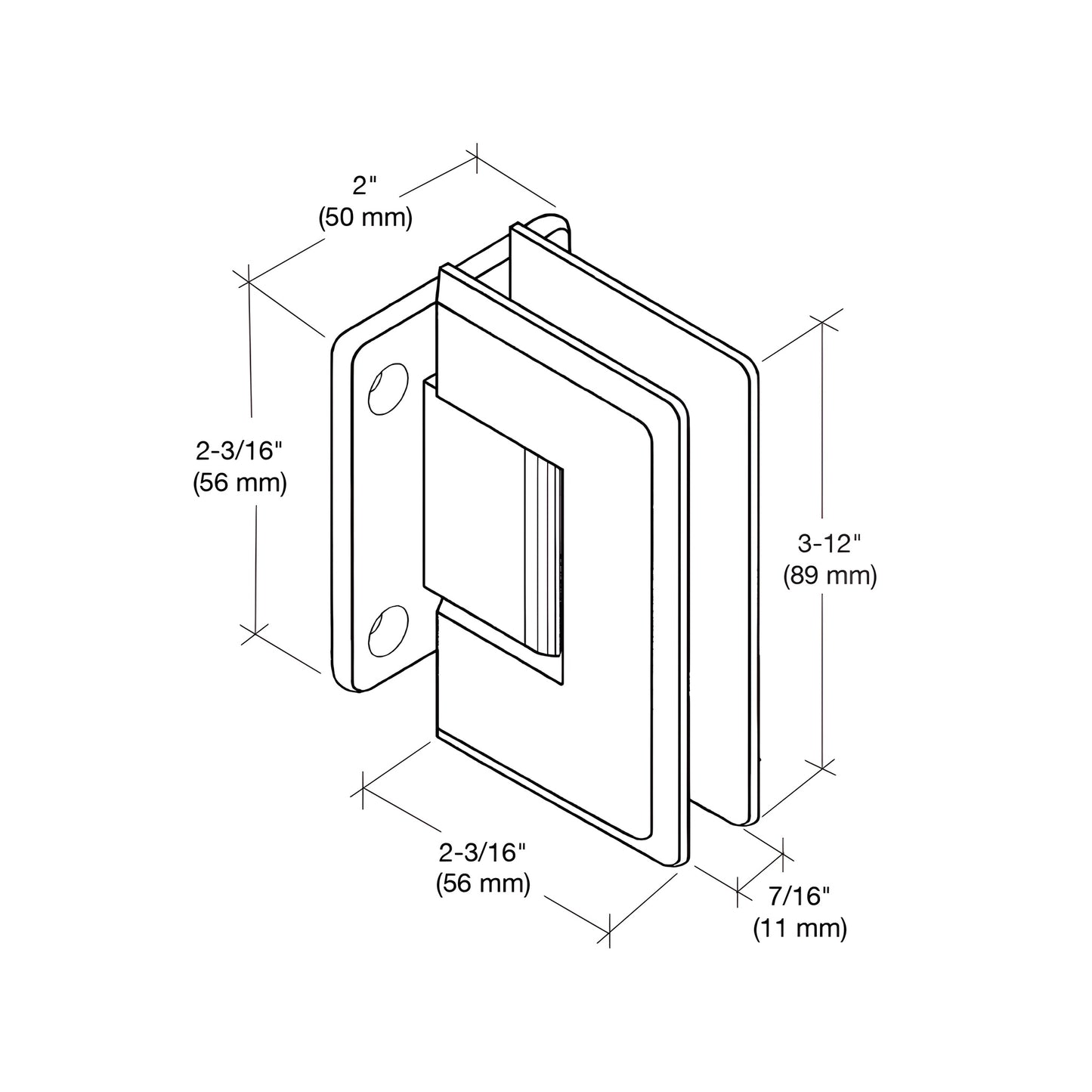

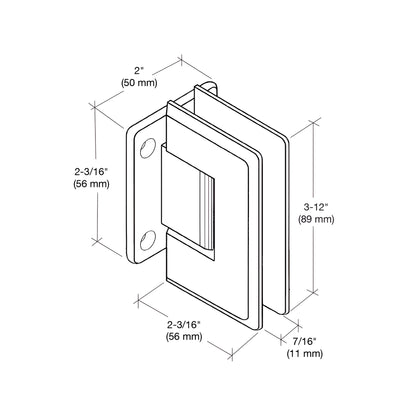

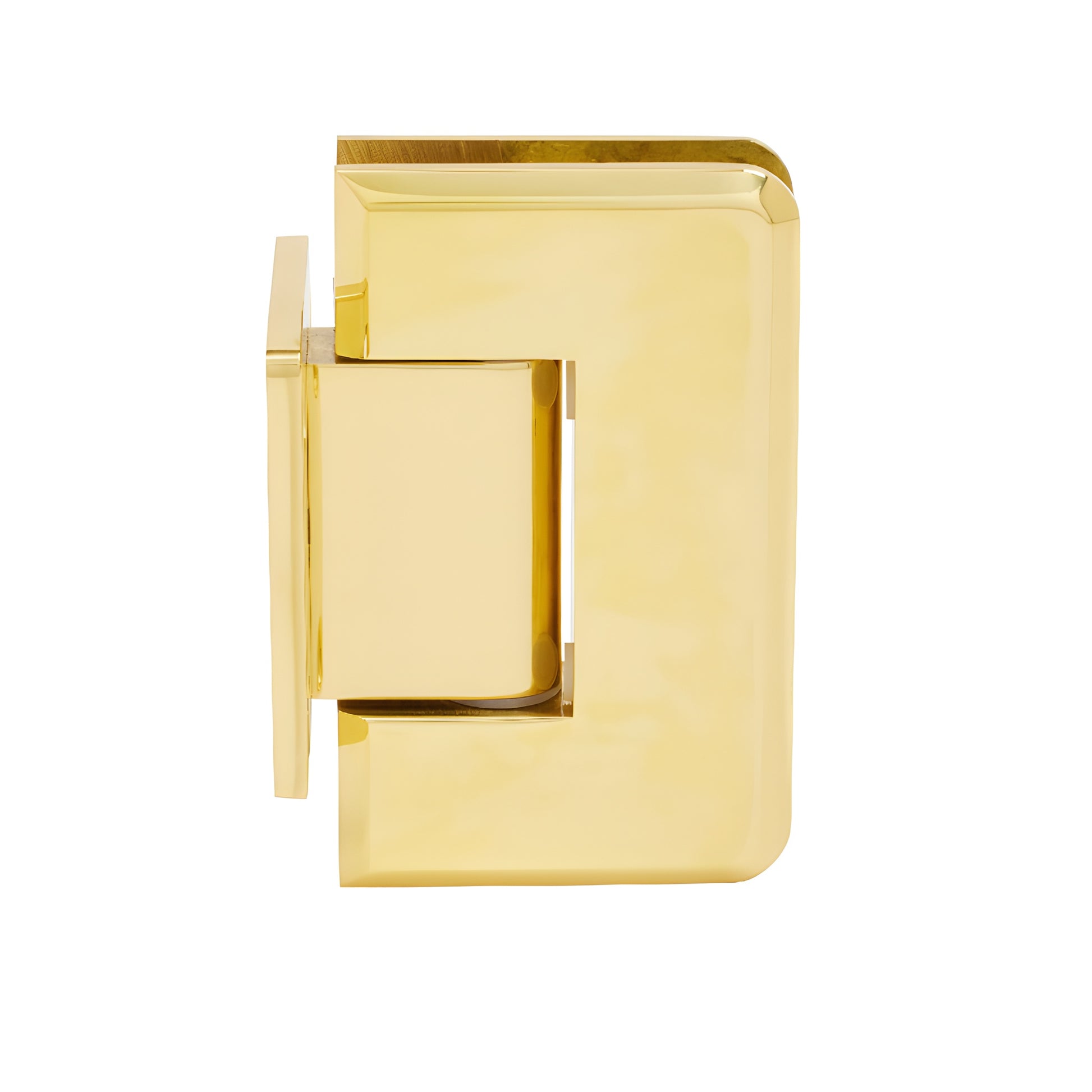

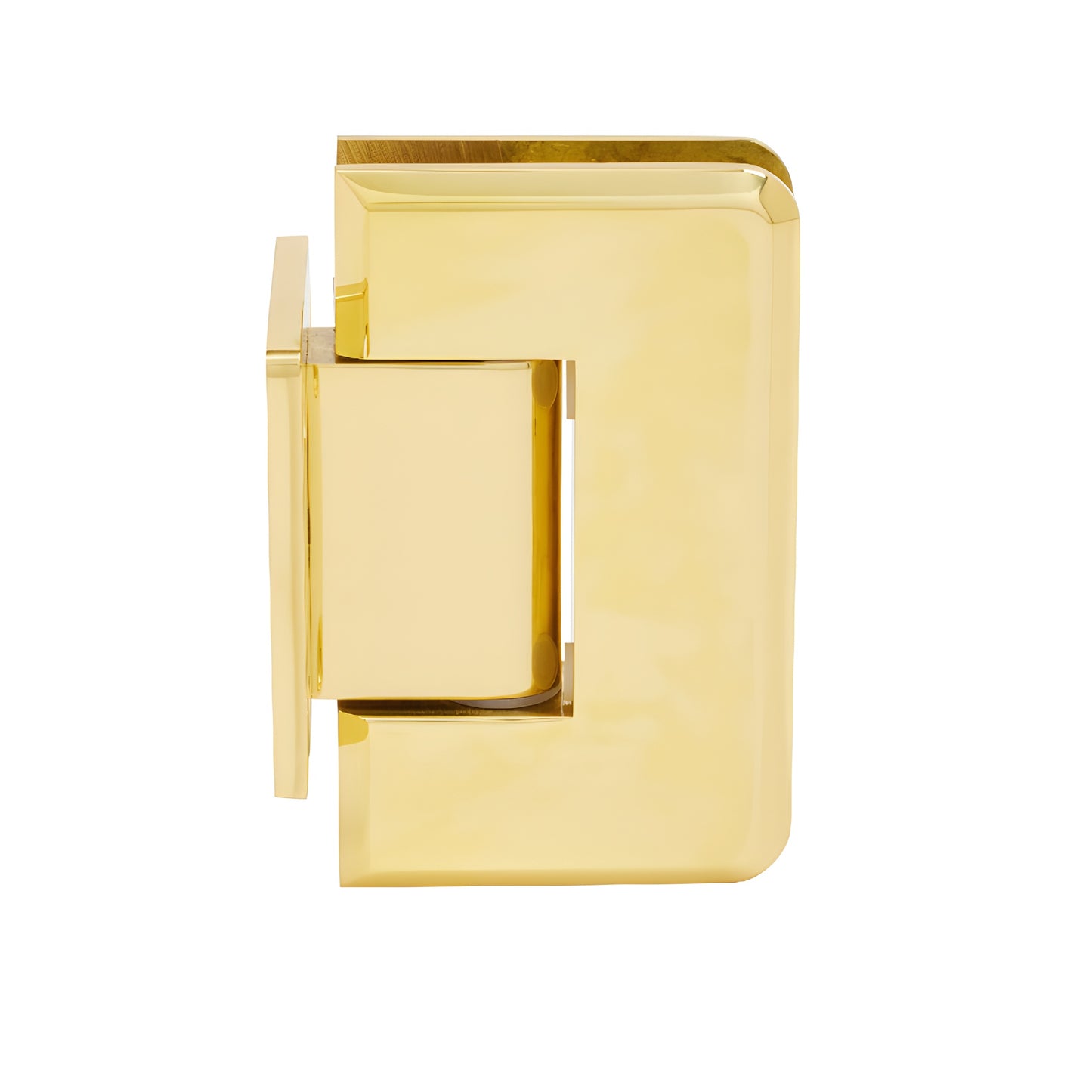

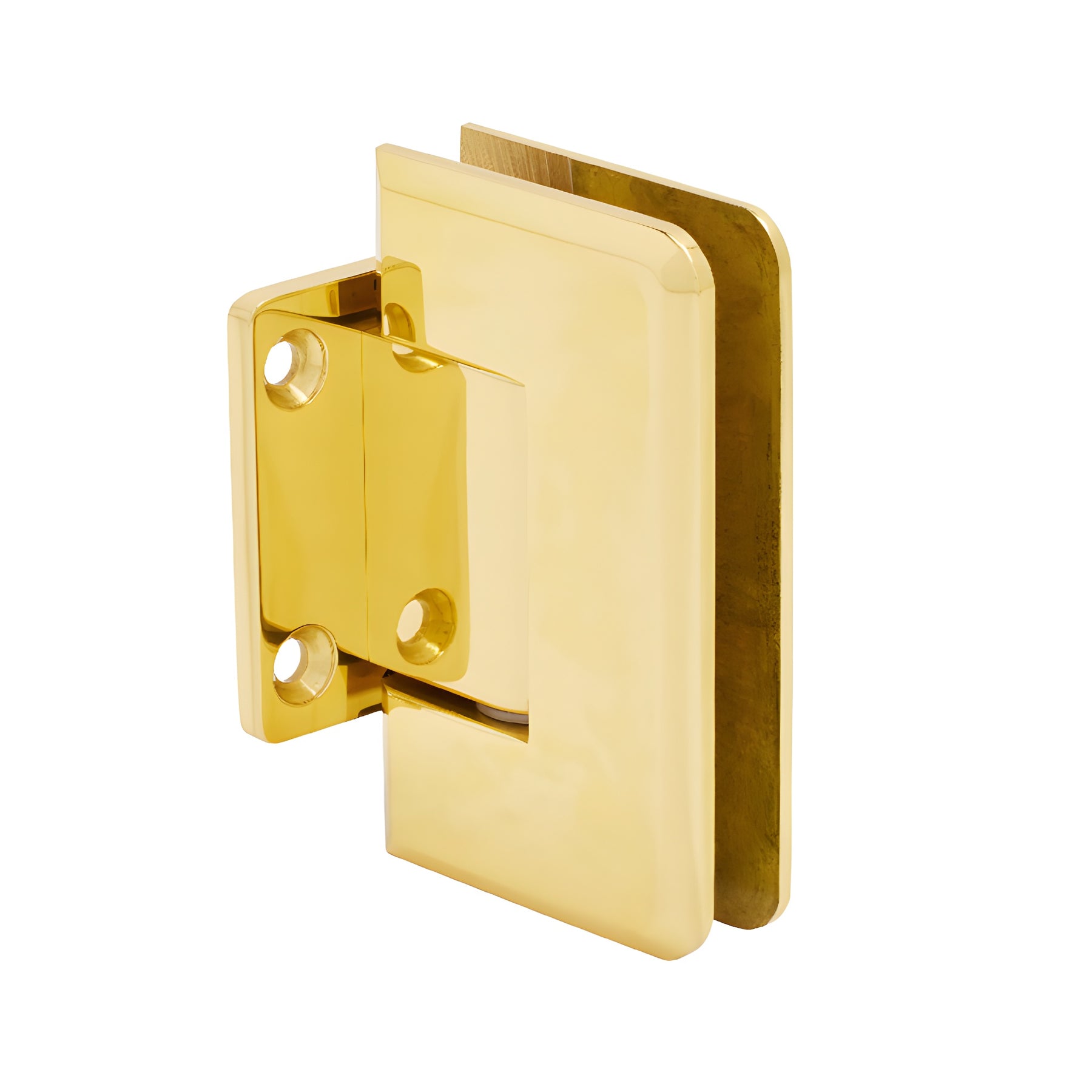

CRL Pinnacle 074 Polished Brass Wall-Mount Short Backplate Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall-mount short back plate standard model (factory set for standard closing position)
• Use with monolithic tempered glass

The CRL Pinnacle Hinge (SKU: P1N074BR) offers a sleek alternative to the Geneva Series with radius corners and beveled edges. Designed for frameless shower doors, Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these hinges deliver long service life and reliable door closure. They include the reversible 5° pivot pin found in Geneva, Cathedral, Roman, Ultimate, and Elite Series hinges; custom pivot pins (up to 45°) are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge contains a reversible pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; pre-set models ship with 85° engaged (tighter 5° closure into the shower). Rotate the pin (do not flip) to select the other setting.

Custom Pivot Pin: Specify a custom angle (up to 45°) when walls or door conditions require an off-angle pivot for proper closing.

Load Capacity:

• Using two hinges (8–12 mm glass): holds up to 80 lbs (36 kg); maximum door width 28" (711 mm)
• Using three hinges (8–12 mm glass): holds up to 120 lbs (54 kg); maximum door width 32" (813 mm)

Specifications:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass models available as Standard (0°) or 5° Pre-Set for tighter closure
Construction: Solid brass with stainless steel internals
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass
