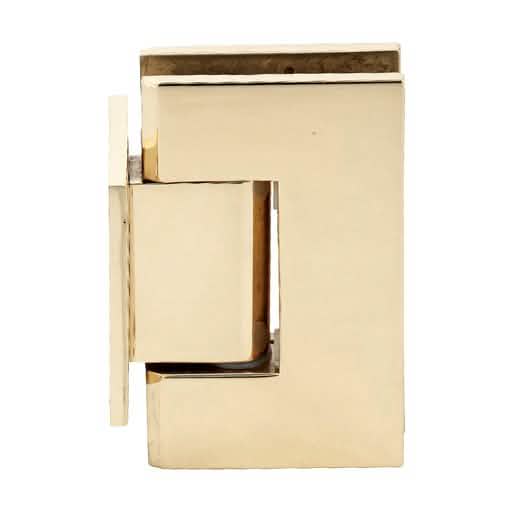

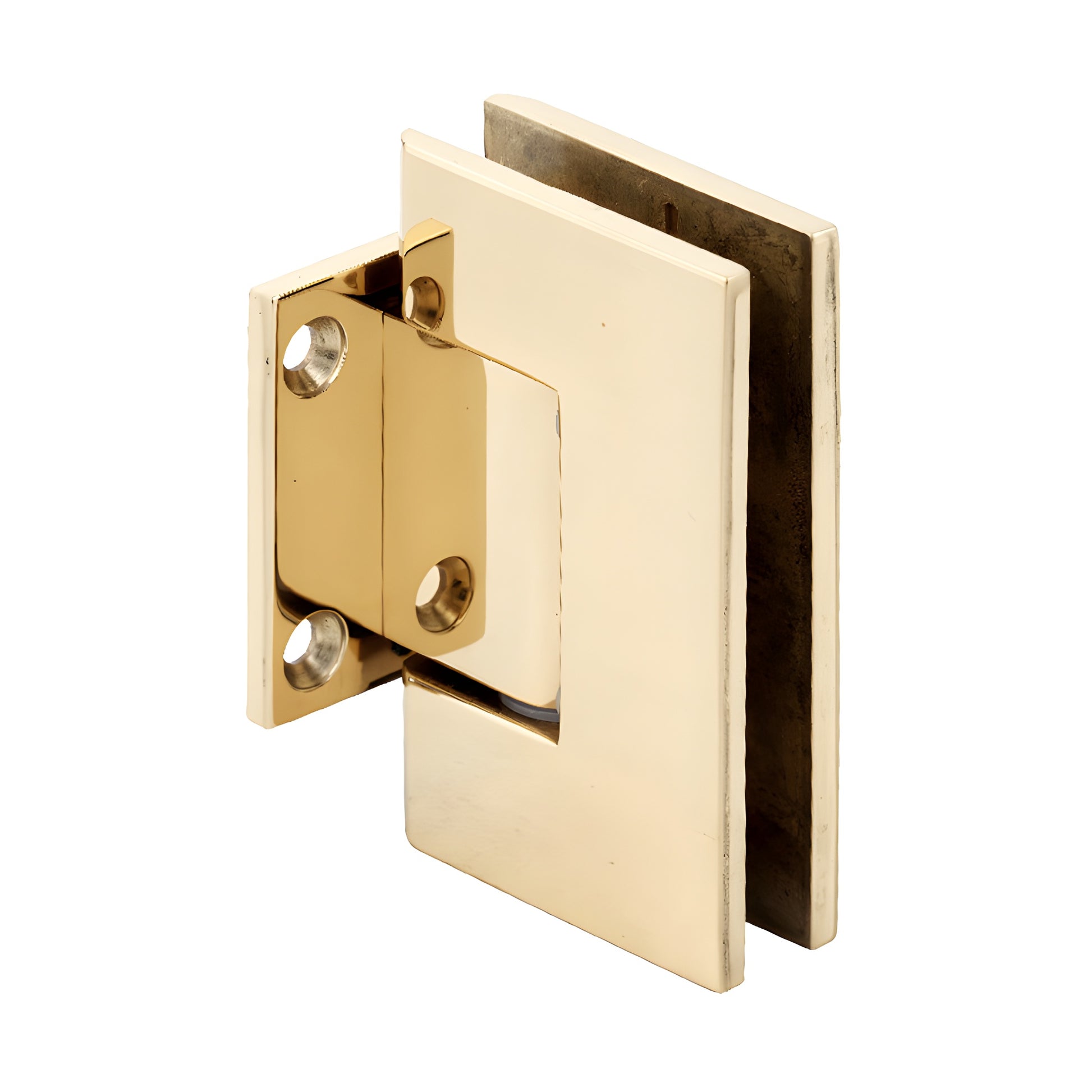

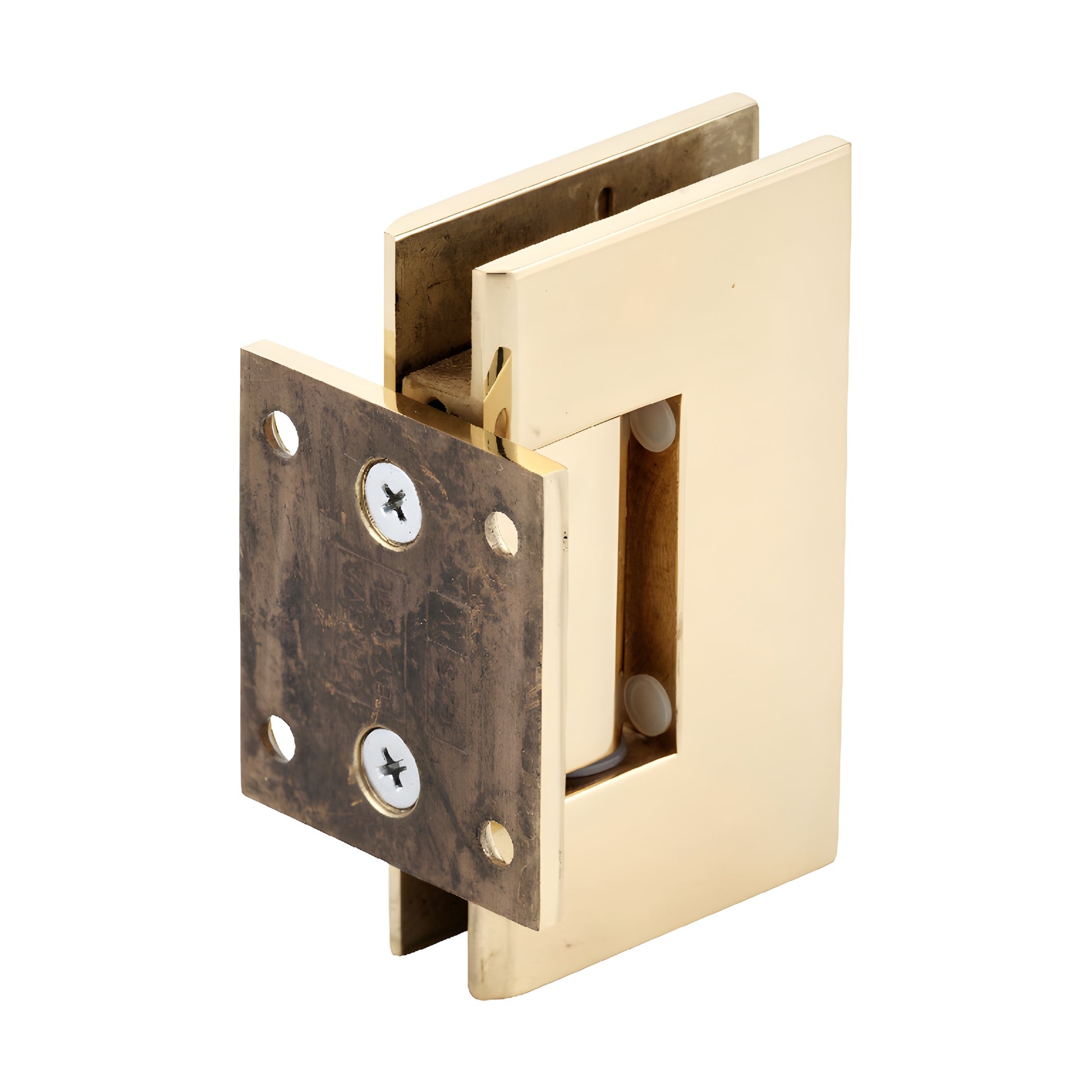

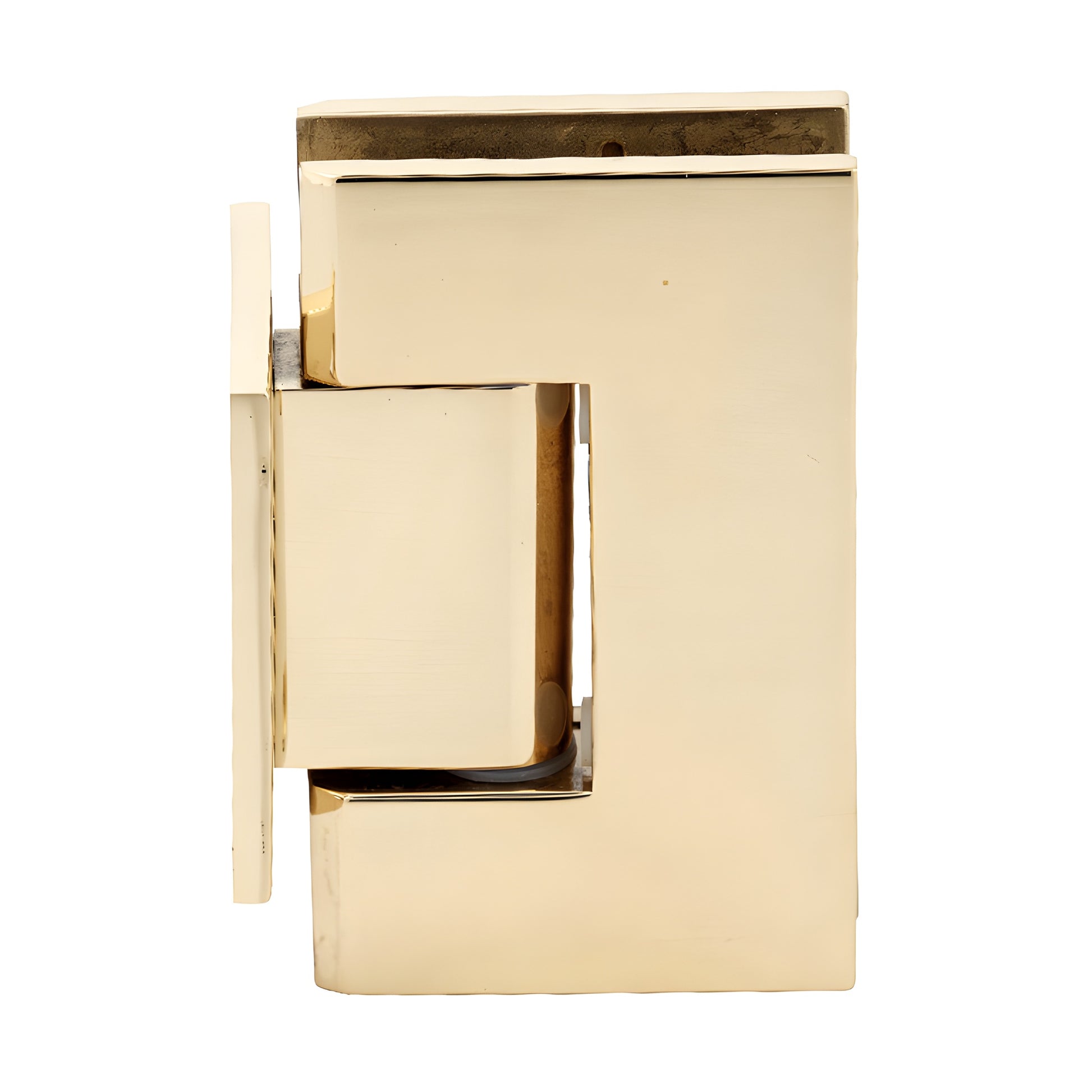

CRL Geneva 074 Brass Wall-Mount Short Back Plate Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty
• Wall-mount short back plate standard model
• For monolithic tempered safety glass (8 mm to 12 mm)

The CRL Geneva Series professional hinges (SKU: GEN074BR) are solid brass, heavy-duty shower door hinges designed for 5/16" (8 mm) to 1/2" (12 mm) tempered glass. Six style options (three Wall Mount and three Glass-to-Glass) provide design flexibility. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. All moving parts (pins and springs) are stainless steel for long-lasting performance.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active; Offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to change the active angle.

Custom Pivot Pin (Cat. No. GENP1N): If the reversible 5° pin does not achieve the desired swing, specify a custom pivot pin up to 45° (contact Technical Sales Shower Door Department). Note that custom pins may affect glass sizing and enclosure aesthetics.

Load ratings: using two hinges (8–12 mm glass) supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

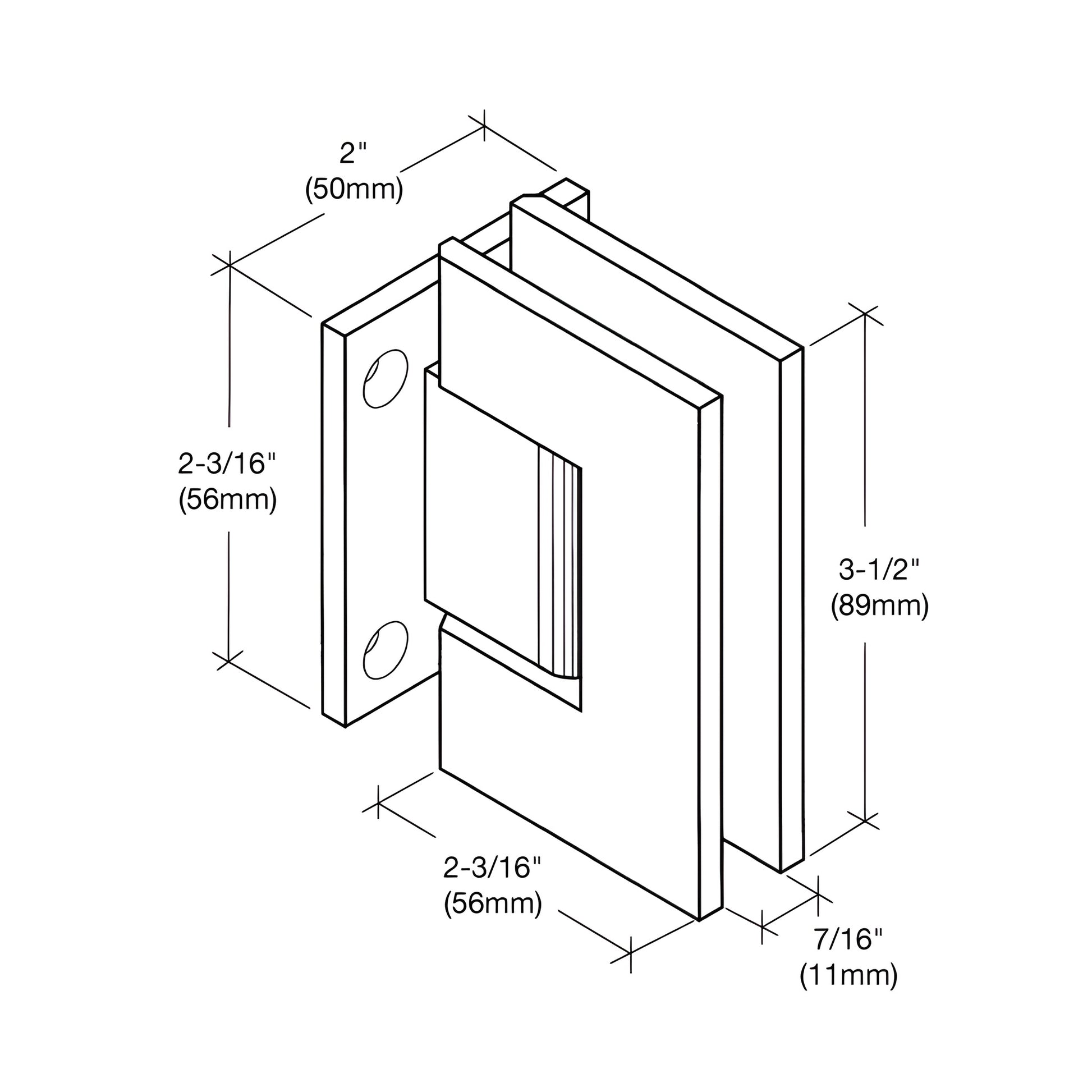

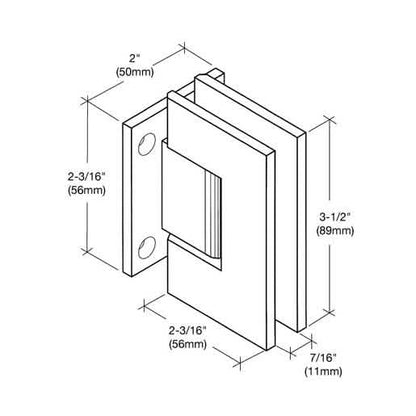

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Standard model factory-set at 0° closing or 5° pre-set model for tighter interior closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for 8 mm glass.

Custom finishes are available on request—contact Technical Sales Shower Door Division.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may differ from other brands.
