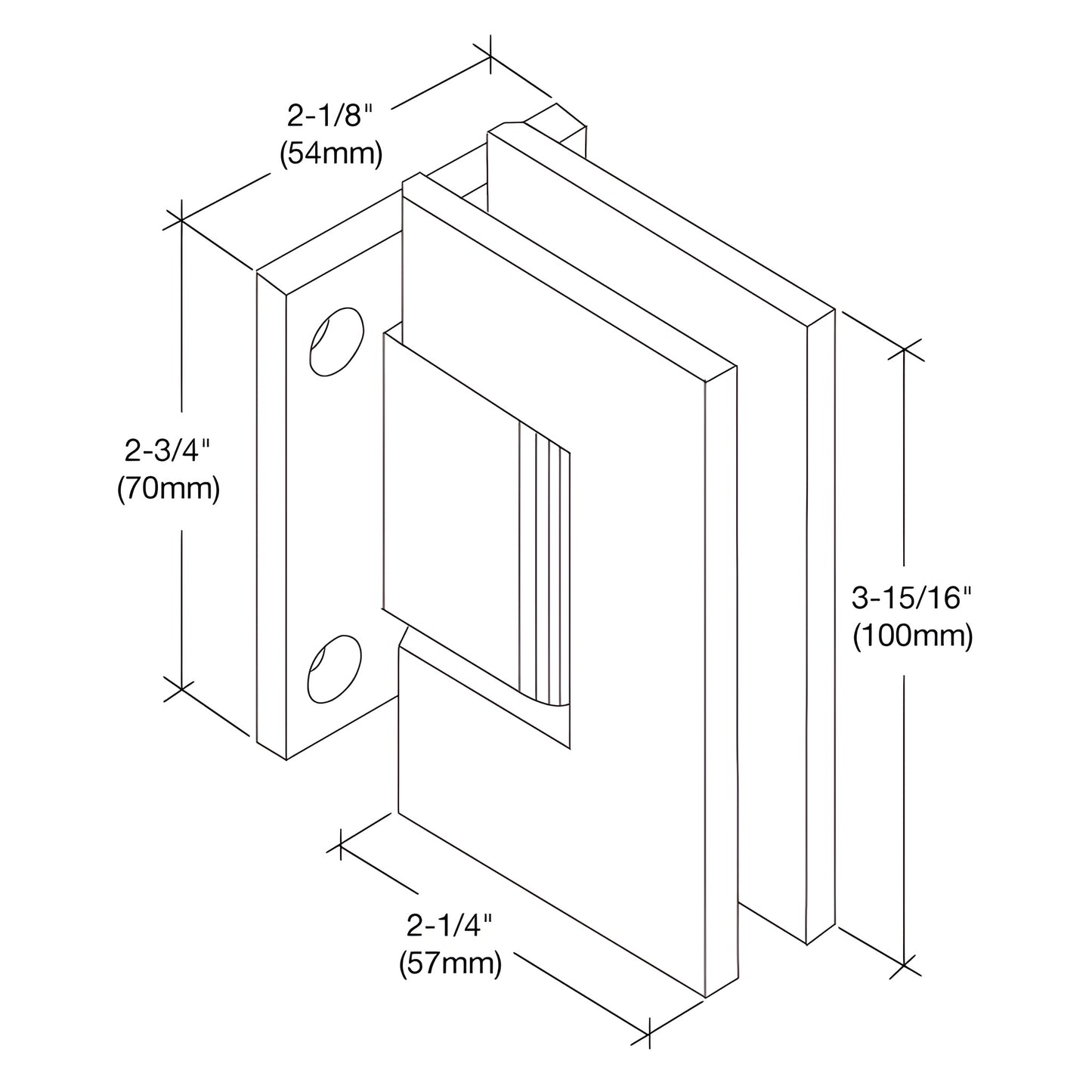

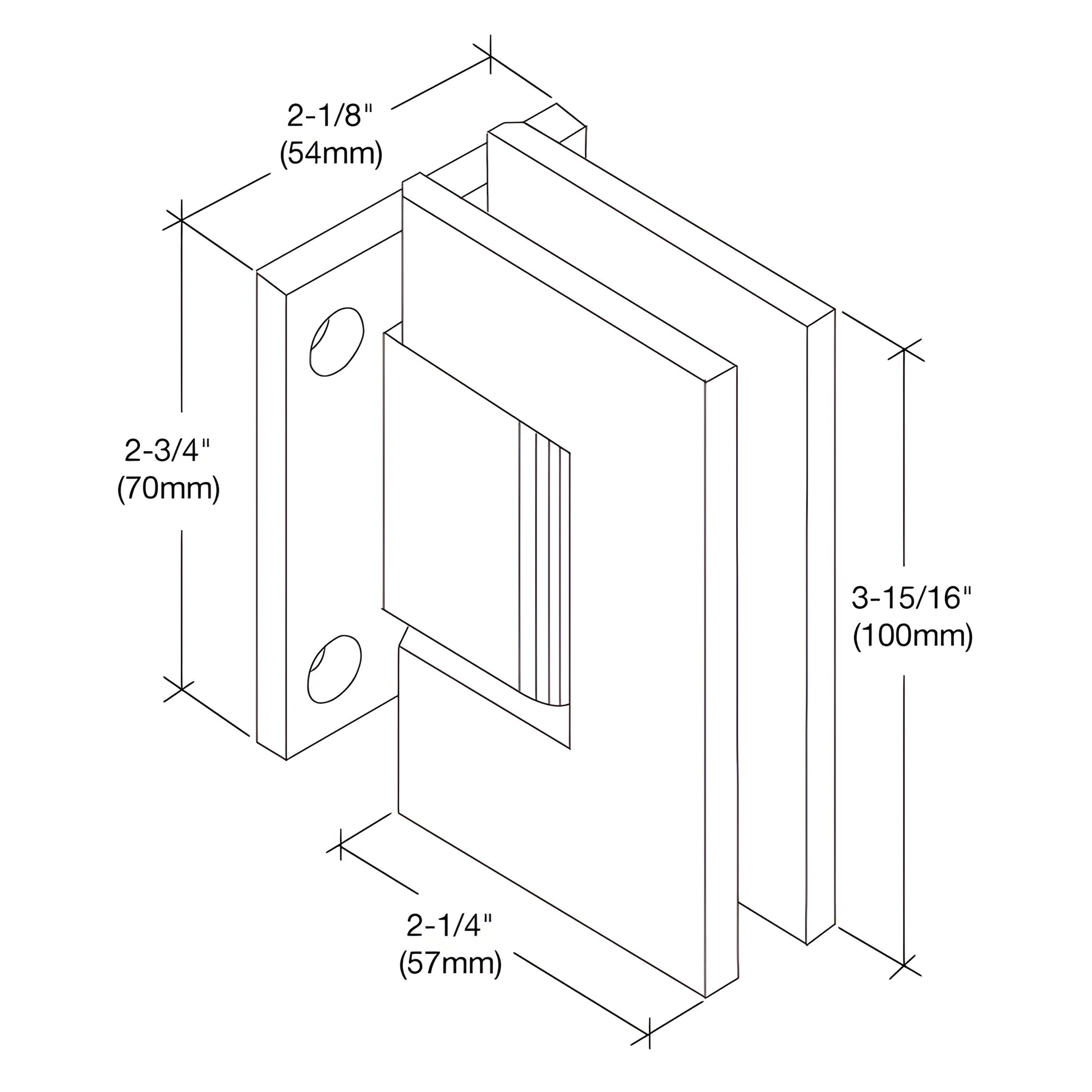

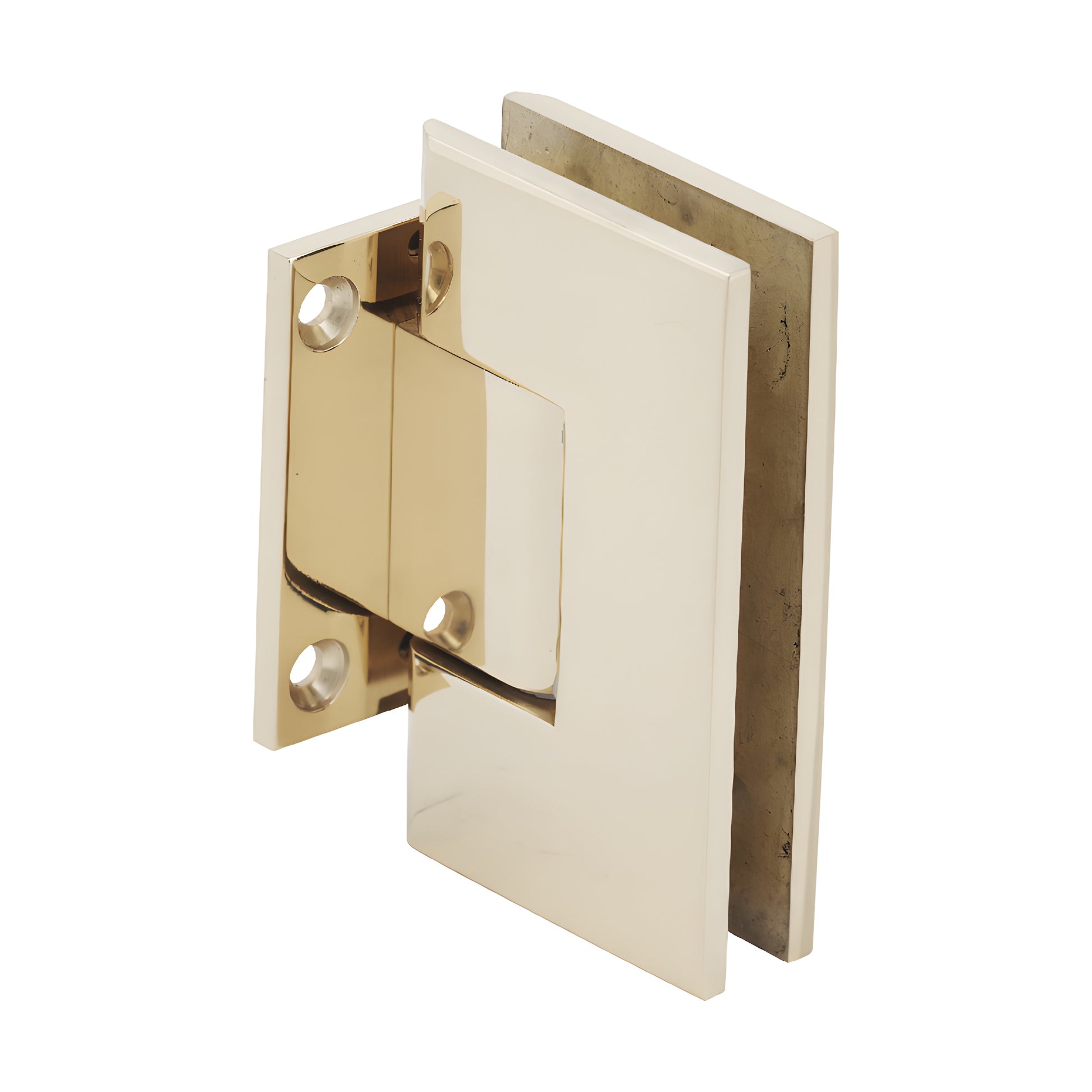

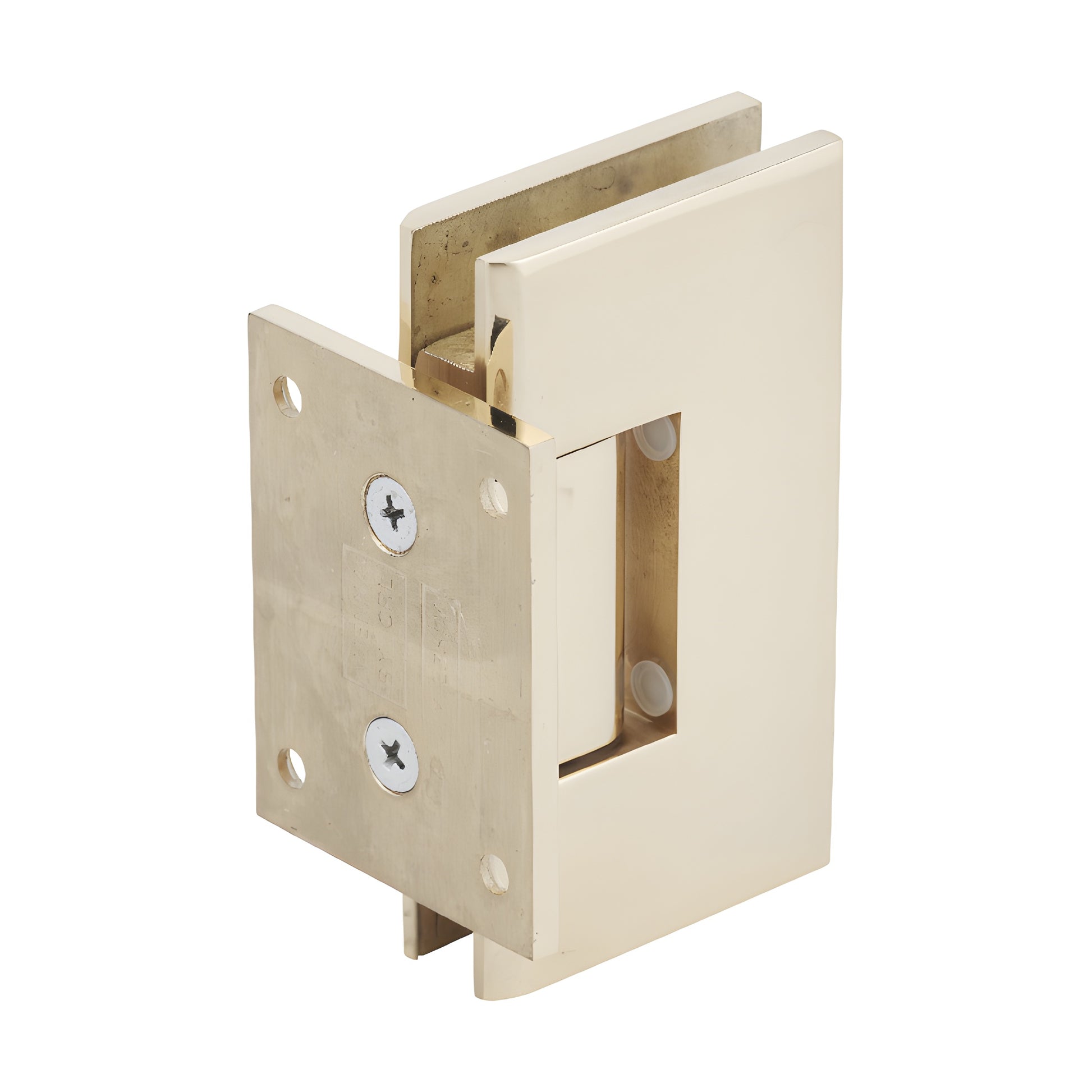

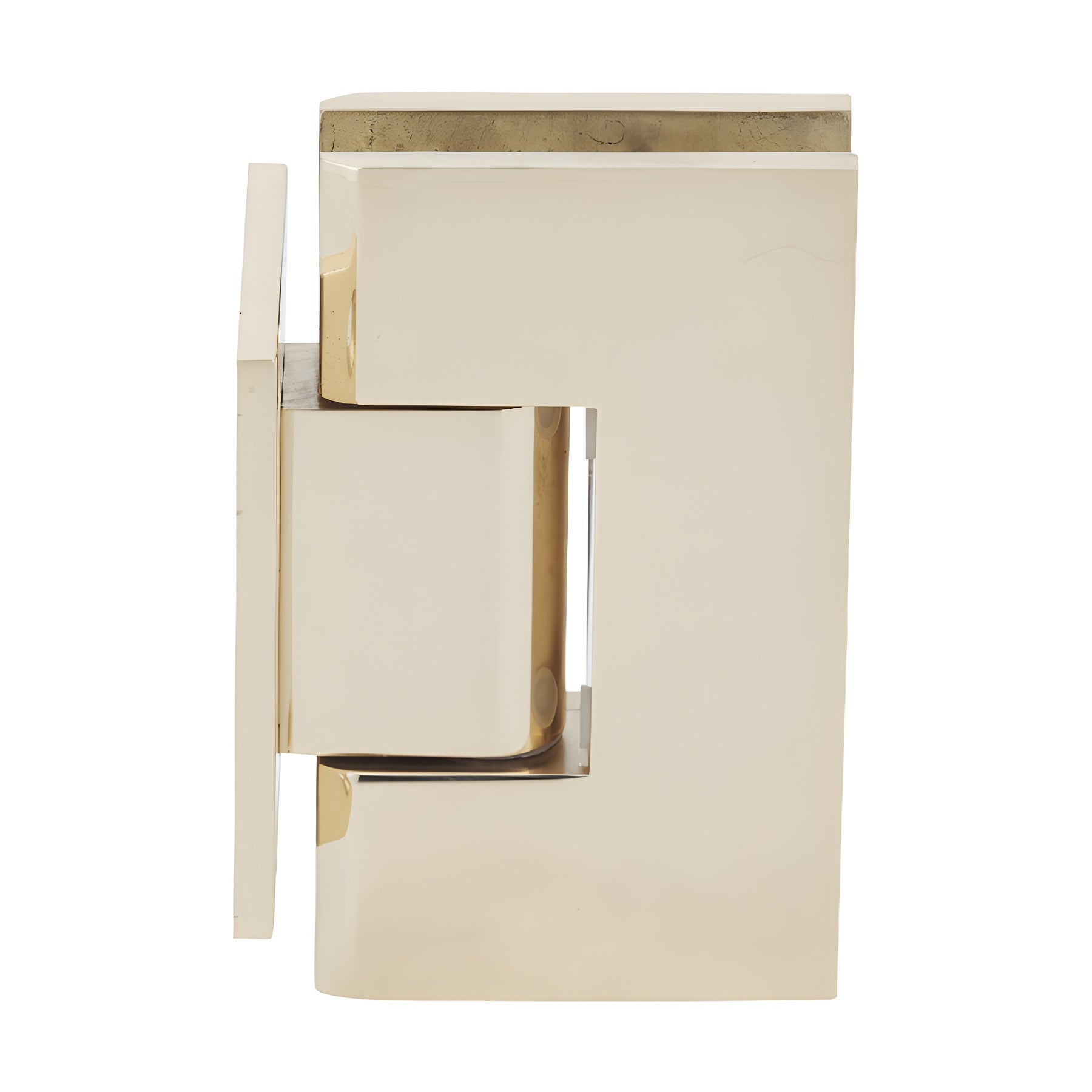

CRL Vienna 074 Polished Brass Wall-Mount Short Back-Plate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 Year Warranty
• Wall mount short back plate
• Use monolithic tempered safety glass

CRL Vienna Hinges are heavy-duty brass shower door hinges engineered for wider, heavier tempered glass doors where traditional hinges fail. Two internal steel pins provide mounting template flexibility: leave both pins in place for CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular/square-corner cut-outs (may fit some competitive rectangular cut-outs).

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge has a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° adjustment does not achieve the desired closing position.

Load Ratings:

• Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm)
• Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm)
• Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm)
• Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (heavy-duty shower door hinge)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)
