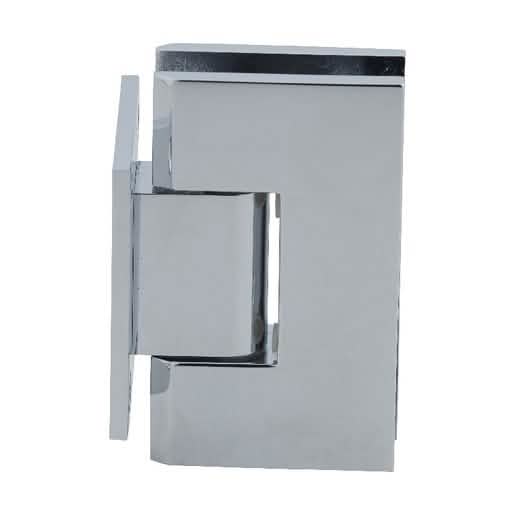

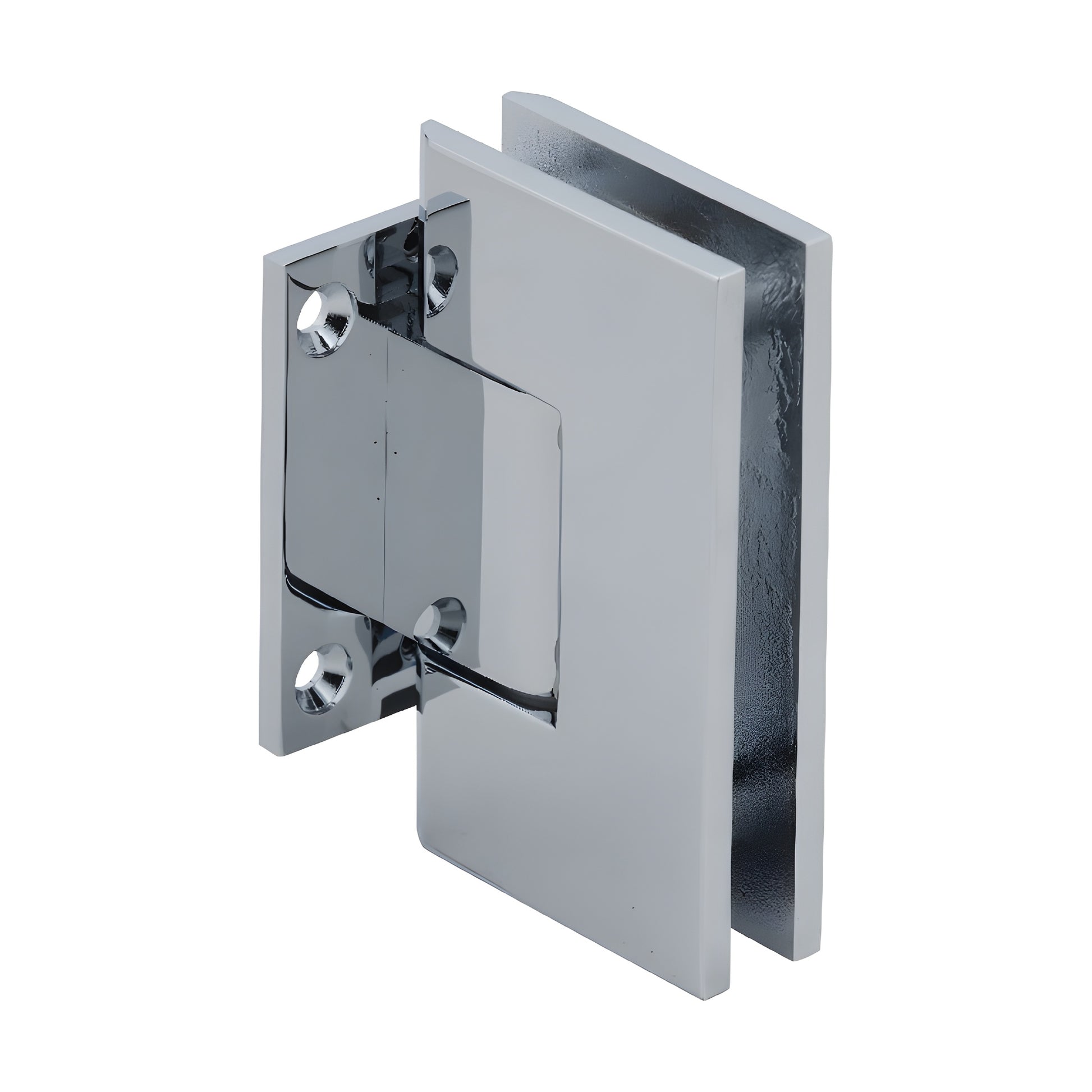

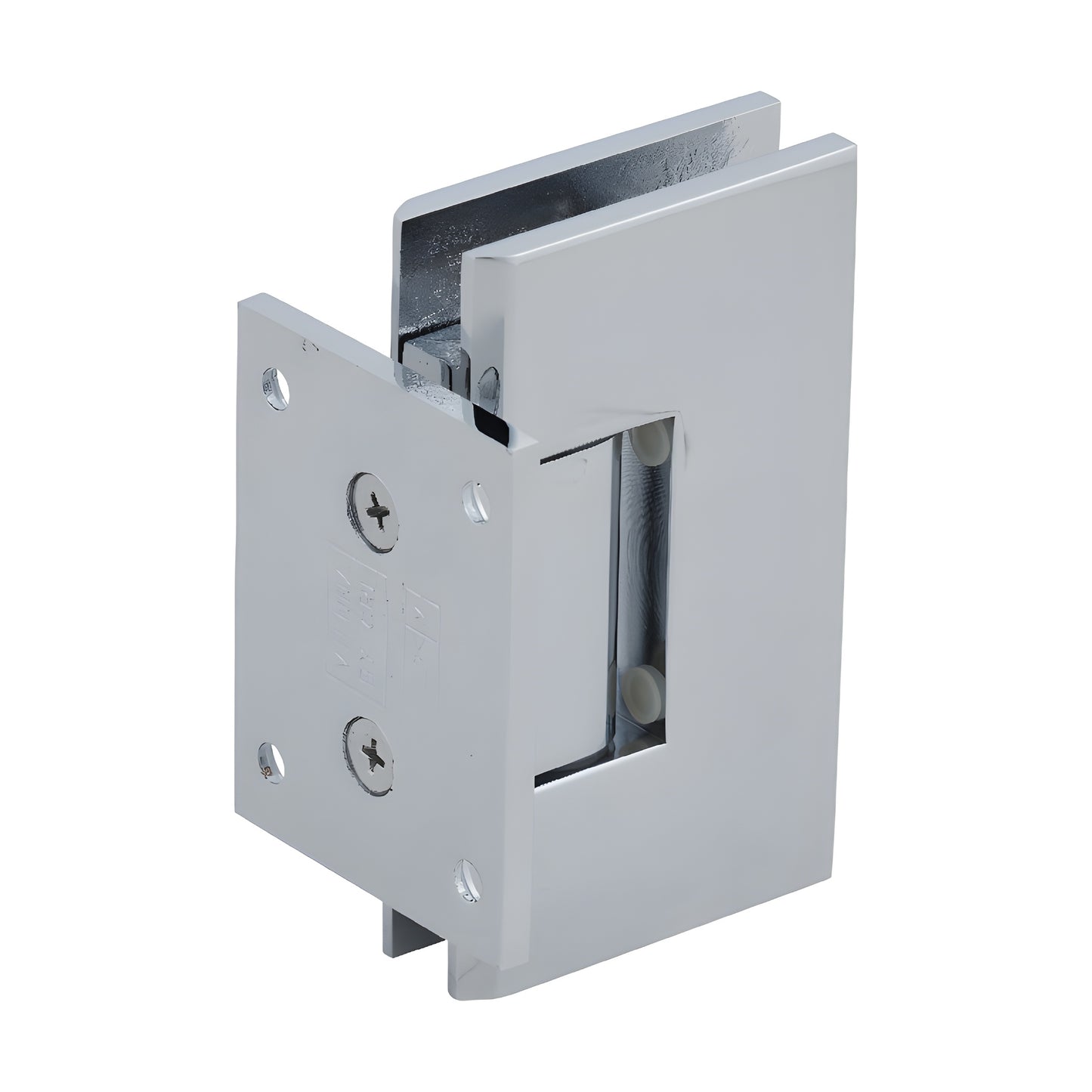

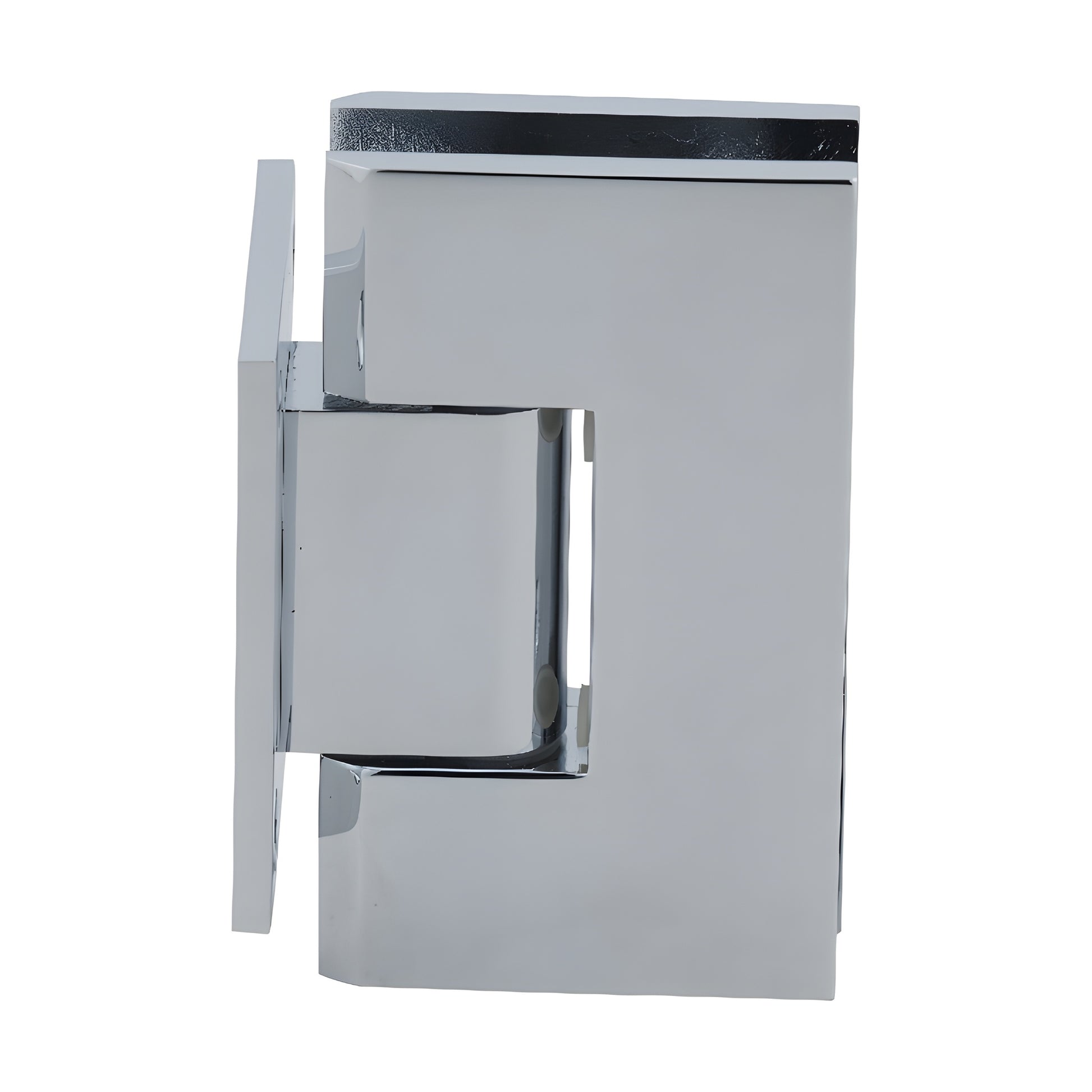

CRL Vienna 074 Polished Chrome Wall-Mount Short Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• Wall mount short back plate
• Use with monolithic tempered glass

CRL Vienna Hinges are heavy-duty brass shower door hinges engineered for wider, heavier frameless shower doors where standard hinges fail. Two internal steel pins provide mounting template options: leave pins in for compatibility with CRL "mouse-ears" cut-outs, or remove pins for increased adjustability and fit with CRL rectangular, square-corner cut-outs (may fit some competitive cut-outs as noted).

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°. Rotate the pin (do not flip) to activate the alternate 85° setting for a 5° tighter closure into the shower interior. Pre-set models ship with the 85° side activated.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° is insufficient to close the door as needed.

Load Ratings:
Using two hinges with 3/8" glass (10 mm): holds up to 100 lbs. (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" glass (12 mm): holds up to 100 lbs. (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" glass (10 mm): holds up to 130 lbs. (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" glass (12 mm): holds up to 130 lbs. (59 kg), max door width 32" (813 mm).

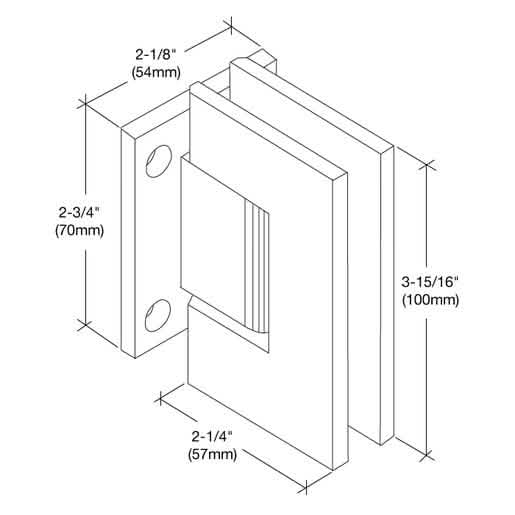

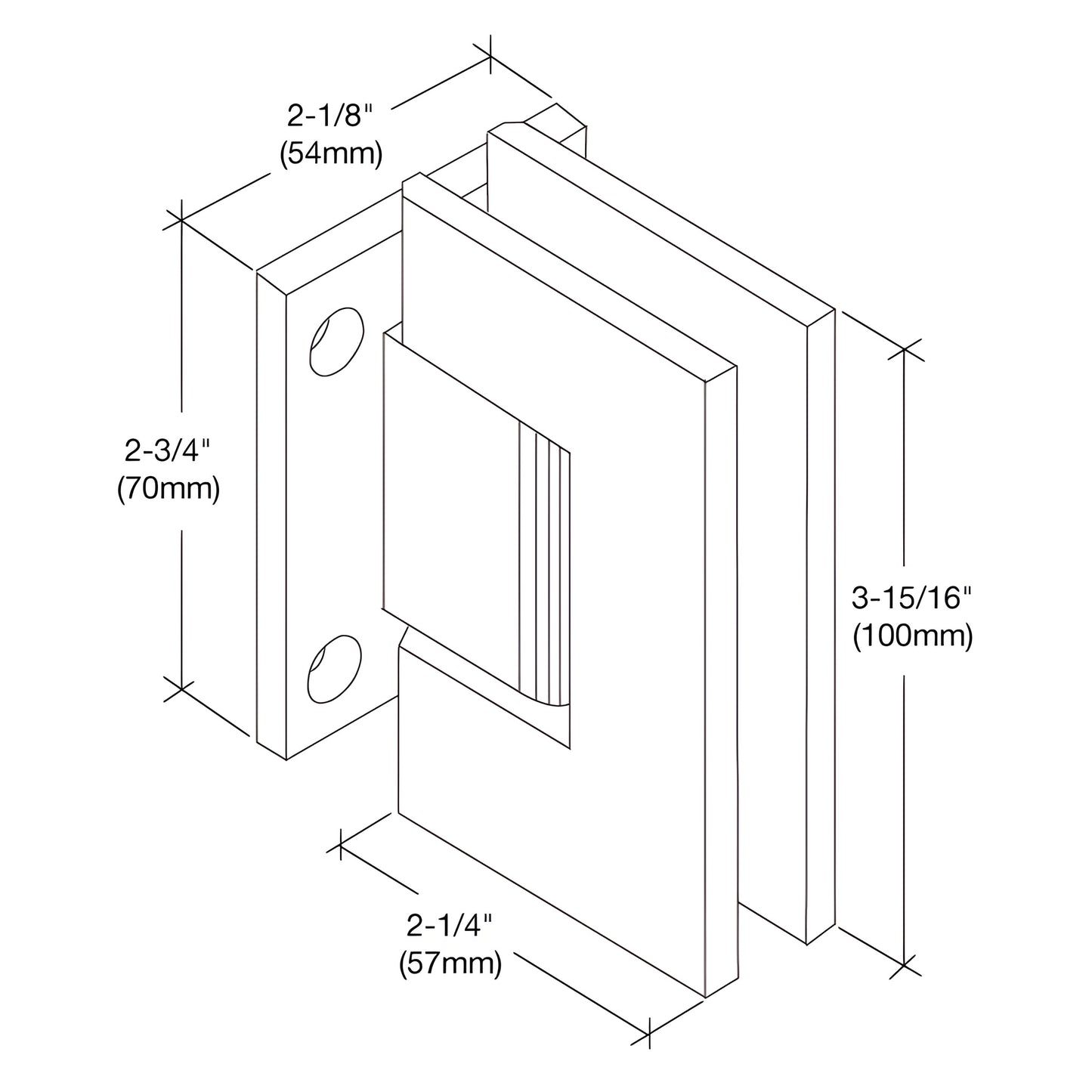

SPECIFICATIONS:
SKU: V1E074CH
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Unless noted (see product-specific guidance). Use only the CRL template supplied; CRL cut-outs may differ from other brands.
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)
