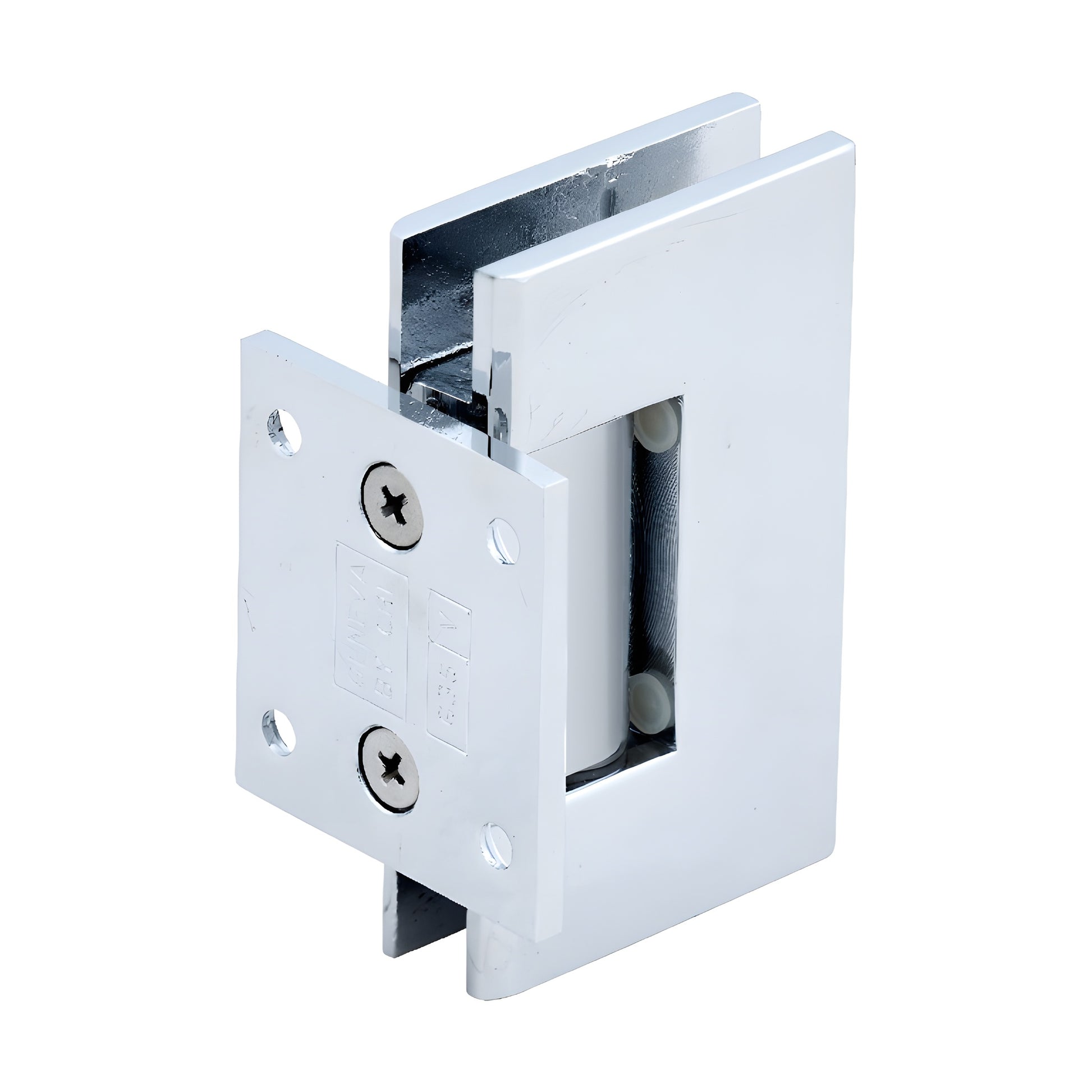

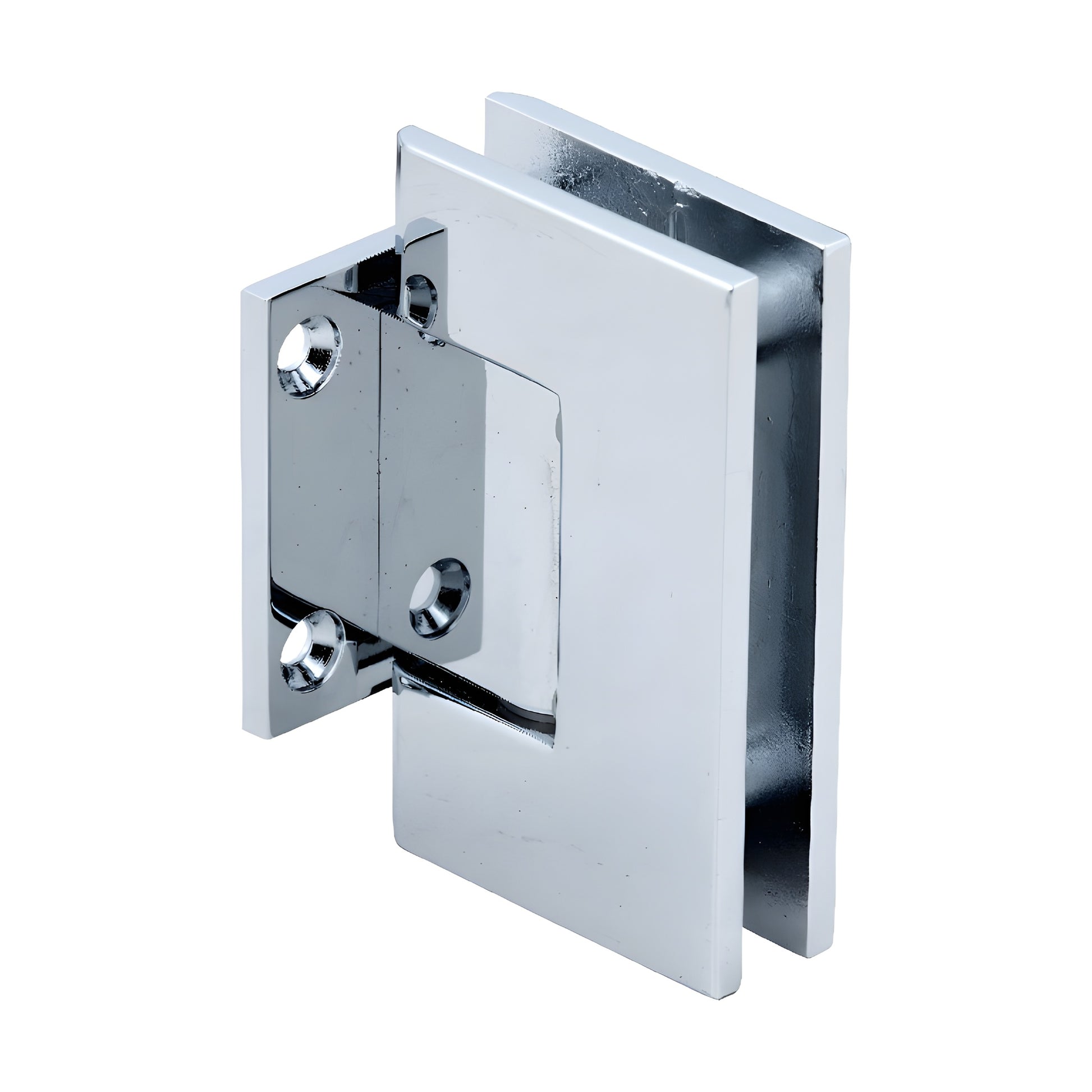

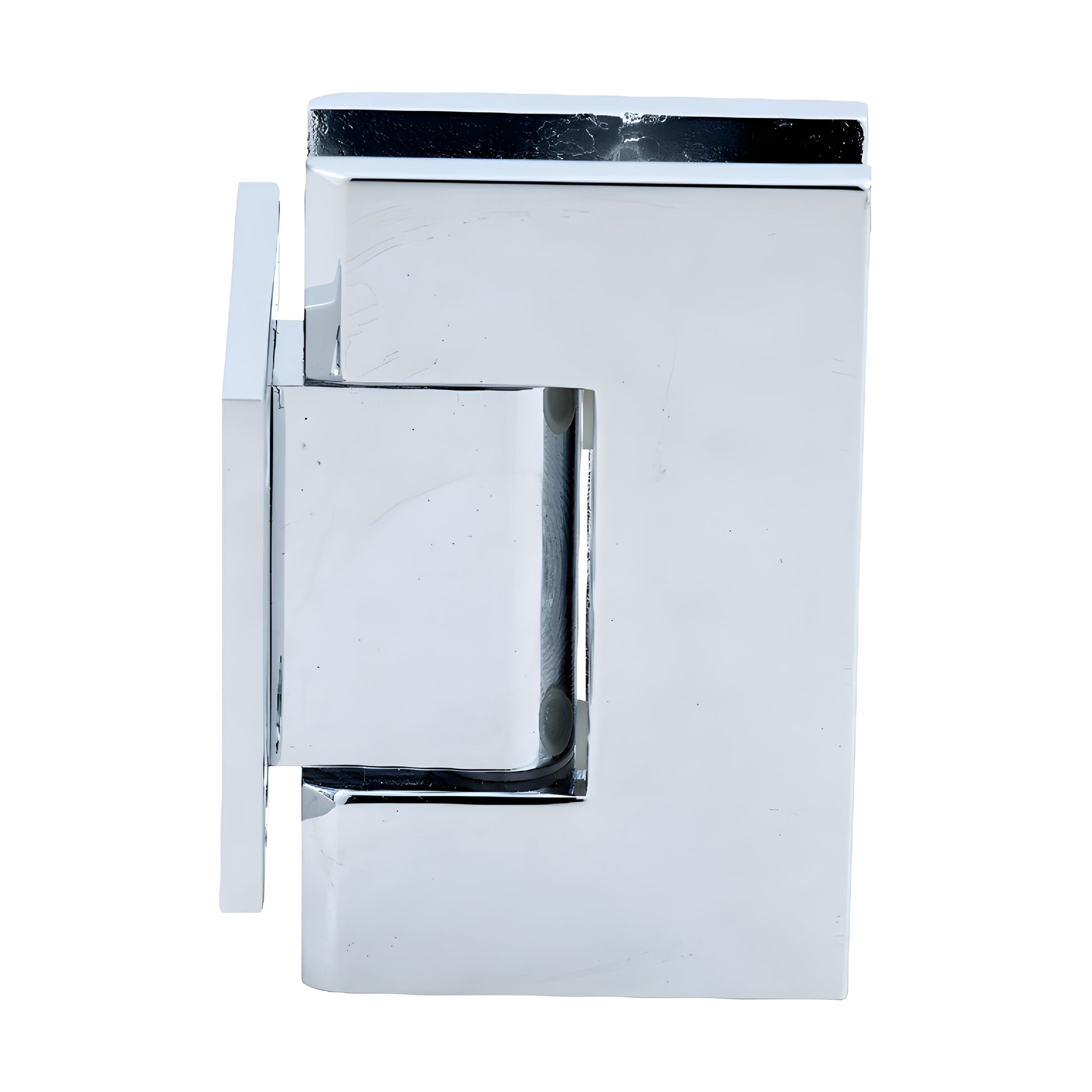

CRL Geneva 074 Chrome Wall-Mount Short Backplate Glass Door Hinge

• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall-mount short back plate standard model
• For use with monolithic tempered glass

CRL Geneva Series Hinges (SKU: GEN074CH) — professional-grade shower door hinges engineered for 5/16" (8 mm) to 1/2" (12 mm) tempered glass. Available in six styles (three Wall Mount and three Glass-to-Glass), Geneva Hinges provide design flexibility for frameless shower enclosures. Key differentiators include a reversible 5° pivot pin for improved self-centering, optional custom pivot pins for off-angle installations, and solid brass construction with stainless steel pins and springs for corrosion resistance.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship set to 90°; Offset models ship preset to 85° (5° tighter closure into the shower interior). The pin can be rotated to switch sides.

Custom Pivot Pin (Cat. No. GENP1N): Custom pivot pins are available up to 45° to accommodate off-angle installations. If the standard 5° reversible pin does not achieve the desired closure, specify the angle required and contact Technical Sales Shower Door Department. Note: using a custom pivot pin may affect glass sizes and enclosure aesthetics.

Performance: using two hinges with 5/16"–1/2" (8–12 mm) glass, each hinge set will support up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Standard model factory set at 0° closing position or available 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) tempered glass.

Custom finishes available on request — contact Technical Sales Shower Door Division.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. Use for other purposes requires approval from the CRL Shower Door
