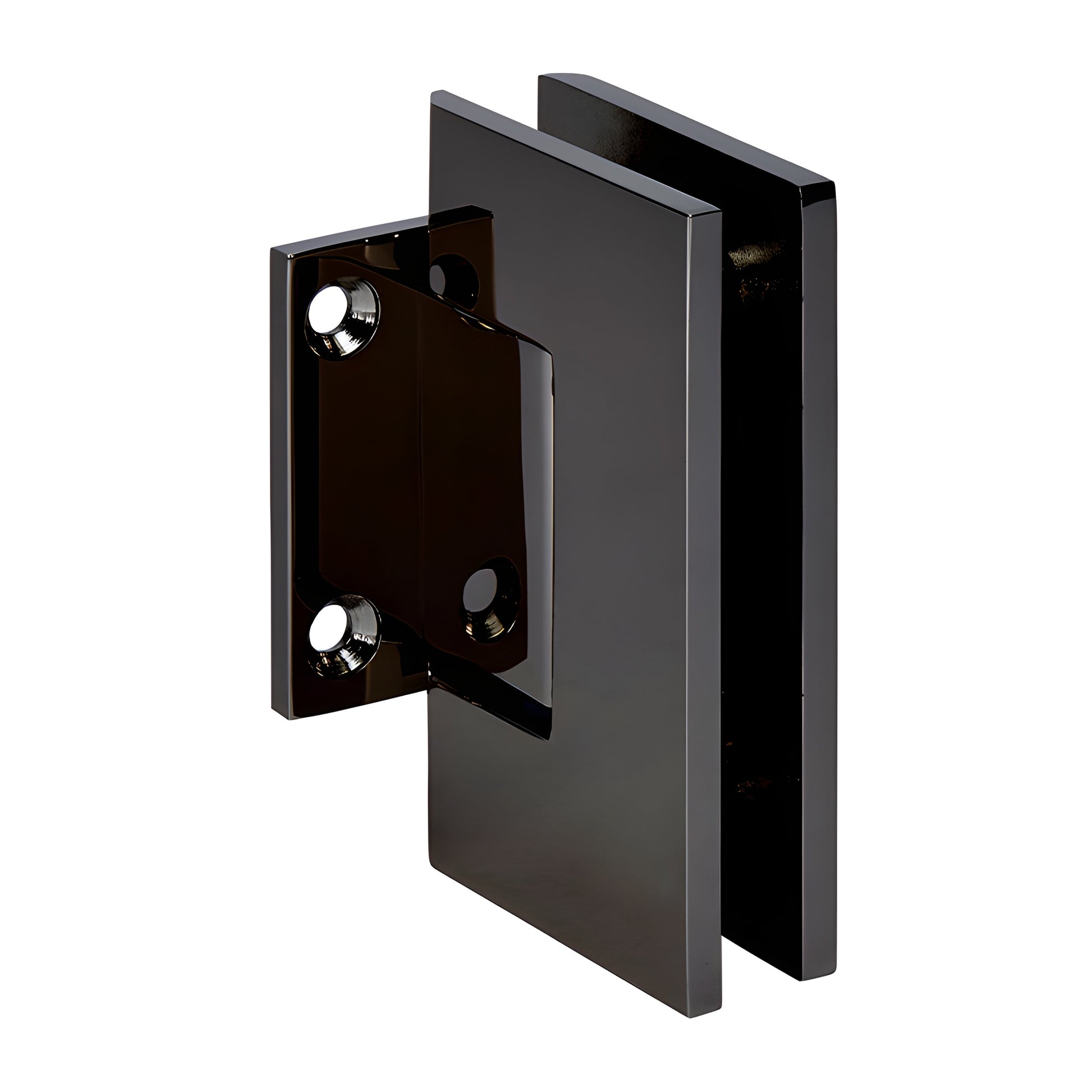

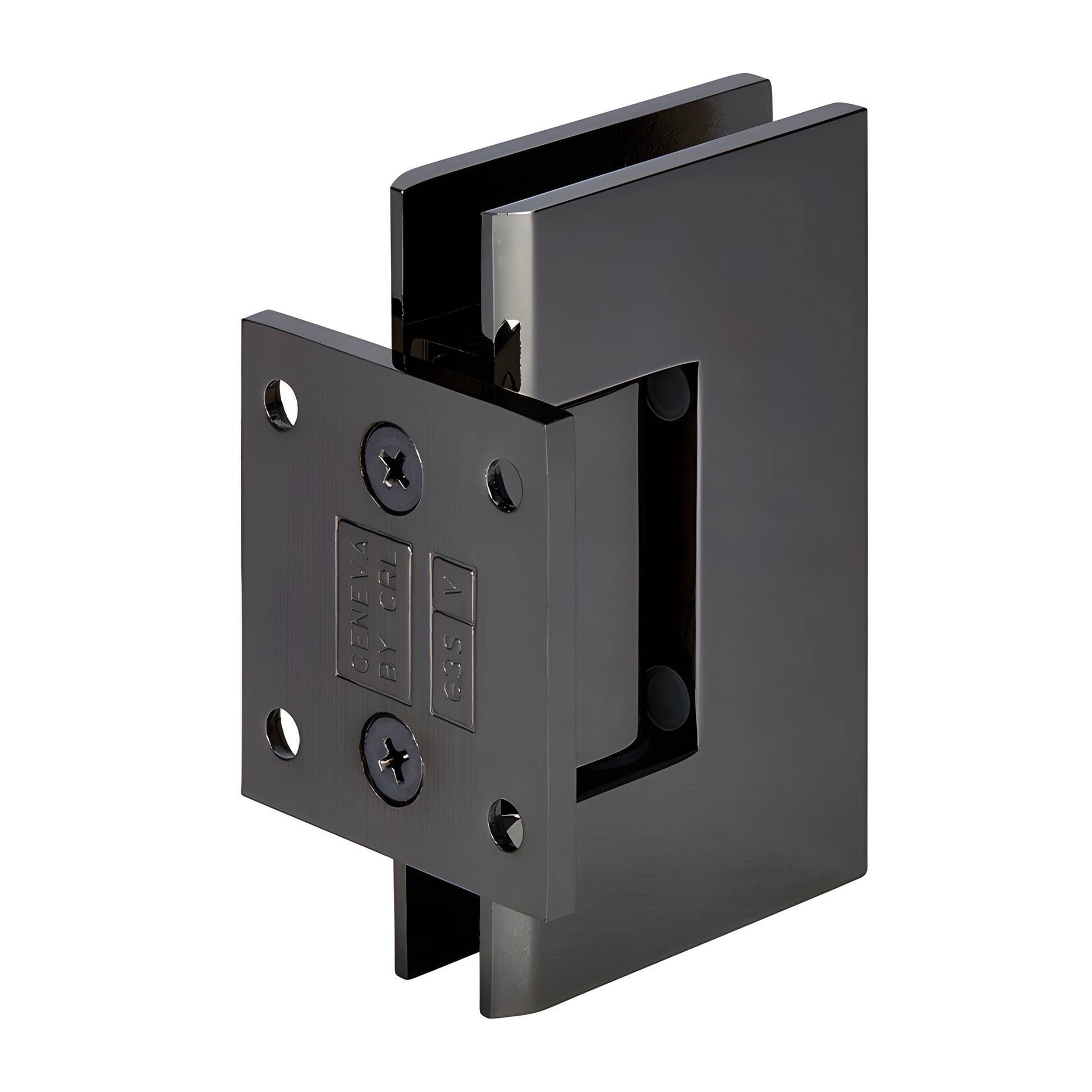

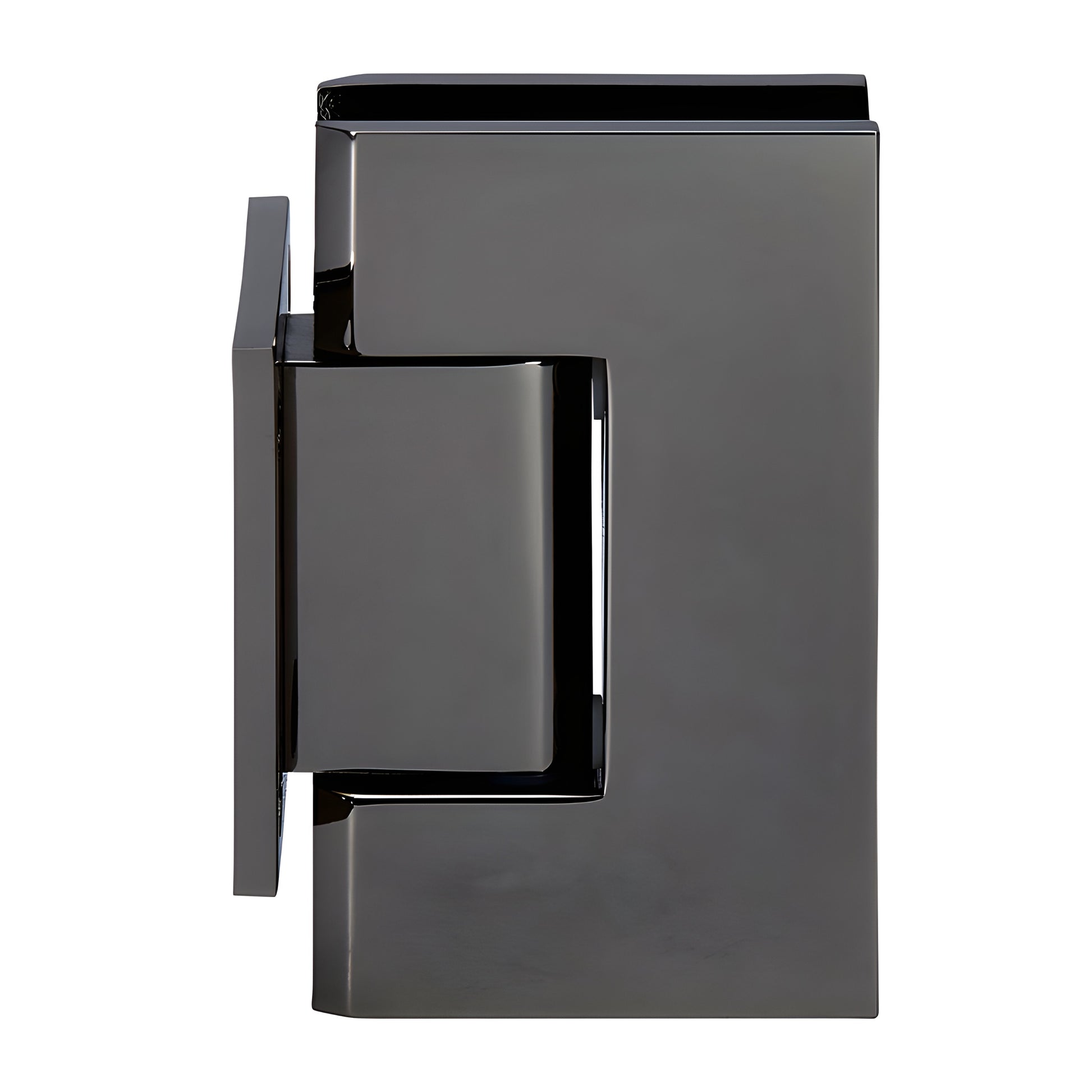

CRL Geneva 074 Gun Metal Wall Mount Short Back Plate Glass Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Short Back Plate Standard Model
• Use Monolithic Tempered Glass

CRL Geneva Series hinges (SKU: GEN074GM) are professional-grade shower door hinges designed for 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Constructed of solid brass with stainless steel pins and springs, Geneva Hinges provide durable performance and design flexibility with six style options—three Wall Mount and three Glass-to-Glass types.

Key differentiators: Reversible 5° pivot pin for adjustable closing, available custom pivot pins up to 45° for off-angle installations, solid brass construction, and multiple finish choices for matching high-end bathroom hardware.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°; Offset models are pre-set to 85°. Rotate the pin (do not flip) to change the active angle.

Custom Pivot Pin (Cat. No. GENP1N): If the reversible 5° pin does not achieve the desired closure, specify a Custom Pivot Pin up to 45° (contact Technical Sales Shower Door Department). Custom pins may affect glass sizing and enclosure aesthetics.

Performance: Two hinges on 8–12 mm glass support up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Three hinges support up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

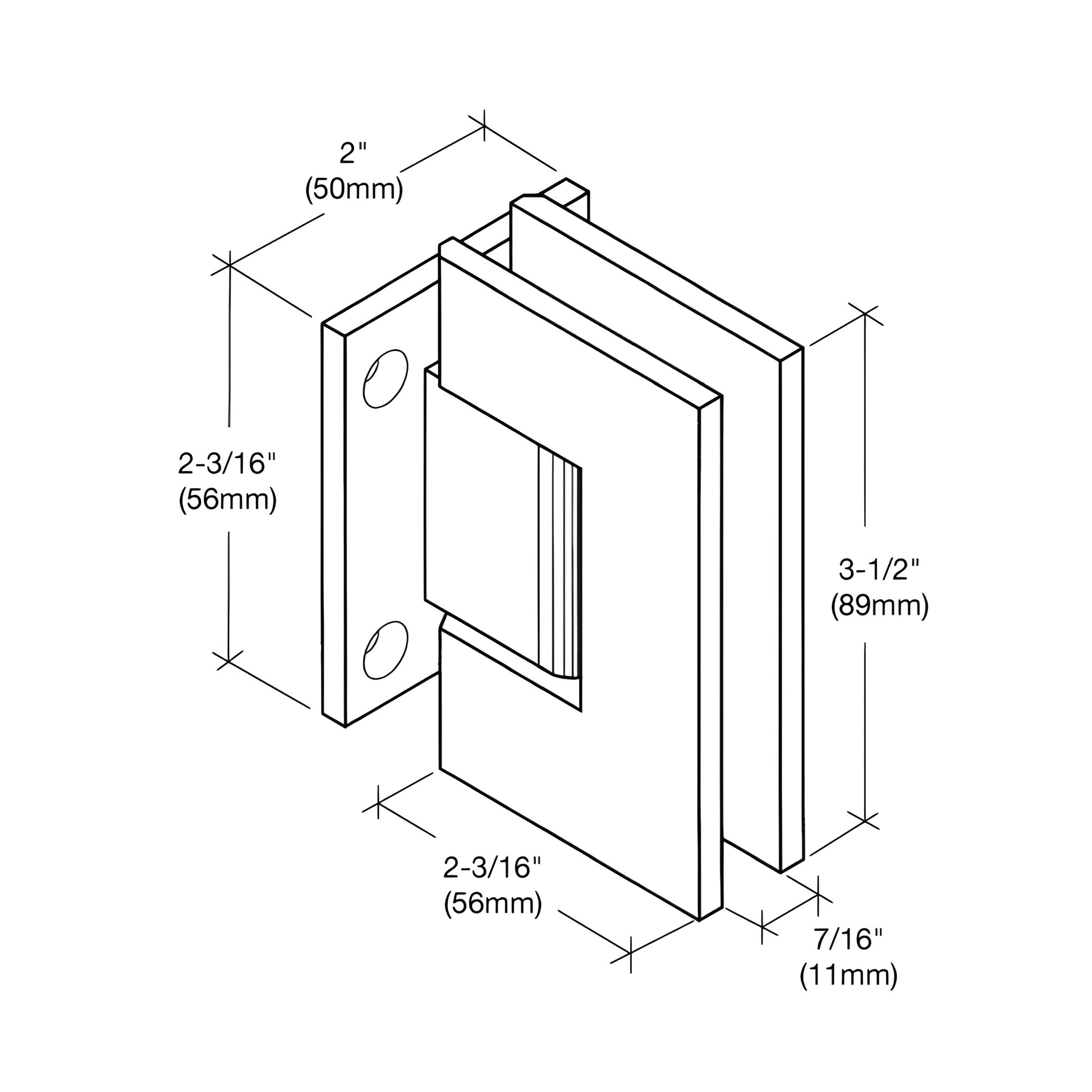

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model (0° closing) or 5° Pre-Set model for tighter closure into shower interior.
Construction: Solid Brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat.
