CRL Gun Metal Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge
CRL Gun Metal Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge
Regular price
$154.97 CAD
Regular price
Sale price
$154.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GEN180GM
Shipping Weight: 2.54 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.54 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1




Description
5 Degree Pre-Set No | No |
Edge | Profile Square |
Finish/Color | Gun Metal |
Glass To Glass Angle | 180 |
Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |

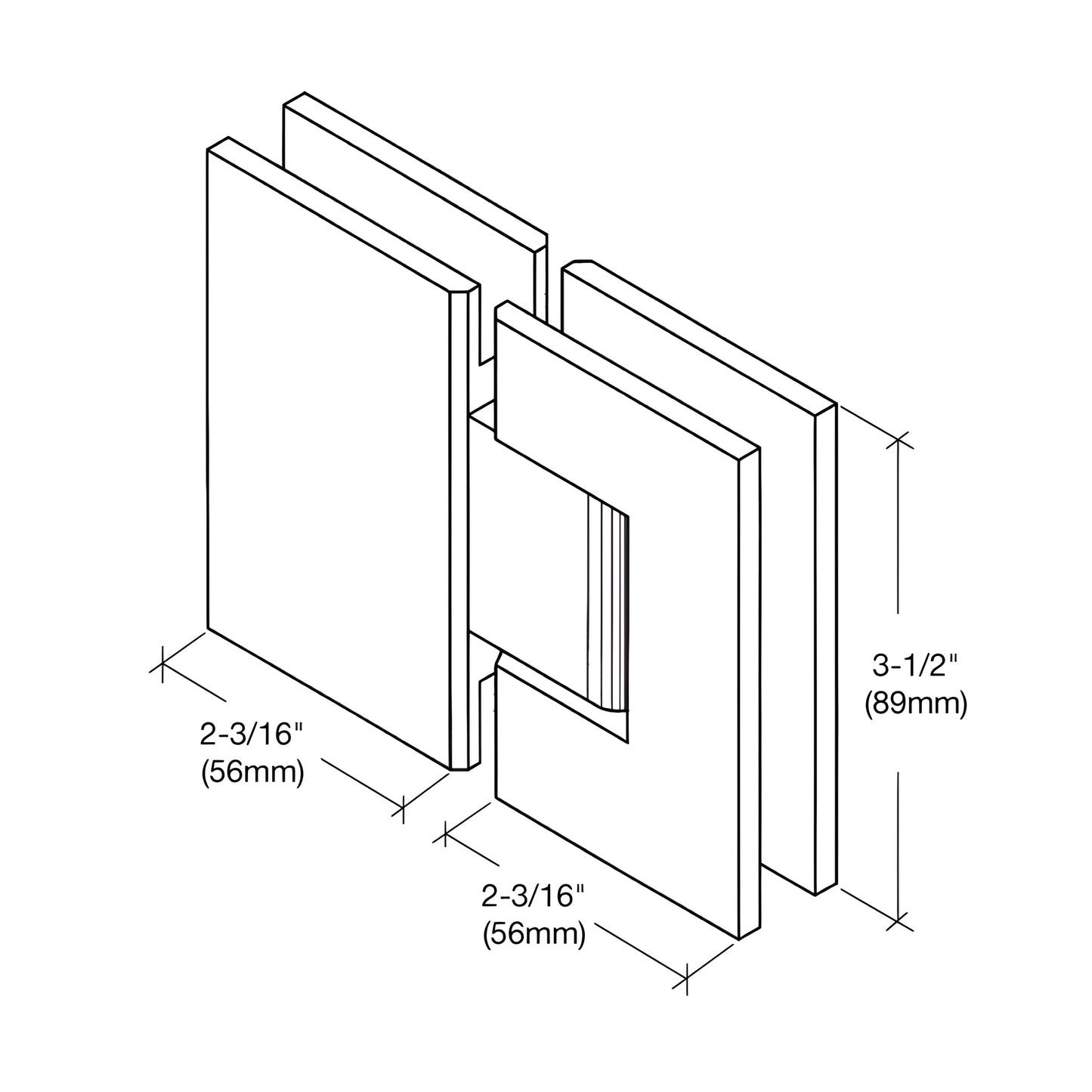

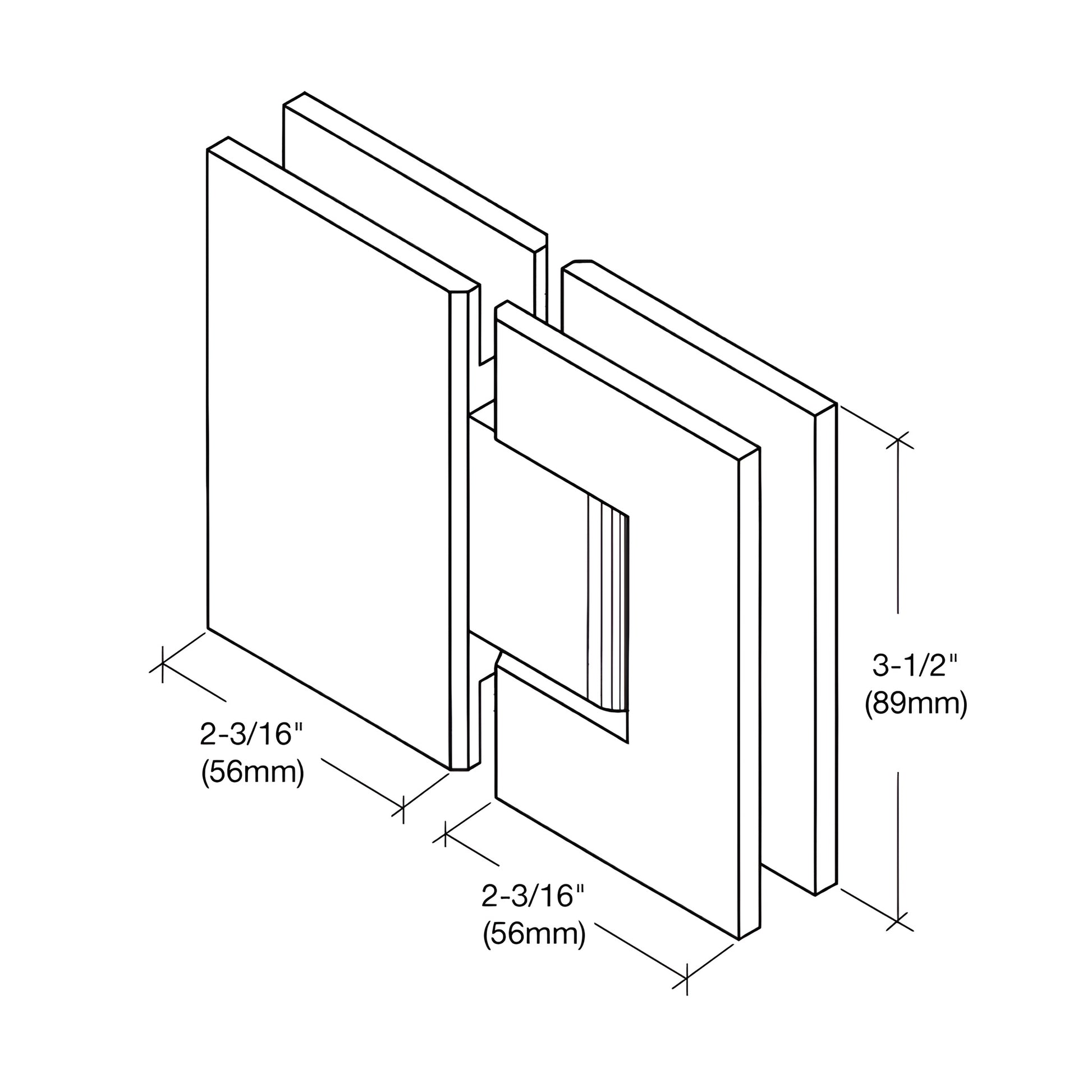

Height 3-1/2 in. | (89 mm) |
Material | Brass |
Maximum Door Weight - 2 Hinges 80 lbs. | (36.3 kg) |
Maximum Door Weight - 3 Hinges 120 lbs. | (54.4 kg) |
Maximum Door Width - | 2 Hinges 28 |
Maximum Door Width - | 3 Hinges 32 |
Mounting | Type Glass To Glass |
Self-Centering Yes | Geneva |
Width - Door Portion 2-3/16 in. | (56 mm) |
Width - Sidelite Portion | 2-3/16 |
Overview
The CRL Geneva Series offers professional-grade hinges designed for 5/16" (8 mm) to 1/2" (12 mm) tempered glass, providing incredible flexibility with six styles, including both Wall Mount and Glass-to-Glass options.
These self-centering hinges feature a reversible 5-degree pivot pin and are crafted from durable solid brass with stainless steel moving parts, ensuring longevity and reliability.
The Geneva hinges can support up to 120 lbs.
with three hinges and offer a range of beautiful finishes, backed by a three-year warranty.
Custom pivot pins are available for off-angle installations, and all necessary hardware, including gaskets and screws, are included for a seamless fitting.
These self-centering hinges feature a reversible 5-degree pivot pin and are crafted from durable solid brass with stainless steel moving parts, ensuring longevity and reliability.
The Geneva hinges can support up to 120 lbs.
with three hinges and offer a range of beautiful finishes, backed by a three-year warranty.
Custom pivot pins are available for off-angle installations, and all necessary hardware, including gaskets and screws, are included for a seamless fitting.
